Summit SCR610BLCHCSS 24″ Wide Built-In Commercial Wine Cellar – Stainless Steel Cabinet & Glass Door, 5.0 cu ft Capacity
Customer service
Features
- SKU SA-SCR610BLCHCSS
Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation.

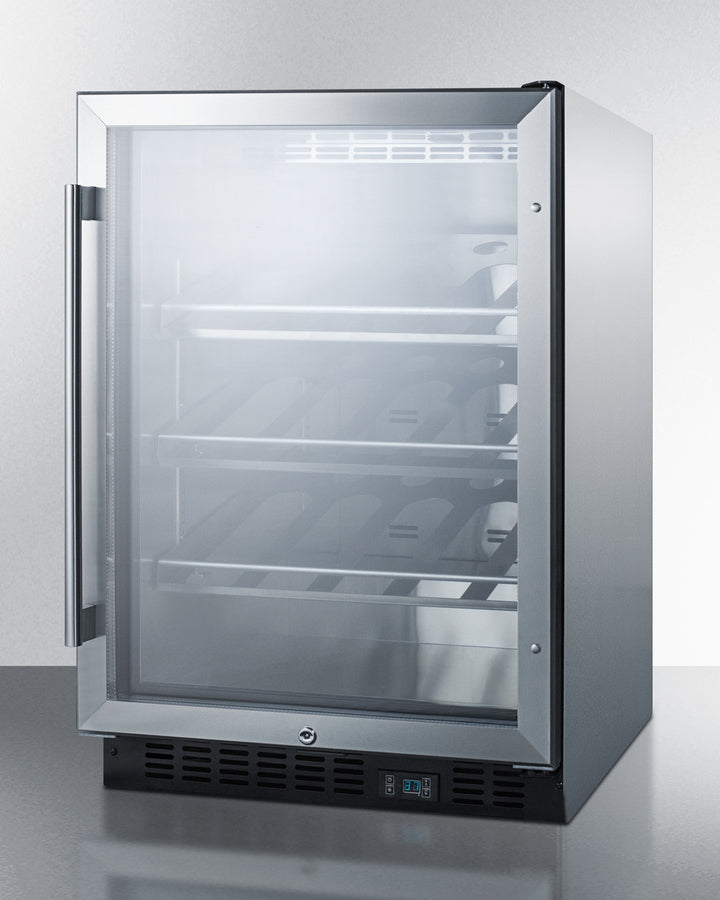

The SCR610BLCHCSS is an undercounter wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, with large 5 cu.ft. interior. This unit features a front-breathing design for built-in installation, with a stainless steel wrapped cabinet that also allows freestanding use. The reversible stainless steel trimmed glass door includes a pro style handle and factory-installed lock for added security.

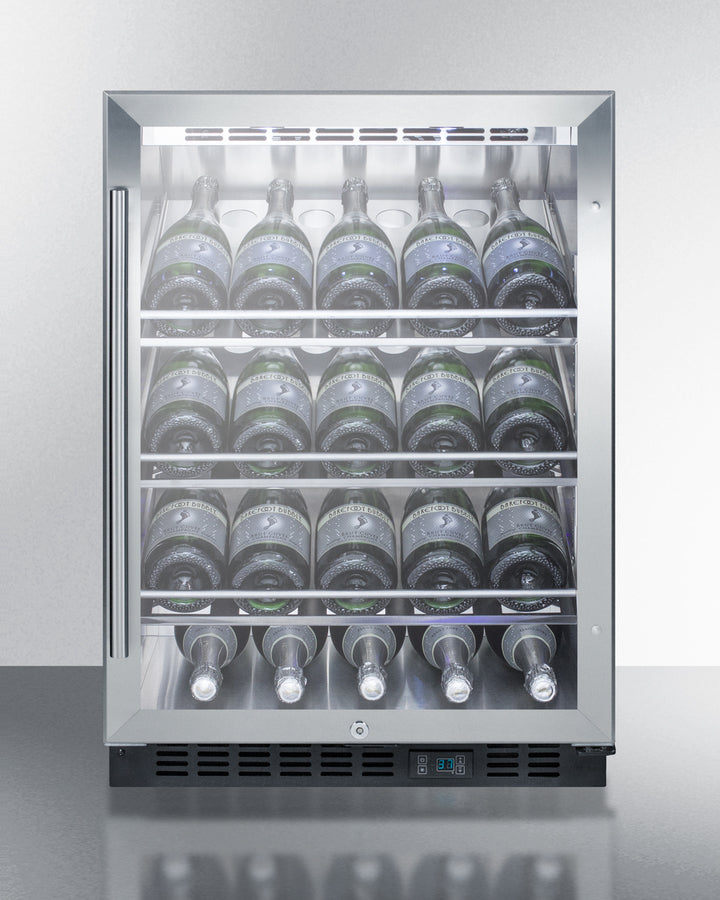

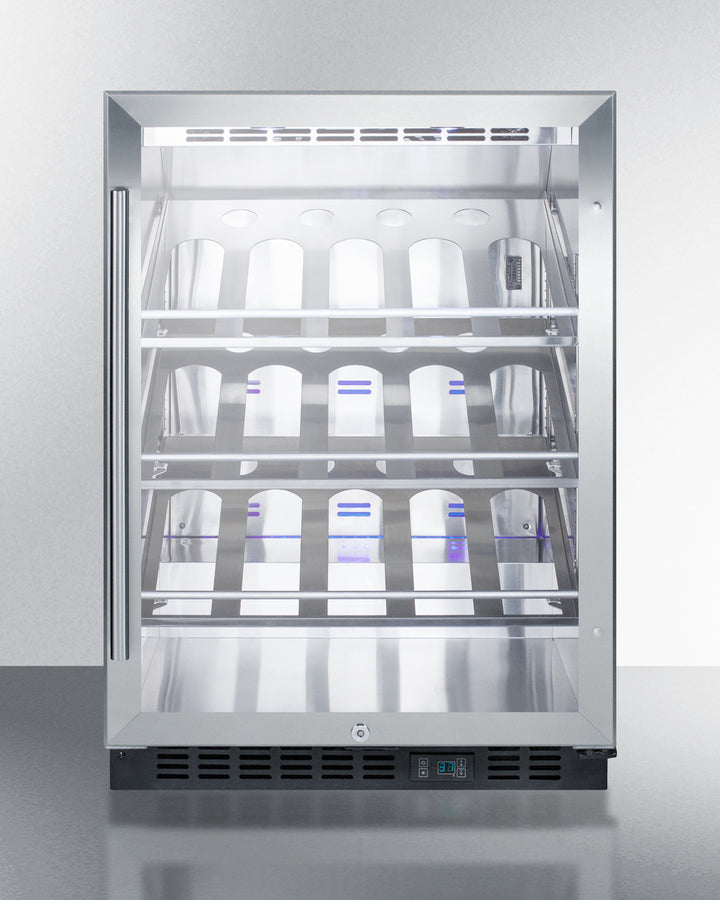

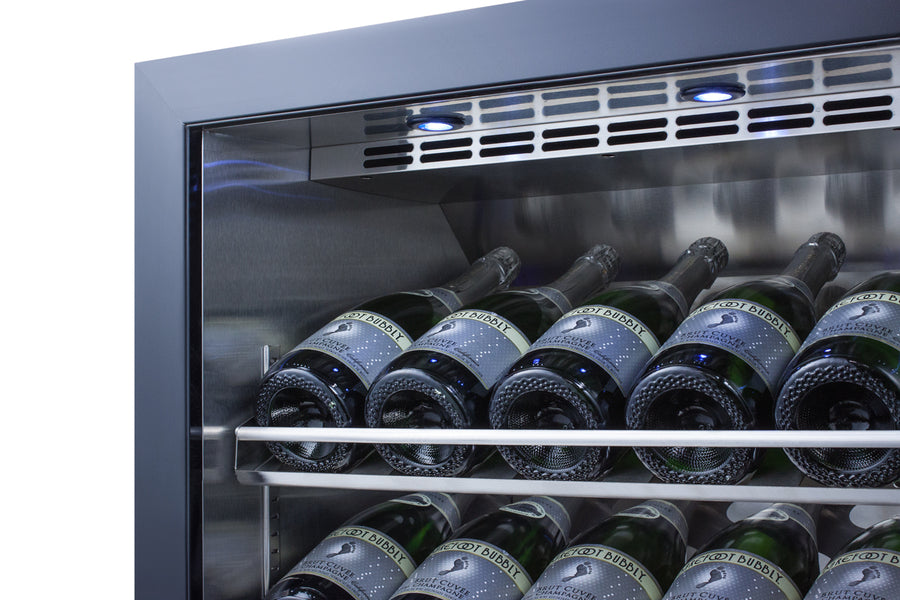

Inside, the SCR610BLCHCSS includes stainless steel shelving specially designed to hold champagne and sparkling wine bottles at a slight angle, providing a full display of the label. The interior walls and floor are constructed from stainless steel for lasting durability in busy commercial settings. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. Digital controls make it easy to manage the interior.
With its unique design and commercial grade construction, the SCR610BLCHCSS is the perfect undercounter option for storing and displaying larger bottles. Additional choices are available for outdoor use, and in larger sizes for higher bottle capacity. Browse our website for more options.
| Overview | Refrigerator/Freezer | ||
| Nominal Height | 34.0" (86 cm) | Number of Zones | 1 |
| Height of Cabinet | 34.0" (86 cm) | Door Swing | RHD |
| Nominal Width | 24.0" (61 cm) | Reversible | Yes |
| Width | 23.63" (60 cm) | Shelf Type | Steel |
| Nominal Depth | 24.0" (61 cm) | Shelf Qty | 3 |
| Depth | 23.5" (60 cm) | Thermostat Type | Digital |
| Depth with Handle | 25.38" (64 cm) | Interior Light | Yes |
| Depth with door at 90° | 45.5" (116 cm) | Fan Type | Interior and Exterior |
| Capacity | 5.0 cu.ft. (142 L) | Refrigerant Type | R600a |
| Bottles | 20 bottles | Refrigerant Amount | 0.99 oz. |
| Defrost Type | Automatic | High Side PSI | 270.0 |
| Door | Glass | Low Side PSI | 105.0 |
| Cabinet | Stainless Steel | Interior Height 1 | 25.0" (64 cm) |
| US Electrical Safety | ETL | Interior Width 1 | 19.38" (49 cm) |
| Canadian Electrical Safety | ETL-C | Interior Depth 1 | 17.38" (44 cm) |
| Sanitation | ETL-S | Compressor Step Height | 3.75" (10 cm) |
| Amps | 0.8 | Compressor Step Width | 19.38" (49 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Depth | 4.63" (12 cm) |
| Weight | 150.0 lbs. (68 kg) | Temperature Range | 36 to 43ºF |
| Parts & Labor Warranty | 1 Year | Sound Level | 37.4 dB |
| Compressor Warranty | 5 Years | ||
| UPC | 761101065120 |
|
