Summit SWC532BLBISTPNR 24″ Wide Built-In Dual-Zone Wine Cellar – Panel-Ready, 46-Bottle Capacity
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
Summit's extensive selection of built-in undercounter commercially approved wine cellars includes elegant choices that let you achieve a custom look ideal for any space.

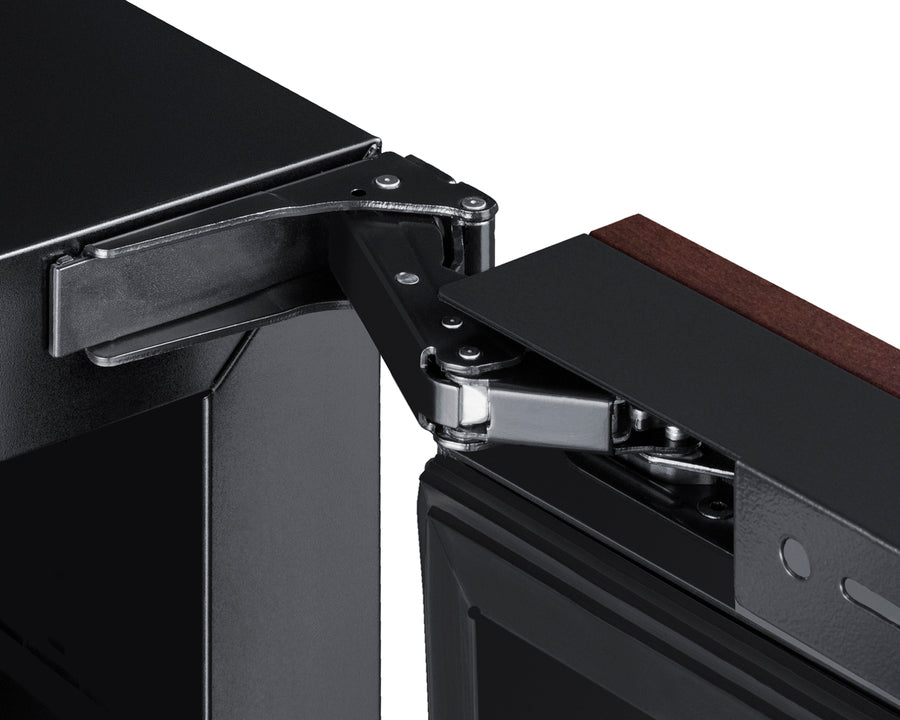

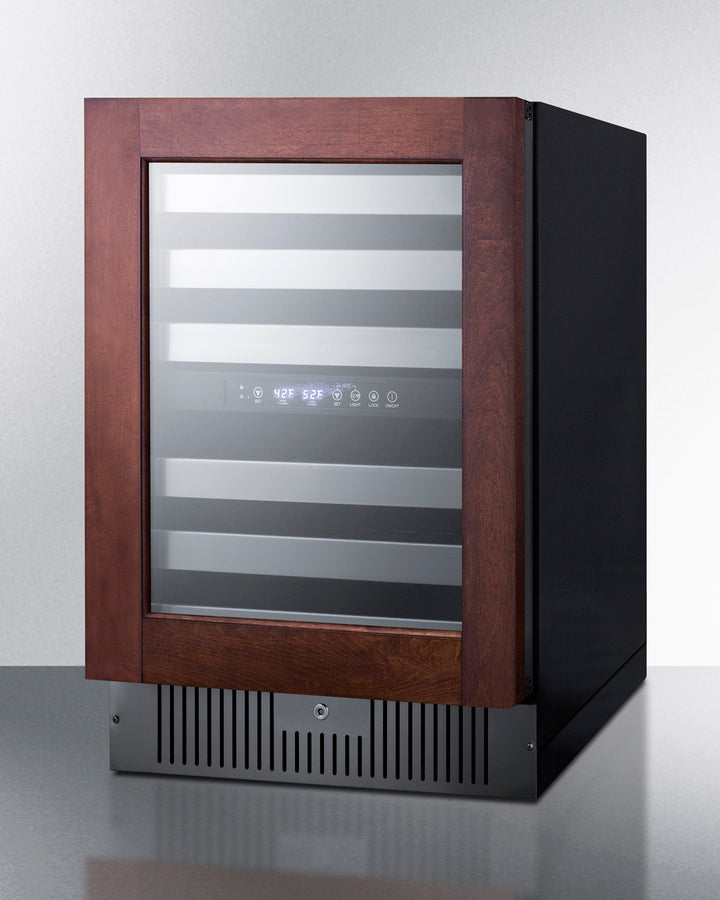

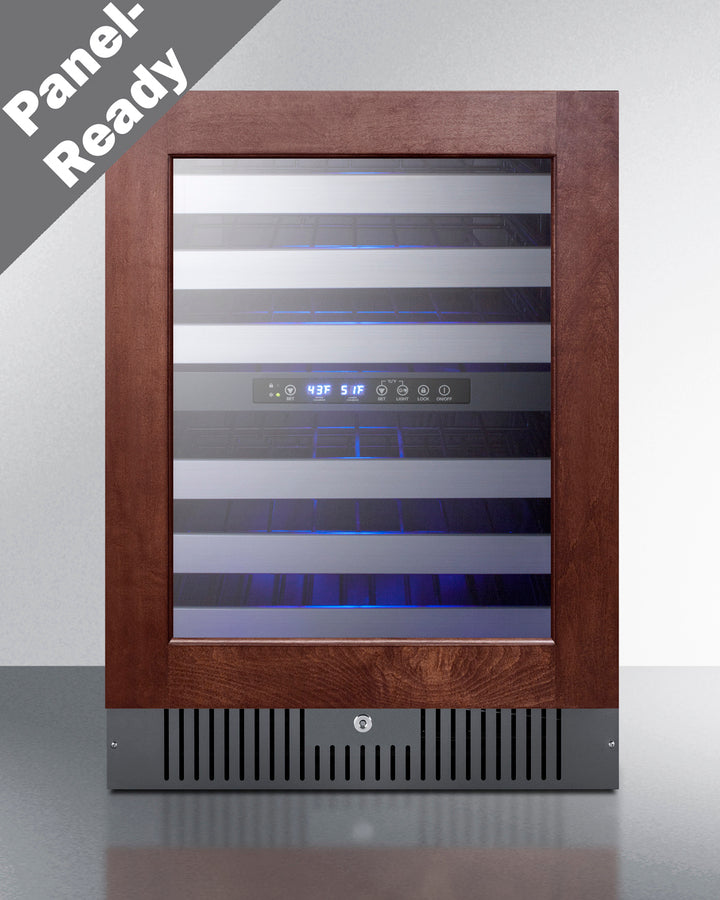

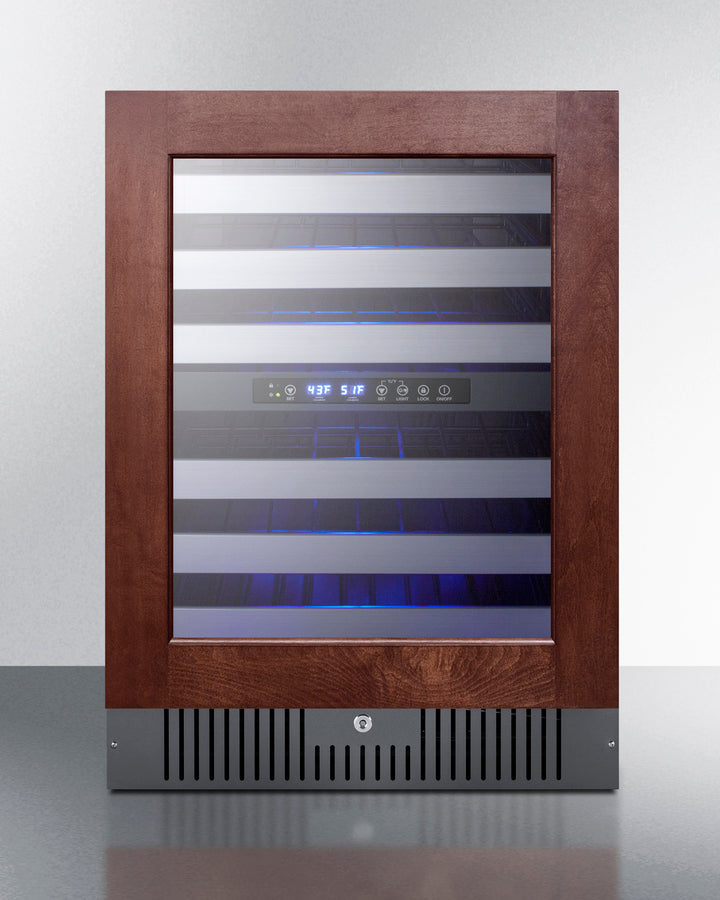

The SWC532BLBISTPNR is a dual zone wine cellar sized for 24" spaces. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. The panel-ready door features our fully articulating European style hinging, with a 2-piece bracket kit included to allow easy installation of your own custom door trim to match or blend into adjacent cabinetry. A factory-installed lock offers added security and a stainless steel kickplate completes the look.

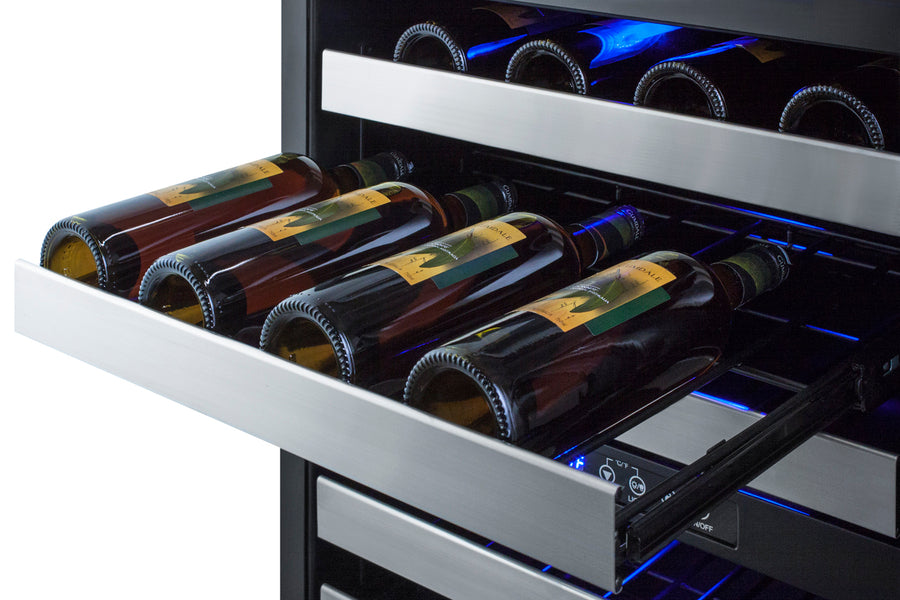

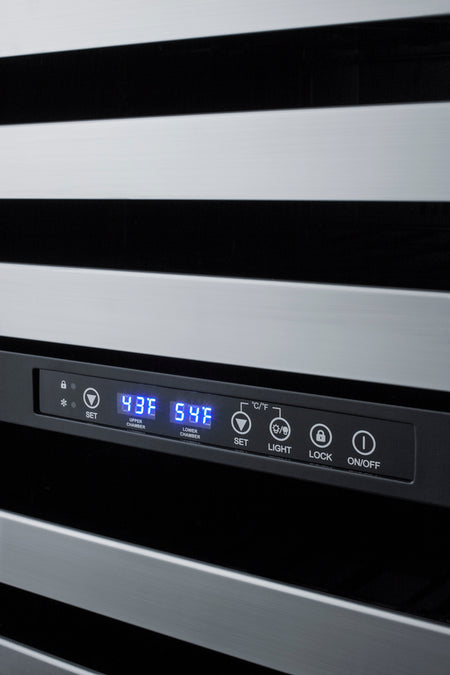

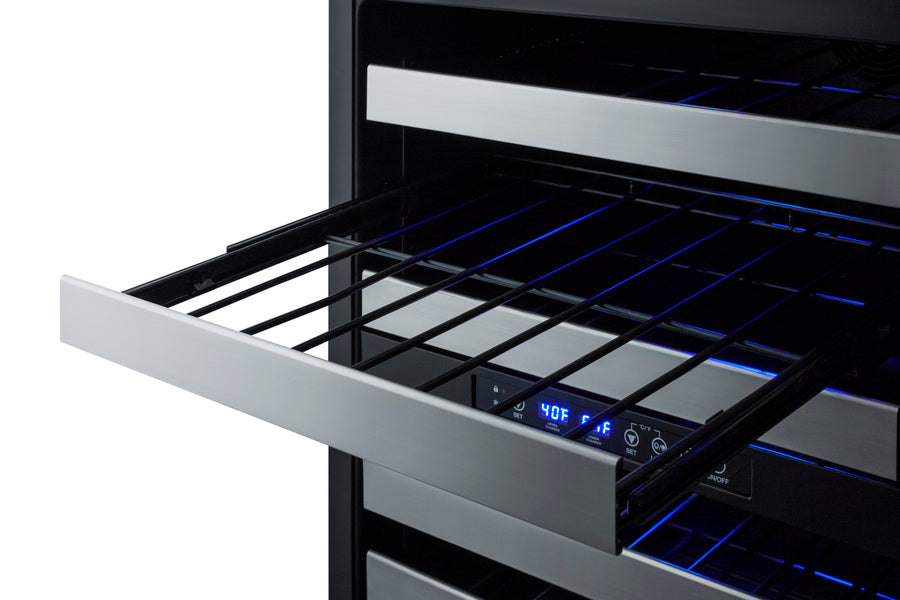

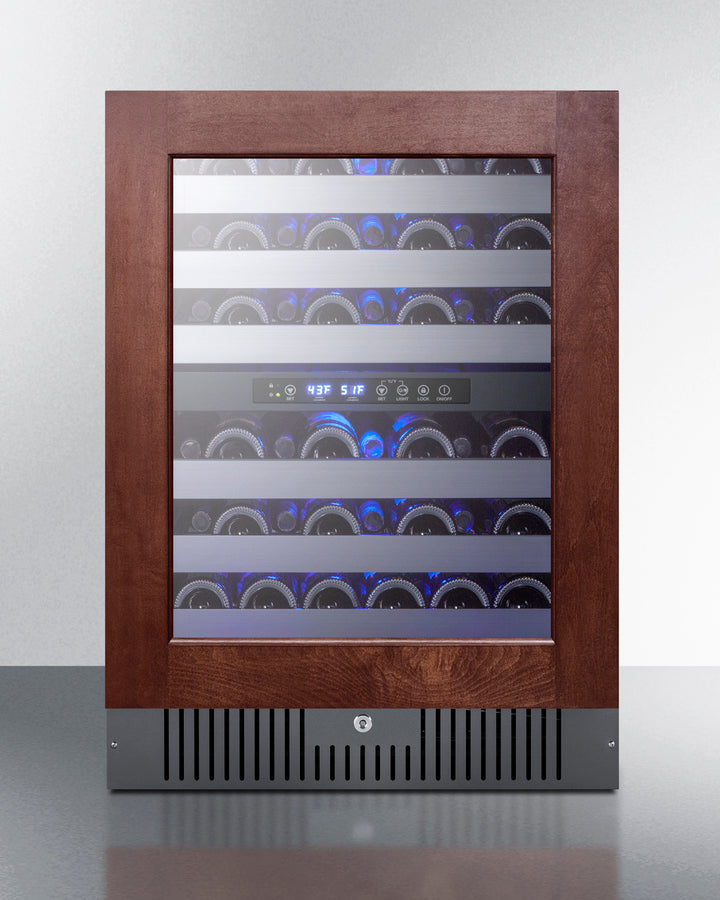

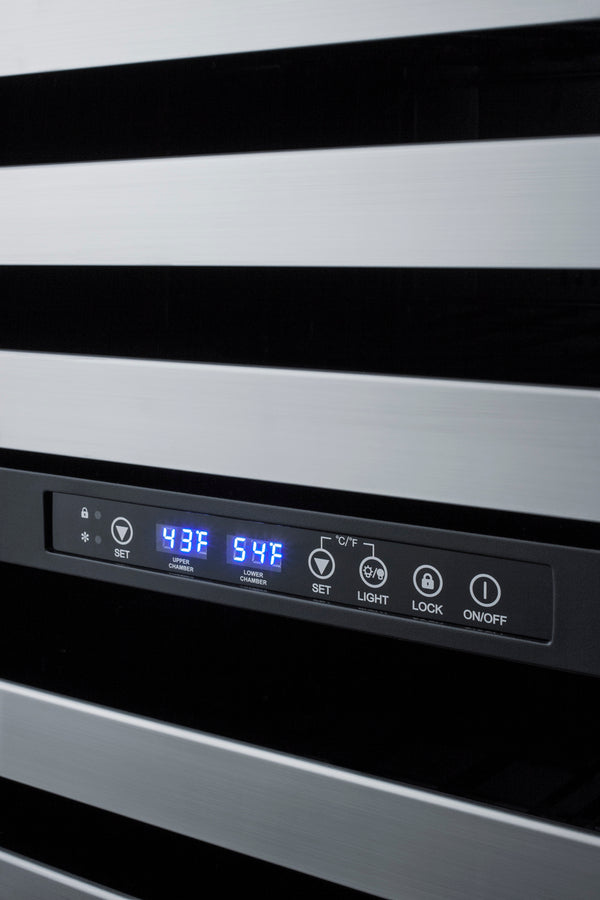

Inside, the SWC532BLBISTPNR is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper temperature chamber between 41 and 50ºF for white wine, while the lower zone is designed to store red wine between 50 and 64ºF. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for easy loading. Both compartments include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation.
This unit is ETL-S listed to NSF-7 commercial standards. With its advanced user features and versatile design, the SWC532BLBISTPNR makes a great addition to any ADA compliant setting looking to store wine in modern style. Additional panel-ready wine cellars are available in more sizes (including shallow depth). Explore the full Summit line to discover the perfect choice for your space.
| Overview | Refrigerator/Freezer | ||

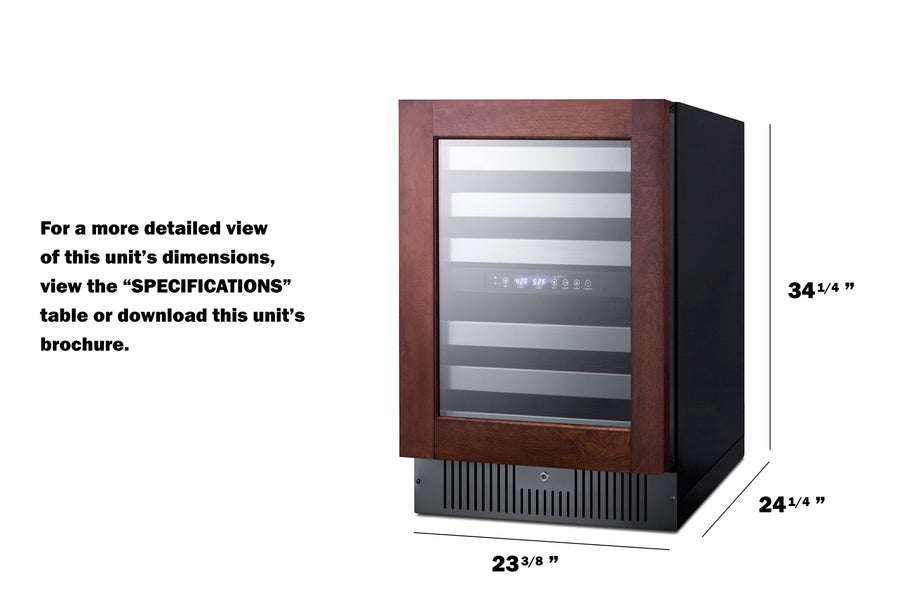

| Nominal Height | 34.0" (86 cm) | Number of Zones | 2 |
| Height of Cabinet | 34.25" (87 cm) | Door Swing | RHD/LHD |
| Nominal Width | 24.0" (61 cm) | Reversible | Yes |
| Width | 23.38" (59 cm) | Shelf Type | Wire |
| Nominal Depth | 24.0" (61 cm) | Shelf Qty | 6 |
| Depth | 23.5" (60 cm) | Thermostat Type | Digital |
| Depth with Panel | 24.25" (62 cm) | Interior Light | Yes |
| Depth with door at 90° | 47.38" (120 cm) | Fan Type | Interior and Exterior |
| Bottles | 46 bottles | Refrigerant Type | R600a |
| Defrost Type | Automatic | Refrigerant Amount | 1.23 oz. |
| Door | Glass/Panel-Ready Frame | High Side PSI | 150.0 |
| Cabinet | Black | Low Side PSI | 50.0 |
| US Electrical Safety | ETL | Interior Height 1 | 11.63" (30 cm) |
| Canadian Electrical Safety | ETL-C | Interior Width 1 | 20.5" (52 cm) |
| Sanitation | ETL-S | Interior Depth 1 | 18.0" (46 cm) |
| Amps | 1.25 | Compressor Step Depth | 6.0" (15 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Level Legs | 2 |
| Weight | 113.0 lbs. (51 kg) | Temperature Range | 41 to 64ºF |
| Parts & Labor Warranty | 1 Year | Interior Height 2 | 11.88" (30 cm) |
| Compressor Warranty | 5 Years | Interior Width 2 | 20.5" (52 cm) |
| UPC | 761101067094 | Interior Depth 2 | 18.0" (46 cm) |
