Summit CR4B23T5B 24″ Wide 4-Burner Radiant Electric Cooktop – Black Glass Surface, Digital Touch Controls, 230 V

SKU: SA-CR4B23T5B
Regular price $598.20
Dual-Zone Large Burner for Energy & Versatility — The 8″ main burner includes an inner 5″ zone: ideal for small pans (saving energy) or full-power cooking for larger pots — giving flexibility depending on cookware size.
Digital Touch Controls with Flexibility & Safety Features — Controls are front-mounted and intuitive, offering 9 power levels per burner, a built-in 99-minute timer, residual-heat indicators, child-lock, automatic shutoff after 2 hours, and a safety cut-off if no setting is chosen.
Smooth Jet-Black Glass Surface for Sleek Look & Easy Cleanup — The black ceramic-glass top delivers a modern, minimalist aesthetic and is easy to wipe down after cooking.
2.0" H x 23.25" W x 20.5" D
(5cm H x 59cm W x 52cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-CR4B23T5B

4-Burner Radiant Cooktop:
24" Wide 230V cooktop with digital controls and a smooth glass surface

Jet black glass surface:
Elegant style on a smooth, jet blaack glass surface for a contemporary look that is easier to clean

Extra large 2200W burner:
Burner located on the rear right corner has an 8" diameter and powerful 2200W cooking power to handle large pots and help boil water with more speed

Large 1800W burner:
Burner located on the front left corner is 7" in diameter to handle larger cooking vessels

2 Standard 1200W burners:
Front right and rear left burners are 5.5" in diameter to meet most cooking needs

Dual cooking zone:
Rear right burner includes an inner 5" burner, allowing you to save energy when heating smaller cookware

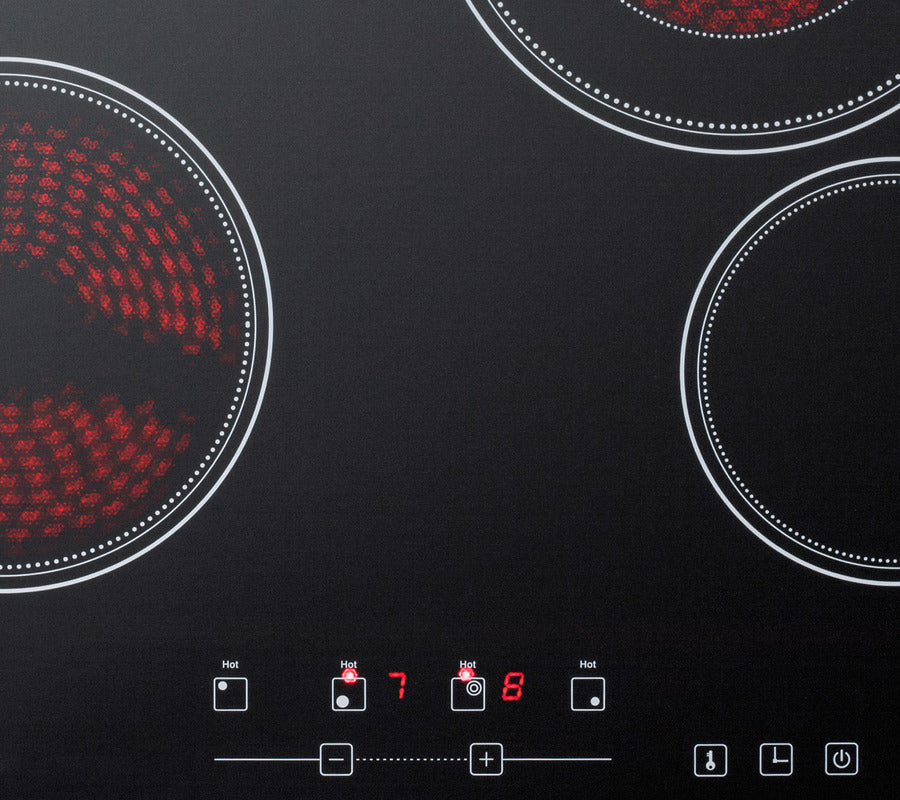

Digital touch controls:
Easy operation with a digital control panel and digital display

9 power levels:
Select and adjust your heating levels at the touch of a button

Timer:
Allows you to program either burner to heat at a specified level for up to 99 minutes

Residual heat indicator lights:
Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch

Designed for built-in installation:
Fits counter cutout sizes that are 22" wide by 19.5" deep

ADA compliant design:
Upfront controls meet ADA guidelines for easier accessibility

Child lock:
Safety feature lets you lock the cooktop to prevent unsupervised heating

Safety cut-off function:
If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off

Automatic shutoff:
If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating

230V operation:
Requires professional hardwired installation to 230V power supply

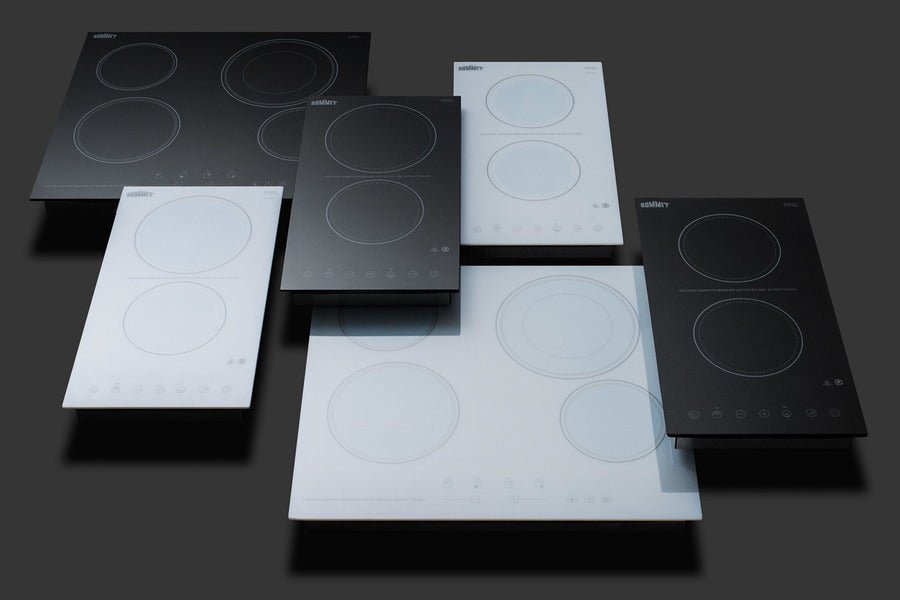

Summit's collection of smooth-top radiant cooktops offers an easy-to-clean design with modern style built for smaller kitchen spaces.

The CR4B23T5B is a 24" wide 230V radiant cooktop designed to fit popular 22" W x 19 1/2" D counter cutouts.  Its surface is made of jet black glass for a contemporary look that's easier to clean.
 This unit does not ship with a power cord and must be hard-wired by a professional.

Unlike many other 24" wide cooktops, the CR4B23T5B includes an extra large 2200W 8" element to accommodate large cooking vessels and offer faster heating when boiling water. For added versatility, this dual zone element can also be used at a 5" diameter for smaller pots and pans. The front right and rear left 5 1/2" elements cook at 1200W, while the front left zone is 7" wide with an 1800W operation to handle larger meals.

The digital touch controls are located in the front for easier accessibility, preventing users from reaching over hot burners when cooking. The temperature is easy to adjust at the touch of a button, with 9 power levels for each burner. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes). The burner turns off automatically when the cooking duration has finished. Safety features include a child lock function, automatic shutoff after two hours, and residual heat indicators for all four elements.

With its attractive design, smartly designed burner configuration, and intuitive touch controls, the CR4B23T5B brings a user-friendly cooking performance with reliable safety to small kitchen spaces.

 Overview

Refrigerator-Freezer

Nominal Height 2.0" (5 cm) Heating Type Radiant
Height of Cabinet 2.0" (5 cm) Surface Glass
Nominal Width 24.0" (61 cm) Element Type Glasstop
Width 23.25" (59 cm) Number of Elements 4
Nominal Depth 21.0" (53 cm) Controls Digital
Depth 20.5" (52 cm) Countertop Cutout Height 3.2" (8 cm)
Cabinet Black Countertop Cutout Width 22.0" (56 cm)
US Electrical Safety ETL Countertop Cutout Depth 19.5" (50 cm)
Canadian Electrical Safety ETL-C Element #1 Size 5.5" (14 cm)
Amps 30.0 Element #1 Wattage 1200.0
Voltage/Frequency 230 V AC/60 Hz Element #2 Size 8.1" (21 cm)
Weight 20.0 lbs. (9 kg) Element #2 Wattage 2200.0
Parts & Labor Warranty 1 Year Element #3 Size 5.5" (14 cm)
UPC 761101053257 Element #3 Wattage 1200.0


Element #4 Size 7.0" (18 cm)


Element #4 Wattage 1800.0


Power Cord Included No
