Summit MHOTR242B 24″ Wide Over-the-Range Microwave – 1.4 cu. ft Capacity, Black Cabinet

SKU: SA-MHOTR242B
Regular price $577.10
Versatile Ventilation with Range-Hood Functionality — Two-speed fan with up to 300 CFM capacity, supports vertical duct, horizontal duct, or recirculating setup for flexibility above the cooktop.
Advanced Cooking Controls & Auto-Settings — Ten power levels, multi-stage cooking, auto-cook presets for pizza/popcorn/beverages and a “Kids Meal” mode for convenience.
Premium Features & Safety in One Package — Includes under-cabinet LED lighting, child-lock, add-30-seconds function, charcoal filter to reduce odors, and black finish for modern styling.
17.5" H x 24.0" W x 17.0" D
(44cm H x 61cm W x 43cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-MHOTR242B

24" width:
Smartly sized for full service use in smaller kitchens

Range hood function:
Under-cabinet ventilation with a high/low setting

Versatile ventilation options:
This unit can be set up with a vertical duct, horizontal duct, or for recirculating operation

Large capacity:
1.4. cu.ft. interior provides ample room for heating & cooking small or large dishes

Window included:
Small window lets you keep watch of your cooking

Under cabinet LED lighting:
Range hood includes two bulbs for convenient illumination of the cooking zone

Auto cook:
Cooking setting that lets you choose from pizza, potatoes, popcorn, beverages, cheese, ice cream, butter, meats, veggies, and reheat

Kids meal heating option:
Designed for easy reheating of common children's meals, with settings specifically for nuggets, hot dogs, fries, and frozen sandwiches

Timed cooking:
Touch controls for easy heating of foods and beverages (up to 99 minutes)

Multi-stage cooking:
Allows users to program two cooking settings with different power levels for best results with certain recipes

Glass turntable:
Includes a removable 12.75" glass turntable

Multiple power levels:
Choose from 10 power levels to ensure optimum level of heating of food and beverage

Add 30 seconds option:
Push the start button to add 30 seconds to cooking time

Defrost settings:
Users can set the defrost setting by time (up to 99 minutes) or weight (up to 96 oz.)

Charcoal filter:
Provides filtering to help eliminate cooking smoke & odors

Installation equipment:
A mounting plate, exhaust adapter for top or rear-venting, hardware for installation, installation guide, and top/rear cabinet wall templates are included for user convenience

Eco Mode:
Power saving mode that disables display, outside lamp, and fan (Note: this mode turns on autmoatically after 1 minute of inactivity)

Interior light:
Microwave light automatically illuminates when the door is opened

Kitchen timer:
Microwave includes timer setting (up to 99 minutes) with an audible warning

Child lock:
Optional setting can be activated to prevent unsupervised operation

Grease filters:
Two included to remove grease particles helping to keep the exhaust fan and ducting clean

Auto cook decal:
Affixed to lower cabinet interior and provides an overview of the auto cook settings for easy user reference

Black cabinet finish:
All black exterior adds a touch of elegance while the white interior allows for easy cleanability

Summit's selection of microwave ovens offer complete cooking power in slim, stylish designs, ideal for smaller kitchens.

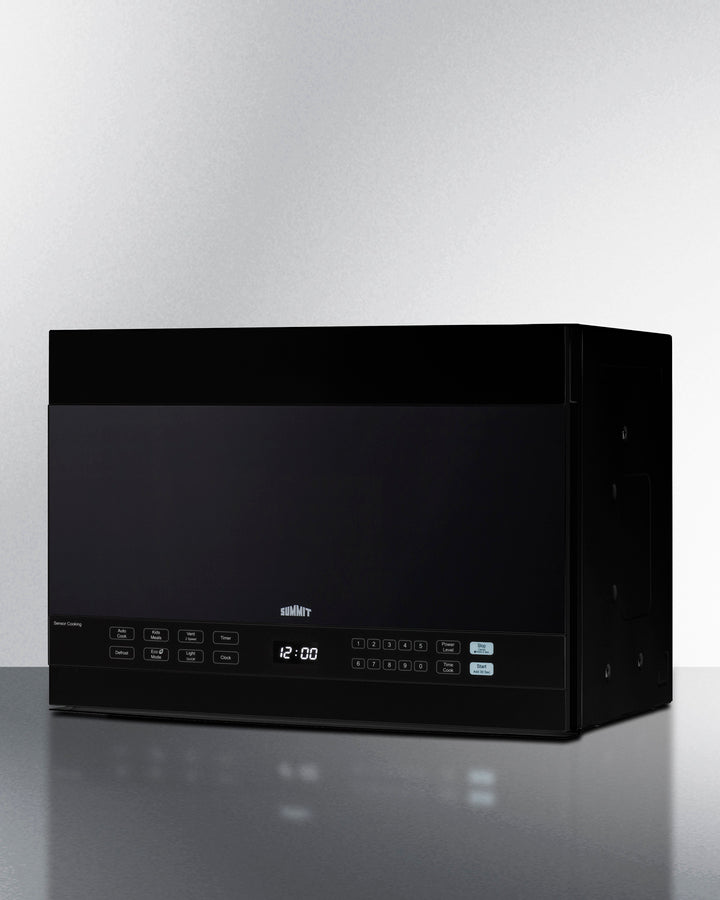

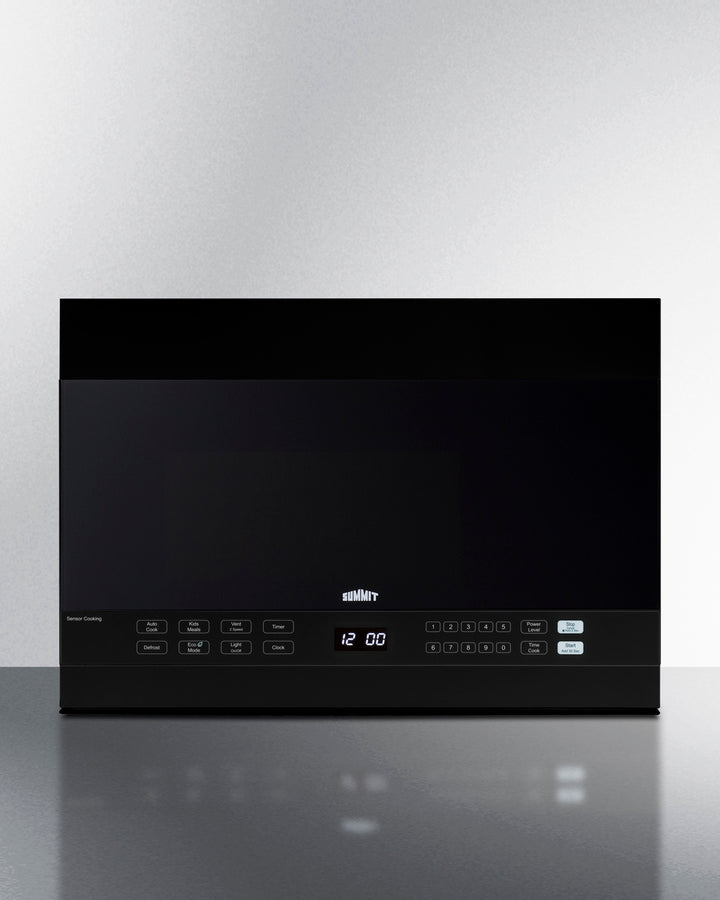

The MHOTR242B is a 24" wide over-the-range microwave designed for simple one-touch cooking and effective ventilation. Its all-black exterior and white interior provides for an elegant look with easy cleanability, while a small window affords the opportunity to keep watch of your cooking. A side pocket handle offers a more streamlined look to complement any kitchen style.

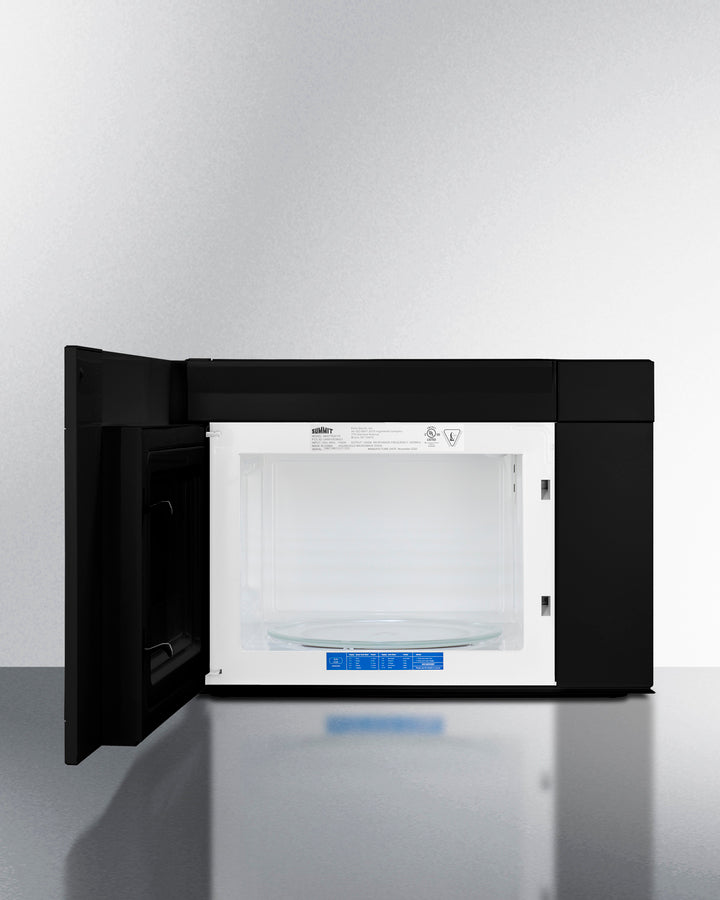

Inside, the MHOTR242B offers a full 1.4 cu.ft. capacity with an oversized 12.75" glass turntable. Ten power levels and multi-stage cooking options allow you to set the proper conditions for virtually every meal. The auto cook feature makes for convenient cooking and reheating for almost any food or beverage with pre-programmed settings for pizza, popcorn, beverages, cheeses, ice cream, butter, meats, veggies, and reheating. Submenus for meats, reheat, and veggies allow users to select by item, such as pork, chicken, casserole, dinner plate, or fresh and frozen veggies. An auto cooking decal is affixed to the lower cabinet interior for easy reference. The kids meal setting lets you heat common meals such as chicken nuggets, hot dogs, fries, and frozen sandwiches. Defrost settings offer the choice of heating by time or weight, while the Add 30 seconds feature provides additional cook time for user convenience. The MHOTR242B also includes a time cook function, timer, and interior light for easy viewing of the interior.

The MHOTR242B is equipped with a versatile ventilation system that can be set up with a vertical duct, horizontal duct, or for recirculating (ductless) operation with two grease filters and a charcoal filter included. A two-speed exhaust fan, which begins automatically, assures a smoke and odor-free environment. Two LED lights offer efficient illumination for your cooking surface, while the child lock feature helps prevent unsupervised use by children for added safety. Eco Mode disables the display, outside lamp, and exhaust fan for power saving convenience; it is automatically turned on after one minute of inactivity or can be manually turned on or off by the user. We include a mounting plate, exhaust adapter for top or rear-venting, and the hardware required for installation, along with an installation booklet and a top cabinet and rear wall template. NOTE: This unit features a top vented system that must be clear for adequate ventilation. The depth from the rear to the vented area is 17".

With its range of cooking options and convenient size, the MHOTR242B is the perfect finish for any small kitchen space. This unit is also available in white (see MHOTR241W) or stainless steel (see MHOTR243SS). Visit www.summitappliance.com to learn more.

NOTE: If using this for recirculating operation, be sure to consult the installation instructions and rotate the motor before installing in your cabinet.

 Overview

Refrigerator-Freezer

Nominal Height 18.0" (46 cm) Type Over-the-Range
Height of Cabinet 17.5" (44 cm) Wattage 1000.0
Nominal Width 24.0" (61 cm) Controls Digital
Width 24.0" (61 cm) Digital Display Yes
Width with Door Open 24.75" (63 cm) Turntable Yes
Nominal Depth 17.0" (43 cm) Turntable Diameter 12.75" (32 cm)
Depth 17.0" (43 cm) Specialized Cooking Buttons Yes
Depth with door at 90° 38.75" (98 cm) Interior Height 10.0" (25 cm)
Capacity 1.4 Interior Width 14.5" (37 cm)
Door Black Interior Depth 14.38" (37 cm)
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 13.5
Voltage/Frequency 115 V AC/60 Hz
Weight 51.0 lbs. (23 kg)

Parts & Labor Warranty 90 Days

UPC 761101076041

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
