Summit ALFD24WBV 24″ Wide Built-In Wine & Beverage Center – ADA-Compliant, Dual-Zone, French-Door Glass Cabinet
Customer service
Features
- SKU SA-ALFD24WBV
Summit offers a unique selection of built-in wine and beverage coolers for use in ADA compliant settings, with user-friendly features and luxury design.

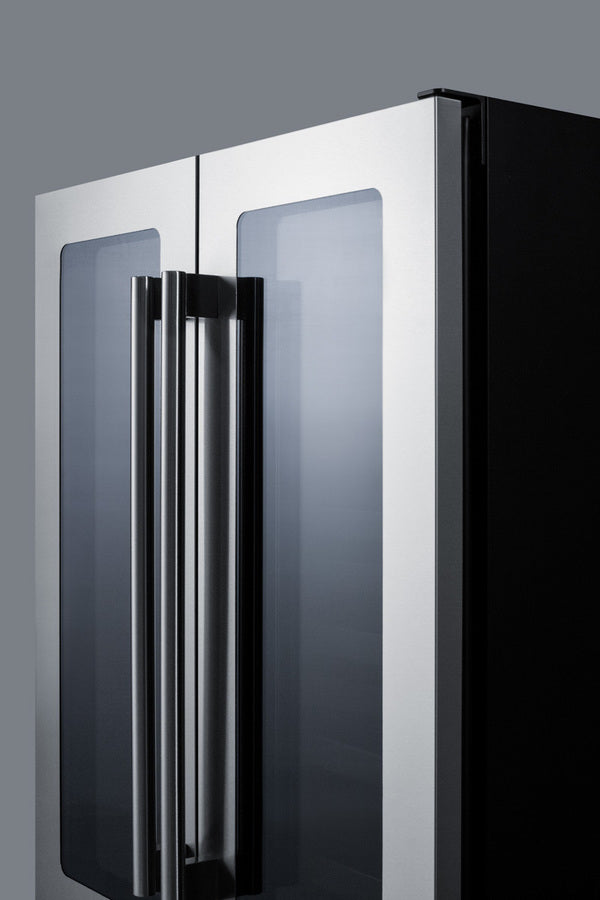

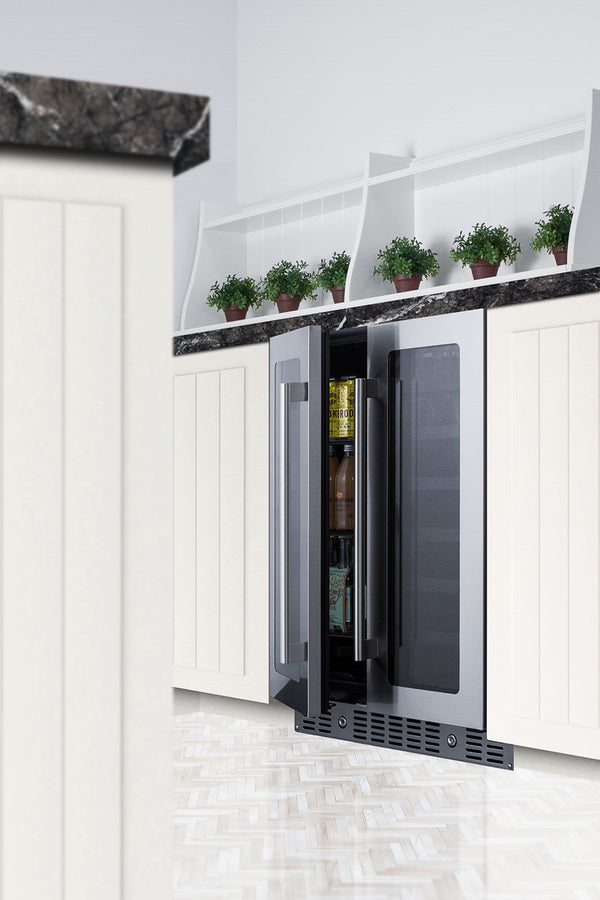

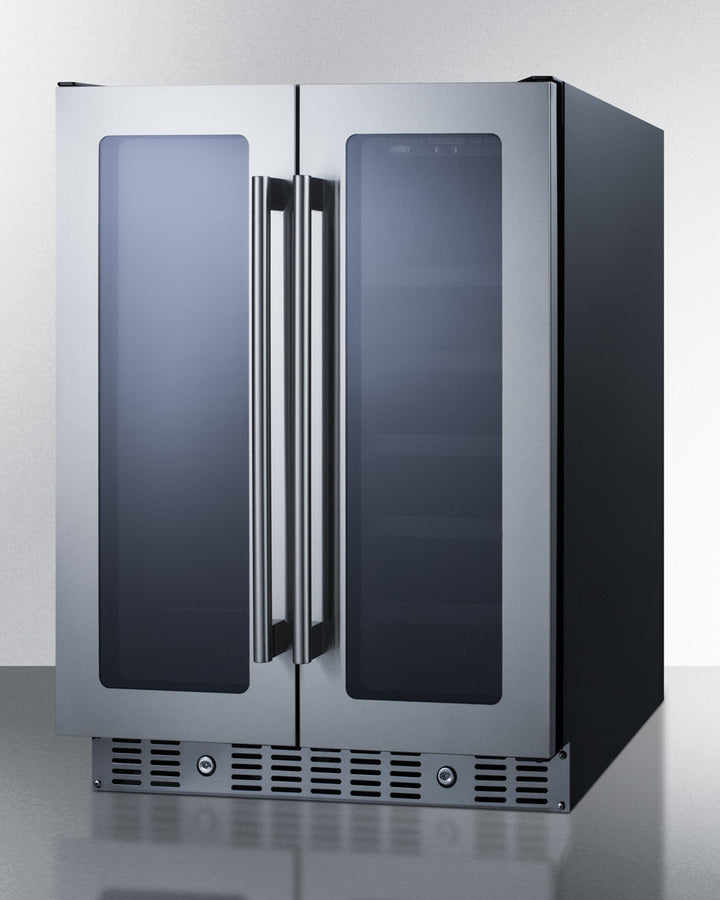

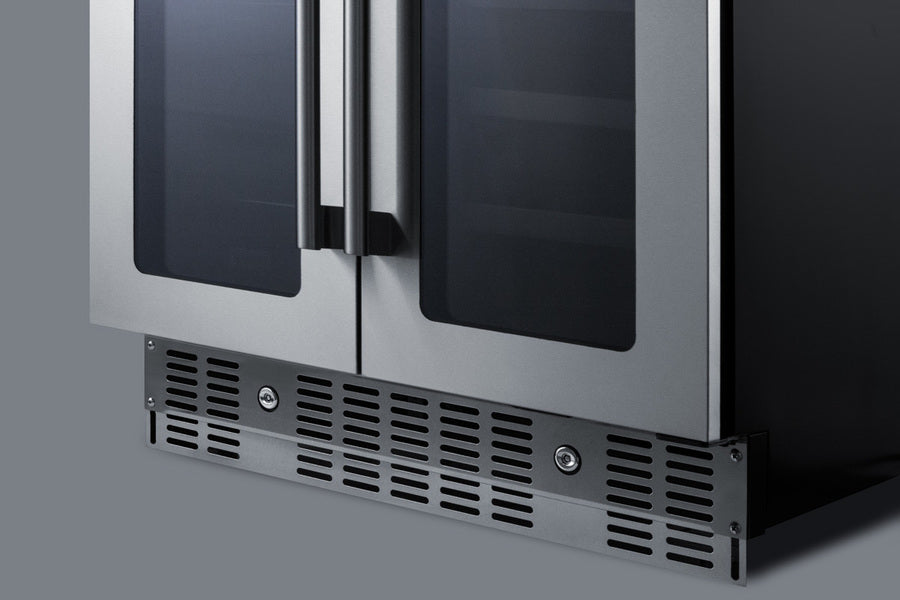

Sized with a convenient 24" footprint, the ALFD24WBV is 32" high, allowing it to fit under lower ADA compliant counters. Adjustable leveling legs let you raise the height up to 33.5" for added versatility. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This model has a French door swing, with two double pane tempered glass doors in a seamless stainless steel trim. Each door includes a front lock and pro style handle in brushed stainless steel.

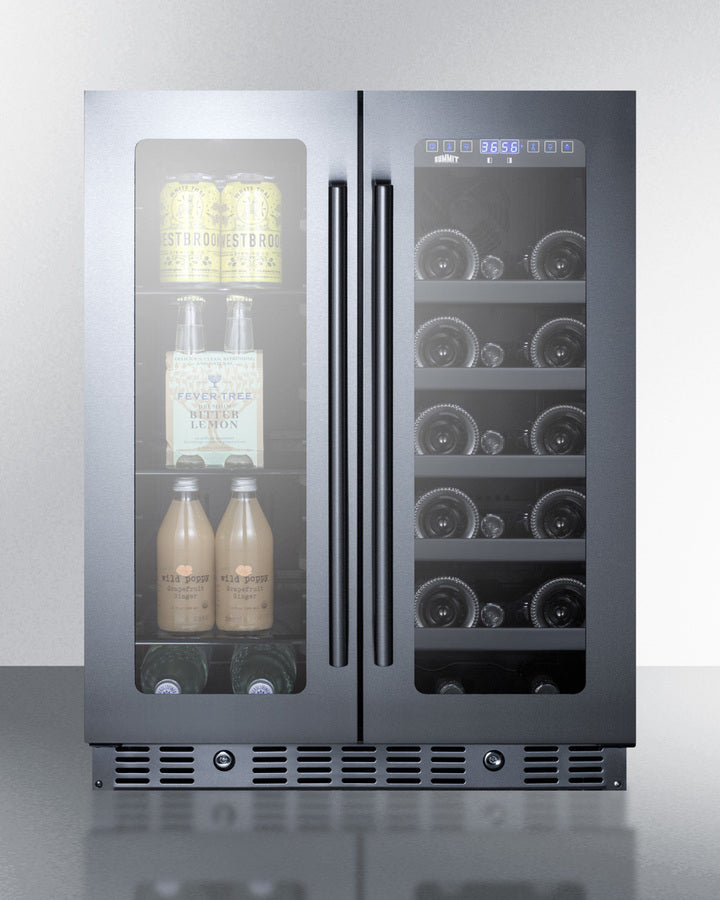

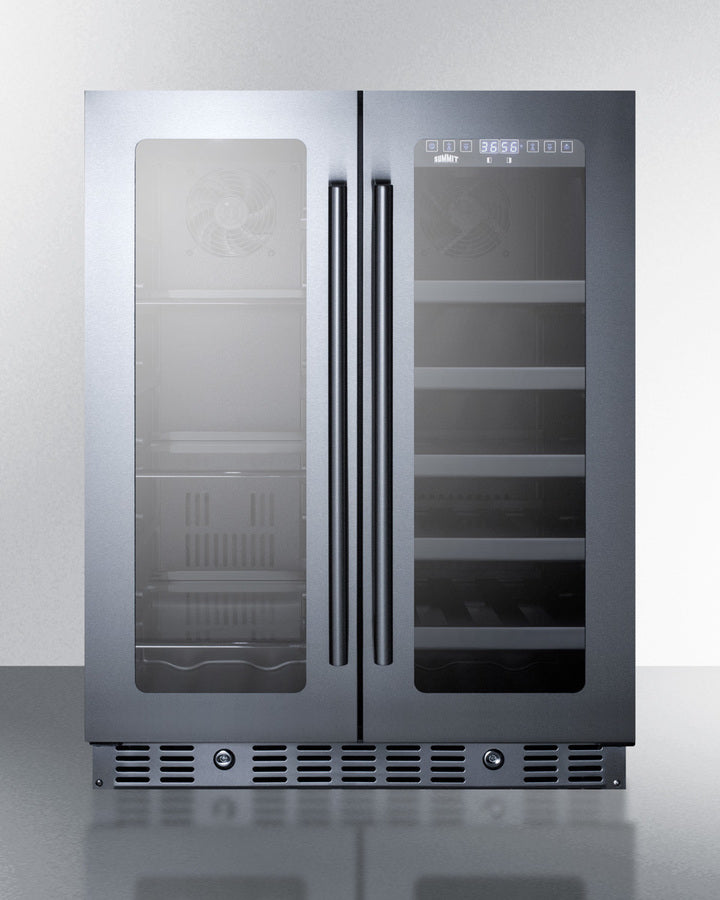

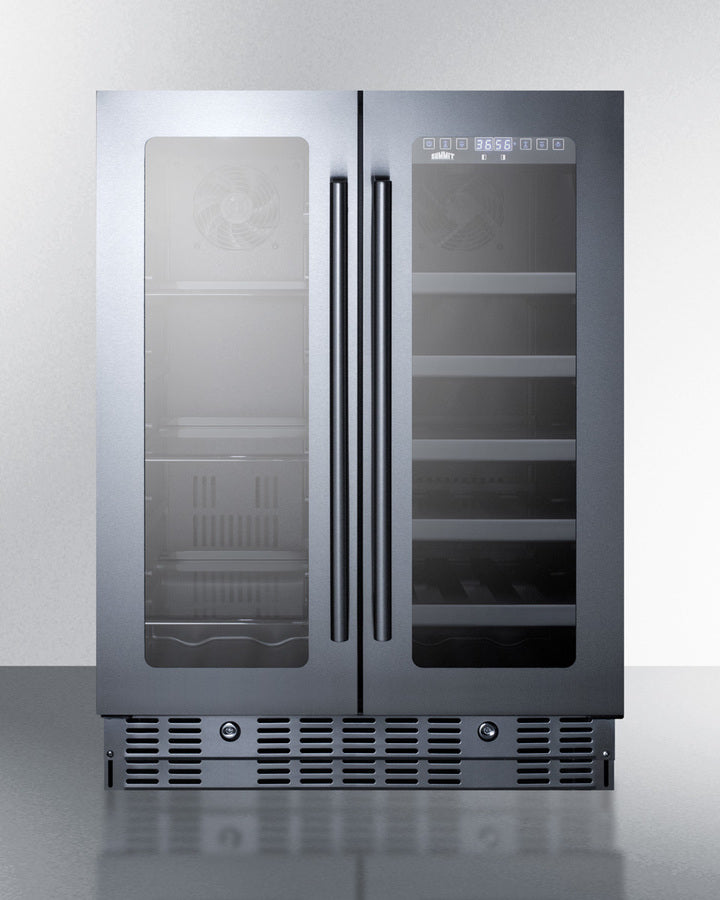

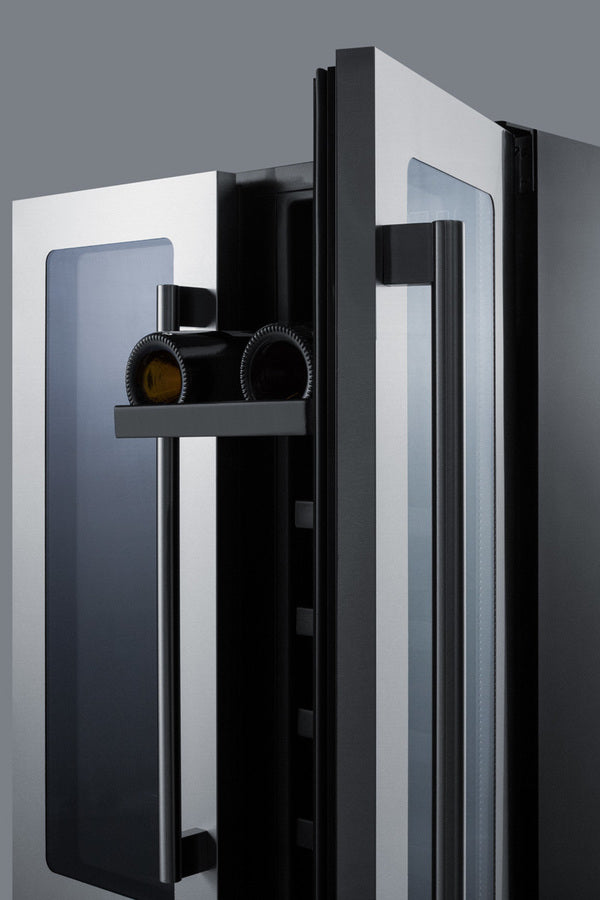

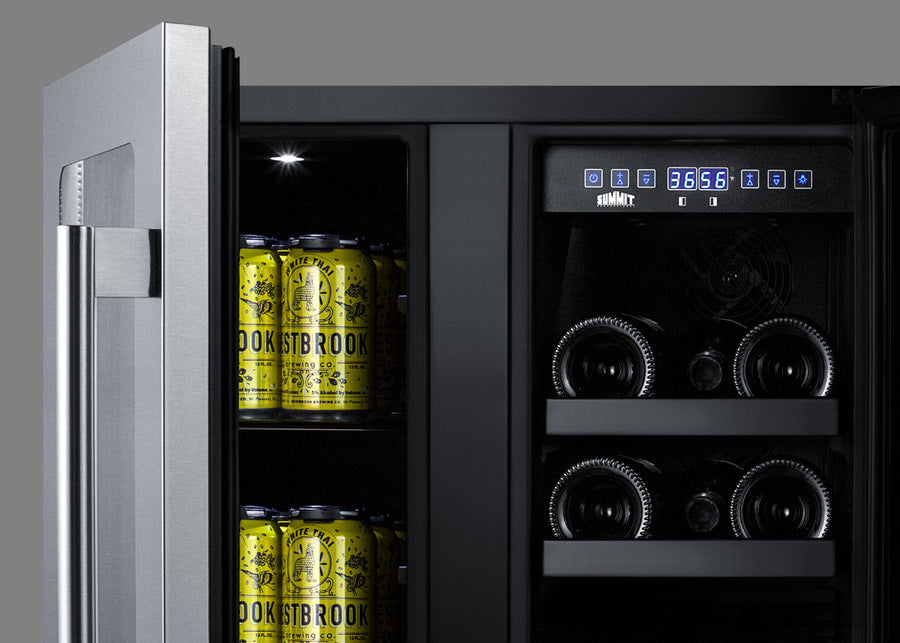

The ALFD24WBV features two distinct temperature zones to best store beverages and wine at their proper temperatures. The digital temperature controls make it easy to manage the temperature of each compartment, with a readout switchable from Fahrenheit to Celsius at the touch of a button. The left side includes adjustable glass shelves for spill-proof beverage storage and features a 36 to 43ºF temperature range. The right compartment includes adjustable wooden shelves in a jet black finish to store red or white wine between 41 and 72ºF. LED lighting offers an attractive and energy efficient presentation. This unit is equipped with audible alarms that warn if the doors are opened for over one minute and if the temperature exceeds the recommended range. Sabbath mode allows you to disable certain electrical features during periods of observance.
With its unique design and advanced features, the ALFD24WBV offers versatile storage for any undercounter space. Additional ADA compliant choices are available in Summit's line. Browse our website for more information.
NOTE: product image may vary slightly from actual product.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Number of Zones | 2 |
| Height of Cabinet | 32.0" (81 cm) | Door Swing | French |
| Nominal Width | 24.0" (61 cm) | Reversible | No |
| Width | 23.38" (59 cm) | Height Adjustable | Yes |
| Nominal Depth | 23.0" (58 cm) | Adjustable Shelves | Yes |
| Depth | 22.75" (58 cm) | Shelf Type | Glass and Wood |
| Depth with Handle | 24.63" (63 cm) | Shelf Qty | 7 |
| Depth with door at 90° | 33.0" (84 cm) | Thermostat Type | Digital |
| Capacity | 4.6 cu.ft. (130 L) | Interior Light | Yes |
| Bottles | 21 bottles | Fan Type | Interior and Exterior |
| Defrost Type | Automatic | Refrigerant Type | R600a |
| Door | Glass | Refrigerant Amount | 1.06 oz. |
| Cabinet | Black | High Side PSI | 270.0 |
| US Electrical Safety | ETL | Low Side PSI | 105.0 |
| Canadian Electrical Safety | ETL-C | Interior Height 1 | 25.38" (64 cm) |
| Amps | 1.0 | Interior Width 1 | 8.38" (21 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Interior Depth 1 | 17.5" (44 cm) |
| Weight | 105.0 lbs. (48 kg) | Compressor Step Height | 3.5" (9 cm) |
| Parts & Labor Warranty | 1 Year | Compressor Step Width | 8.38" (21 cm) |
| Compressor Warranty | 5 Years | Compressor Step Depth | 5.0" (13 cm) |
| UPC | 761101058580 | Level Legs | 4 |
| Temperature Range | Beverage zone: 36 to 43°F; Wine zone: 41 to 72ºF | ||
| Interior Height 2 | 25.38" (64 cm) | ||
| Interior Width 2 | 8.38" (21 cm) | ||
| Interior Depth 2 | 17.5" (44 cm) | ||
| Sound Level | 33.3 dB |
|
ASSEMBLY DRAWING |
