Summit SCR1401CHCSS 24″ Wide Single-Zone Commercial Wine Cellar – 12.6 cu ft / 35-Bottle Capacity, Stainless Steel Cabinet & Glass Door
Customer service
Features
- SKU SA-SCR1401CHCSS
Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation.

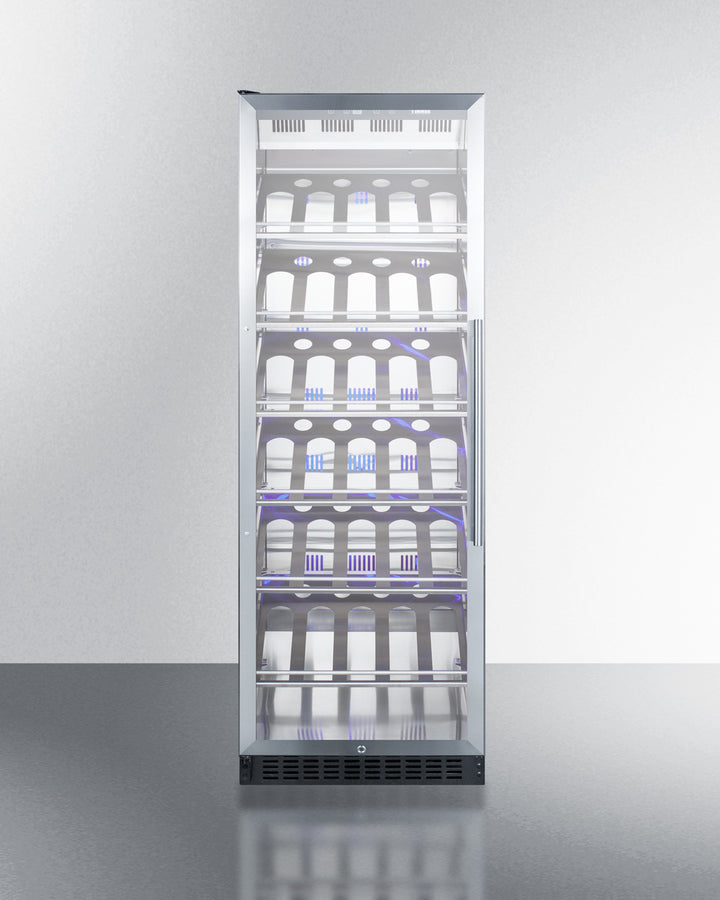

The SCR1401CHCSS is an upright wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, while the large 12.6 cu.ft. The self-closing stainless steel trimmed door includes a pro style handle and factory-installed lock for added security. This unit has a front-breathing cooling system that allows built-in installation, and a fully finished exterior that also enables freestanding use. It comes with a right hand door swing. For a left hand version, see the SCR1401LHCHCSS.

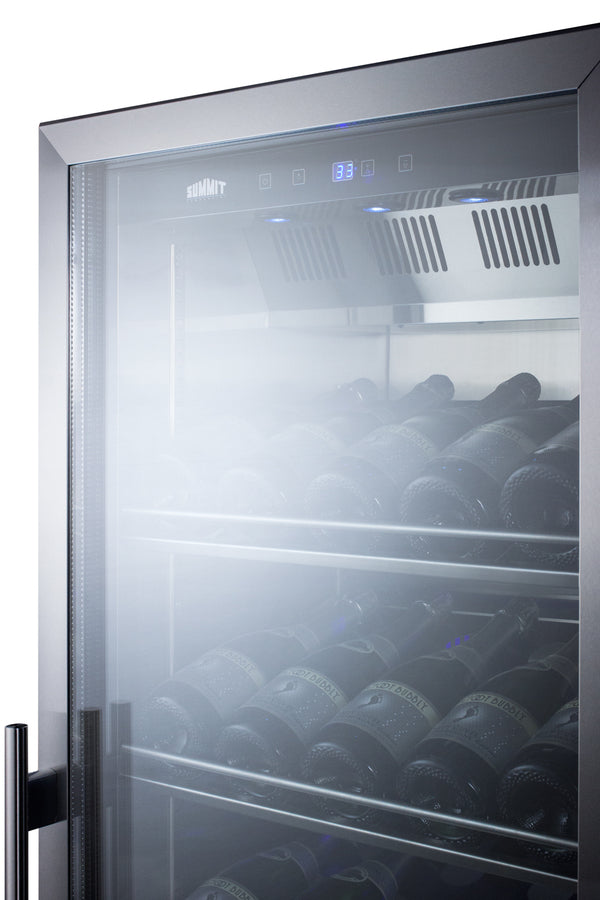

Inside, the SC1401CHCSS includes stainless steel shelving specially designed to hold champagne and sparkling wine bottles at a slight angle, providing a full display of the label. The interior walls and floor are constructed from stainless steel for lasting durability in busy commercial settings. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. The digital control panel offers a wide 36 to 68ºF temperature range that allows you to program the optimum settings for red, white, or sparkling wine. Additional features include an audible high temperature alarm, open door alarm, temperature memory function, and sabbath mode setting.
The SCR1401CHCSS comes with a fully wrapped stainless steel cabinet. Additional choices are available in stainless steel, as well as alternate sizes. Browse our website to explore our full lineup of commercially approved wine cellars.
| Overview | Refrigerator/Freezer | ||
| Nominal Height | 70.0" (178 cm) | Number of Zones | 1 |
| Height of Cabinet | 69.75" (177 cm) | Door Swing | RHD/LHD |
| Nominal Width | 24.0" (61 cm) | Reversible | No |
| Width | 23.63" (60 cm) | Shelf Type | Steel |
| Nominal Depth | 24.0" (61 cm) | Shelf Qty | 6 |
| Depth | 23.75" (60 cm) | Thermostat Type | Digital |
| Depth with Handle | 25.63" (65 cm) | Interior Light | Yes |
| Depth with door at 90° | 46.75" (119 cm) | Fan Type | Interior and Exterior |
| Capacity | 12.6 cu.ft. (357 L) | Refrigerant Type | R600a |
| Bottles | 35 bottles | Refrigerant Amount | 1.76 oz. |
| Defrost Type | Frost-Free | High Side PSI | 270.0 |
| Door | Glass | Low Side PSI | 105.0 |
| Cabinet | Stainless Steel | Interior Height 1 | 59.75" (152 cm) |
| US Electrical Safety | ETL | Interior Width 1 | 20.0" (51 cm) |
| Canadian Electrical Safety | ETL-C | Interior Depth 1 | 16.5" (42 cm) |
| Sanitation | ETL-S | Temperature Range | 36 to 68ºF |
| Amps | 1.7 | Interior Height 2 | 4.5" (11 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Interior Width 2 | 20.0" (51 cm) |
| Weight | 270.0 lbs. (122 kg) | Interior Depth 2 | 4.5" (11 cm) |
| Parts & Labor Warranty | 1 Year | Sabbath Mode | Yes |
| Compressor Warranty | 5 Years | ||
| UPC | 761101065052 |
|
ASSEMBLY DRAWING |
| SUPPORT |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
