Summit SCR610BLCHPNR 24″ Wide Single-Zone Built-In Commercial Wine Cellar – Panel-Ready Glass Door, 5.0 cu ft (20-Bottle Capacity)
Customer service
Features
- SKU SA-SCR610BLCHPNR
Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation.

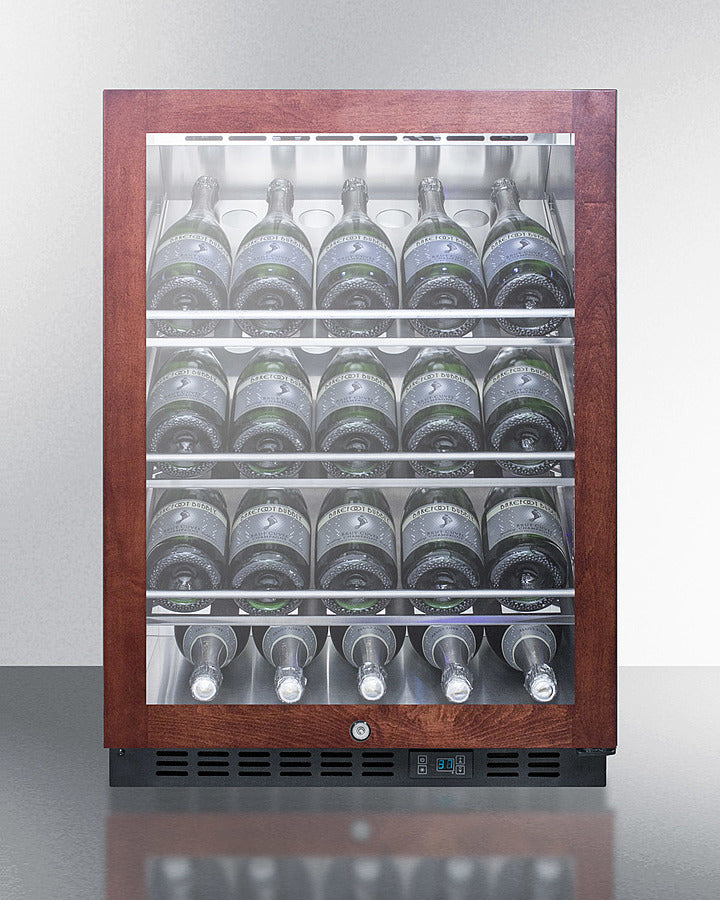

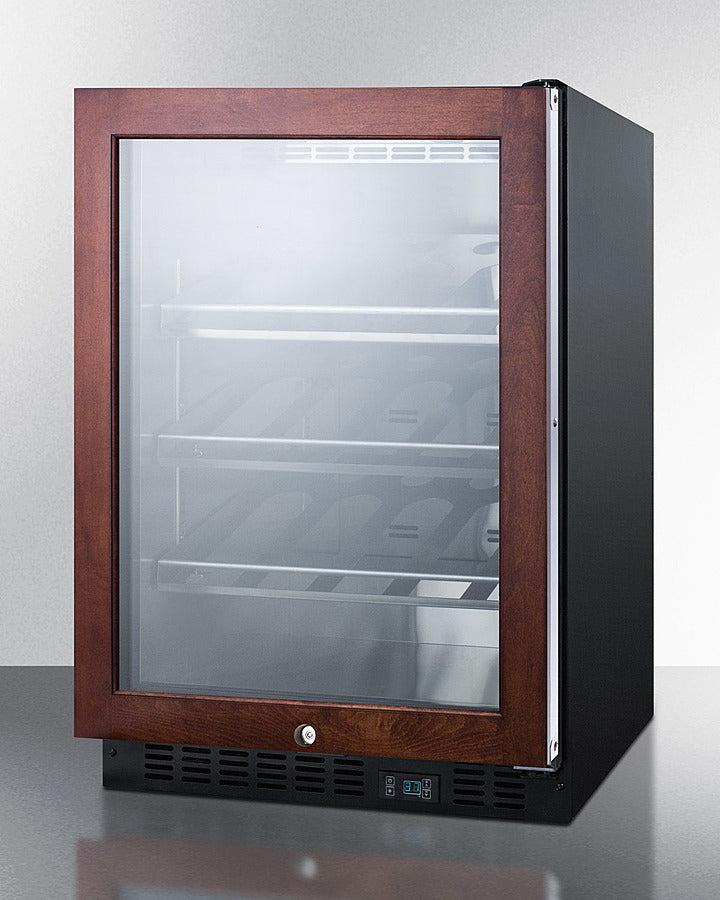

The SCR610BLCHPNR is an undercounter wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, with large 5 cu.ft. interior. This unit features a front-breathing design for built-in installation, with a fully finished black cabinet that also allows freestanding use. The double tempered glass door door features a panel-ready door trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 29 7/8" H x 23 1/8" W at 3/4" minimum thickness). A factory-installed lock offers additional security. This unit ships with a right hand door swing, but can be ordered to open from the other side by adding option LHD. Users provide their own handle.

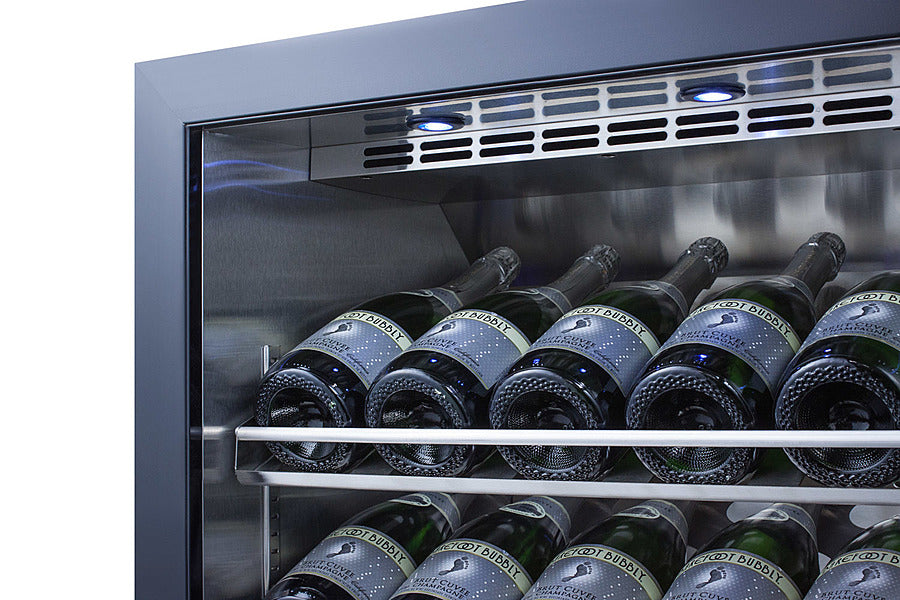

Inside, the SCR610BLCHPNR includes stainless steel shelving specially designed to hold champagne and sparkling wine bottles at a slight angle, providing a full display of the label. The interior walls and floor are constructed from stainless steel for lasting durability in busy commercial settings. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. Digital controls make it easy to manage the interior.
With its unique design and commercial grade construction, the SCR610BLCHPNR is the perfect undercounter option for storing and displaying larger bottles. Additional choices are available for outdoor use, and in larger sizes for higher bottle capacity. Browse our website for more options.
| Overview | Refrigerator/Freezer | ||
| Nominal Height | 34.0" (86 cm) | Number of Zones | 1 |
| Height of Cabinet | 34.0" (86 cm) | Door Swing | RHD |
| Nominal Width | 24.0" (61 cm) | Reversible | Factory Reversible |
| Width | 23.63" (60 cm) | Shelf Type | Steel |
| Nominal Depth | 24.0" (61 cm) | Shelf Qty | 3 |
| Depth | 23.5" (60 cm) | Thermostat Type | Digital |
| Depth with door at 90° | 45.5" (116 cm) | Interior Light | Yes |
| Capacity | 5.0 cu.ft. (142 L) | Fan Type | Interior and Exterior |
| Bottles | 20 bottles | Refrigerant Type | R600a |
| Defrost Type | Automatic | Refrigerant Amount | 0.99 oz. |
| Door | Glass/Panel-Ready Frame | High Side PSI | 270.0 |
| Cabinet | Black | Low Side PSI | 105.0 |
| US Electrical Safety | ETL | Interior Height 1 | 25.0" (64 cm) |
| Canadian Electrical Safety | ETL-C | Interior Width 1 | 19.38" (49 cm) |
| Sanitation | ETL-S | Interior Depth 1 | 17.38" (44 cm) |
| Amps | 0.8 | Compressor Step Height | 3.75" (10 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Width | 19.38" (49 cm) |
| Weight | 140.0 lbs. (64 kg) | Compressor Step Depth | 4.63" (12 cm) |
| Parts & Labor Warranty | 1 Year | Temperature Range | 36 to 43ºF |
| Compressor Warranty | 5 Years | Sound Level | 37.4 dB |
| UPC | 761101065502 |
|
ASSEMBLY DRAWING |
| SUPPORT |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
