Summit Appliance SWC3668ADA 36″ Wide Built-In Dual-Zone Wine Cellar – ADA Height, 68-Bottle Capacity
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.

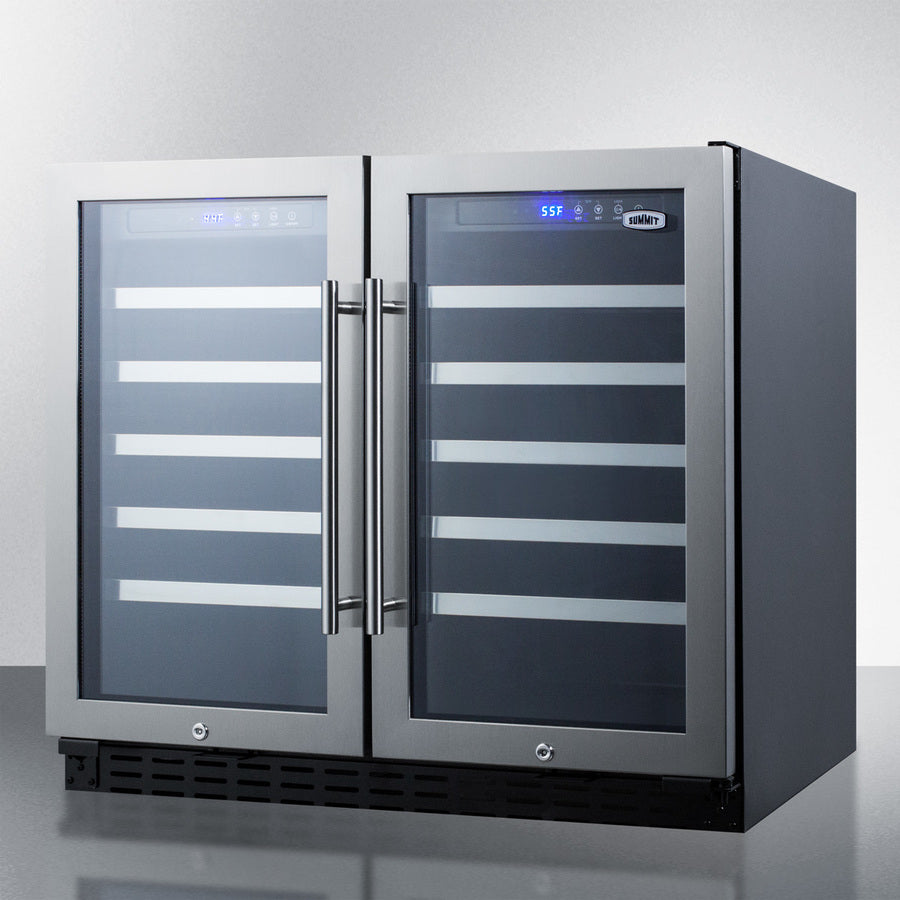

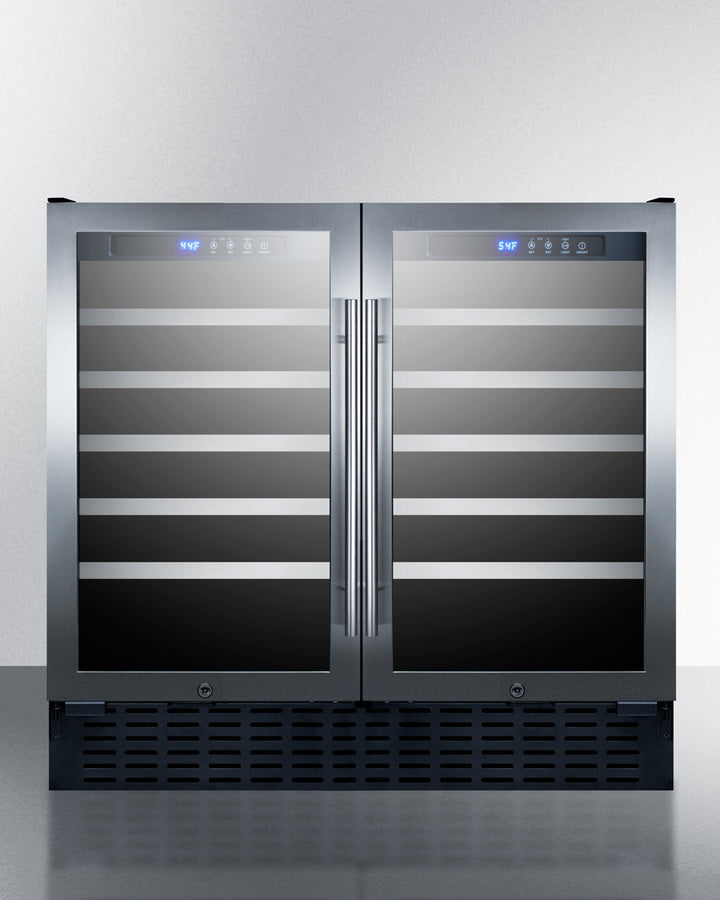

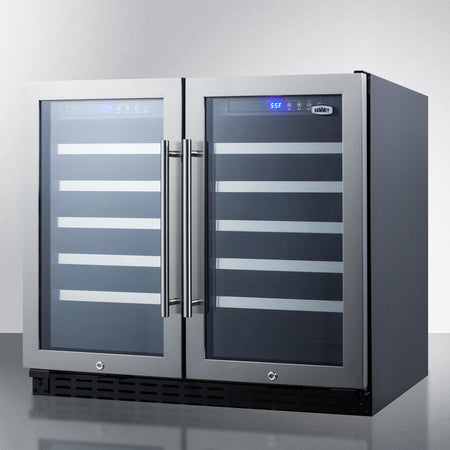

At just under 32" high and 36" wide, the SWC3668ADA wine cellar is designed for built-in installation under lower ADA compliant counters. The fully finished black cabinet also allows freestanding use. This unit includes two seamless stainless steel trimmed glass doors with a unique French door swing. Both include factory installed locks for added security and professional handles to finish the modern look.

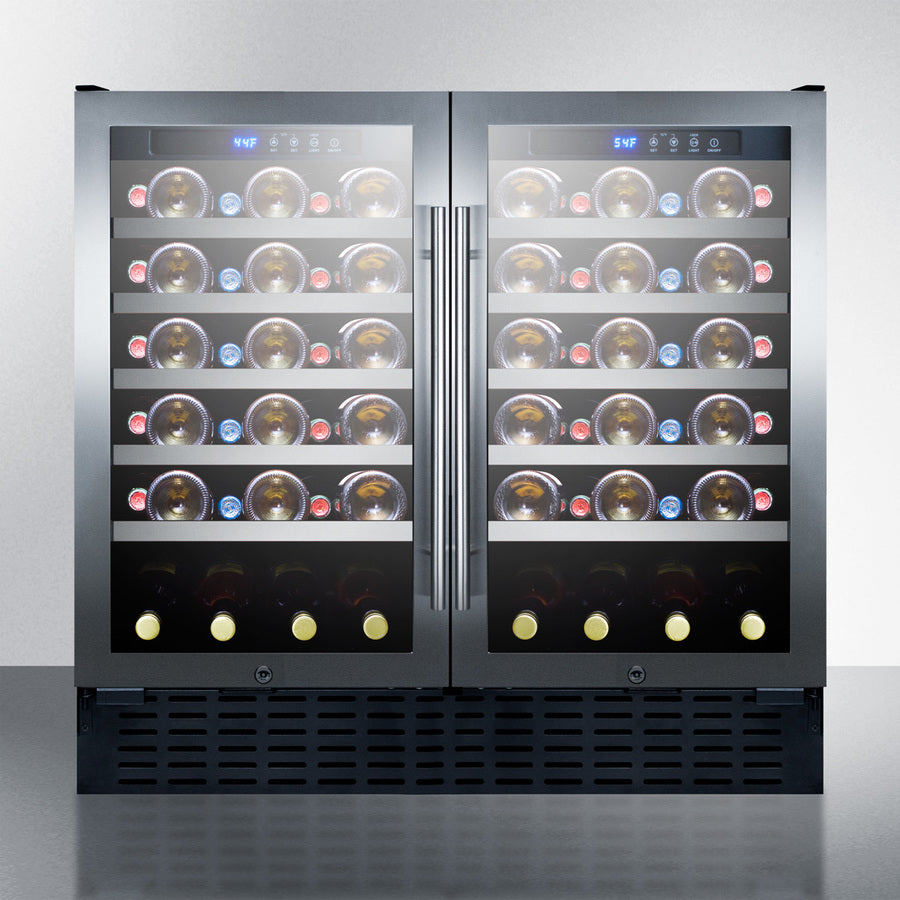

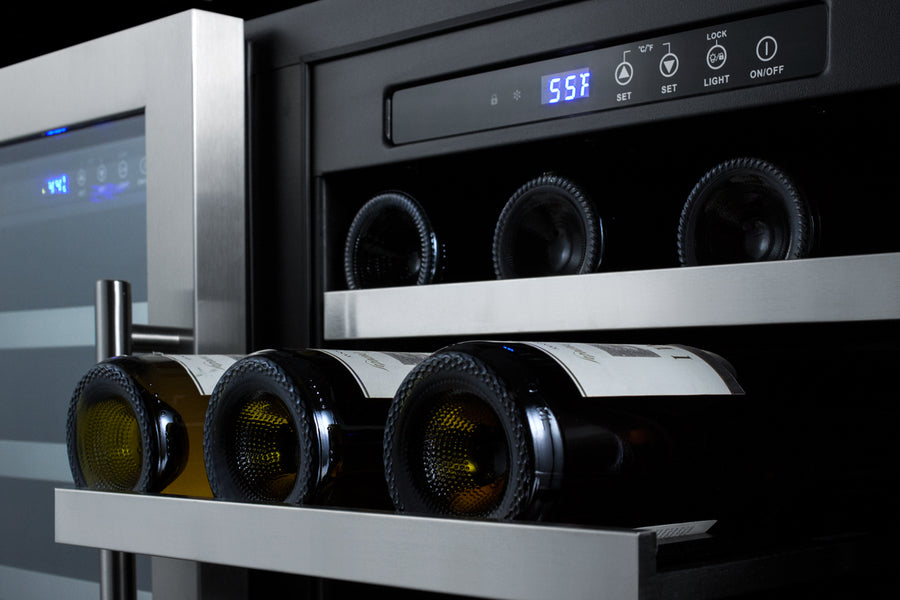

Two separate zones feature independent digital thermostats, letting you chill white and sparkling wine in one section while preserving reds under warmer temperatures in the other. Both zones include five wooden shelves in a jet black finish with stainless steel trim, as well as slotted floors to accommodate champagne bottles. The interior can store up to 68 standard 750ml Bordeaux bottles. Alternatively, you can fit up to 56 wider "Burgundy" style bottles (often used for Chardonnay and Pinot Noir). Recessed LED lighting offers an attractive view to let you display your wine collection in style.
With a professional look and innovative design, SUMMIT SWC3668ADA is a unique addition to any home.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Number of Zones | 2 |
| Height of Cabinet | 31.5" (80 cm) | Door Swing | French |
| Nominal Width | 36.0" (91 cm) | Adjustable Shelves | Yes |
| Width | 35.38" (90 cm) | Shelf Type | Wood |
| Nominal Depth | 24.0" (61 cm) | Shelf Qty | 10 |
| Depth | 23.5" (60 cm) | Thermostat Type | Digital |
| Depth with Handle | 25.25" (64 cm) | Interior Light | Yes |
| Depth with door at 90° | 39.75" (101 cm) | Fan Type | Interior and Exterior |
| Bottles | 68 bottles | Refrigerant Type | R600a |
| Defrost Type | Automatic | Refrigerant Amount | 1.06 oz. |
| Door | Glass | High Side PSI | 150.0 |
| Cabinet | Black | Low Side PSI | 50.0 |
| US Electrical Safety | ETL | Interior Height 1 | 23.0" (58 cm) |
| Canadian Electrical Safety | ETL-C | Interior Width 1 | 14.0" (36 cm) |
| Sanitation | ETL-S | Interior Depth 1 | 18.0" (46 cm) |
| Amps | 1.25 | Compressor Step Height | 5.0" (13 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Width | 14.0" (36 cm) |
| Weight | 151.0 lbs. (68 kg) | Compressor Step Depth | 5.0" (13 cm) |
| Parts & Labor Warranty | 1 Year | Level Legs | 4 |
| Compressor Warranty | 5 Years | Temperature Range | 40 to 72ºF |
| UPC | 761101054940 | Interior Height 2 | 23.0" (58 cm) |
| Interior Width 2 | 14.0" (36 cm) | ||
| Interior Depth 2 | 18.0" (46 cm) | ||
| Sound Level | 36.0 dB |
|
ASSEMBLY DRAWING |
