Summit SWC182ZCSS 18″ Wide Built-In Dual-Zone Wine Cellar – Stainless Steel Cabinet, 28 Bottle Capacity
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
SUMMIT's collection of built-in wine cellars offers fully featured choices in slim fits, allowing smaller kitchens to bring convenient and reliable wine storage for every undercounter space.

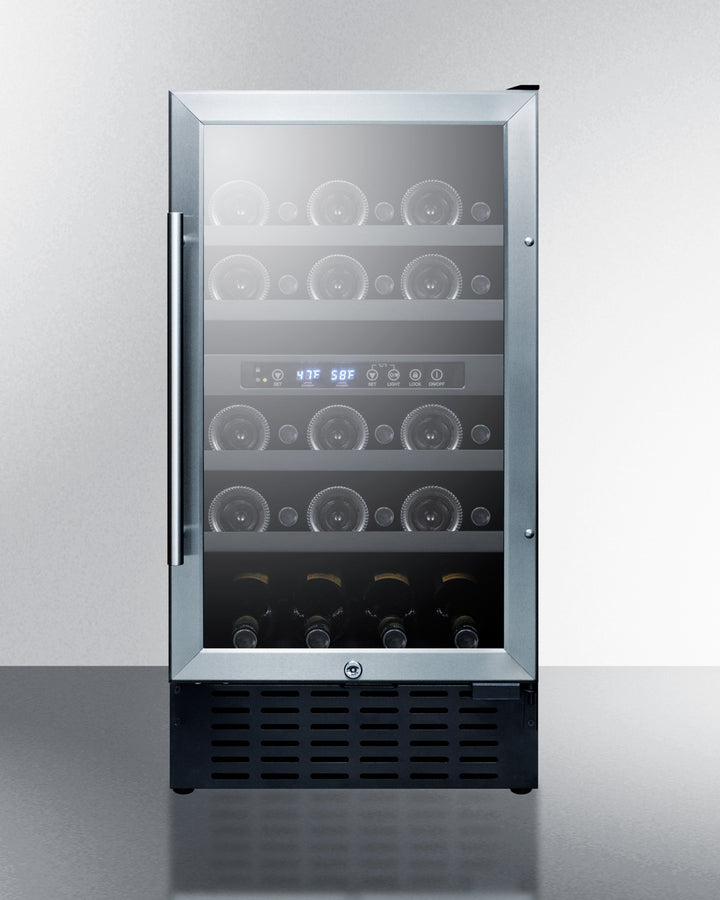

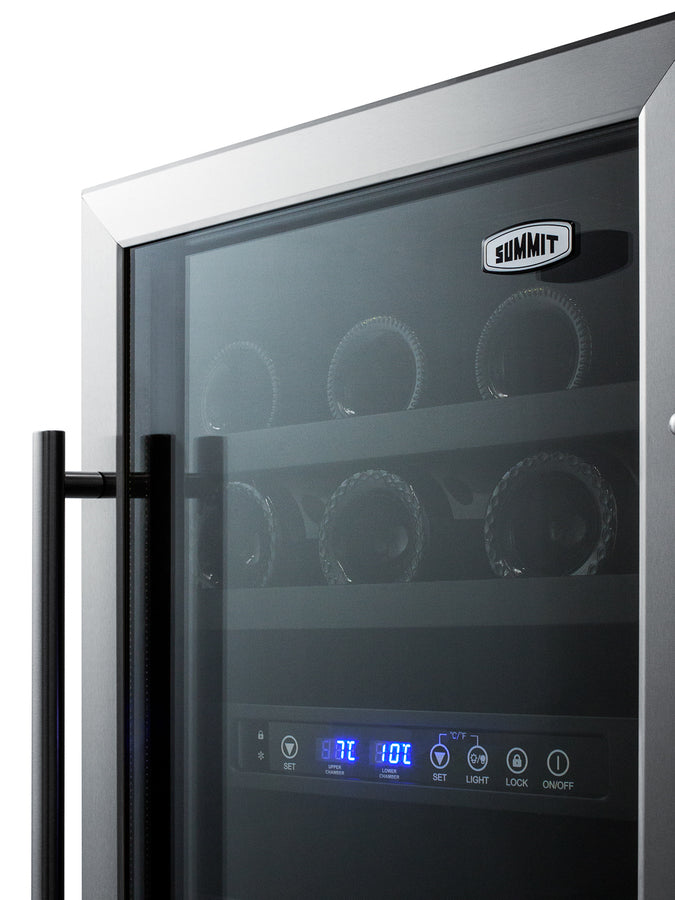

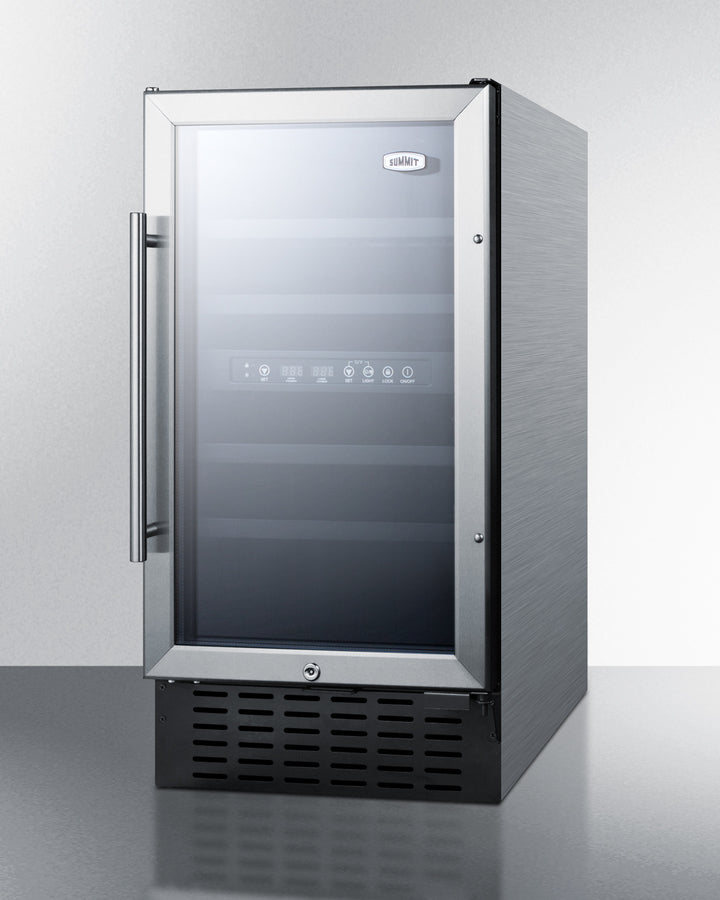

Sized just under 18" wide, the SWC182ZCSS is front-breathing for built-in installation under counters but can also be used freestanding. The cabinet is wrapped in 304 grade stainless steel for a professional look built to last. The reversible glass door features an elegant stainless steel trim and professional handle. A factory installed lock offers added security, with two keys included.

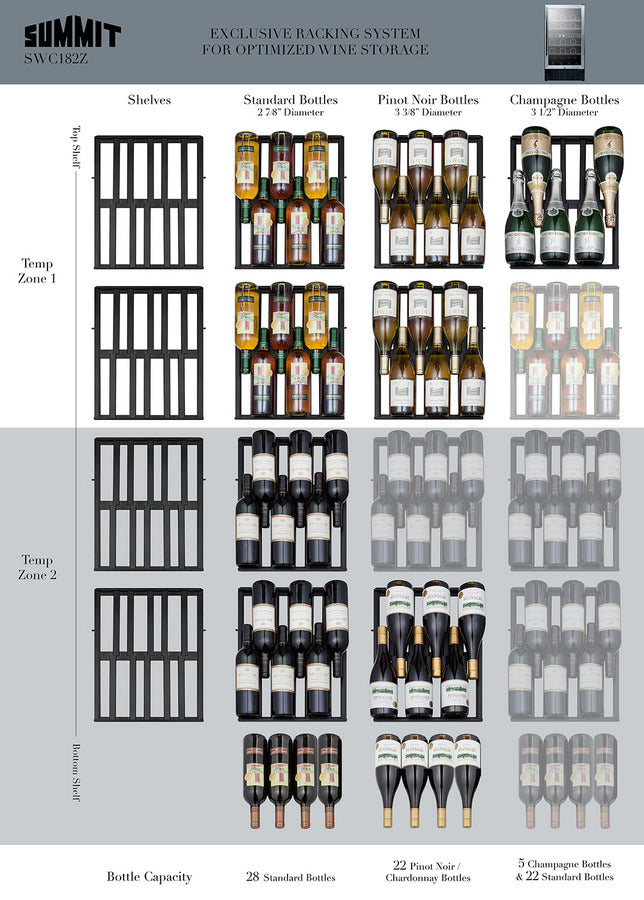

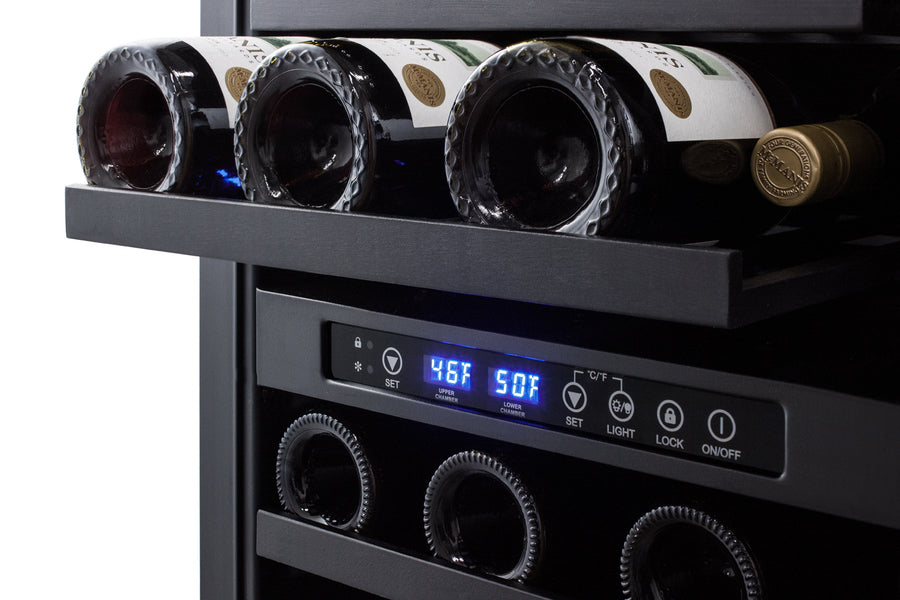

Two separate zones allow you to store your reds and whites at their own temperature, ensuring each bottle is kept under the proper conditions. This unit can hold up to 28 standard Bordeaux style bottles or 22 wider Burgundy style bottles. The wooden shelves feature a black finish for a modern look, with recessed LED lighting to provide an attractive and efficient presentation. The digital controls are located in the center for easy temperature management.
With its slim fit and convenient design, the SWC182ZCSS makes an attractive addition to any room.
| Overview | Refrigerator/Freezer | ||
| Nominal Height | 35.0" (89 cm) | Number of Zones | 2 |
| Height of Cabinet | 34.25" (87 cm) | Door Swing | RHD |
| Nominal Width | 18.0" (46 cm) | Reversible | Yes |
| Width | 17.94" (46 cm) | Shelf Type | Wood |
| Nominal Depth | 24.0" (61 cm) | Shelf Qty | 4 |
| Depth | 23.5" (60 cm) | Thermostat Type | Digital |
| Depth with Handle | 25.25" (64 cm) | Interior Light | Yes |
| Depth with door at 90° | 39.75" (101 cm) | Fan Type | Interior and Exterior |
| Capacity | 3.3 cu.ft. (93 L) | Refrigerant Type | R600a |
| Bottles | 28 bottles | Refrigerant Amount | 1.23 oz. |
| Defrost Type | Automatic | High Side PSI | 150.0 |
| Door | Glass | Low Side PSI | 50.0 |
| Cabinet | Stainless Steel | Interior Height 1 | 10.63" (27 cm) |
| US Electrical Safety | ETL | Interior Width 1 | 14.25" (36 cm) |
| Canadian Electrical Safety | ETL-C | Interior Depth 1 | 18.0" (46 cm) |
| Sanitation | ETL-S | Compressor Step Height | 5.25" (13 cm) |
| Amps | 1.25 | Compressor Step Width | 14.25" (36 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Depth | 5.0" (13 cm) |
| Weight | 95.0 lbs. (43 kg) | Level Legs | 4 |
| Parts & Labor Warranty | 1 Year | Temperature Range | 41º to 64ºF |
| Compressor Warranty | 5 Years | Interior Height 2 | 12.25" (31 cm) |
| UPC | 761101058429 | Interior Width 2 | 14.25" (36 cm) |
| Interior Depth 2 | 18.0" (46 cm) |
|
ASSEMBLY DRAWING |
