Summit SWCP2163CSS 24″ Wide Dual-Zone Wine Cellar – 163-Bottle Capacity, Stainless Steel Cabinet & Glass Door
Customer service
Features
- SKU SA-SWCP2163CSS
Summit offers a unique selection of built-in capable full-sized wine cellars with a versatile luxury design ideal for residential or commercial use

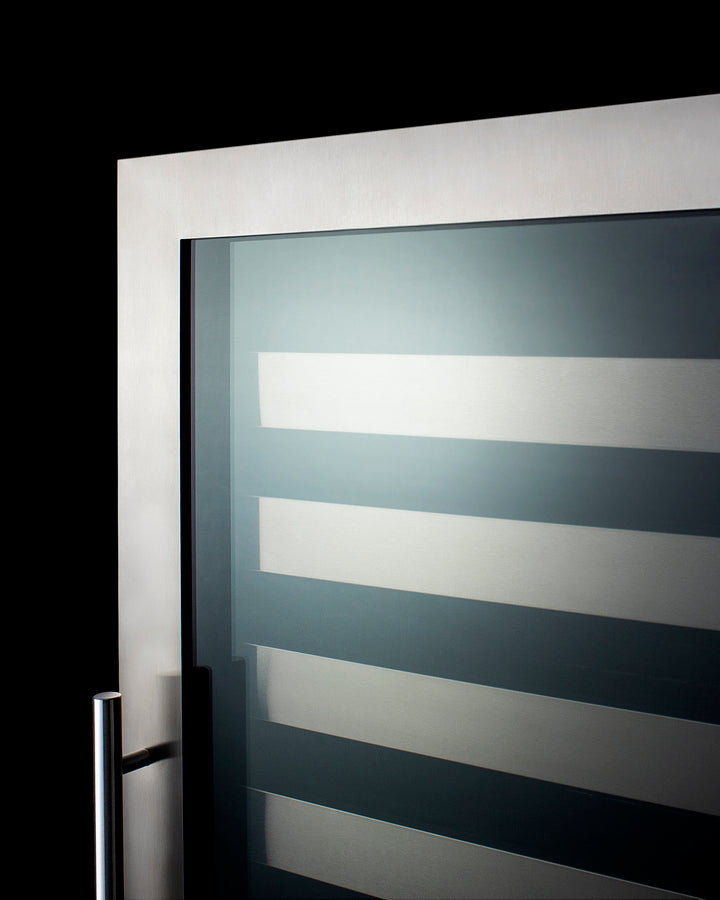

The SWCP2163CSS is a 24" wide dual zone wine cellar that is ETL-S listed to NSF-7 commercial standards. The upper zone is reserved for white and sparkling wine, while the lower zone features a warmer temperature range to best preserve reds. It features a front-breathing design for built-in installation, with a fully finished stainless steel cabinet that also allows freestanding use. Sized just under 27" deep, this unit has a sealed back and right angle plug for added depth savings. The luxury exterior features a double pane tempered glass door with a seamless stainless steel trim. A stainless steel kickplate provides added elegance, while the pro-style handle completes the look. This unit includes a factory-installed keyed lock for added security and powerful magnetic gaskets to ensure a proper seal in high-traffic commercial settings.

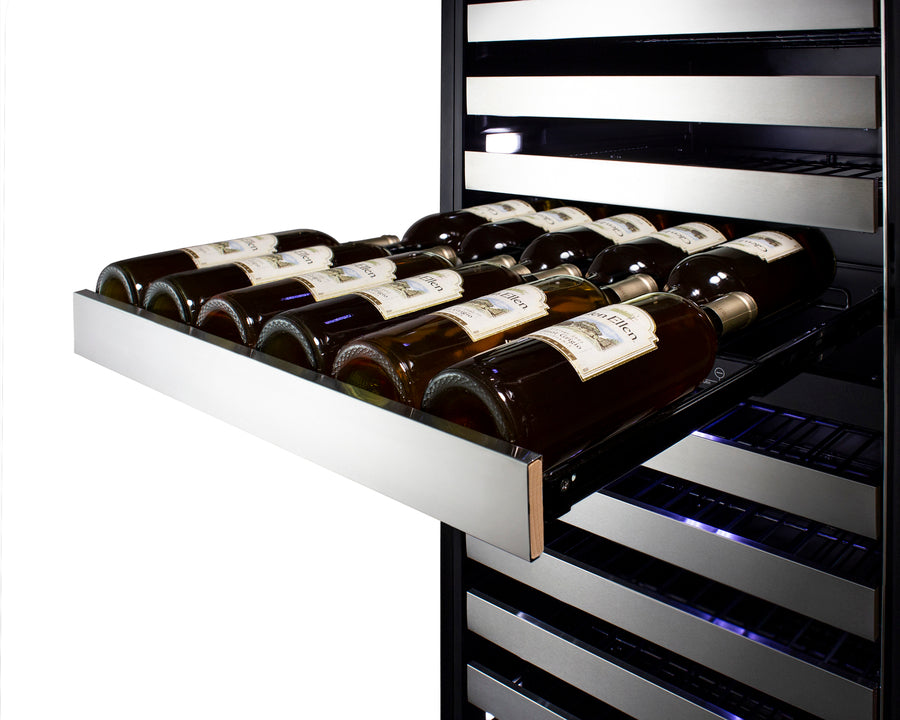

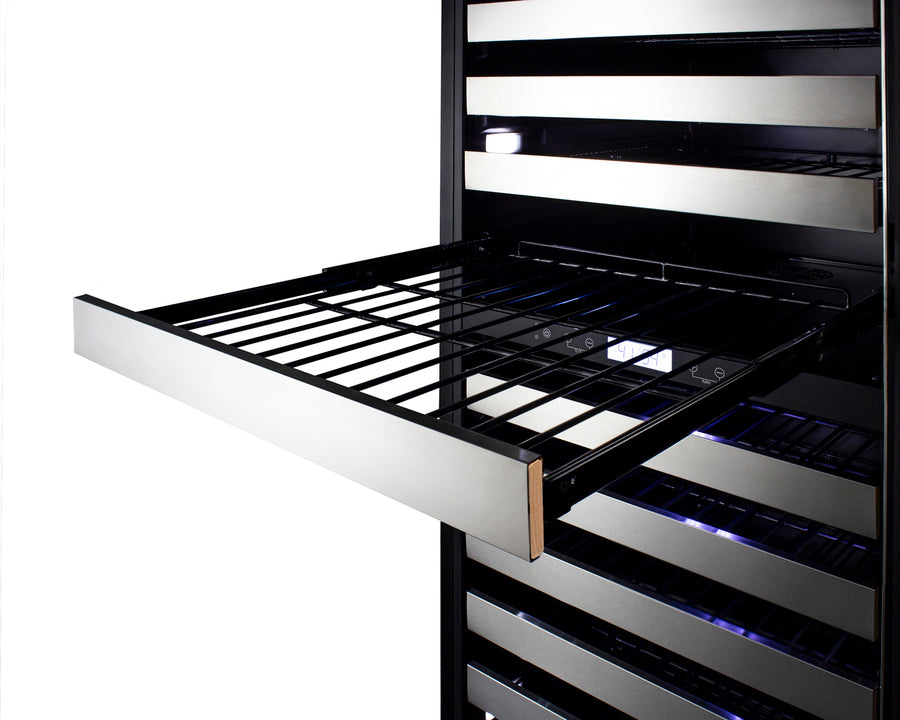

Inside, the SWCP2163CSS includes 13 full-extension black wire shelves positioned on ball bearing glides for smooth loading. Stainless steel fronts offer a modern touch. Optimal storage capacity accommodates up to 163 standard 750ml Bordeaux bottles (note: your capacity may vary depending on the bottle style). For wider Burgundy style bottles (typically used for Pinot Noir and Chardonnay), the SWCP2163CSS can hold up to 110 bottles. Nine white LED lights positioned on the sides and top of the unit attractively illuminate your collection for a stylish display. An internal fan ensures both zones are properly chilled, while a charcoal filtration system keeps the interior odor-free. Additional features include an open door alarm and high/low temperature alarm that sound if the unit temperature goes out of range.
With its convenient size, advanced features, and luxury design, the SWCP2163CSS is perfect for restaurants, bars, wineries, and homes seeking full capacity wine storage with a modern presentation.
| Overview | Refrigerator/Freezer | ||
| Nominal Height | 70.0" (178 cm) | Number of Zones | 2 |
| Height of Cabinet | 69.5" (177 cm) | Door Swing | RHD/LHD |
| Nominal Width | 24.0" (61 cm) | Reversible | Factory Reversible |
| Width | 23.63" (60 cm) | Shelf Type | Wire |
| Nominal Depth | 27.0" (69 cm) | Shelf Qty | 13 |
| Depth | 26.5" (67 cm) | Thermostat Type | Digital |
| Depth with Handle | 28.25" (72 cm) | Interior Light | Yes |
| Depth with door at 90° | 48.75" (124 cm) | Fan Type | Interior and Exterior |
| Bottles | 163 bottles | Refrigerant Type | R600a |
| Defrost Type | Automatic | Refrigerant Amount | 1.76 oz. |
| Door | Glass | High Side PSI | 320.0 |
| Cabinet | Stainless Steel | Low Side PSI | 120.0 |
| US Electrical Safety | ETL | Interior Height 1 | 31.0" (79 cm) |
| Canadian Electrical Safety | ETL-C | Interior Width 1 | 20.38" (52 cm) |
| Sanitation | ETL-S | Interior Depth 1 | 21.0" (53 cm) |
| Amps | 2.0 | Level Legs | 2 |
| Voltage/Frequency | 115 V AC/60 Hz | Temperature Range | 41-54°F (upper zone); 54-65°F (lower zone) |
| Weight | 299.0 lbs. (136 kg) | Interior Height 2 | 29.75" (76 cm) |
| Parts & Labor Warranty | 1 Year | Interior Width 2 | 20.38" (52 cm) |
| Compressor Warranty | 5 Years | Interior Depth 2 | 21.0" (53 cm) |
| UPC | 761101076294 | Sound Level | 34 dB |
|
ASSEMBLY DRAWING |
| SUPPORT |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
