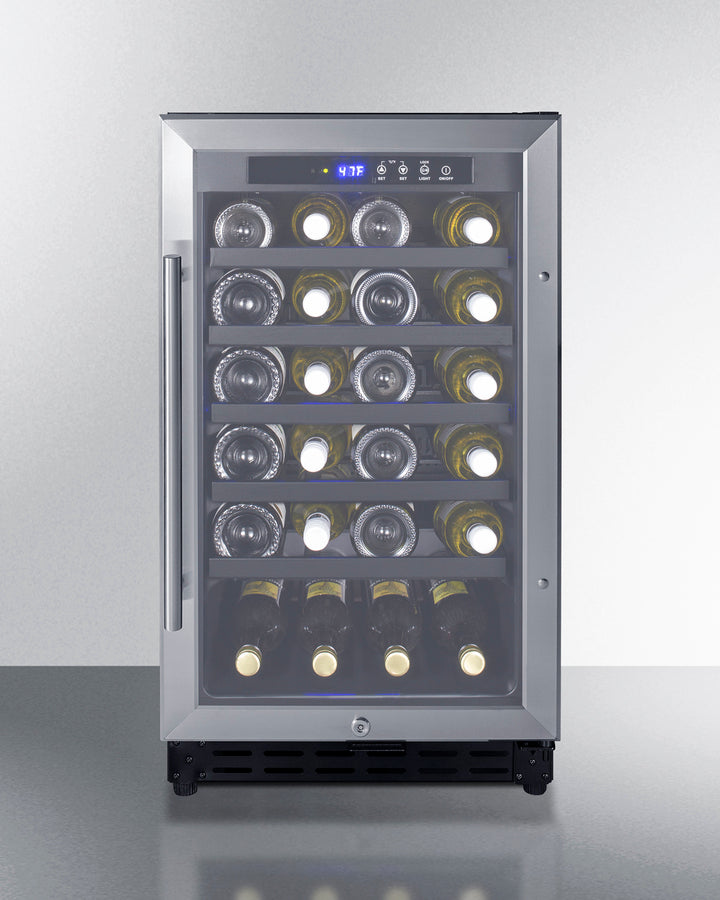

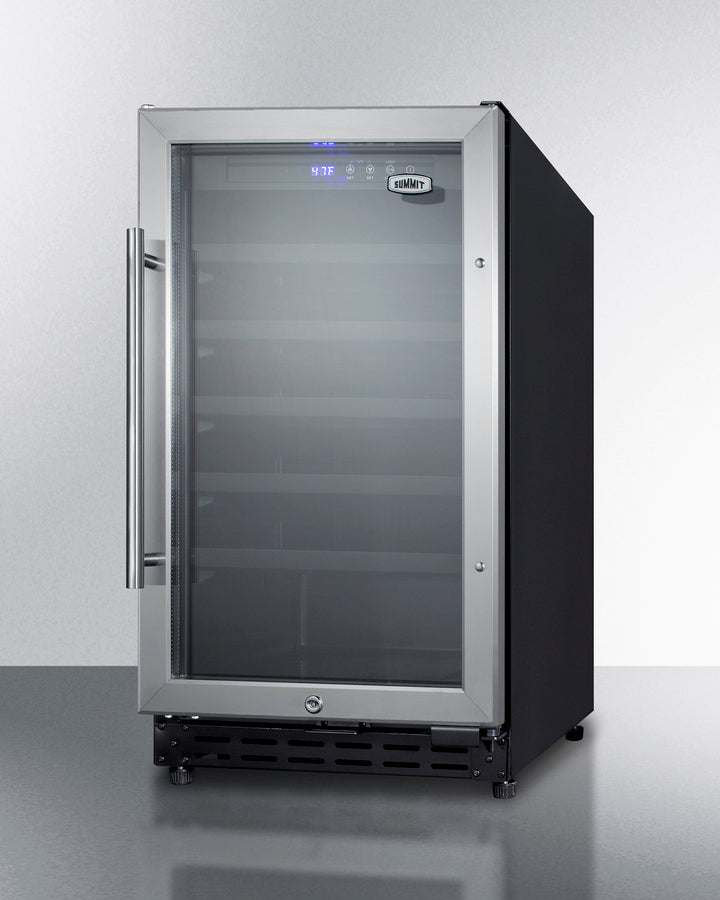

Summit SWC1840BADA 18″ Wide ADA-Height Built-In Wine Cellar – Glass Door, 3.3 cu ft / 34-Bottle Capacity
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.

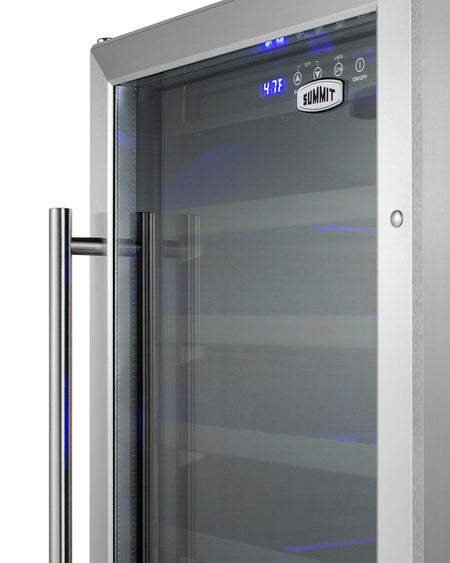

The SWC1840BADA is a 32" high wine cellar designed for built-in or freestanding use under lower ADA compliant counters, with a unique 18" width. The reversible glass door features an elegant stainless steel trim and professional handle, with a factory installed lock for added security.

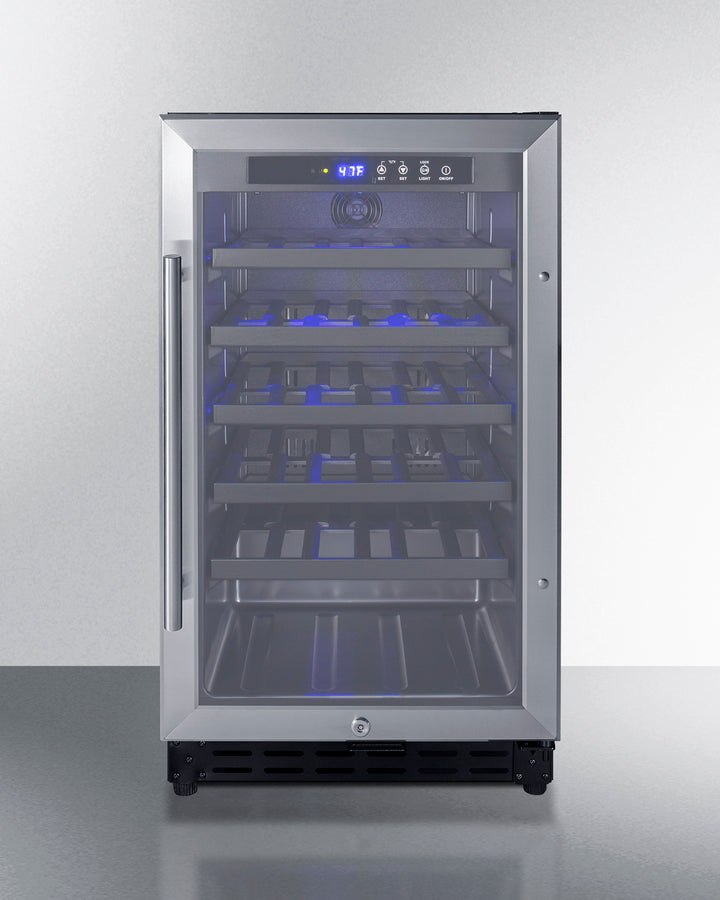

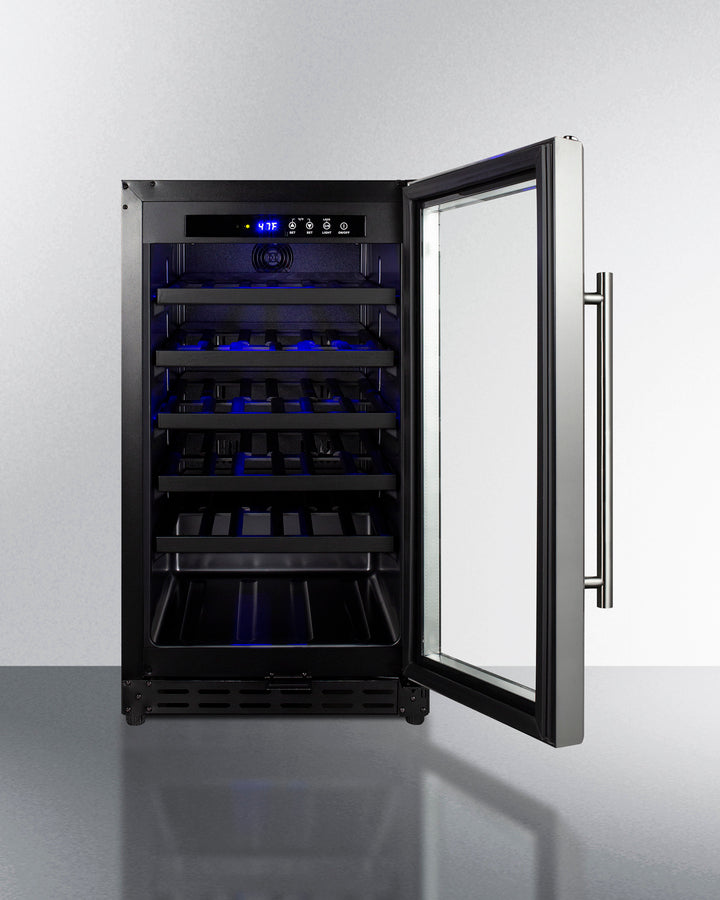

Inside, this auto defrost wine cellar can store up to 34 Bordeaux or Burgundy style bottles, with a slotted floor that can also accommodate champagne if needed. The slide-out wooden shelves come in a jet black finish for a modern look. Recessed LED lighting offers an elegant view of the items, while the digital thermostat ensures easy temperature management.
With its slim fit and convenient design, the SWC1840BADA makes an attractive addition to any room.
| Overview | Refrigerator/Freezer | ||
| Nominal Height | 32.0" (81 cm) | Number of Zones | 1 |
| Height of Cabinet | 31.38" (80 cm) | Door Swing | RHD |
| Nominal Width | 18.0" (46 cm) | Reversible | Yes |
| Width | 17.75" (45 cm) | Adjustable Shelves | Yes |
| Nominal Depth | 24.0" (61 cm) | Shelf Type | Wood |
| Depth | 23.5" (60 cm) | Shelf Qty | 5 |
| Depth with door at 90° | 39.75" (101 cm) | Thermostat Type | Digital |
| Capacity | 3.3 cu.ft. (93 L) | Interior Light | Yes |
| Bottles | 34 bottles | Fan Type | Interior and Exterior |
| Defrost Type | Automatic | Refrigerant Type | R600a |
| Door | Glass | Refrigerant Amount | 10.6 oz. |
| Cabinet | Black | High Side PSI | 150.0 |
| US Electrical Safety | ETL | Low Side PSI | 50.0 |
| Canadian Electrical Safety | ETL-C | Level Legs | 4 |
| Sanitation | ETL-S | Temperature Range | 41º to 68ºF |
| Amps | 1.25 | Sound Level | 33.8 dB |
| Voltage/Frequency | 115 V AC/60 Hz | ||
| Weight | 95.0 lbs. (43 kg) | ||
| Parts & Labor Warranty | 1 Year | ||
| Compressor Warranty | 5 Years | ||
| UPC | 761101056197 |
|
ASSEMBLY DRAWING |
| SUPPORT |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
