SUMMIT's collection of built-in wine cellars offers fully featured choices in slim fits, allowing smaller kitchens to bring convenient and reliable wine storage for every undercounter space.

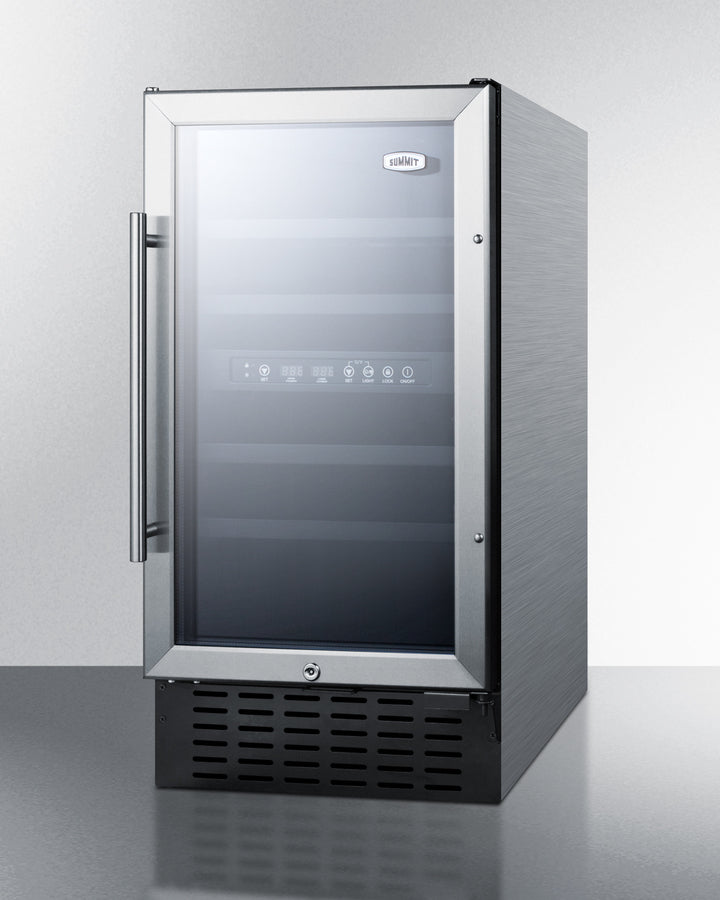

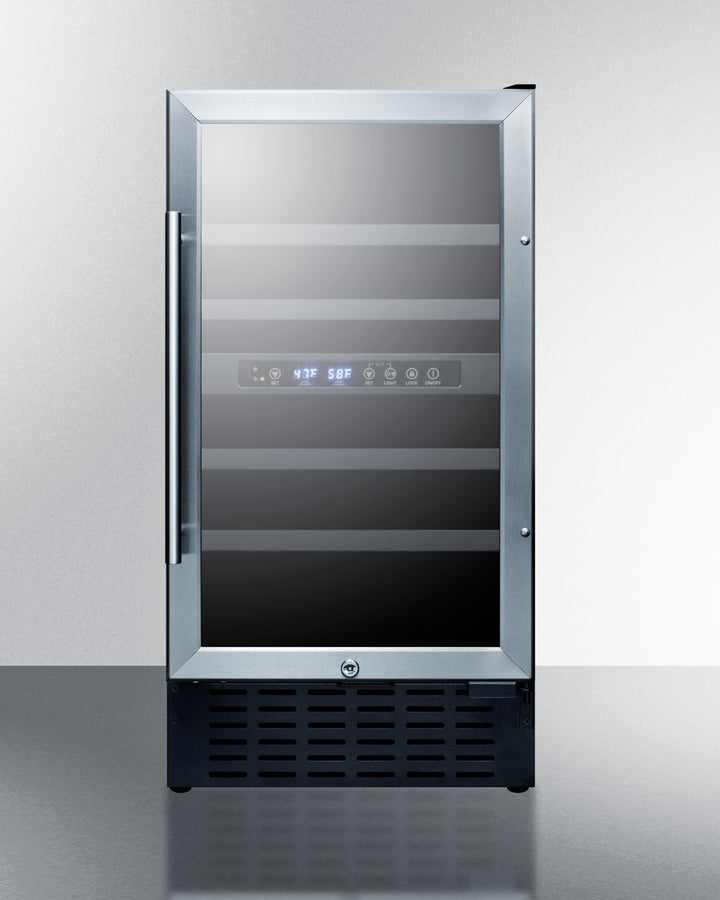

Sized just under 18" wide and 32" high, the SWC182ZCSSADA is front-breathing for built-in installation under lower ADA compliant counters. The cabinet is wrapped in 304 grade stainless steel for a professional look built to last. The reversible glass door features an elegant stainless steel trim and professional handle. A factory installed lock offers added security, with two keys included.

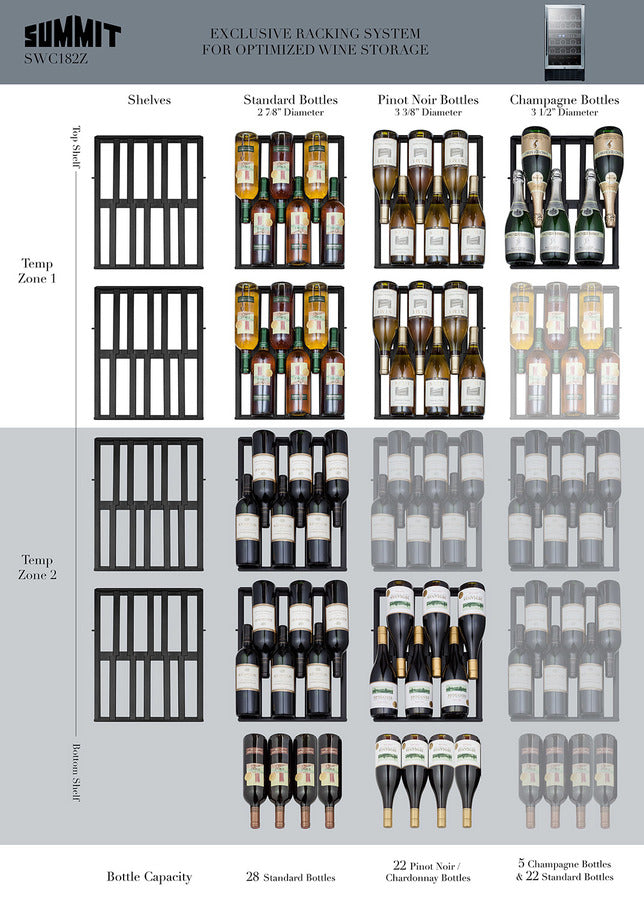

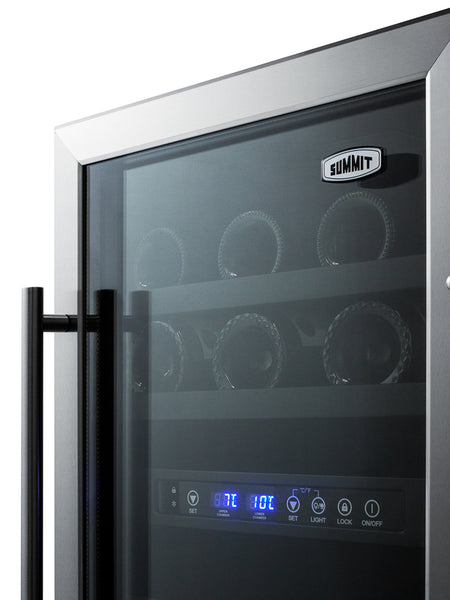

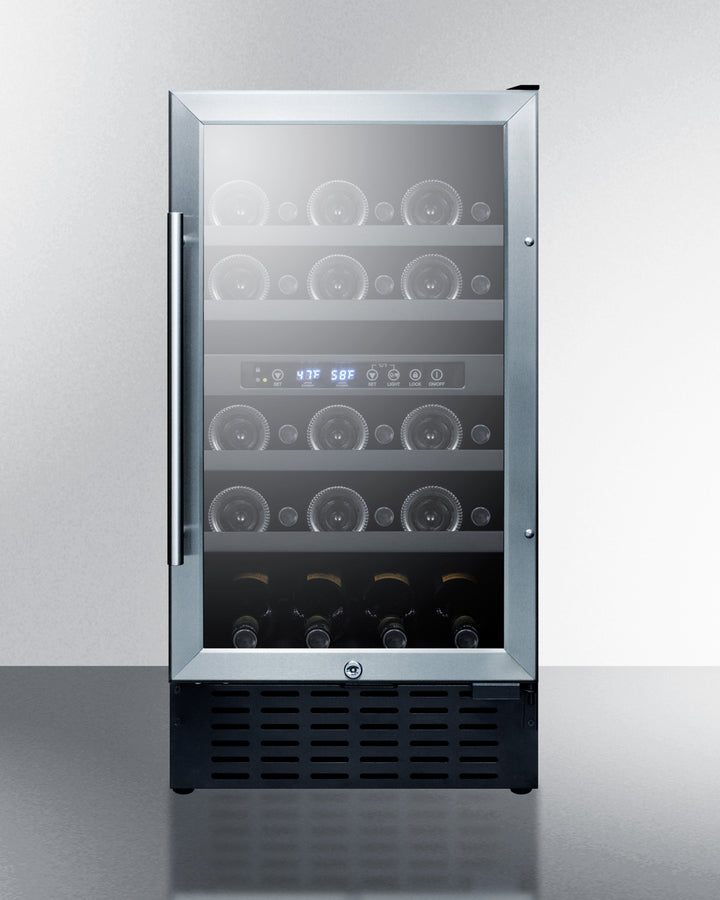

Two separate zones allow you to store your reds and whites at their own temperature, ensuring each bottle is kept under the proper conditions. This unit can hold up to 28 standard Bordeaux style bottles or 22 wider Burgundy style bottles. The wooden shelves feature a black finish for a modern look, with recessed LED lighting to provide an attractive and efficient presentation. The digital controls are located in the center for easy temperature management.
With its slim fit and convenient design, the SWC182ZCSSADA makes an attractive addition to any room.
| Overview | Refrigerator/Freezer | ||
| Nominal Height | 32.0" (81 cm) | Number of Zones | 2 |
| Height of Cabinet | 31.63" (80 cm) | Door Swing | RHD |
| Nominal Width | 18.0" (46 cm) | Reversible | Yes |
| Width | 17.94" (46 cm) | Adjustable Shelves | Yes |
| Nominal Depth | 24.0" (61 cm) | Shelf Type | Wood |
| Depth | 23.5" (60 cm) | Shelf Qty | 4 |
| Depth with Handle | 25.25" (64 cm) | Thermostat Type | Digital |
| Depth with door at 90° | 39.75" (101 cm) | Interior Light | Yes |
| Capacity | 3.3 cu.ft. (93 L) | Fan Type | Interior and Exterior |
| Bottles | 28 bottles | Refrigerant Type | R600a |
| Defrost Type | Automatic | Refrigerant Amount | 1.23 oz. |
| Door | Glass | High Side PSI | 150.0 |
| Cabinet | Stainless Steel | Low Side PSI | 50.0 |
| US Electrical Safety | ETL | Interior Height 1 | 10.63" (27 cm) |
| Canadian Electrical Safety | ETL-C | Interior Width 1 | 14.25" (36 cm) |
| Sanitation | ETL-S | Interior Depth 1 | 18.0" (46 cm) |
| Amps | 1.25 | Compressor Step Height | 5.25" (13 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Width | 14.25" (36 cm) |
| Weight | 95.0 lbs. (43 kg) | Compressor Step Depth | 5.0" (13 cm) |
| Parts & Labor Warranty | 1 Year | Level Legs | 4 |
| Compressor Warranty | 5 Years | Temperature Range | 41º to 64ºF |
| UPC | 761101058436 | Interior Height 2 | 12.25" (31 cm) |
| Interior Width 2 | 14.25" (36 cm) | ||
| Interior Depth 2 | 18.0" (46 cm) |
|
ASSEMBLY DRAWING |
| SUPPORT |
