Summit SWC6GBLCSSADA 24″ Wide Built-In ADA-Height Wine Cellar – 5.5 cu ft / 36-Bottle Capacity, Stainless Steel Cabinet & Glass Door
Customer service
Features
- SKU SA-SWC6GBLCSSADA
SUMMIT SWC6GBIADA series features European designed, commercially approved wine cellars capable of built-in use under lower ADA compliant counters.

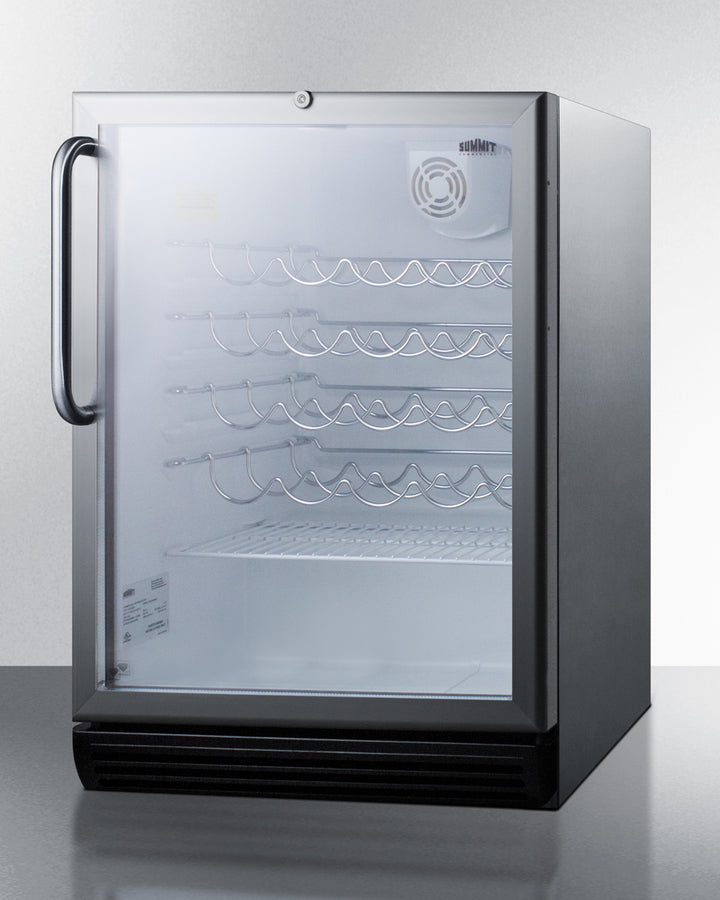

The SWC6GBLCSSADA is conveniently sized at just 24" wide, with a front-breathing design for built-in installation under counters. The fully finished stainless steel wrapped cabinet also allows freestanding use. This unit features a double pane tempered glass door for reliable storage. We include our signature towel bar style handle in brushed stainless steel to complete the professional look. The lock is located towards the top of the door for easier access.

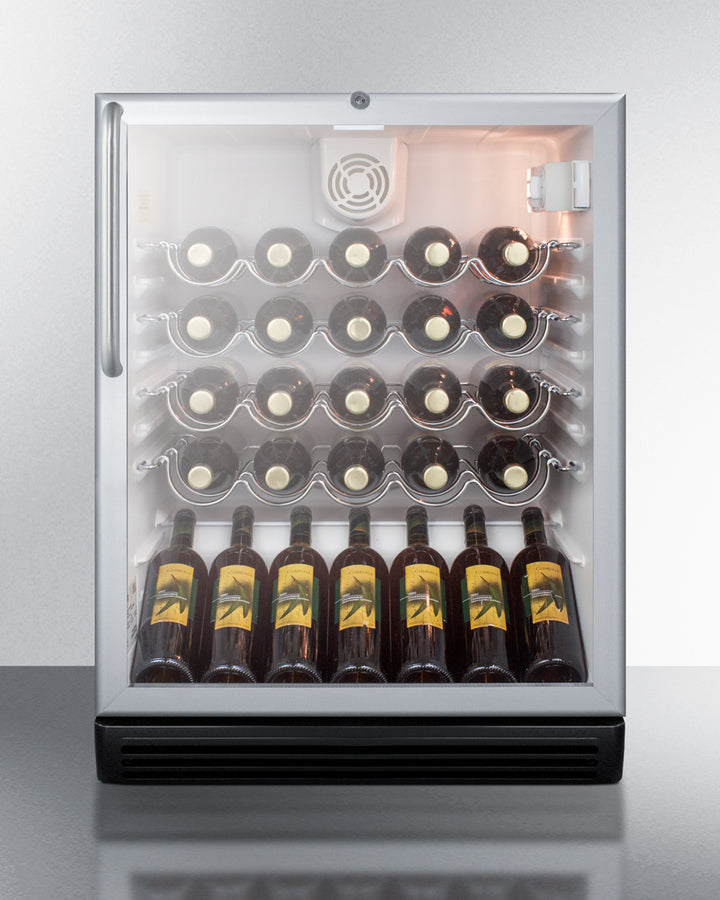

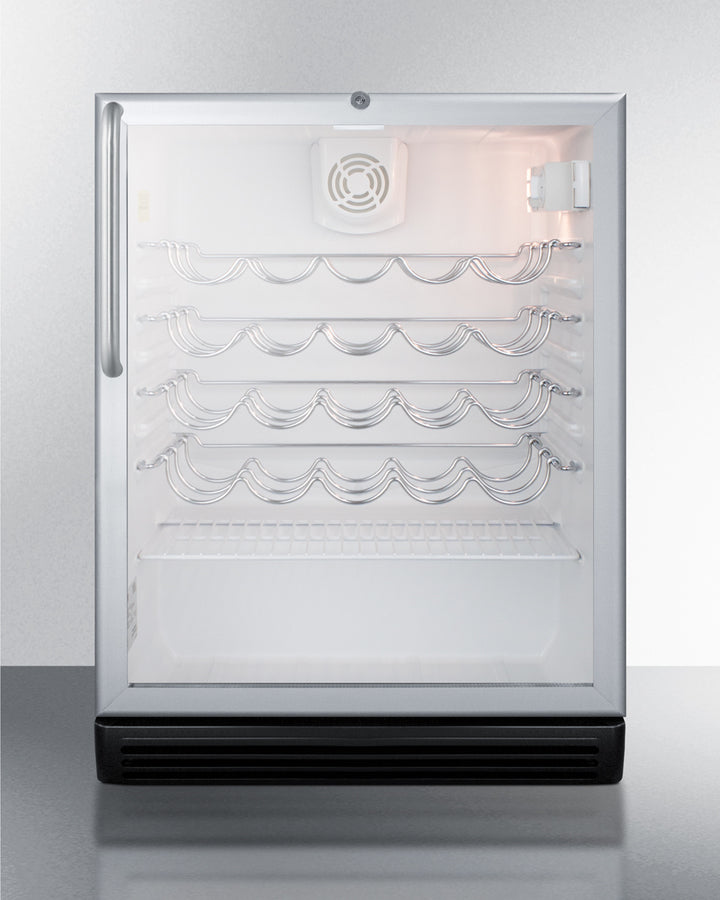

Inside, the SWC6GBLCSSADA includes adjustable scalloped shelves perfectly designed to hold bottles in place. The white interior helps to improve visibility, letting your collection stand out clearly. This unit includes an interior light with an on/off rocker switch located behind the adjustable dial thermostat.
The SWC6GBLCSSADA is made in Europe and is ETL-S listed to NSF-7 standards for commercial use. Additional handle styles and door tint options are available.
NOTE: These models are designed primarily for white wine storage but can be upgraded with a digital thermostat to accommodate red wine temperatures.
| Overview | Refrigerator/Freezer | ||
| Nominal Height | 32.0" (81 cm) | Number of Zones | 1 |
| Height of Cabinet | 32.0" (81 cm) | Door Swing | RHD |
| Height to Hinge Cap | 32.38" (82 cm) | Reversible | Factory Reversible |
| Nominal Width | 24.0" (61 cm) | Adjustable Shelves | Yes |
| Width | 23.63" (60 cm) | Shelf Type | Scalloped |
| Nominal Depth | 24.0" (61 cm) | Shelf Qty | 4 |
| Depth | 23.5" (60 cm) | Thermostat Type | Dial |
| Capacity | 5.5 cu.ft. (156 L) | Interior Light | Yes |
| Bottles | 36 bottles | Fan Type | Interior and Exterior |
| Defrost Type | Automatic | Refrigerant Type | R600a |
| Door | Glass | Refrigerant Amount | 0.67 oz. |
| Cabinet | Stainless Steel | High Side PSI | 124.0 |
| US Electrical Safety | UL | Low Side PSI | 30.0 |
| Canadian Electrical Safety | ULC | Interior Height 1 | 26.0" (66 cm) |
| Sanitation | ETL-S | Interior Width 1 | 20.75" (53 cm) |
| Amps | 1.3 | Interior Depth 1 | 17.5" (44 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Height | 6.0" (15 cm) |
| Weight | 115.0 lbs. (52 kg) | Compressor Step Width | 20.75" (53 cm) |
| Parts & Labor Warranty | 1 Year | Compressor Step Depth | 5.0" (13 cm) |
| Compressor Warranty | 5 Years | ||
| UPC | 761101022581 |
|
ASSEMBLY DRAWING |
| SUPPORT |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
