Summit SWC1535B 15″ Wide Built-In Wine Cellar – 33-Bottle Capacity, Glass Door

SKU: SA-SWC1535B
Regular price $1,017.60
Built-In Capable with Fully Finished Black Cabinet — Designed for under-counter flush installation or freestanding use with a finished exterior.
Tempered Glass Door with Stainless Trim & Interior LED Lighting — Provides a clear display of wine collection, includes factory-installed lock for security.
Built-In Capable with Fully Finished Black Cabinet — Designed for under-counter flush installation or freestanding use with a finished exterior.
33.88" H x 14.75" W x 22.75" D
(86cm H x 37cm W x 58cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-SWC1535B

Built-in capable:
Make the best use of space by installing your appliance under the counter

Commercially Approved:
ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments

Fully finished black cabinet:
Allows the unit to be used freestanding

Glass door with stainless steel trim:
Provides a full display of your stored collection with a heat-safe double tempered design

Factory installed lock:
Keyed security on the wine cellar door

Flush back:
Space saving design

Digital thermostat:
Electronic controls for precise temperature management, with indicator lights for red, white, and sparkling wines

Digital display:
Temperature readout can be shown in Celsius or Fahrenheit

Wooden shelves:
Classic look holds up to 33 bottles

LED lighting:
On/off button to illuminate your collection

Automatic defrost:
Reduced maintenance and steady temperature performance

Professional handle:
Stainless steel look for added elegance

Reversible door:
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

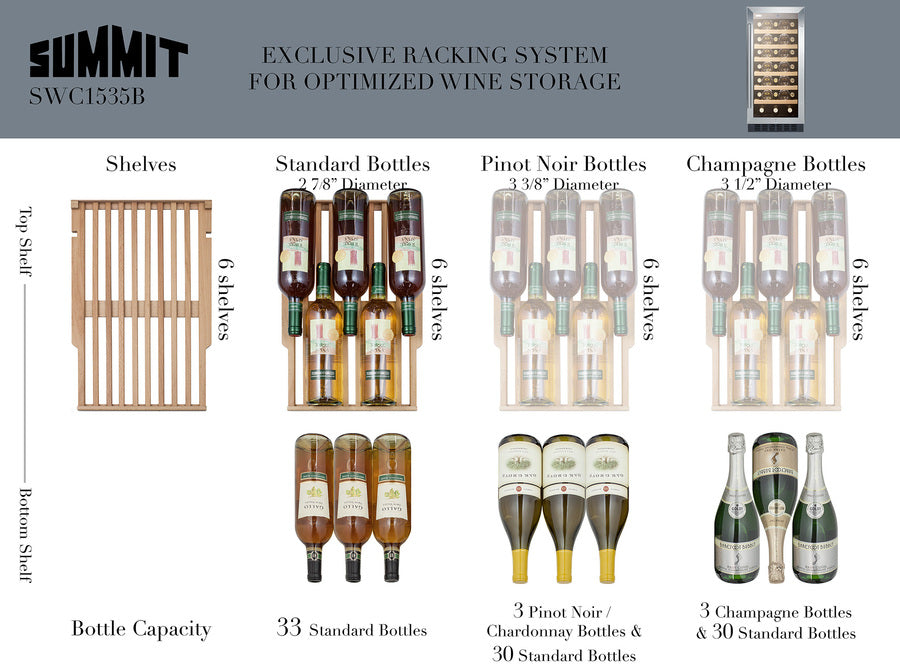

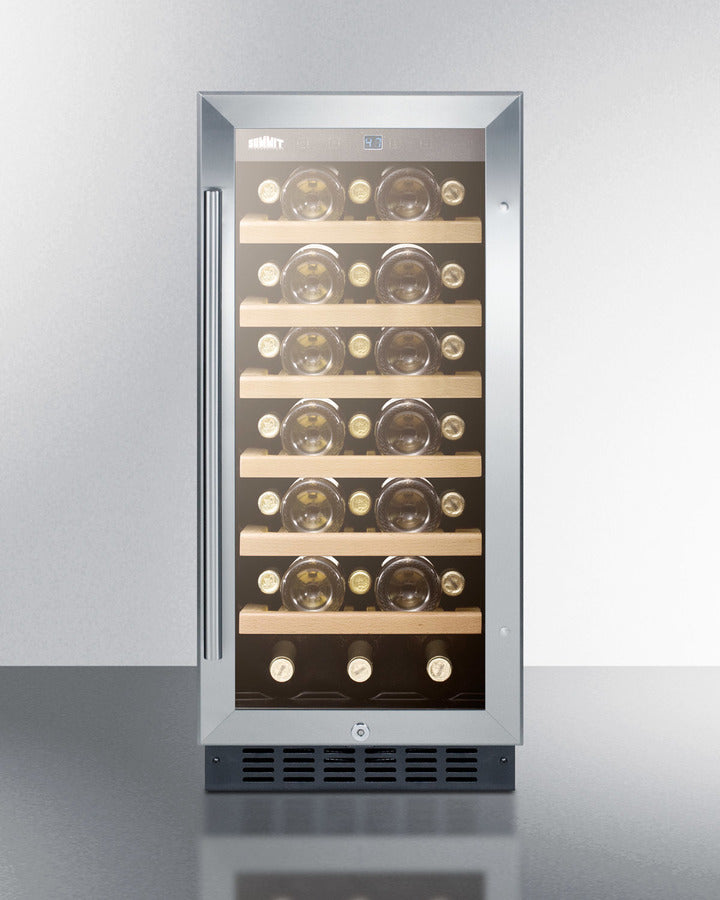

33 bottle capacity:
Interior can store up to 33 standard Bordeaux style bottles. The floor can hold three wider bottles (including the Burgundy style or champagne). Alternatively, you can remove every other shelf to accommodate wider bottles

Sabbath mode setting:
Optional setting lets you disable the lighting and alarm for up to 48 hours

100% CFC Free:
Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant:
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

HTS CODE: 8418.50.0080:
Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door

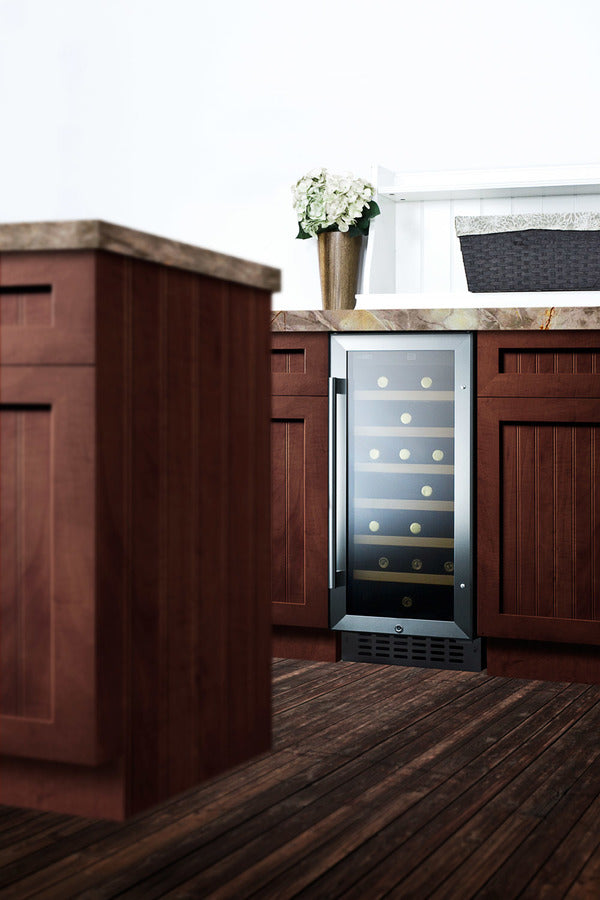

Give your wine collection the proper care with SUMMIT SWC1535B, a slim-fitting wine cellar designed for built-in use under counters.

At just 14 ¾" wide, the SWC1535B is thoughtfully sized to store up to 33 Bordeaux style bottles on six slide-out wooden shelves (if using this unit for wider Burgundy style bottles, you can remove every other shelf to accommodate their size). An interior LED light provides an elegant view behind a tempered glass door, elegantly trimmed in stainless steel. The reversible door includes a factory installed lock and professional handle. Inside, the digital thermostat makes temperature management easy and intuitive, with indicator lights to show when the interior is ideal for reds, whites, and sparkling wines.

The SWC1535B has a jet black cabinet and flush back design for easy installation under any counter. The unit can be used built-in or freestanding. For a matching glass door beverage refrigerator, see the SCR1536B.

This model replaces SUMMIT SWC1535.

 Overview


Refrigerator-Freezer



Nominal Height 34.0" (86 cm) Number of Zones 1
Height of Cabinet 33.88" (86 cm) Door Swing RHD
Nominal Width 15.0" (38 cm) Reversible Yes
Width 14.75" (37 cm) Shelf Type Wood
Nominal Depth 23.0" (58 cm) Shelf Qty 6
Depth 22.75" (58 cm) Thermostat Type Digital
Depth with Handle 24.63" (63 cm) Interior Light Yes
Depth with door at 90° 36.25" (92 cm) Refrigerant Type R600a
Capacity 2.94 cu.ft. (83 L) Refrigerant Amount 0.64 oz.
Bottles 33 bottles High Side PSI 270.0
Defrost Type Automatic Low Side PSI 105.0
Door Glass Interior Height 1 27.0" (69 cm)
Cabinet Black Interior Width 1 12.0" (30 cm)
US Electrical Safety ETL Interior Depth 1 17.5" (44 cm)
Canadian Electrical Safety ETL-C Level Legs 4
Sanitation ETL-S Temperature Range 41º to 64ºF
Amps 1.0 Sabbath Mode Yes
Voltage/Frequency 115 V AC/60 Hz
Weight 77.0 lbs. (35 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101029436

BROCHURE

ASSEMBLY DRAWING
