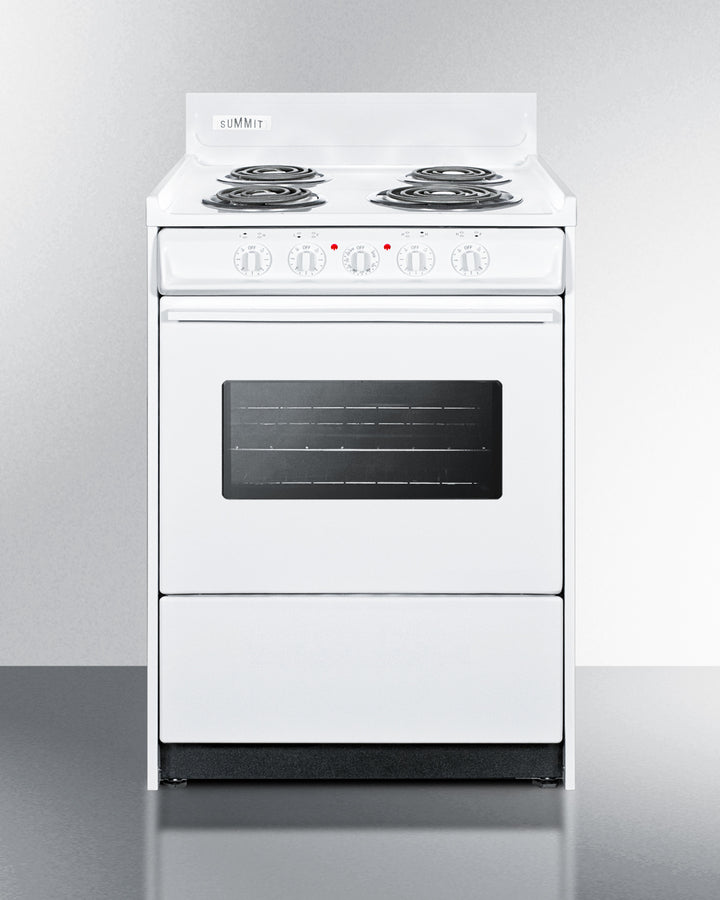

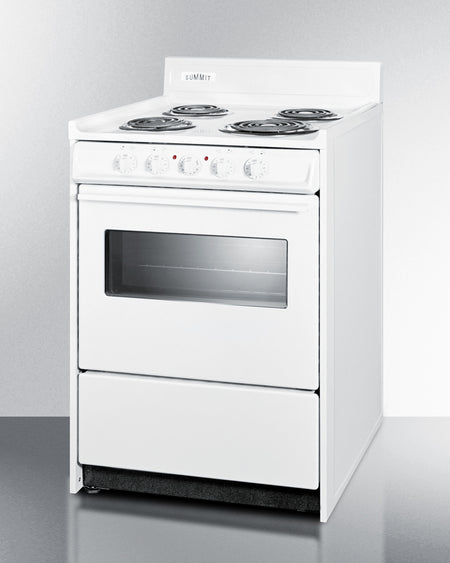

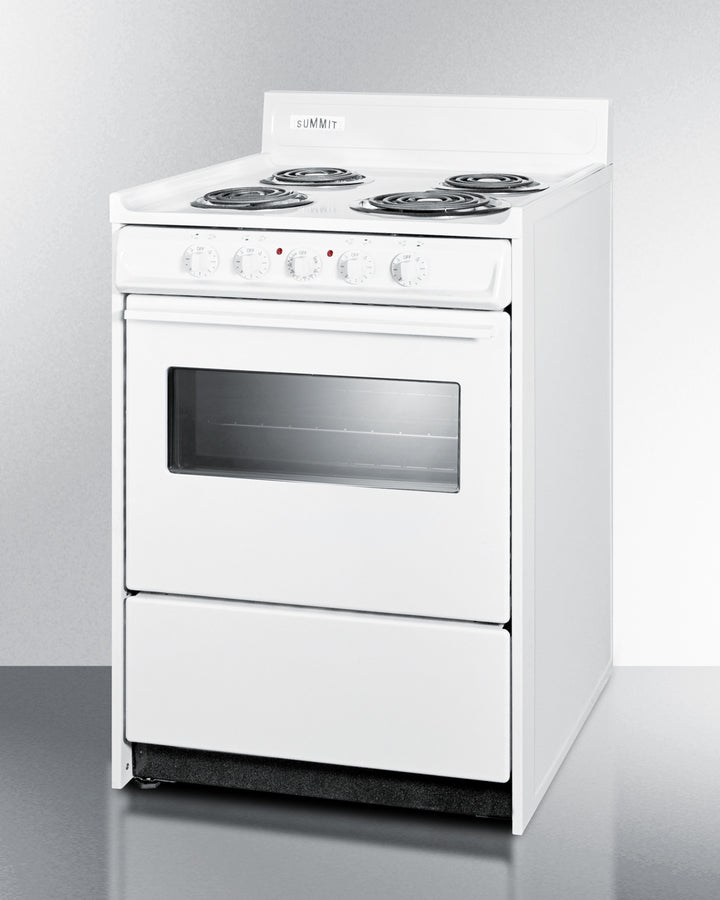

Summit WEM610W 24″ Wide Electric Coil Range – White Finish, 2.92 cu ft Oven

SKU: SA-WEM610W
Regular price $1,145.60
Space-Efficient 24″ Width & 24″ Depth Footprint — Designed at 24″ wide × 24″ deep × 40″ high to fit apartments, galley kitchens or compact layouts.
Lower Storage Compartment & Recessed Door Design — Convenient drop-down storage drawer for cookware plus a recessed oven door to protect adjacent cabinetry.
Four Coil Elements with Strong Output — Includes one 8″ burner (approx. 2,100 W) and three 6″ burners (approx. 1,200 W each) for versatile stovetop cooking.
40.0" H x 24.0" W x 24.0" D
(102cm H x 61cm W x 61cm D)
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-WEM610W

24" Wide Electric Range:
Coil surface and full-sized oven ideal for smaller kitchens

Made in the USA:
Designed and constructed domestically

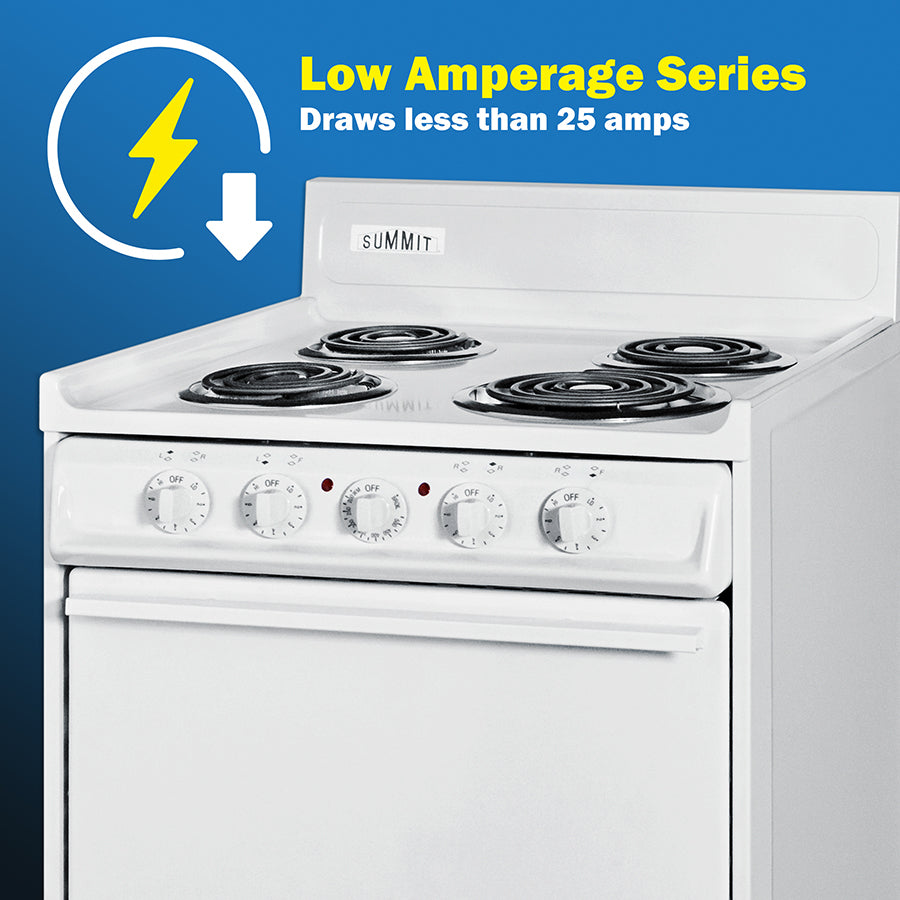

Low amperage:
23.2 amp performance allows use with 25 or 30 amp breakers, ensuring full cooking performance in kitchens with limited power resources

Slim 24 inch width:
Apartment-sized width offers all the functionality you need in a smaller footprint

24 inch depth:
Shallower fit is ideal for L-shaped and galley kitchens

Storage compartment:
Keep pots and pans inside the lower drop-down compartment for easy space-saving storage

Four coil elements:
Three standard 6" and one large 8" element

Safety burners with low wattage outputs:
Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off

Chrome drip pans:
Each coil element includes a removable chrome pan for easier cleaning

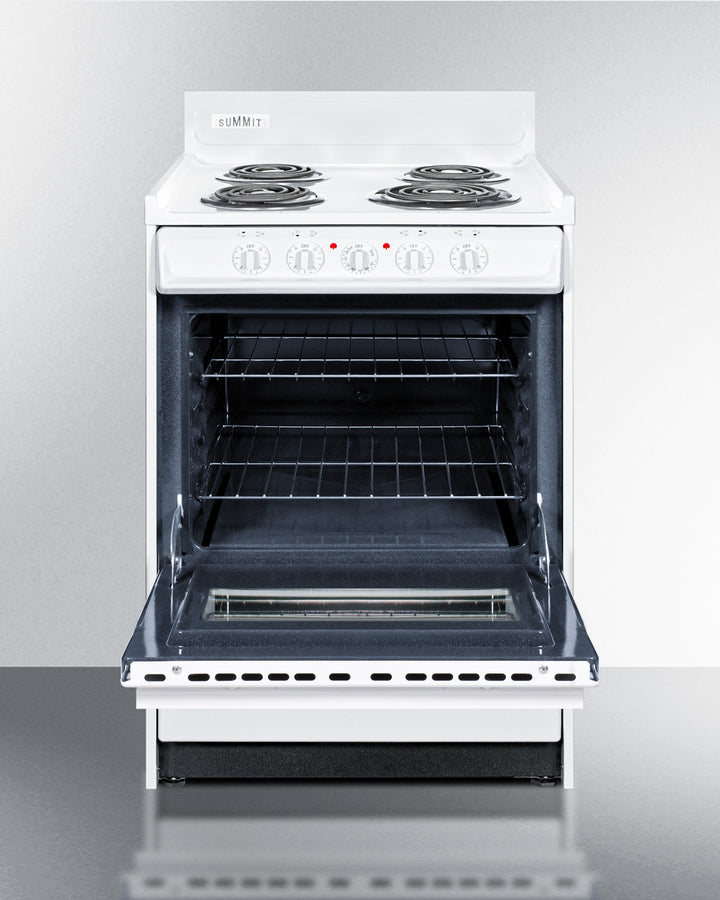

Oven window and interior lighting:
Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

Waist-high broiler:
Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor

Recessed oven door:
Smart design limits the depth and protects adjacent cabinets

Adjustable oven racks:
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Porcelain and steel construction:
Solid construction built to hold up to everyday use

Upfront controls:
All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners

Push-to-turn burner knobs:
Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn

Indicator lights:
Control panel includes an 'on' light for the oven and burners for added safety when using the range

Removable oven door and range top:
Allows for easier cleaning as needed

Broiler tray included:
Two-piece porcelain broiler tray with grease well

Anti-tip bracket:
Included for user installation to help prevent tipping

Cord not included:
Compatible with standard 25 or 30 amp 3 or 4-wire range cords

ADA compliant:
Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The 23.2 amp design is ideal for kitchens with power limitations.

The WEM610W is an apartment-sized 220V electric range sized at just 24" wide, with a generous 2.92 cu.ft oven interior that can accommodate large trays. The oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens.

Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines.

The WEM610W comes in a classic white finish to suit any kitchen. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 25 or 30 amp 3 or 4-wire range cord can be installed by your electrician).

With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 30", and 36" wide fits.

 Overview

Refrigerator-Freezer

Nominal Height 40.0" (102 cm) Oven Capacity 2.92 cu.ft. (83 L)
Height of Cabinet 40.0" (102 cm) Cooktop Surface Porcelain
Nominal Width 24.0" (61 cm) Element Type Coils
Width 24.0" (61 cm) Number of Elements 4
Nominal Depth 24.0" (61 cm) Element #1 Size 6.0" (15 cm)
Depth 24.0" (61 cm) Element #1 Wattage 675.0
Door White Element #2 Size 6.0" (15 cm)
Cabinet White Element #2 Wattage 675.0
US Electrical Safety CSA Element #3 Size 6.0" (15 cm)
Amps 23.2 Element #3 Wattage 675.0
Voltage/Frequency 220 V AC/60 Hz Element #4 Size 8.0" (20 cm)
Weight 140.0 lbs. (64 kg) Element #4 Wattage 950.0
Parts & Labor Warranty 1 Year Burner Controls Dial
UPC 761101012797 Oven Controls Dial


Oven Light Yes


Backguard Yes


Cleaning Type Manual


Oven Rack Qty 2


Oven Window Yes


Oven Interior Height 14.0" (36 cm)


Oven Interior Width 19.0" (48 cm)


Oven Interior Depth 19.0" (48 cm)


Storage Compartment Yes


Broiler Location Inside Oven


Oven Door White

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
