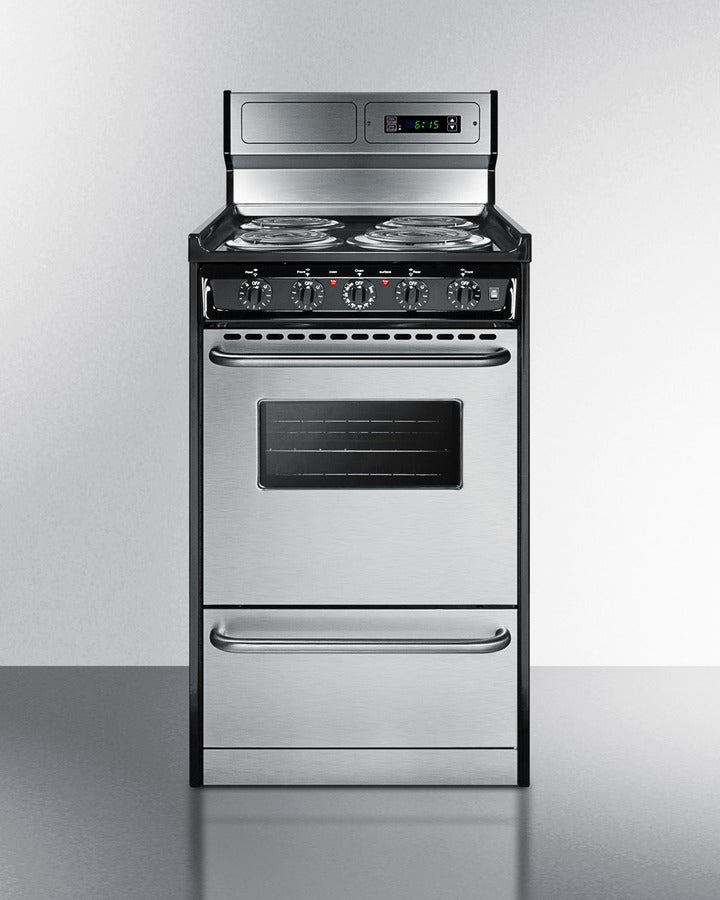

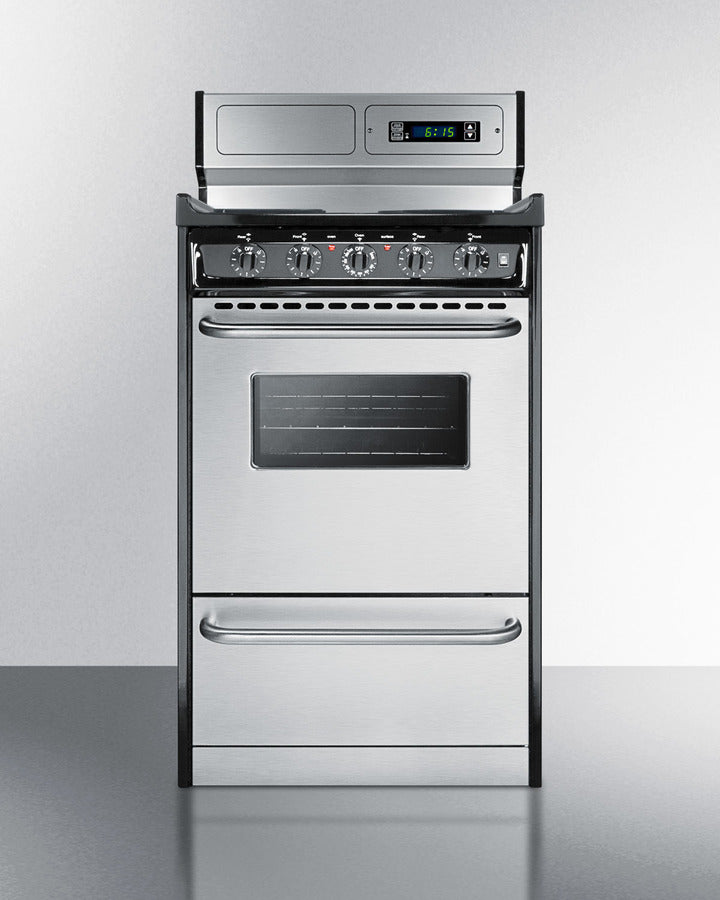

Summit TEM130BKWY 20″ Wide Electric Coil Range – Stainless-Steel Door / Black Cabinet, 2.46 cu ft Oven, 24″ Depth

SKU: SA-TEM130BKWY
Regular price $1,535.60
Four Coil Elements Including One Large 8″/2400 W Burner – Three standard 6″/1500 W elements plus one high-output 8″ burner give flexible stovetop performance; includes removable chrome drip pans for easy cleanup.
Made in the USA with Safety & Accessibility Features – Designed and manufactured domestically, includes upfront push-to-turn knobs, high backguard with digital clock/timer, anti-tip bracket and recessed oven door to protect surrounding cabinetry.
Space-Saving 20″ Width & 24″ Depth – Perfect for apartments, galley kitchens or narrow cook spaces while still offering full oven functionality.
44.0" H x 20.0" W x 24.0" D
(112cm H x 51cm W x 61cm D)
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-TEM130BKWY

Electric Range:
20" wide 220V electric range with coil elements and a full-sized oven ideal for smaller kitchens

Made in the USA:
Designed and constructed domestically

Slim 20 inch width:
Apartment-sized width offers all the functionality you need in a smaller footprint

24 inch depth:
Shallower fit is ideal for L-shaped and galley kitchens

Stainless steel finish:
Doors and backguard are constructed from brushed stainless steel for modern luxury built to last

Professional towel bar handles:
Curved handles in brushed stainless steel offer an easier grip in attractive style

Storage compartment:
Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen

Four coil elements:
Three standard 6" 1500W and one large 8" 2400W element

Meets UL-858:
Designed to comply with the latest UL safety standards, the elements include a sensor that will cycle the element off and on if it reaches flashpoint temperature

Chrome drip pans:
Each coil element includes a removable chrome pan for easier cleaning

Oven window and interior lighting:
Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

Waist-high broiler:
Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor

Adjustable oven racks:
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Porcelain and steel construction:
Solid construction built to hold up to everyday use

Recessed oven door:
Smart design limits the depth and protects adjacent cabinets

Deluxe backguard:
High backguard to protect wall from back splashes

Digital clock and timer:
Backguard includes time readout

Upfront controls:
All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners

Push-to-turn knobs:
Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn

Indicator lights:
Control panel includes an 'on' light for the oven and burners for added safety when using the range

Removable oven door and range top:
Allows for easier cleaning as needed

Broiler pan included:
Two-piece porcelain broiler tray with grease well

Anti-tip bracket:
Included for user installation to help prevent tipping

ADA compliant design:
Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines

Cord not included:
Compatible with standard 40 amp 3 or 4-wire range cords

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.

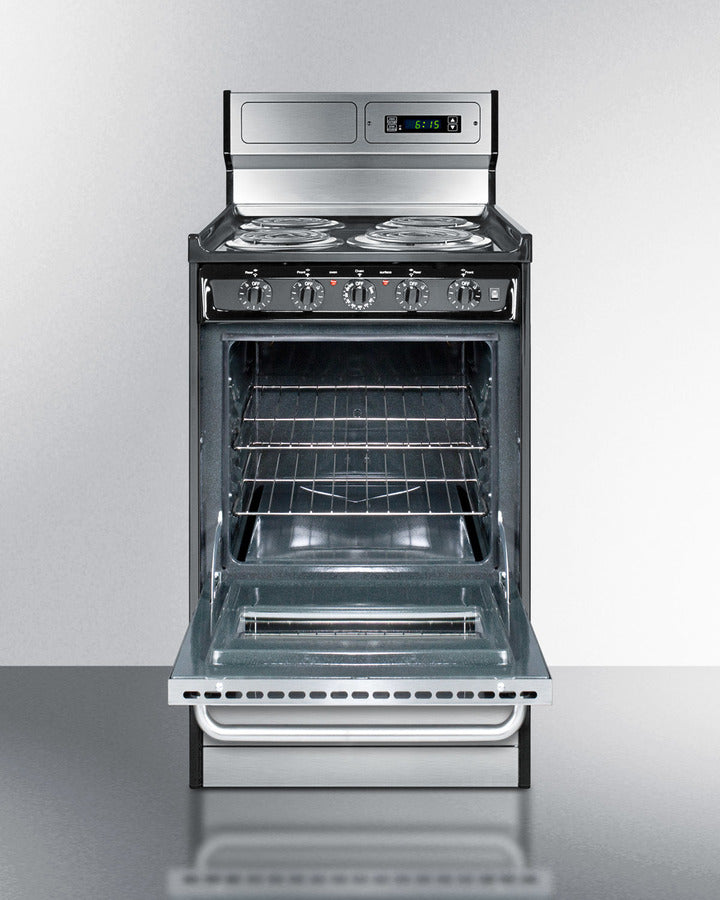

The TEM130BKWY is an apartment-sized 220V electric range sized at just 20" wide, with a generous 2.46 cu.ft oven interior that can accommodate large trays. The oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens.

Designed to meet the most current UL-858 safety standards, this unit features one 8" 2400W and three 6" 1500W coil elements with a safety sensor that will cycle the element off before reaching dangerous flashpoint temperatures. Heating resumes automatically. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines.

Stainless steel doors feature professional style towel bar handles, bringing classic elegance to smaller kitchen spaces.The deluxe 8" high backguard includes a digital clock and timer for added convenience when cooking. This unit has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 40 amp 3 or 4-prong cord can be installed by your electrician).

With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 24", 30", and 36" wide fits.

Overview
Refrigerator-Freezer
Nominal Height 44.0" (112 cm) Oven Capacity 2.46 cu.ft. (70 L)
Height of Cabinet 44.0" (112 cm) Cooktop Surface Porcelain
Nominal Width 20.0" (51 cm) Element Type Coils
Width 20.0" (51 cm) Number of Elements 4
Nominal Depth 24.0" (61 cm) Element #1 Size 6.0" (15 cm)
Depth 24.0" (61 cm) Element #1 Wattage 1500.0
Door Stainless Steel Element #2 Size 6.0" (15 cm)
Cabinet Black Element #2 Wattage 1500.0
Voltage/Frequency 220 V AC/60 Hz Element #3 Size 6.0" (15 cm)
Weight 125.0 lbs. (57 kg) Element #3 Wattage 1500.0
Parts & Labor Warranty 1 Year Element #4 Size 8.0" (20 cm)
UPC 761101005010 Element #4 Wattage 2400.0


Burner Controls Dial


Oven Controls Dial


Oven Light Yes


Cooking Timer Yes


Backguard Yes


Backguard Display Yes


Oven Window Yes


Oven Interior Height 14.0" (36 cm)


Oven Interior Width 16.0" (41 cm)


Oven Interior Depth 19.0" (48 cm)

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
