Summit WEM110W 20″ Wide Electric Coil Range – 4 Burners, 2.46 cu. ft Oven, White Finish

SKU: SA-WEM110W
Regular price $1,084.50

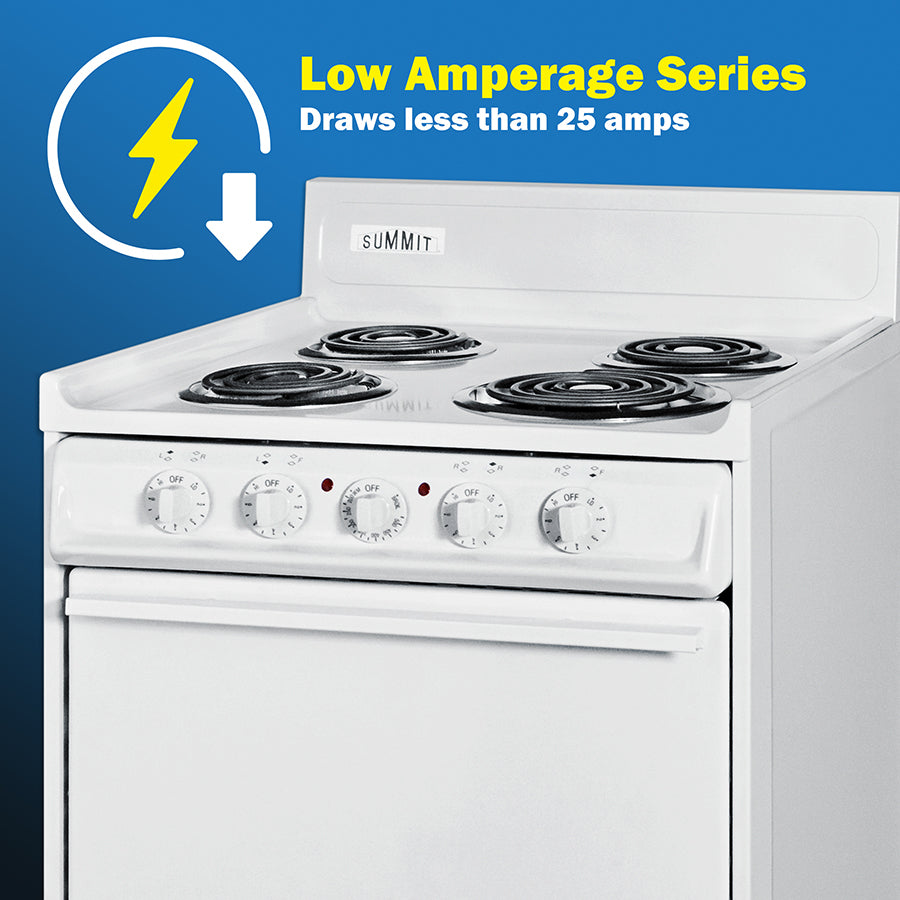

Low-Amperage Design & Made in USA — Operates at 23.2 amps on a 220 V circuit, making it suitable for installations with limited electrical capacity; built domestically for quality assurance.

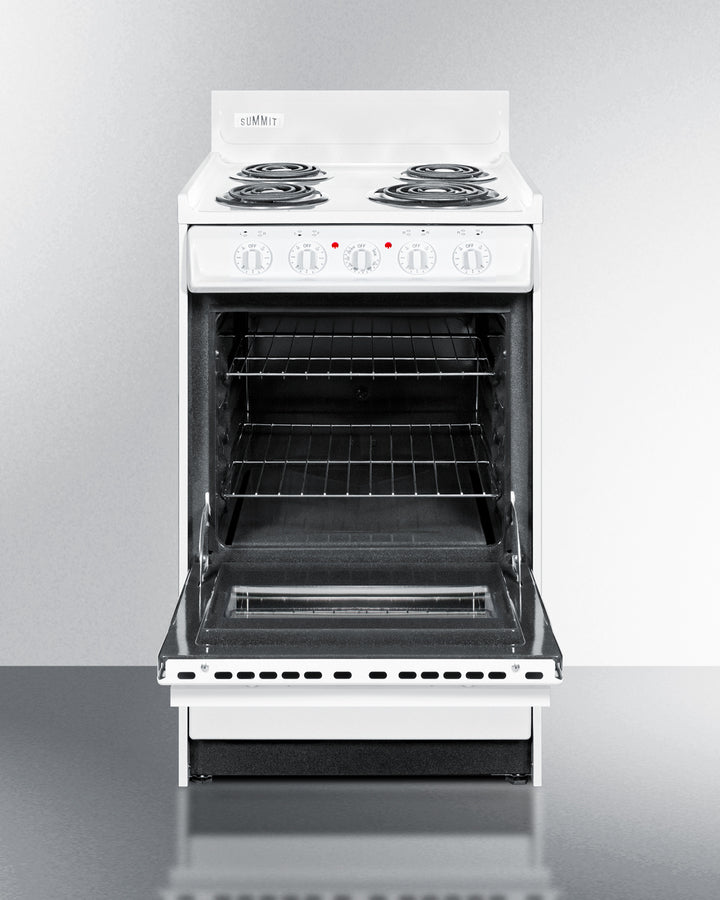

Generous 2.46 cu ft Oven with Window & Interior Light — Despite its narrow width, the oven accommodates large trays, includes viewing window and interior light for convenience.
Four Coil Elements for Reliable Cooking — Features three 6″/675 W burners and one 8″/950 W burner, designed for slower, steady heat without frequent cycling under UL safety standards.
40.0" H x 20.0" W x 24.0" D
(102cm H x 51cm W x 61cm D)
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-WEM110W

20" Wide Electric Range:
Coil surface and full-sized oven ideal for smaller kitchens

Made in the USA:
Designed and constructed domestically

Low amperage:
23.2 amp performance allows use with 25 or 30 amp breakers, ensuring full cooking performance in kitchens with limited power resources

Slim 20 inch width:
Apartment-sized width offers all the functionality you need in a smaller footprint

24 inch depth:
Shallower fit is ideal for L-shaped and galley kitchens

Four coil elements:
Three standard 6" and one large 8" element

Safety burners with low wattage outputs:
Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off

Chrome drip pans:
Each element includes a removable chrome pan for easier cleaning

Oven window and interior lighting:
Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

Storage compartment:
Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen

Waist-high broiler:
Broiler is located inside the oven, making it easier to use

Adjustable oven racks:
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Recessed oven door:
Smart design limits the depth and protects adjacent cabinets

Porcelain and steel construction:
Solid construction built to hold up to everyday use

Upfront controls:
Allows for easier cleaning as needed

Push-to-turn burner knobs:
Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn

Indicator lights:
Control panel includes an 'on' light for the oven and burners for added safety when using the range

Removable oven door and range top:
Allows for easier cleaning as needed

Broiler tray included:
Two-piece porcelain broiler tray with grease well

Anti-tip bracket:
Install to prevent accidents from tipping oven over

Cord not included:
Compatible with standard 25 or 30 amp 3 or 4-wire range cords

ADA compliant:
Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The 23.2 amp design is ideal for kitchens with power limitations.

The WEM110W is an apartment-sized 220V electric range sized at just 20" wide, with a generous 2.46 cu.ft oven interior that can accommodate large trays. The oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens.

Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines.

The WEM110W comes in a classic white finish to suit any kitchen. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 25 or 30 amp 3 or 4-wire range cord can be installed by your electrician).

With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 24", 30", and 36" wide fits.

 Overview

Refrigerator-Freezer

Nominal Height 40.0" (102 cm) Oven Capacity 2.46 cu.ft. (70 L)
Height of Cabinet 40.0" (102 cm) Cooktop Surface Porcelain
Nominal Width 20.0" (51 cm) Element Type Coils
Width 20.0" (51 cm) Number of Elements 4
Nominal Depth 24.0" (61 cm) Element #1 Size 6.0" (15 cm)
Depth 24.0" (61 cm) Element #1 Wattage 675.0
Door White Element #2 Size 6.0" (15 cm)
Cabinet White Element #2 Wattage 675.0
US Electrical Safety CSA Element #3 Size 6.0" (15 cm)
Amps 23.2 Element #3 Wattage 675.0
Voltage/Frequency 220 V AC/60 Hz Element #4 Size 8.0" (20 cm)
Weight 140.0 lbs. (64 kg) Element #4 Wattage 950.0
Parts & Labor Warranty 1 Year Burner Controls Dial
UPC 761101013404 Oven Controls Dial


Oven Light Yes


Backguard Yes


Cleaning Type Manual


Oven Rack Qty 2


Oven Window Yes


Oven Interior Height 14.0" (36 cm)


Oven Interior Width 16.0" (41 cm)


Oven Interior Depth 19.0" (48 cm)


Storage Compartment Yes


Broiler Location Inside Oven


Oven Door White

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
