Summit SEW24SSX 24″ Wide Electric Wall Oven – Stainless Steel Front

SKU: SA-SEW24SSX
Regular price $1,200.00
Sleek Black Glass Front with Viewing Window & Interior Light — Modern styling with practical visibility so you can monitor cooking without opening the door.
Bottom Storage Compartment & Reliable Manual Clean Operation — Includes a drop-down storage drawer below the oven cavity and the manual-clean design for simplicity.
Designed for Legacy Cut-Outs — Specifically sized to fit 34 ⅛″ H × 22 ⅜″ W openings and ships with a 115 V plug-in cord for easy drop-in installation.
23.5" H x 23.5" W x 22.88" D
(60cm H x 60cm W x 58cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-SEW24SSX

24" Wide 220V Wall Oven:
Electric wall oven sized for 23.6" H x 22" W cutouts

Large capacity:
Spacious 2.5 cu.ft. interior to fit an assortment of medium to large dishes

Touch control panel:
Easy-to-use touch controls offer intuitive cooking

True Convection setting:
Allows you to activate an element around the convection fan to improve air circulation and ensure fast, even heating throughout the entire oven interior

Convection function:
Convection fan can be used with both the bake and roast functions for a more even cooking performance

Bottom heater function:
A concealed lower element can be used to keep cooked food warmed within 150-500°F

Radiant grilling function:
Top heat/broil setting can be used as double grilling with or without the fan, with a temperature range alloweable of 350-500ºF

Defrost setting:
No-heat function will let the fan run for quicker and efficient thawing of frozen foods

Cooking timer:
Programmable timer function lets you schedule your cooking to run for up to 9 hours

Stainless steel front:
Door is constructed from brushed stainless steel for modern luxury built to last

Oven window:
Large window made from double pane tempered glass makes it easy to monitor your cooking

Oven light:
Automatically illuminates when the oven door is open for easier cooking

Professional handle:
Sleek handle in brushed stainless steel offers an attractive look that matches many popular styles of kitchen cabinetry

Porcelain construction:
Oven interior features solid porcelain construction for long-lasting durability and easy cleaning

Digital clock:
Clear digital display for easy cooking

Versatile temperature display:
Temperature will be shown in Fahrenheit, but can be switched to Celsius through the control panel

Child lock:
The control panel can be locked from use to prevent unsupervised access

Adjustable oven racks:
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Broiler tray:
Full-width porcelain rack included

Usable oven floor:
Flat bottom can support larger cookware to maximize interior capacity (note: not compatible during the bottom heating function)

Removable oven door:
Door can be removed in a few simple steps as needed for full access of the interior and easier maintenance

ADA-compliant:
When installed in accordance with section 804.6 of the ADA Standards for Accessible Design, this unit is ADA-compliant

208-240V operation:
Requires professional hardwired installation (cord not included)

Summit helps enhance smaller kitchen functionality with fully featured electric wall ovens specially sized for 24" x  24" spaces.

The SEW24SSX is a 220V electric wall oven with convection designed for built-in installation in 23.6" H x 22" W x 24.7" D cutouts. When installed at the proper height, this unit is compliant with ADA guidelines for user accessibility. Brushed stainless steel look trim, a black glass window, and a digital control panel create a modern look, with a professional handle for added style.

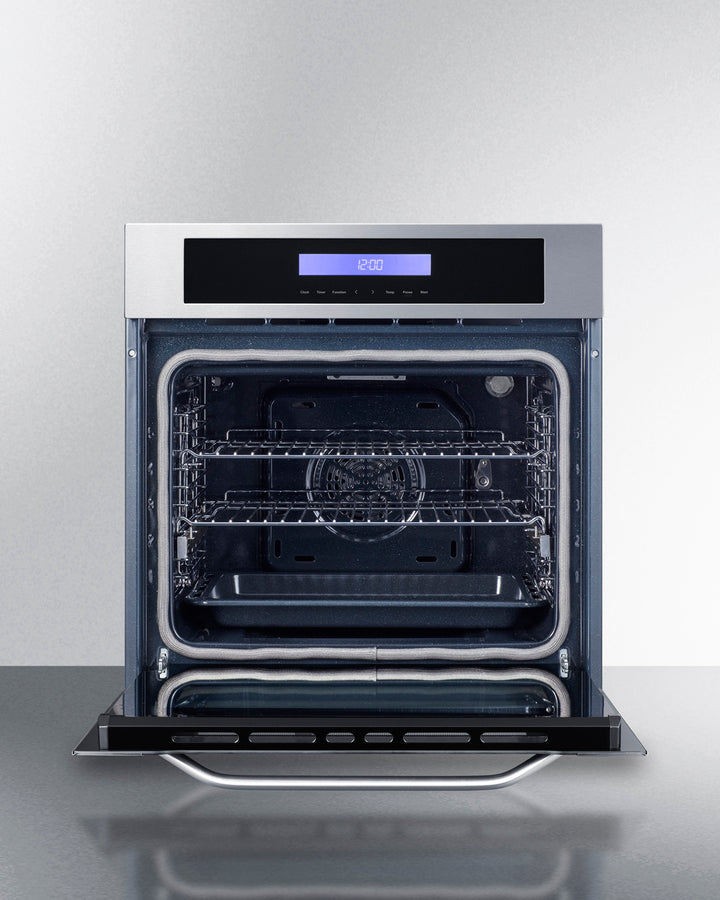

Inside, the SEW24SSX includes an oven light for easier monitoring of your cooking. Two heavy-duty gliding wire racks with brakes can sit at five rack positions to better accommodate different-sized dishes. We also include a full-width drip pan that can be used for broiling. The flat bottom can hold larger cookware or full-sized meals (such as turkeys) to maximize capacity. This unit has a removable oven door for easier cleaning and maintenance.

The SEW24SSX offers a range of heating functions to cover virtually all of your cooking needs. The digital control panel is easy to program, with specialty settings for baking, grilling/broiling, defrosting (fan only), convection baking, and true convection. This unit also includes a concealed bottom heater function which is ideal for keeping cooked food warmed until ready to serve (default temperature is 350°F but can be adjusted between 150-500°F). The programmable timer makes it easy to manage your meal planning, with an audible alert when the cooking duration is finished. Safety features include programming options that allow you to set a child lockout.

With its advanced features, modern style, and ideal size, the SEW24SSX is the perfect choice for space-challenged kitchens looking to maintain full cooking capacity in a slimmer footprint. For compatible cooktops, browse the full Summit selection.

NOTE: All wiring and electrical connections should be installed to local code. This is a 208-240V wall oven and requires professional installation.

 Overview

Refrigerator-Freezer

Nominal Height 24.0" (61 cm) Controls Digital
Height of Cabinet 23.5" (60 cm) Oven Light Yes
Nominal Width 24.0" (61 cm) Cooking Timer Yes
Width 23.5" (60 cm) Digital Clock Yes
Depth 22.88" (58 cm) Temperature Range 150-500°F
Depth with Handle 24.63" (63 cm) Cleaning Type Manual
Depth with door at 90° 40.0" (102 cm) Oven Rack Qty 2
Capacity 2.5 cu.ft. (71 L) Oven Window Yes
Door Glass/SS Interior Height 13.25" (34 cm)
Cabinet - Interior Width 17.5" (44 cm)
US Electrical Safety CSA Interior Depth 15.75" (40 cm)
Amps 20.0 Cutout Height 23.6" (60 cm)
Voltage/Frequency 220 V AC/60 Hz Cutout Width 22.0" (56 cm)
Weight 83.5 lbs. (38 kg) Cutout Depth 24.7" (63 cm)
Parts & Labor Warranty 1 Year
UPC 761101106649

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
