Summit VT65MLBIVACADA 24″ ADA-Compliant Built-In Vaccine / All-Freezer – 3.2 cu. ft., −25 °C Capable
Customer service
Features
- SKU SA-VT65MLBIVACADA
The Accucold® VAC Series freezers are specially designed to store sensitive medical and pharmaceutical materials under the proper conditions, with innovative construction for temperature stability and user-friendly features for added convenience.

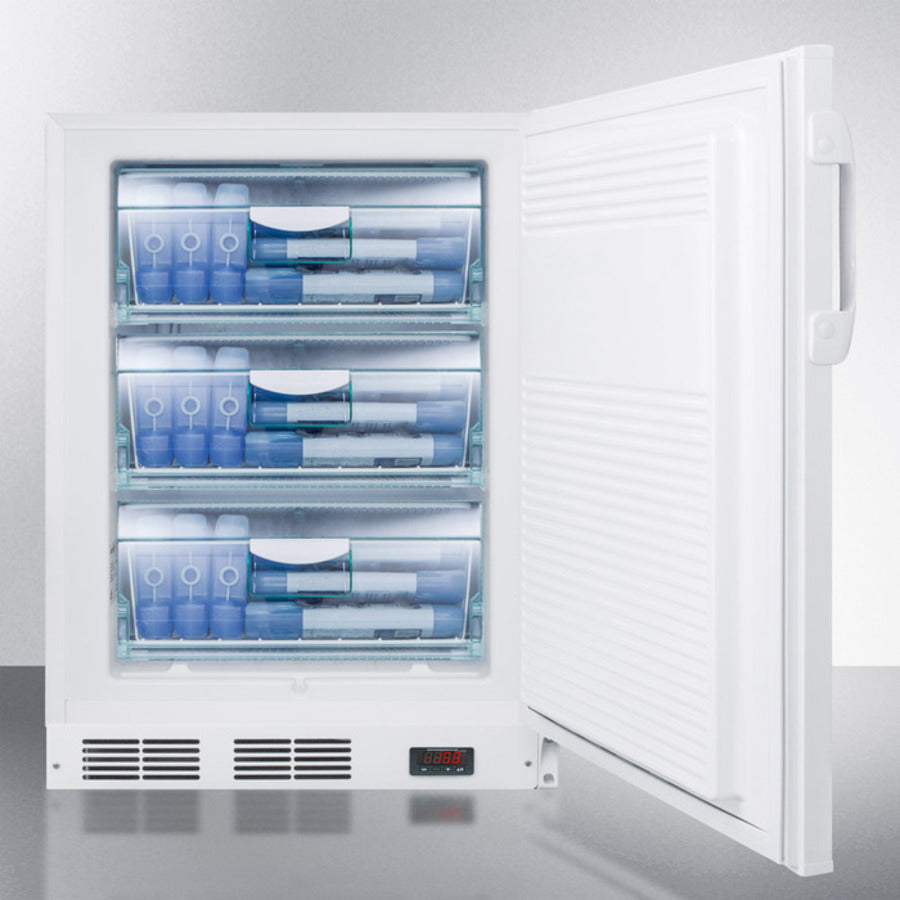

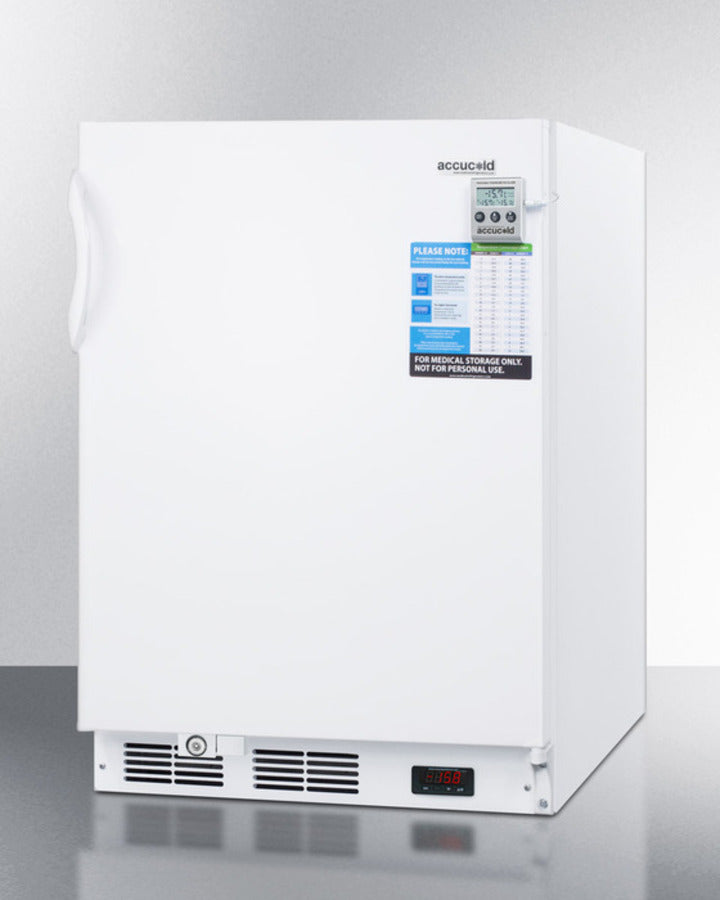

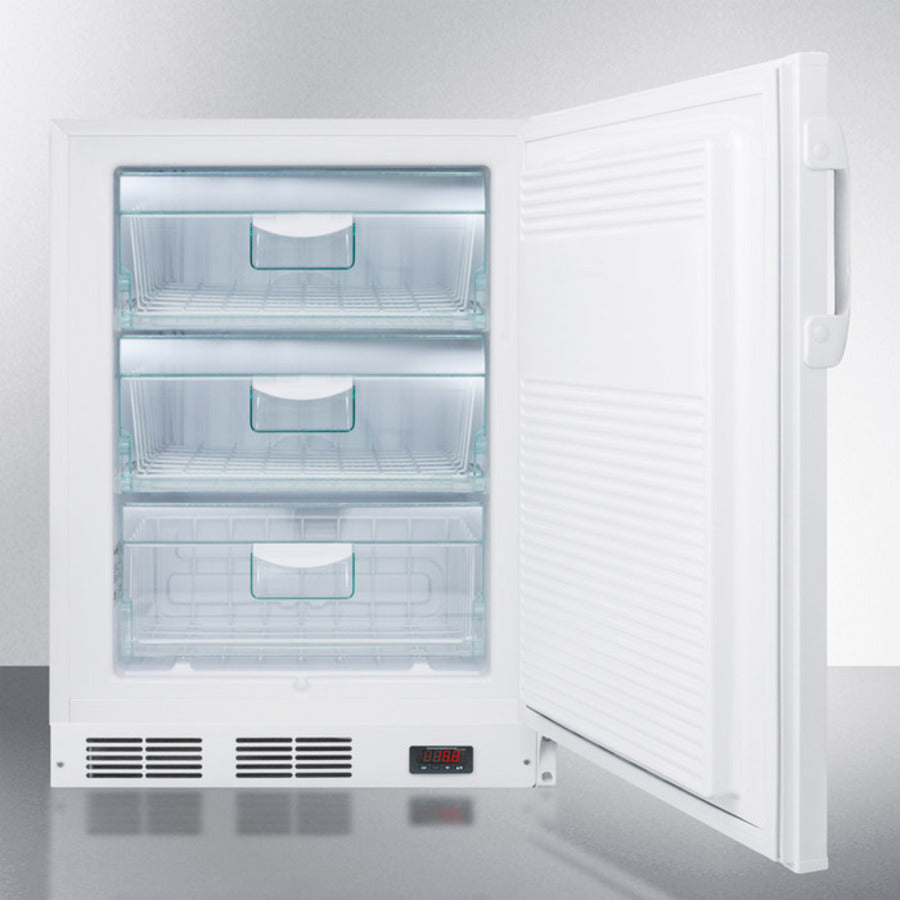

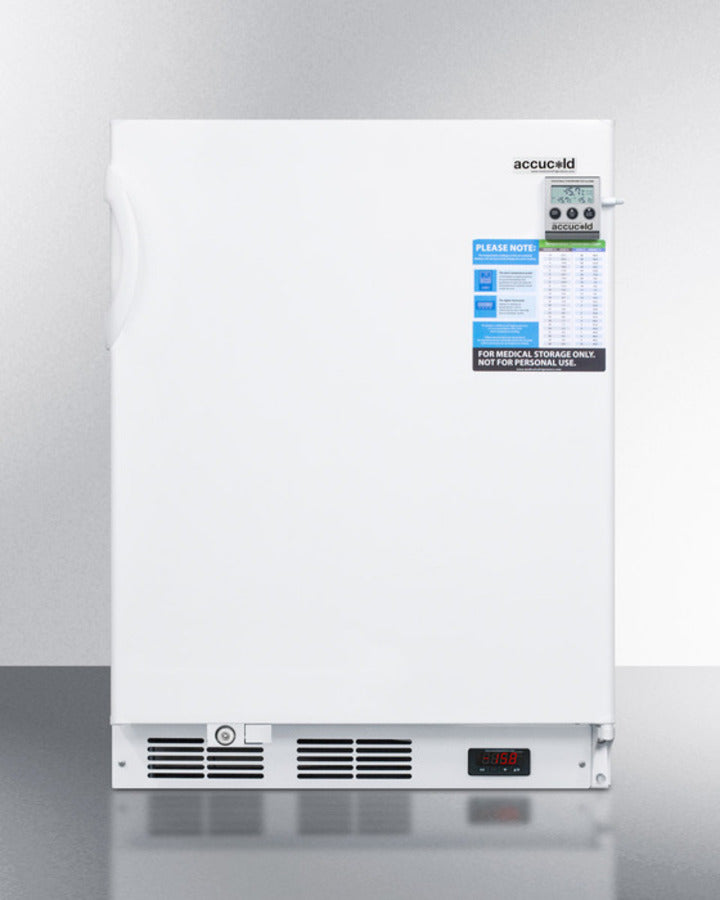

Made in Europe, the VT65MLBIVACADA is a 32" high front-breathing all-freezer designed for built-in installation under lower ADA compliant counters. The 3.2 cu.ft. interior offers static cooling for stable results. Four slide-out storage baskets with clear plastic fronts ensure that stored items are not exposed unnecessarily to room temperature. This unit has a flat door liner as recommended by the CDC.
For optimum temperature assurance, the VT65MLBIVACADA includes a digital thermostat and a high/low temperature alarm with a NIST calibrated temperature display to the nearest tenth of a degree. A hospital grade cord includes a 'green dot' plug for added safety in high traffic settings, while the self-closing door ensures stored items aren't accidentally exposed to room temperature. This model comes in a white finish and includes a factory installed lock. A pre-installed probe hole/access port allows users to install additional monitoring equipment.
The VT65MLBIVACADA can be paired with the FF7LBIVACADA all-refrigerator for a matching set. All models can be ordered with more advanced medical features, including a power-out alarm, temperature logger, and more.
NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 32.0" (81 cm) | Reversible | Factory Reversible |
| Height to Hinge Cap | 32.25" (82 cm) | Interior Height | 24.25" (62 cm) |
| Nominal Width | 24.0" (61 cm) | Interior Width | 17.75" (45 cm) |
| Width | 23.63" (60 cm) | Interior Depth | 16.5" (42 cm) |
| Nominal Depth | 24.0" (61 cm) | Thermostat Type | Digital |
| Depth | 23.5" (60 cm) | Fan Type | Exterior |
| Depth with Handle | 24.25" (62 cm) | Refrigerant Type | R134a |
| Depth with door at 90° | 45.13" (115 cm) | Refrigerant Amount | 2.7 oz. |
| Capacity | 3.2 cu.ft. (91 L) | High Side PSI | 235.0 |
| Defrost Type | Manual | Low Side PSI | 70.0 |
| Door | White | Interior Drawers | Yes |
| Cabinet | White | Drawers Qty | 3 |
| US Electrical Safety | UL | Compressor Step Height | 6.5" (17 cm) |
| Canadian Electrical Safety | ULC | Compressor Step Width | 17.5" (44 cm) |
| Amps | 1.3 | Compressor Step Depth | 5.5" (14 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Temperature Range | -12ºC to -25ºC |
| Weight | 105.0 lbs. (48 kg) | ||
| Parts & Labor Warranty | 2 Years | ||
| Compressor Warranty | 5 Years | ||
| UPC | 761101043517 |
|
ASSEMBLY DRAWING |
