Summit SCF505SSTBADA 20″ Wide ADA-Compliant Commercial All-Freezer – Stainless Steel Door
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
Summit Commercial manufactures a variety of refrigerator and freezer choices for smaller foodservice spaces, with slim-fitting options for undercounter use.

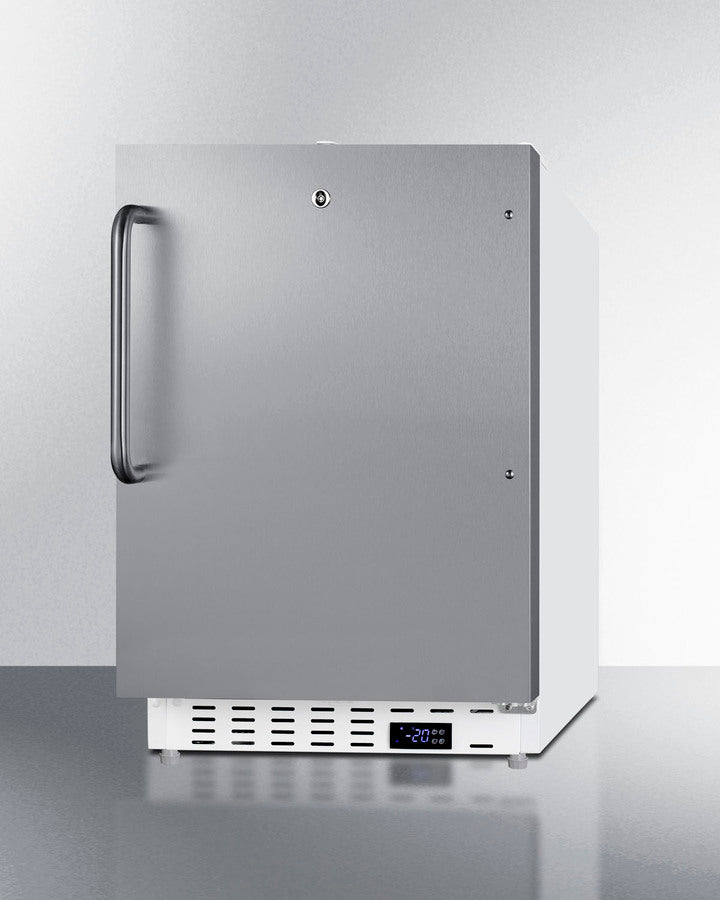

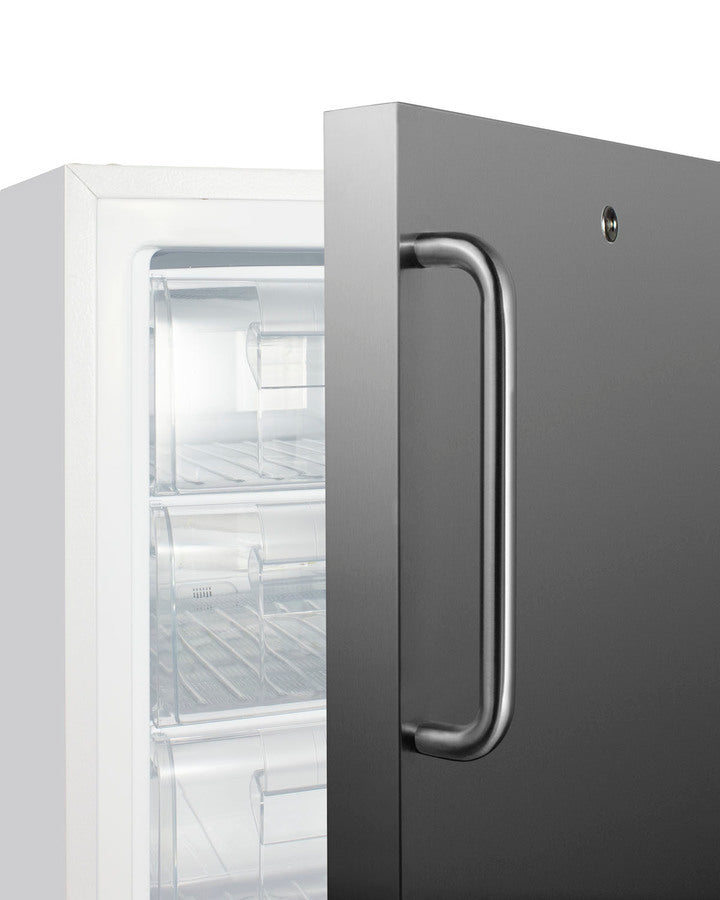

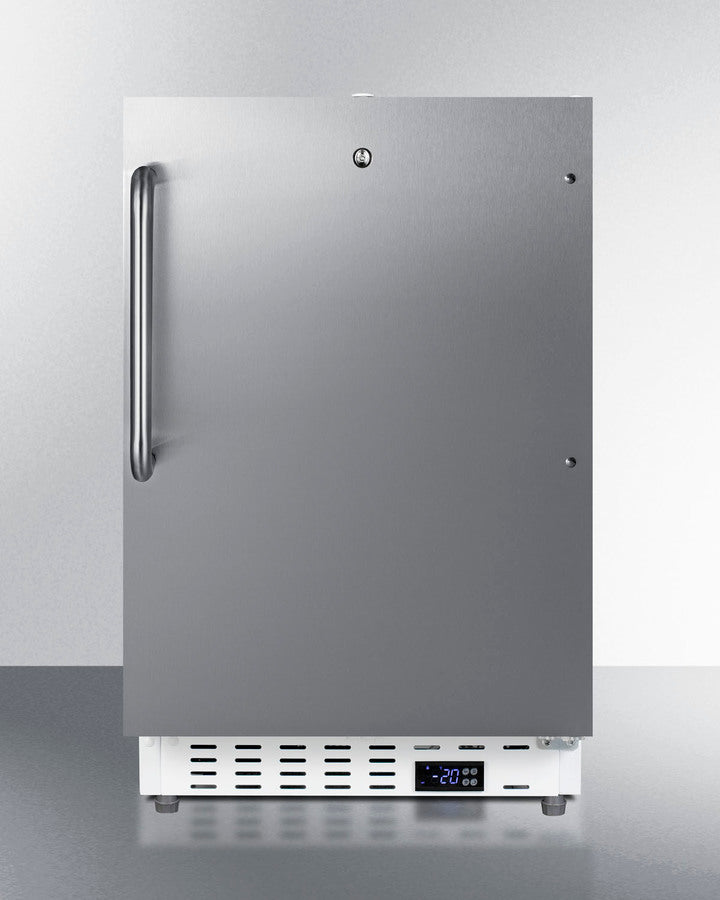

Model SCF505SSTBADA is a commercial all-freezer sized at just under 20" wide and 32" high for installation under lower ADA compliant counters. Its front-breathing design and fully finished cabinet allow built-in or freestanding use for versatile placement. This model has a textured white cabinet and 304 grade stainless steel wrapped reversible door with a pro style towel bar handle. A factory-installed lock is located towards the top of the door, ensuring more comfortable access behind the bar.

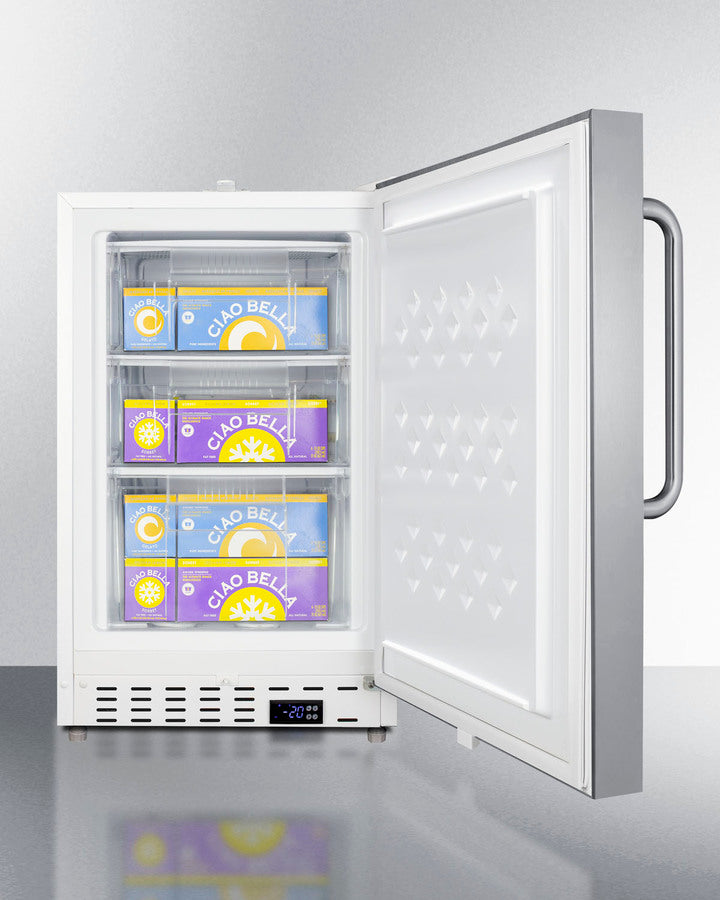

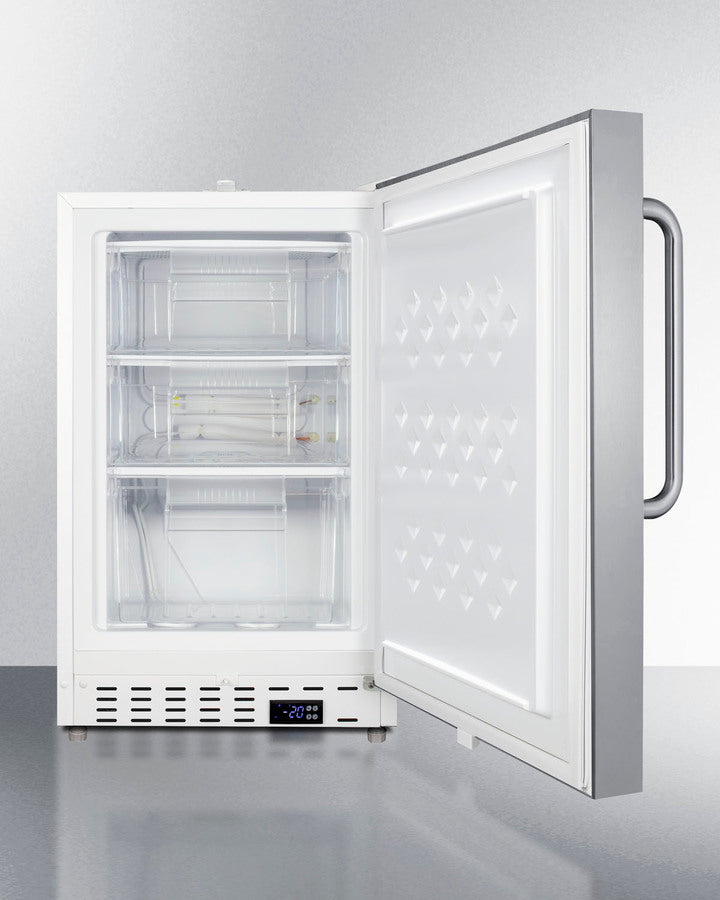

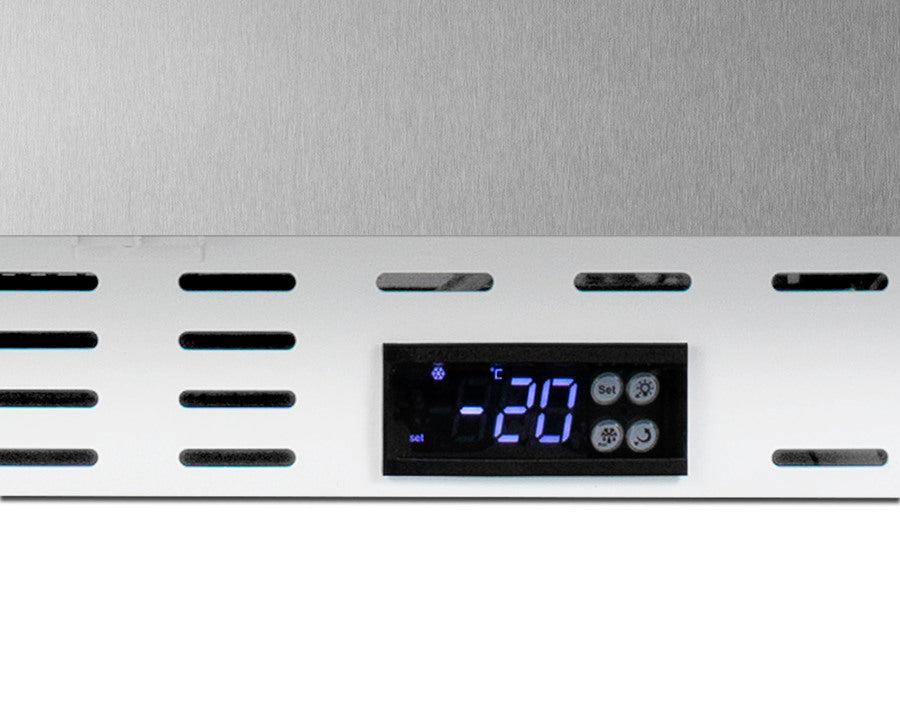

Easy digital controls are located in the kickplate. The temperature can be managed in Fahrenheit or Celsius and is designed to operate between -25° and -15°C. Inside, this freezer includes removable pull-out drawers on fixed wire shelving, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. This unit utilizes static manual defrost cooling for improved temperature stability. Audible open door and high/low temperature alarms help ensure stored contents are properly cooled. These alarms can also be disabled if preferred.
The SCF505SSTBADA is ETL-S listed to NSF-7 commercial standards and features hydrocarbon refrigerant for a greener cooling system that meets CARB regulations. To create a matching set, pair with the SCR504SSTBADA all-refrigerator. Additional commercial refrigeration choices are available in more sizes and sizes. Browse the full Summit lineup for shallow depth back bar coolers, commercial wine cellars, clear icemakers, reach-in refrigeration, and much more.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 31.75" (81 cm) | Reversible | Yes |
| Height to Hinge Cap | 32.0" (81 cm) | Interior Height | 23.75" (60 cm) |
| Nominal Width | 20.0" (51 cm) | Interior Width | 14.5" (37 cm) |
| Width | 19.75" (50 cm) | Interior Depth | 17.0" (43 cm) |
| Width with Door Open | 20.25" (51 cm) | Shelf Type | Drawers |
| Nominal Depth | 23.0" (58 cm) | Shelf Qty | 3 |
| Depth | 22.5" (57 cm) | Thermostat Type | Digital |
| Depth with Handle | 25.0" (64 cm) | Fan Type | Exterior |
| Depth with door at 90° | 40.25" (102 cm) | Refrigerant Type | R600a |
| Capacity | 2.47 cu.ft. (70 L) | Refrigerant Amount | 1.34 oz. |
| Defrost Type | Manual | High Side PSI | 180.0 |
| Door | Stainless Steel | Low Side PSI | 80.0 |
| Cabinet | White | Level Legs | 2 |
| US Electrical Safety | ETL | Interior Drawers | Yes |
| Canadian Electrical Safety | ETL-C | Drawers Qty | 3 |
| Sanitation | ETL-S | Compressor Step Height | 5.75" (15 cm) |
| Amps | 1.1 | Compressor Step Width | 14.5" (37 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Depth | 6.0" (15 cm) |
| Weight | 75.0 lbs. (34 kg) | Temperature Range | -25° to -15°C |
| Parts & Labor Warranty | 1 Year | ||
| Compressor Warranty | 5 Years | ||
| UPC | 761101086149 |
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
