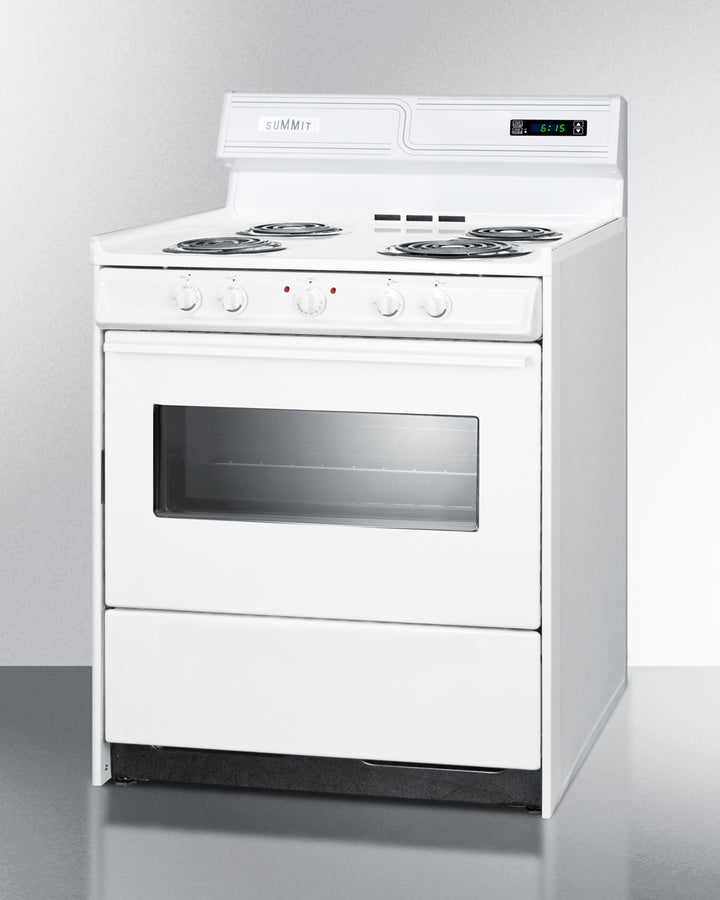

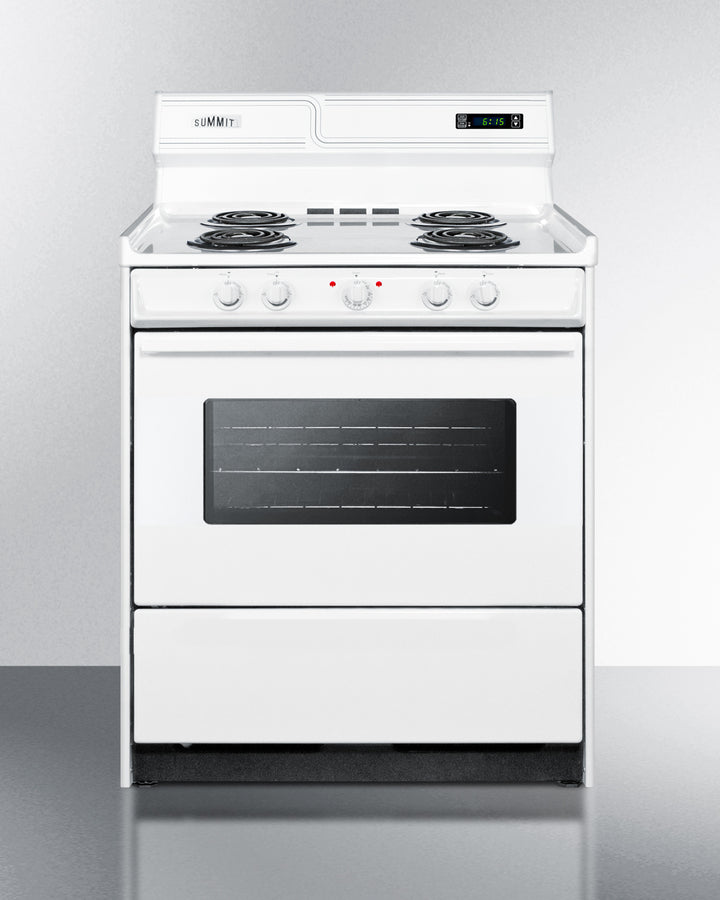

Summit WEM230KW 30″ Wide Electric Coil-Top Range – 3.7 cu ft Oven, White Finish

SKU: SA-WEM230KW
Regular price $1,213.20

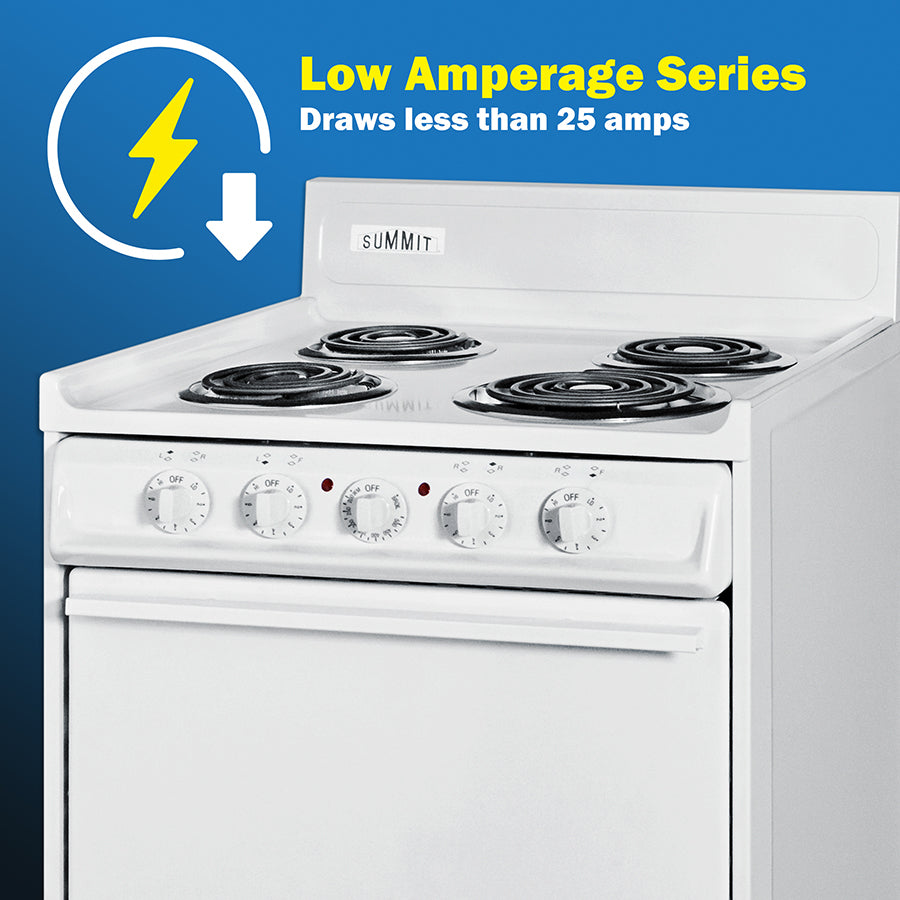

Low-Amperage Design (~23.2 Amps) Ideal for Limited-Power Kitchens — The unit draws only 23.2 amps at 220 V, making it suitable for installations with restricted amperage.
Four Coil Elements & Drop-Down Storage Compartment — Features three 6″ (~675 W) burners and one 8″ (~950 W) burner, plus a bottom storage compartment for cookware.

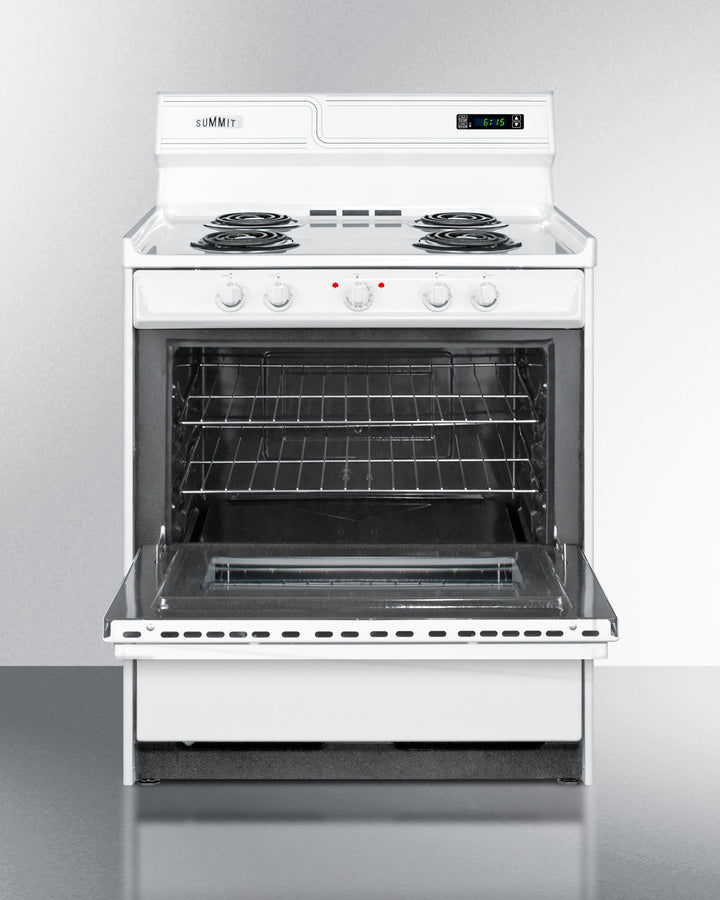

Large 3.7 cu ft Oven with Viewing Window & Interior Light — Ample baking space with oven window for monitoring without opening the door.
44.0" H x 30.0" W x 24.0" D
(112cm H x 76cm W x 61cm D)
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-WEM230KW

Made in the USA:
Designed and constructed domestically

30 inch wide range:
Standard size ideal for most kitchens

Low amperage:
23.2 amp performance allows use with 25 or 30 amp breakers, ensuring full cooking performance in kitchens with limited power resources

24 inch depth:
Shallower fit is ideal for L-shaped and galley kitchens

Storage compartment:
Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen

Four coil elements:
Three standard 6" and one large 8" element

Safety burners with low wattage outputs:
Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off

Chrome drip pans:
Each coil element includes a removable chrome pan for easier cleaning

Waist-high broiler:
Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor

Oven window and light:
Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

Adjustable oven racks:
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Recessed oven door:
Smart design limits the depth and protects adjacent cabinets

Porcelain and steel construction:
Solid construction built to hold up to everyday use

Upfront controls:
All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners

Push-to-turn knobs:
Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn

Indicator lights:
Control panel includes an 'on' light for the oven and burners for added safety when using the range

Removable oven door and range top:
Allows for easier cleaning as needed

Deluxe backguard:
High backguard to protect wall from back splashes

Digital clock and timer:
Backguard includes time readout

Anti-tip bracket:
Included for user installation to help prevent tipping

Broiler pan included:
Two-piece porcelain broiler tray with grease well

Cord not included:
Compatible with standard 25 or 30 amp 3 or 4-wire range cords

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The 23.2 amp design is ideal for kitchens with power limitations.

The WEM230KW is an apartment-sized 220V electric range sized at 30" wide, with a generous 3.7 cu.ft oven interior that can accommodate large trays. The oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens.

Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines.

The WEM230KW comes in a classic white finish to suit any kitchen. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 25 or 30 amp 3 or 4-wire range cord can be installed by your electrician).

With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 24", and 36" wide fits.

 Overview

Refrigerator-Freezer

Nominal Height 44.0" (112 cm) Oven Capacity 3.7 cu.ft. (105 L)
Height of Cabinet 44.0" (112 cm) Cooktop Surface Porcelain
Nominal Width 30.0" (76 cm) Element Type Coils
Width 30.0" (76 cm) Number of Elements 4
Nominal Depth 24.0" (61 cm) Element #1 Size 6.0" (15 cm)
Depth 24.0" (61 cm) Element #1 Wattage 675.0
Door White Element #2 Size 6.0" (15 cm)
Cabinet White Element #2 Wattage 675.0
US Electrical Safety CSA Element #3 Size 6.0" (15 cm)
Amps 23.2 Element #3 Wattage 675.0
Voltage/Frequency 220 V AC/60 Hz Element #4 Size 8.0" (20 cm)
Weight 175.0 lbs. (79 kg) Element #4 Wattage 950.0
Parts & Labor Warranty 1 Year Burner Controls Dial
UPC 761101054117 Oven Controls Dial


Oven Light Yes


Cooking Timer Yes


Backguard Yes


Backguard Display Yes


Cleaning Type Manual


Oven Window Yes


Oven Interior Height 14.0" (36 cm)


Oven Interior Width 24.0" (61 cm)


Oven Interior Depth 19.0" (48 cm)


Storage Compartment Yes


Broiler Location Inside Oven


Oven Door Black Glass

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
