Summit RE203W 20″ Wide Electric Coil Range – 4 Burners, 2.3 cu ft Oven, White Finish

SKU: SA-RE203W
Regular price $905.10
2.3 cu ft Porcelain-Enamel Oven with Waist-High Broiler — Provides substantial cooking capacity for its size; two adjustable racks and an internally located broiler for easier access.
Four Coil Burners with Chrome Drip Pans & Safety Sensors — Includes one 8″ 2400 W burner and three 6″ 1250 W burners; each coil has a sensor that cycles off if temperatures near flash-point for added safety.
Space-Saving 20″ Width Perfect for Smaller Kitchens — With nominal width of 20″ (actual ~19.5″) and depth of ~25.13″, this range is designed for apartments or galley-style kitchens.
41.75" H x 19.5" W x 25.13" D
(106cm H x 50cm W x 64cm D)
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-RE203W

20" Wide Electric 4-Burner Range:
Slim-fitting coil range perfectly sized for apartments and smaller home kitchens

20" width:
Perfectly sized for apartments and smaller home kitchens

Waist-high broiler:
Broiler is located inside the oven, making it easier to use

Backsplash:
High backing prevents stovetop contents from splashing up or boiling over and staining back walls

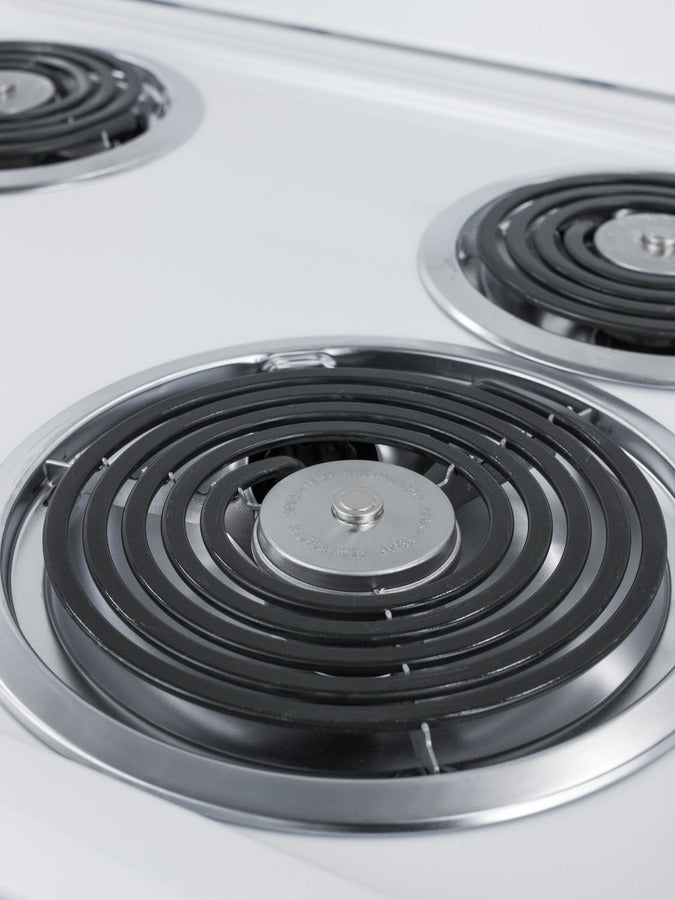

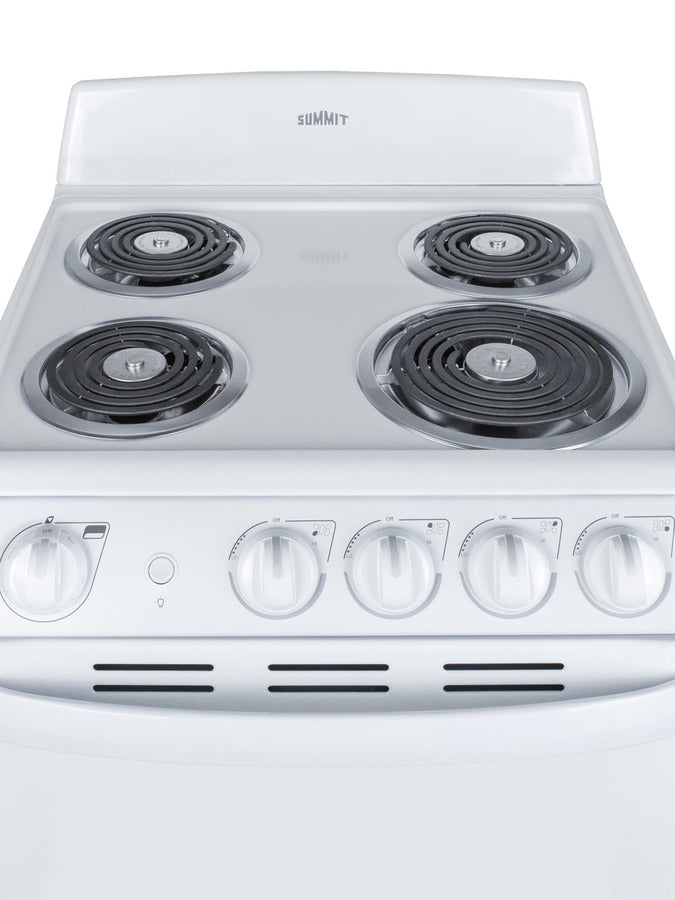

Four coil elements with chrome drip pans:
Surface features one 8" and three 6" coil elements to accommodate a range of sizes and cooking needs

Safety elements:
Designed to comply with the latest UL safety standards, each coil element is equipped with a sensor to cycle off if the temperature nears the flashpoint. Coils will resume heating shortly after, causing little interruption to your cooking

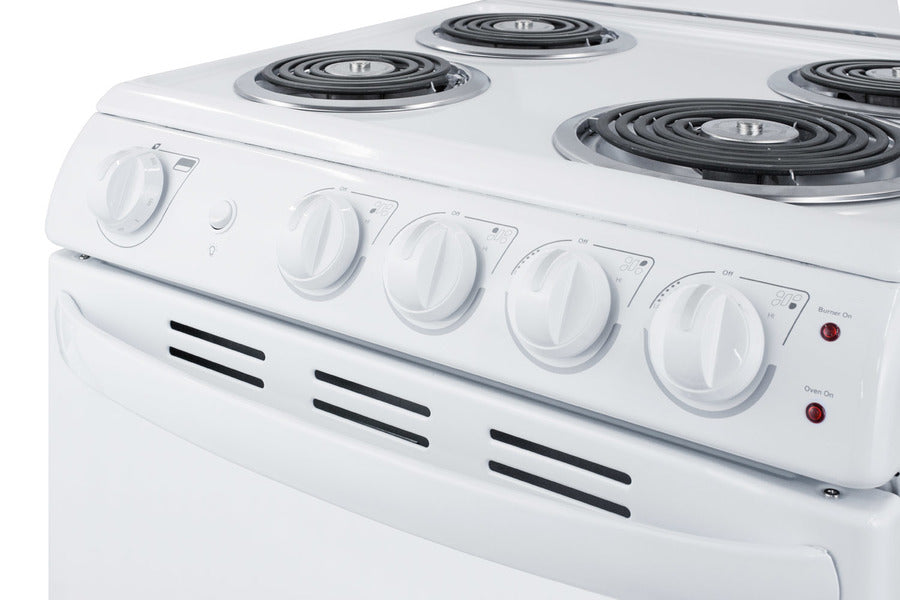

Upfront controls:
Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments

Chrome drip pans:
Each element includes a removable chrome pan for easier cleaning

Textured cabinet:
Fully finished white cabinet constructed from steel

Color matched knobs & handle:
White-on-white design for an attractive look ideal for any kitchen

Indicator lights:
Control panel includes an 'on' light for the oven and burners for added safety when using the range

Safety brake system for oven racks:
Sliding racks will stay in your oven with special brake mechanism

Push-to-turn knobs:
To prevent accidents, knobs require a small amount of force when turning

ADA compliant design:
Upfront controls and easy-to-operate knobs offer easier accessibility

Cord not included:
Compatible with standard 40 amp 3 or 4-wire range cords

TAA compliant:
This electric range was made in North America and meets the TAA guidelines

SUMMIT brings outstanding value to small kitchens with fully featured electric ranges in 20" wide fits.

Made in North America, the RE203W is a 220V electric range designed for 20" wide spaces. One 8" and three 6" coil burners include removable chrome drip pans for easy cleaning. For added safety, each coil is equipped with a sensor that will automatically cycle the element off if it reaches dangerous flashpoint temperatures. Heating will resume automatically. All cooking controls are located upfront on push-to-turn knobs for safe and easy use. Indicator lights illuminate when the oven is in use.

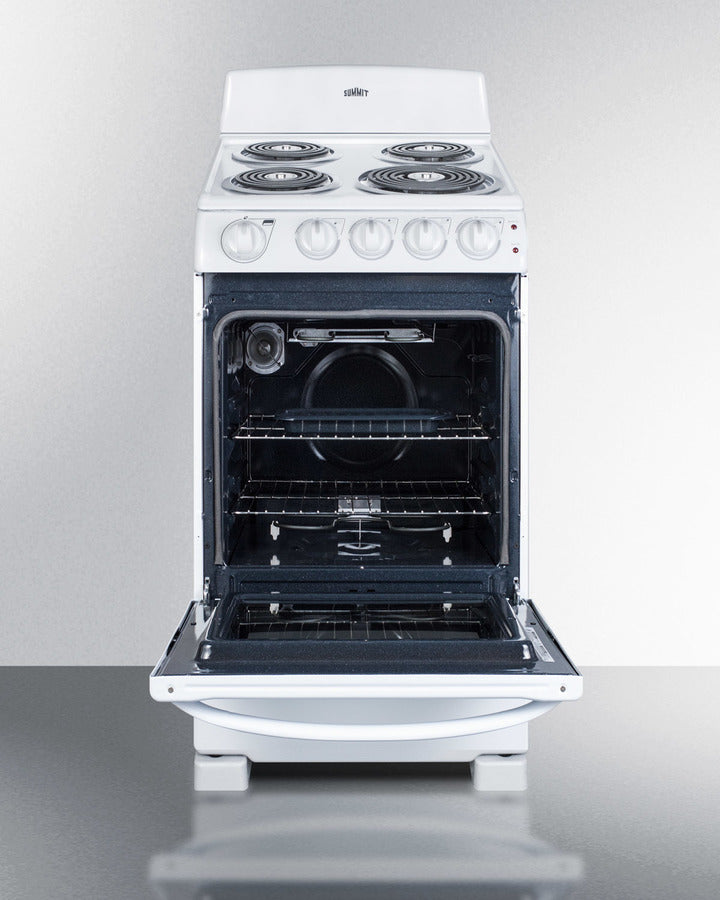

The RE203W features a large 2.3 cu.ft. oven made from durable porcelain, with  two adjustable racks and a two-piece broiler pan. The waist-high broiler is conveniently located inside, letting you finish your cooking without transferring contents to an inconvenient drop-down compartment on the floor.

The RE203W comes in a white exterior finish with color-matched knobs and handle. With its slim fit and quality design, this unit is the ideal choice for space-challenged kitchens on a budget. For more options, including smooth-top ranges and 24" wide choices, browse our website.

Note: this item replaces the RE201W.

 Overview

Refrigerator-Freezer

Nominal Height 42.0" (107 cm) Oven Capacity 2.3 cu.ft. (65 L)
Height of Cabinet 41.75" (106 cm) Cooktop Surface Metal
Nominal Width 20.0" (51 cm) Element Type Coils
Width 19.5" (50 cm) Number of Elements 4
Nominal Depth 26.0" (66 cm) Element #1 Size 6.0" (15 cm)
Depth 25.13" (64 cm) Element #1 Wattage 1250.0
Depth with Handle 27.38" (70 cm) Element #2 Size 6.0" (15 cm)
Depth with door at 90° 46.38" (118 cm) Element #2 Wattage 1250.0
Door White Element #3 Size 6.0" (15 cm)
Cabinet White Element #3 Wattage 1250.0
US Electrical Safety UL Element #4 Size 8.0" (20 cm)
Voltage/Frequency 220 V AC/60 Hz Element #4 Wattage 2400.0
Weight 125.0 lbs. (57 kg) Burner Controls Dial
Parts & Labor Warranty 1 Year Oven Controls Dial
UPC 761101058283 Backguard Yes


Cleaning Type Manual


Oven Rack Qty 2


Oven Interior Height 15.25" (39 cm)


Oven Interior Width 14.5" (37 cm)


Oven Interior Depth 17.63" (45 cm)


Power Source 220V


Broiler Location Inside Oven

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
