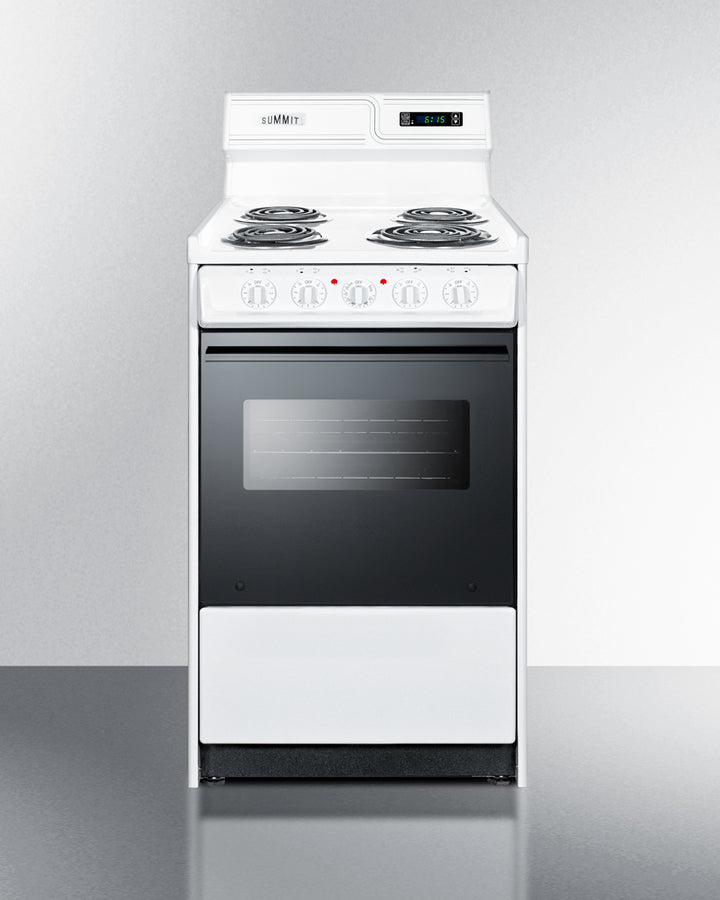

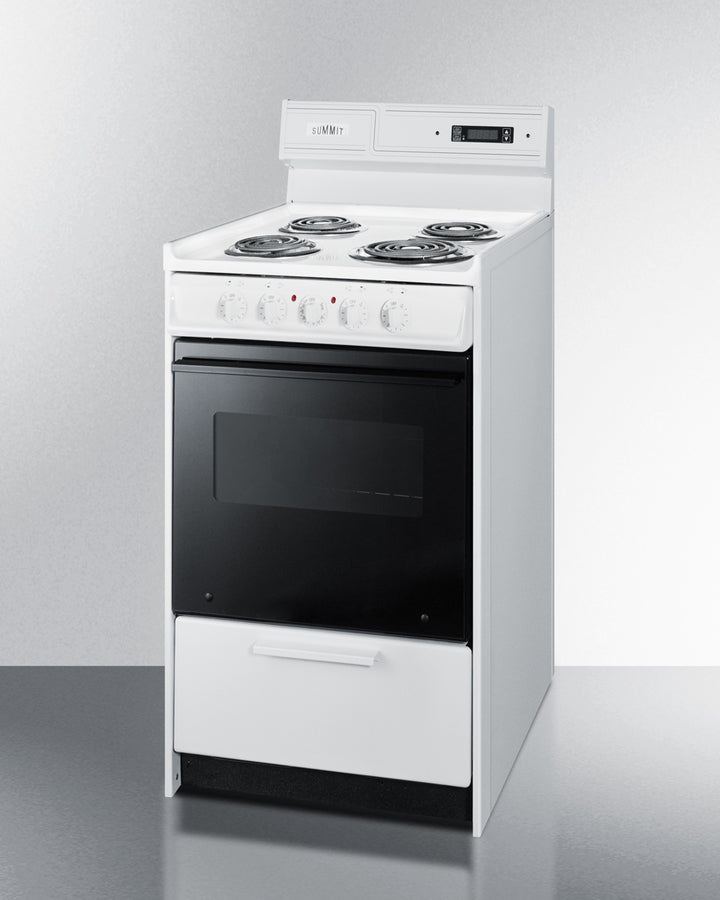

Summit WEM130DK 20″ Wide Electric Coil-Top Range – White Cabinet, Black Glass Oven Door, 2.46 cu ft Oven, 24″ Depth

SKU: SA-WEM130DK
Regular price $1,159.90
Apartment-Sized 20″ Width with Full-Feature Oven – At just 20″ wide and 24″ deep, this range fits tight spaces yet offers a generous 2.46 cu ft oven capacity.
Low-Amp 23.2 A Design for Power-Limited Kitchens – Built to operate on 23.2 amps so it can work in kitchens with limited power or on smaller breakers.
Four Coil Elements (Three 6″ + One 8″) With Chrome Drip Pans – Offers versatile stovetop cooking performance with easy-clean removable drip pans.
44.0" H x 20.0" W x 24.0" D
(112cm H x 51cm W x 61cm D)
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-WEM130DK

20" Wide Electric Range:
Coil surface and full-sized oven ideal for smaller kitchens

Made in the USA:
Designed and constructed domestically

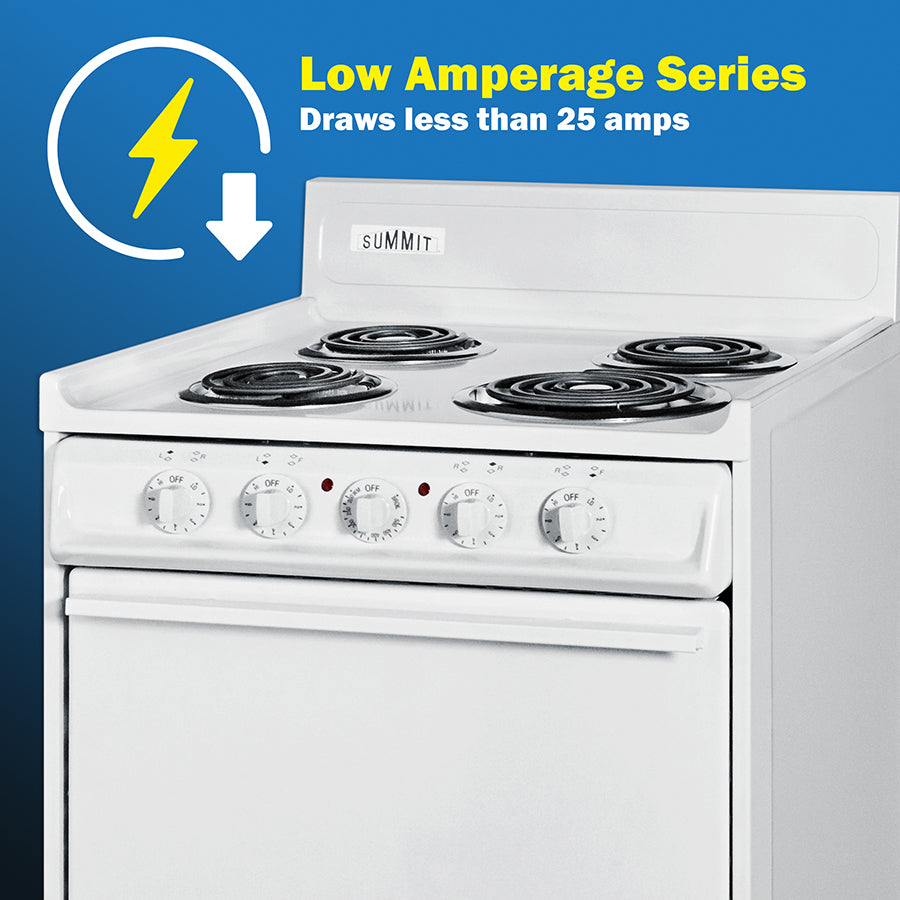

Low amperage:
23.2 amp performance allows use with 25 or 30 amp breakers, ensuring full cooking performance in kitchens with limited power resources

24 inch depth:
Shallower fit is ideal for L-shaped and galley kitchens

Slim 20 inch width:
Apartment-sized width offers all the functionality you need in a smaller footprint

Storage compartment:
Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen

Four coil elements:
Three standard 6" and one large 8" element

Safety burners with low wattage outputs:
Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off

Chrome drip pans:
Each coil element includes a removable chrome pan for easier cleaning

Oven window and interior lighting:
Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

Waist-high broiler:
Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor

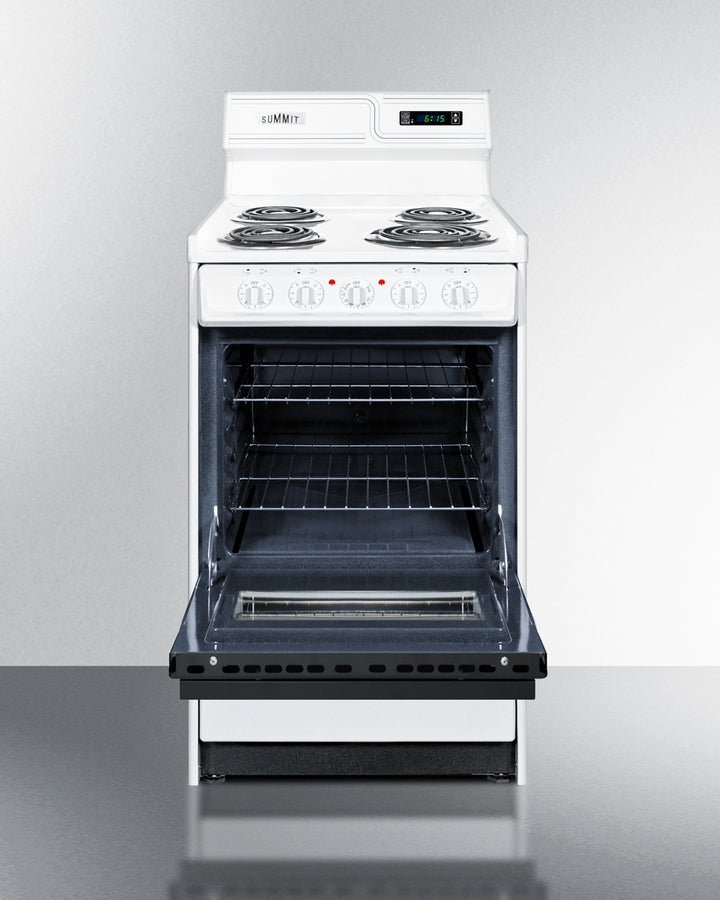

Adjustable oven racks:
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Recessed oven door in black glass:
Smart design limits the depth and protects adjacent cabinets

Porcelain and steel construction:
Solid construction built to hold up to everyday use

Deluxe backguard:
8" high backguard helps to protect your walls from spills and splashes

Digital clock and timer:
Backguard includes clock and timer for added convenience

Upfront oven/burner controls:
All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners

Push-to-turn knobs:
Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn

Indicator lights:
Control panel includes an 'on' light for the oven and burners for added safety when using the range

Removable oven door and range top:
Allows for easier cleaning as needed

Broiler tray included:
Two-piece porcelain broiler tray with grease well

Anti-tip bracket:
Included for user installation to help prevent tipping

Cord not included:
Compatible with standard 25 or 30 amp 3 or 4-wire range cords

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The 23.2 amp design is ideal for kitchens with power limitations.

The WEM130DK is an apartment-sized 220V electric range sized at just 20" wide, with a generous 2.46 cu.ft oven interior that can accommodate large trays. The black glass oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens.

Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines.

The WEM130DK comes in a classic white finish to suit any kitchen. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 25 or 30 amp 3 or 4-wire range cord can be installed by your electrician).

With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 24", 30", and 36" wide fits.

Overview
Refrigerator-Freezer
Nominal Height 44.0" (112 cm) Oven Capacity 2.46 cu.ft. (70 L)
Height of Cabinet 44.0" (112 cm) Cooktop Surface Porcelain
Nominal Width 20.0" (51 cm) Element Type Coils
Width 20.0" (51 cm) Number of Elements 4
Nominal Depth 24.0" (61 cm) Element #1 Size 6.0" (15 cm)
Depth 24.0" (61 cm) Element #1 Wattage 675.0
Door Black Element #2 Size 6.0" (15 cm)
Cabinet White Element #2 Wattage 675.0
US Electrical Safety CSA Element #3 Size 6.0" (15 cm)
Amps 23.2 Element #3 Wattage 675.0
Voltage/Frequency 220 V AC/60 Hz Element #4 Size 8.0" (20 cm)
Weight 145.0 lbs. (66 kg) Element #4 Wattage 950.0
Parts & Labor Warranty 1 Year Burner Controls Dial
UPC 761101003498 Oven Controls Dial


Oven Light Yes


Cooking Timer Yes


Backguard Yes


Backguard Display Yes


Oven Window Yes


Oven Interior Height 14.0" (36 cm)


Oven Interior Width 16.0" (41 cm)


Oven Interior Depth 19.0" (48 cm)


Storage Compartment Yes


Broiler Location Inside Oven


Oven Door Black Glass
