Summit SEW2401 24″ Wide Electric Wall Oven – Convection, Stainless Steel, 2.86 cu ft Capacity

SKU: SA-SEW2401
Regular price $994.60
Low-Amp 23.2 A Design for Power-Limited Kitchens – Built for kitchens with electrical constraints (such as older buildings or apartments), delivering full cooking capability on a 25- or 30-amp circuit.
Built-in Safety & Functional Features – Includes slide-in style with low stainless-steel back-trim, storage compartment, push-to-turn front controls, anti-tip bracket, and American-made construction.
Four Coil Elements (Three 6″/675 W + One 8″/950 W) – Flexible stovetop performance in a compact format; includes porcelain coil surface and removable chrome drip pans for easier cleanup.
23.38" H x 23.38" W x 23.25" D
(59cm H x 59cm W x 59cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-SEW2401

24" Wide 208-240V Wall Oven:
24" wide electric wall oven for built-in installation in residential kitchens

Built-in design:
Designed for installation in cabinetry or under a counter; cutout dimensions:23" H x 22.25" W x 24" D

Low amperage:
11.9 to 13.7 amp operation allows use with a 20 amp circuit, ideal for homes with limited power

Large capacity:
Spacious 2.86 cu.ft. interior to fit an assortment of medium to large dishes

ADA-compliant:
When installed in accordance with section 804.6 of the ADA Standards for Accessible Design, this unit is ADA-compliant

Stainless steel front:
Door is constructed from brushed stainless steel for modern luxury built to last

Easy knob controls:
Classic analog controls for intuitive cooking

Multiple cooking functions:
Settings include bake, convection bake, broil, convection broil, defrost, and convection roast

Convection bake function:
Adds a convection fan during the baking process to circulate heated air for a more even heat distribution

Convection broil function:
Combines the broil process with convection fan for even heating

Bake function:
Standard heating via upper and lower elements with a range of 150 to 500ºF

Broil function:
Direct heating ideal for thick cuts of meat, fish, and poultry

Defrost setting:
No-heat function will let the fan run for quicker and efficient thawing of frozen foods

Cooking timer:
Dial timer can be set up to 120 minutes and will automatically turn the oven off when it reaches 0

Oven window:
Triple pane glass offers a full view of your interior, letting you monitor cooking without opening the door

Oven light:
Stays on during the cooking process so you can observe your progress at a glance

Adjustable oven racks:
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Baking tray included:
Full-width porcelain tray for cooking convenience

Removable oven door:
Door can be removed in a few simple steps as needed for full access of the interior and easier maintenance

Professional handle:
Sleek handle in brushed stainless steel offers an attractive look that matches many popular styles of kitchen cabinetry

208-240V operation:
Requires professional hardwired installation (cord not included)

Summit helps enhance small kitchen functionality with fully featured electric wall ovens that offer cooking flexibility in spaces with power limitations.

Model SEW2401 is a 208-240V electric wall oven with convection designed for built-in installation in 23" H x 22.25" W x 24" D cutouts. It utilizes lower amp operation (11.9 to 13.7 amps), allowing use with a 20-amp circuit. Professional installation is required.  When installed at the proper height, this unit complies with ADA accessibility guidelines. Brushed stainless steel look trim, a triple-paned glass window, and a professional handle create a modern look, while analog controls offer simple and intuitive operation.

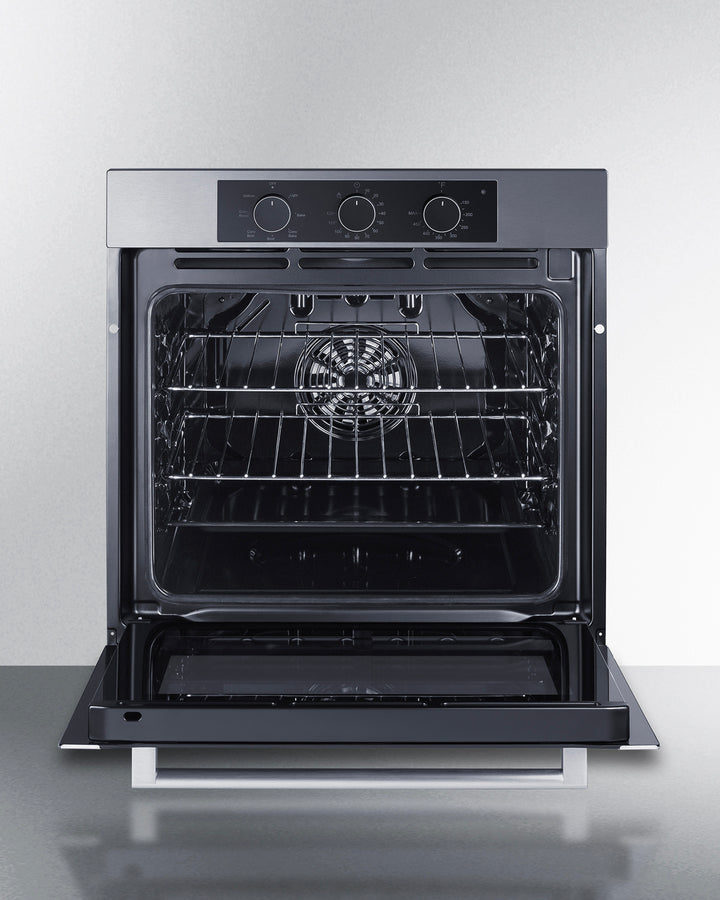

Inside, the SEW2401 includes an oven light for easier monitoring of your cooking. To better accommodate dishes of different sizes, this unit features two gliding wire racks with brakes that can be placed at five rack positions. We also include a full-width baking pan. The flat bottom and 2.86 cu.ft. interior can hold larger cookware and support full-sized meals (such as turkeys) to maximize cooking capacity. This unit has a removable oven door for easier cleaning and maintenance.

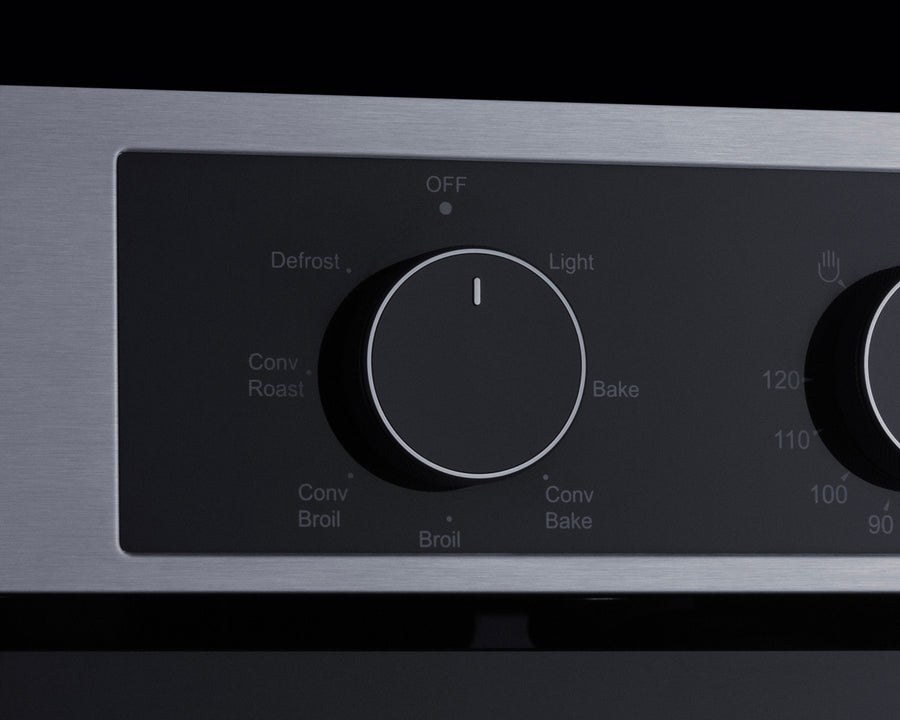

The SEW2401 offers a range of heating functions to cover virtually all of your cooking needs. The analog controls are easy to use, with specialty settings for baking, broiling, convection baking, convection broiling, convection roasting, and defrosting (fan only). The dial timer function allows you to set a cooking time for up to 120 minutes.

With its premium features, modern style, and ideal size, the SEW2401 is the perfect choice for space-challenged kitchens looking to maintain full cooking capacity in a slimmer footprint. For compatible cooktops, browse the full Summit selection.

Overview
Refrigerator-Freezer
Height of Cabinet 23.38" (59 cm) Controls Dial
Width 23.38" (59 cm) Oven Light Yes
Depth 23.25" (59 cm) Cooking Timer Yes
Depth with Handle 25.13" (64 cm) Temperature Range 150-500°F
Depth with door at 90° 42.25" (107 cm) Cleaning Type Manual
Capacity 2.86 cu.ft. (81 L) Oven Rack Qty 2
Door Glass/SS Oven Window Yes
Cabinet - Interior Height 14.75" (37 cm)
US Electrical Safety ETL Interior Width 18.75" (48 cm)
Canadian Electrical Safety ETL-C Interior Depth 17.25" (44 cm)
Amps 13.9 Cutout Height 23.0" (58 cm)
Voltage/Frequency 220 V AC/60 Hz Cutout Width 22.25" (57 cm)
Weight 93.0 lbs. (42 kg) Cutout Depth 24.0" (61 cm
Parts & Labor Warranty 1 Year
UPC 761101145099

BROCHURE

ASSEMBLY DRAWING

SUPPORT



WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
