Summit WEM210 30″ Wide Electric Coil-Top Range – White Finish, 3.7 cu ft Oven, 24″ Depth, Made in USA
Customer service
Features
- SKU SA-WEM210
Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The 23.2 amp design is ideal for kitchens with power limitations.

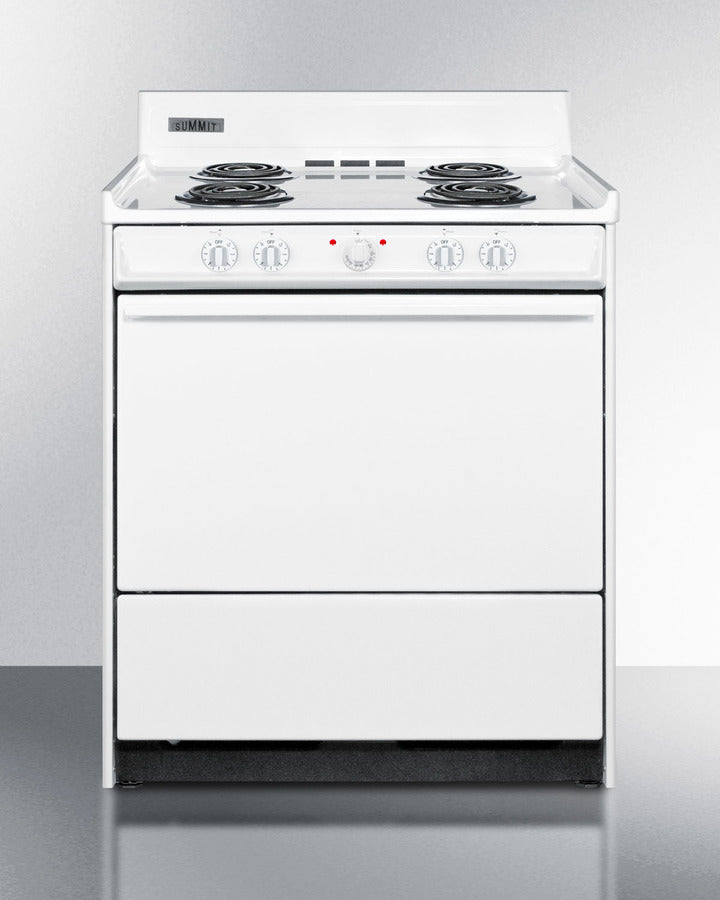

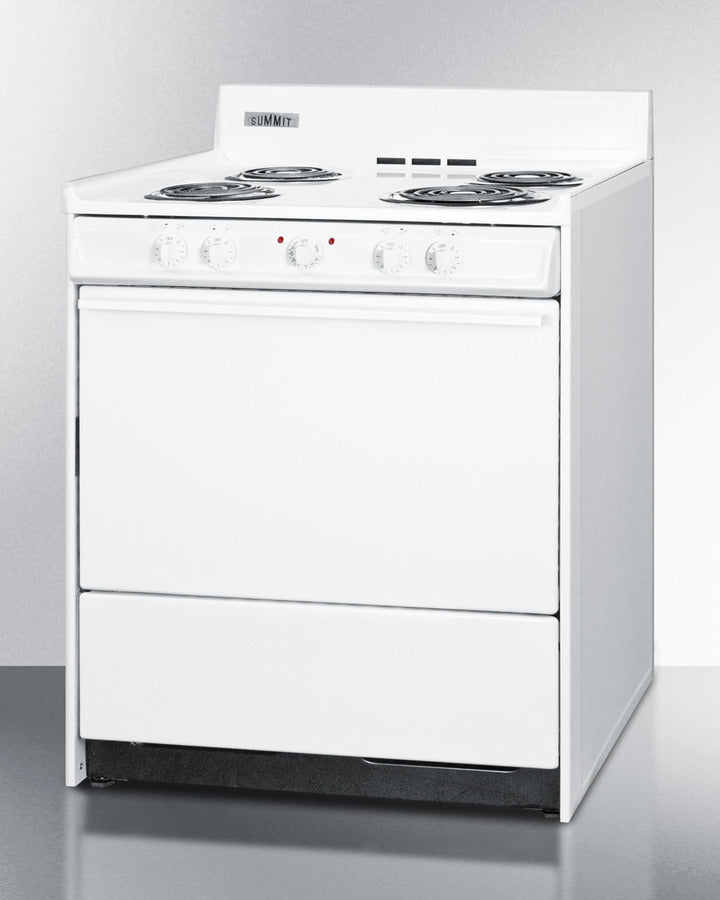

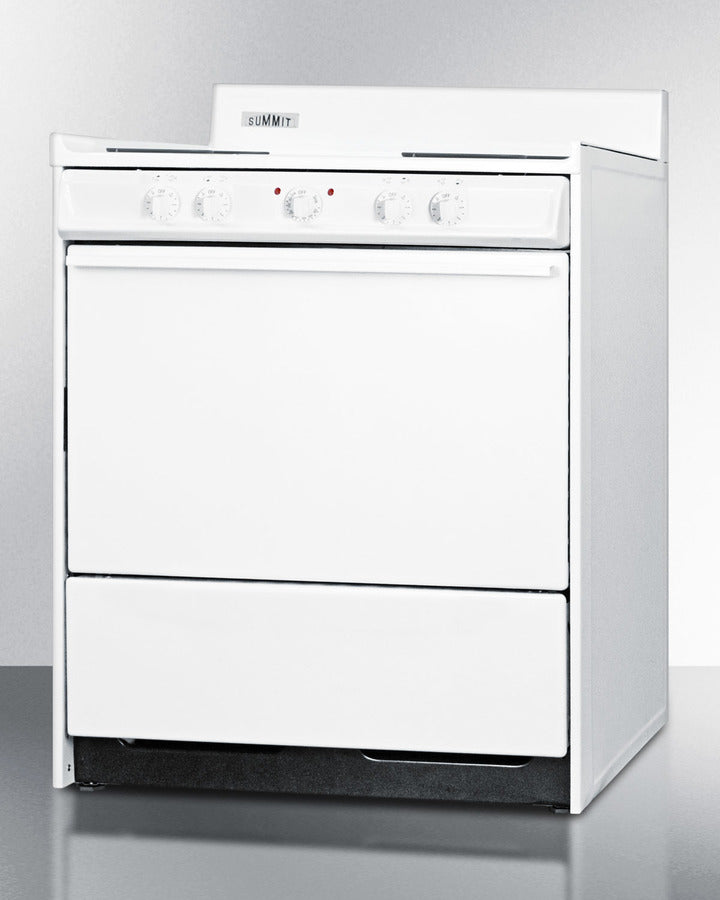

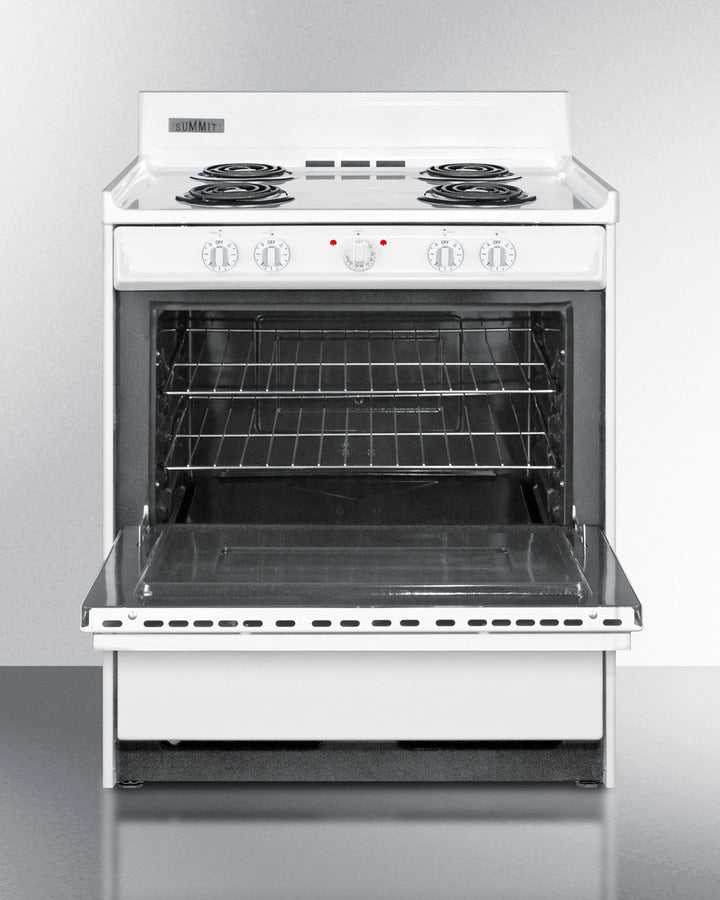

The WEM210 is an apartment-sized 220V electric range sized at a standard 30" wide, with a generous 3.7 cu.ft oven interior that can accommodate large trays. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens.
Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines.
The WEM210 comes in a classic white finish to suit any kitchen setting. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 25 or 30 amp 3 or 4-wire range cord can be installed by your electrician).
With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 24", and 36" wide fits.
| Overview | Refrigerator-Freezer | ||
| Nominal Height | 40.0" (102 cm) | Oven Capacity | 3.7 cu.ft. (105 L) |
| Height of Cabinet | 40.0" (102 cm) | Cooktop Surface | Porcelain |
| Nominal Width | 30.0" (76 cm) | Element Type | Coils |
| Width | 30.0" (76 cm) | Number of Elements | 4 |
| Nominal Depth | 24.0" (61 cm) | Element #1 Size | 6.0" (15 cm) |
| Depth | 24.0" (61 cm) | Element #1 Wattage | 675.0 |
| Door | White | Element #2 Size | 6.0" (15 cm) |
| Cabinet | White | Element #2 Wattage | 675.0 |
| US Electrical Safety | CSA | Element #3 Size | 6.0" (15 cm) |
| Amps | 23.2 | Element #3 Wattage | 675.0 |
| Voltage/Frequency | 220 V AC/60 Hz | Element #4 Size | 8.0" (20 cm) |
| Weight | 170.0 lbs. (77 kg) | Element #4 Wattage | 950.0 |
| Parts & Labor Warranty | 1 Year | Burner Controls | Dial |
| UPC | 761101003665 | Oven Controls | Dial |
| Backguard | Yes | ||
| Cleaning Type | Manual | ||
| Oven Interior Height | 14.0" (36 cm) | ||
| Oven Interior Width | 24.0" (61 cm) | ||
| Oven Interior Depth | 19.0" (48 cm) | ||
| Storage Compartment | Yes | ||
| Broiler Location | Inside Oven | ||
| Oven Door | White |
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
