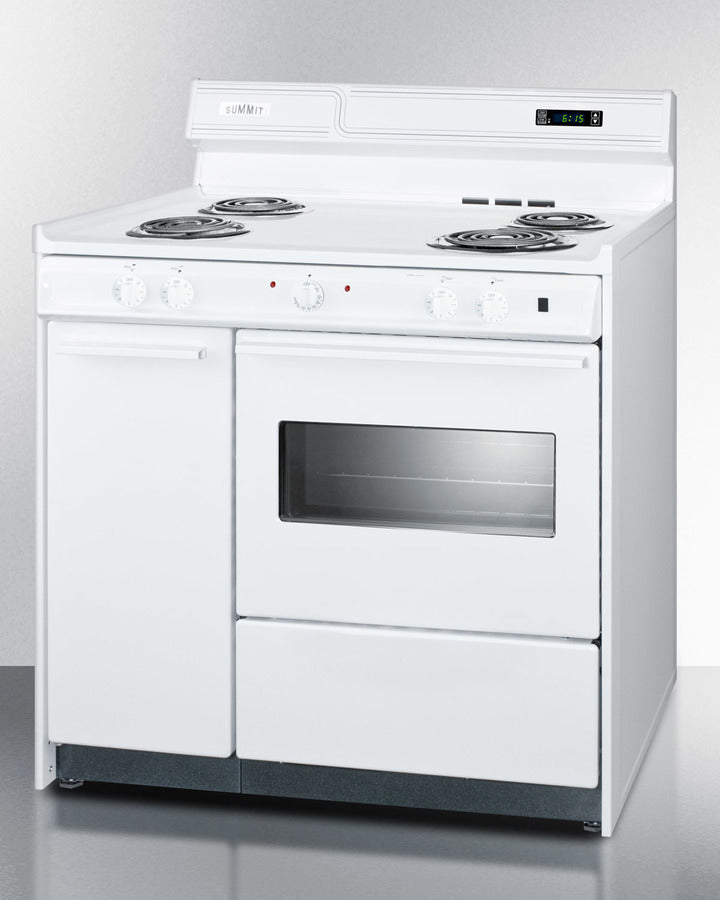

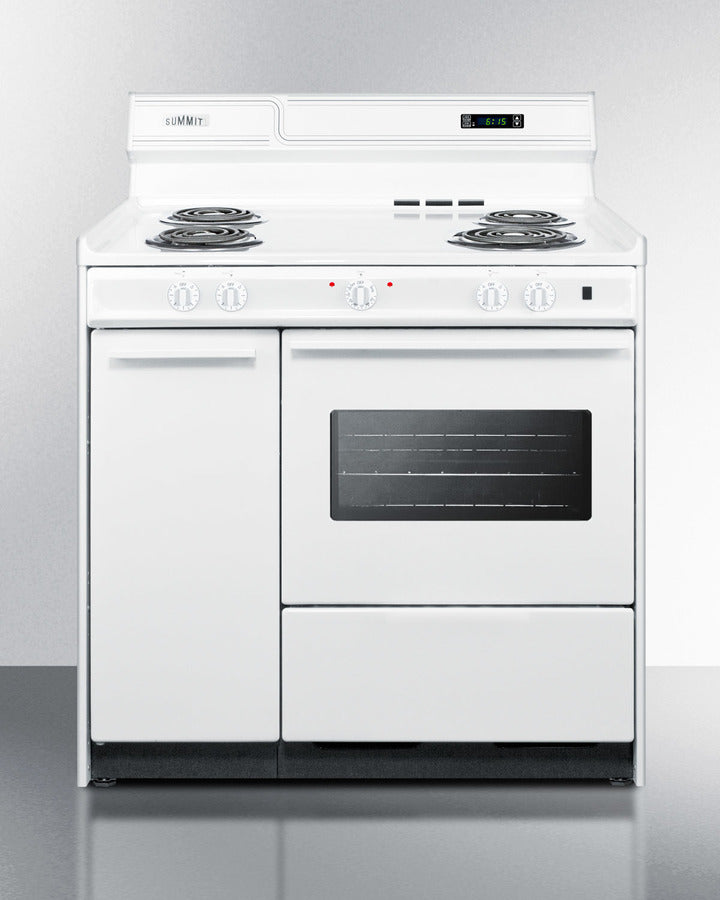

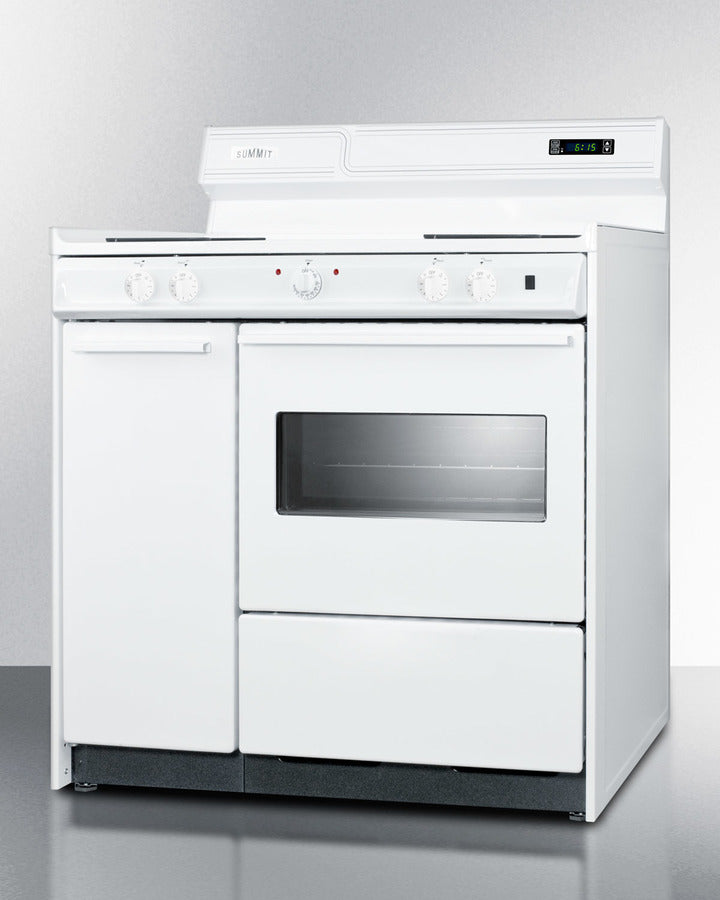

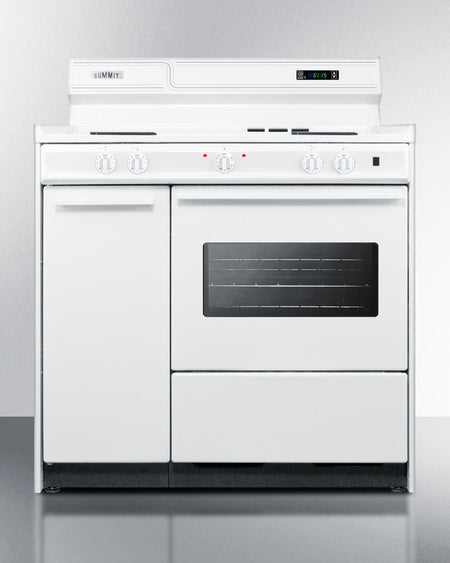

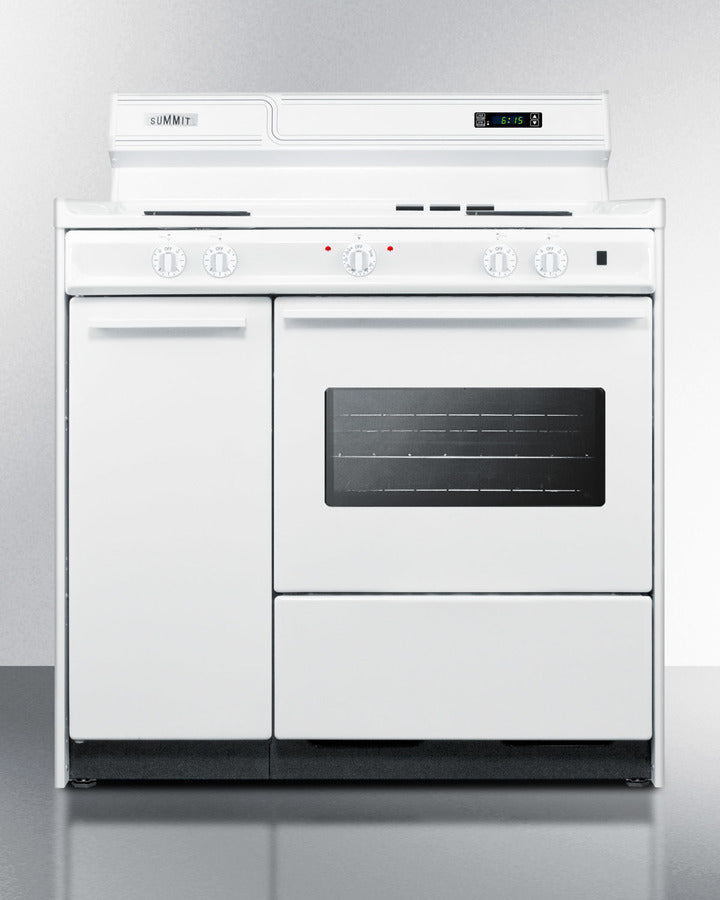

Summit WEM430KW 36″ Wide Electric Coil-Top Range – White Finish, 2.9 cu ft Oven, 24″ Depth Compact Design

SKU: SA-WEM430KW
Regular price $1,654.80
Made in the USA with Built-In Safety and Storage Features – American-manufactured, includes a side storage cabinet and drop-down compartment for cookware, push-to-turn front knobs, anti-tip bracket, recessed oven door for cabinetry protection.
Four Coil Elements including One 8" High-Output Top Burner – Equipped with one 8-inch/950 W and three 6-inch/675 W coil elements on a durable porcelain surface with chrome drip pans for easier cleanup.

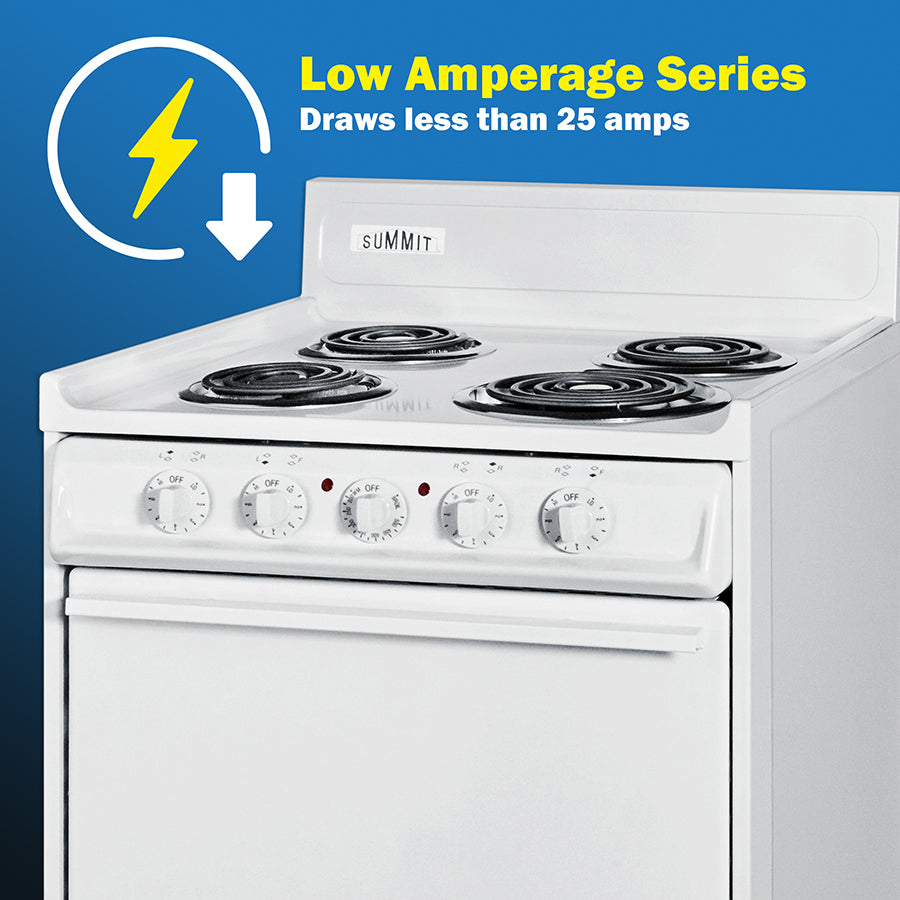

Low-Amp 23.2 Amp Design for Power-Limited Kitchens – Delivers full cooking performance while using under 25 amps, making it compatible with kitchens that have limited electrical capacity.
44.0" H x 36.0" W x 24.0" D
(112cm H x 91cm W x 61cm D)
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-WEM430KW

36 inch wide range:
Uniquely sized to fit many older kitchen spaces

Made in the USA:
Designed and constructed domestically

Low amperage:
23.2 amp performance allows use with 25 or 30 amp breakers, ensuring full cooking performance in kitchens with limited power resources

24 inch depth:
Shallower fit is ideal for L-shaped and galley kitchens

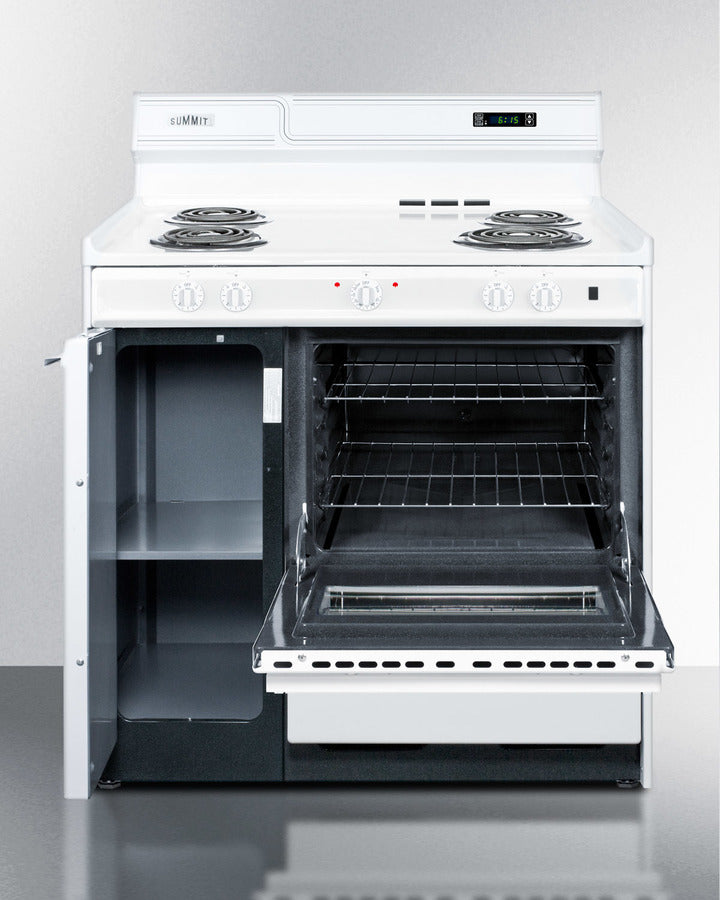

Storage compartments:
12" wide storage cabinet included in body, with a removable shelf to help store cookware, smaller appliances, non-perishable food, and other items, with a lower drop-down compartment also included

Four coil elements:
Includes one 8" and three 6" coil elements

Safety burners with low wattage outputs:
Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off

Chrome drip pans:
Each coil element includes a removable chrome pan for easier cleaning

Oven window and light:
Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

Waist-high broiler:
Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor

Adjustable oven racks:
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Porcelain and steel construction:
Solid construction built to hold up to everyday use

Deluxe backguard:
8" high backguard helps to protect your walls from spills and splashes

Digital clock and timer:
Backguard includes time readout

Recessed oven door:
Smart design limits the depth and protects adjacent cabinetry

Upfront controls:
All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners

Push-to-turn knobs:
Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn

Indicator lights:
Control panel includes an 'on' light for the oven and burners for added safety when using the range

Broiler pan included:
Two-piece porcelain broiler tray with grease well

Anti-tip bracket:
Included for user installation to help prevent tipping

Cord not included:
Compatible with standard 25 or 30 amp 3 or 4-wire range cords

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The 23.2 amp design is ideal for kitchens with power limitations.

The WEM430KW is a 220V electric range uniquely sized at 36" wide, with a 2.46 cu.ft oven interior that can accommodate large trays. The oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. This unit has a side storage compartment with a removable shelf and a lower drop-down section for cookware.

Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines.

The WEM430KW comes in a classic white finish to suit any kitchen. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety.  This unit does not include a line cord (a standard 25 or 30 amp 3 or 4-wire range cord can be installed by your electrician).

With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 24", and 30" wide fits.

Overview
Refrigerator-Freezer
Nominal Height 44.0" (112 cm) Oven Capacity 2.9 cu.ft. (82 L)
Height of Cabinet 44.0" (112 cm) Cooktop Surface Porcelain
Nominal Width 36.0" (91 cm) Element Type Coils
Width 36.0" (91 cm) Number of Elements 4
Nominal Depth 24.0" (61 cm) Element #1 Size 6.0" (15 cm)
Depth 24.0" (61 cm) Element #1 Wattage 675.0
Door White Element #2 Size 6.0" (15 cm)
Cabinet White Element #2 Wattage 675.0
US Electrical Safety CSA Element #3 Size 6.0" (15 cm)
Amps 23.2 Element #3 Wattage 675.0
Voltage/Frequency 220 V AC/60 Hz Element #4 Size 8.0" (20 cm)
Weight 200.0 lbs. (91 kg) Element #4 Wattage 950.0
Parts & Labor Warranty 1 Year Burner Controls Dial
UPC 761101003733 Oven Controls Dial


Oven Light Yes


Cooking Timer Yes


Backguard Yes


Backguard Display Yes


Cleaning Type Manual


Oven Window Yes


Oven Interior Height 14.0" (36 cm)


Oven Interior Width 19.0" (48 cm)


Oven Interior Depth 19.0" (48 cm)


Storage Compartment Yes


Broiler Location Inside Oven


Oven Door White/Window

BROCHURE

ASSEMBLY DRAWING

SUPPORT
