Home » Summit TNL05P 30″ Wide Gas Cooktop – Black Porcelain Surface, 4 Open Burners, Battery-Start Ignition

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

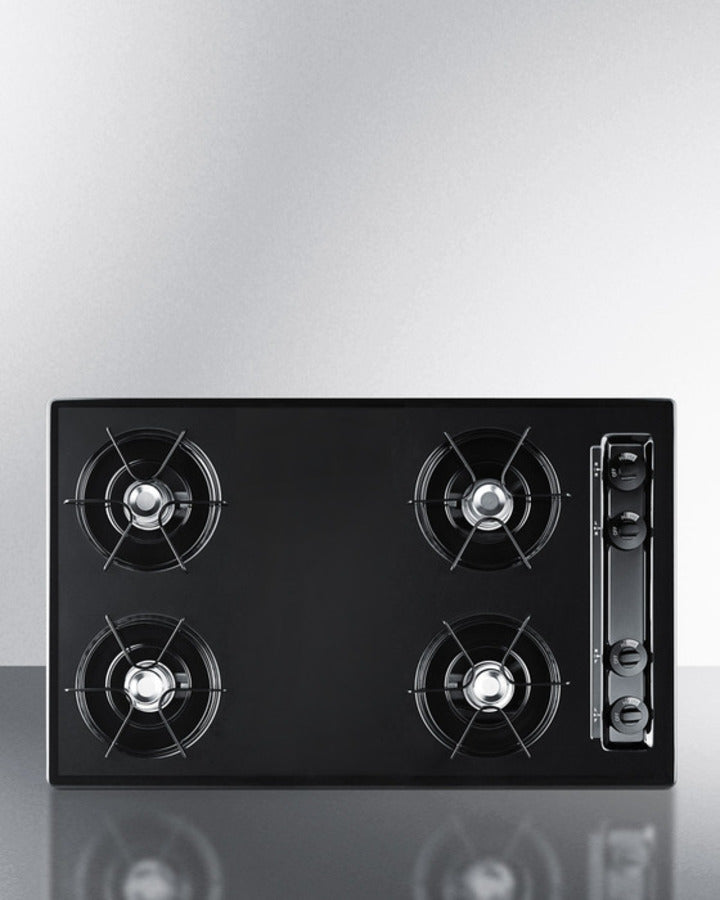

Summit TNL05P 30″ Wide Gas Cooktop – Black Porcelain Surface, 4 Open Burners, Battery-Start Ignition

SKU: SA-TNL05P
(0)
$538.40
USA-Made with LP Conversion Option – Built in the USA and shipped set for natural gas, but can easily convert to propane (LP) using the optional Kit LP — offers flexibility based on gas supply type.
Scratch-Resistant Black Porcelain Surface with Recessed Top Design – The coated surface resists stains and scratches; recessed top helps contain spills, reducing mess and making cleanup easier.
Battery-Start Ignition — No Power Outlet Needed – Uses a standard 9 V battery for ignition, making it ideal for off-grid kitchens, remote installations, or areas without reliable electrical supply.
3.75" H x 29.75" W x 20.0" D
(10cm H x 76cm W x 51cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Customer service

Video chat Chat Email 800-626-0854

Features

  • SKU SA-TNL05P

Made in the USA:
Designed and constructed domestically

Classic 30" fit:
Fits common 28 3/8" W x 18 5/8" D counter cutouts

Four open burners:
9000 BTU burners with built-in enamel grates to meet most cooking needs

Black exterior:
Jet black finish for an easy complement to any kitchen space

Porcelain finish:
Scratch-resistant design for lasting durability

Recessed top:
Curved design helps to contain spills on the surface

Battery start ignition:
Ideal alternative to pilot light sources when no power source is accessible

Designed for natural gas:
Set for use with natural gas connection. To convert for propane use, add Kit LP

Side controls:
Cooktop knobs are located on the right side of the cooktop, clearing up space in the front for easier cooking

Push-to-turn knobs:
Knobs require a small amount of force to ensure burners are not accidentally turned on

Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability, with non-electrical options ideal for off-grid and remote kitchens without traditional power access.

The TNL05P is a 30" wide gas cooktop designed to fit common 28 3/8" wide x 18 5/8" deep cutouts. It features a scratch-resistant porcelain surface in a jet black finish, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use.

Four open 9000 BTU burners include built-in enamel grates. This unit comes set for natural gas but can be converted to propane with the purchase of the Kit LP accessory. It utilizes battery start ignition with a standard 9V battery (included) to allow the cooktop to function in homes not using electricity.

The TNL05P is designed and constructed in the USA. Additional finishes are available, as well as 24" sizes for smaller kitchen space. Browse our website to explore our complete selection.

 Overview

Refrigerator-Freezer
Nominal Height 4.0" (10 cm) Ignition Battery Start
Height of Cabinet 3.75" (10 cm) LP Convertible With Kit LP Accessory
Nominal Width 30.0" (76 cm) Number of Burners 4
Width 29.75" (76 cm) Controls Dial
Nominal Depth 20.0" (51 cm) Surface Painted
Depth 20.0" (51 cm) Cutout Width 28.38" (72 cm)
Cabinet Black Cutout Depth 18.63" (47 cm)
US Electrical Safety CSA Burner #1 BTU 9000.0
Weight 30.0 lbs. (14 kg) Burner #2 BTU 9000.0
Parts & Labor Warranty 1 Year Burner #3 BTU 9000.0
UPC 761101043999 Burner #4 BTU 9000.0


Power Cord Included No

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
