Summit ABOD15 23.38" Wide 15 Cu.Ft. BOD Refrigerated/Heated Incubator – 4°C to 60°C Range, White
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
Summit Appliance Product Template
Description & Features

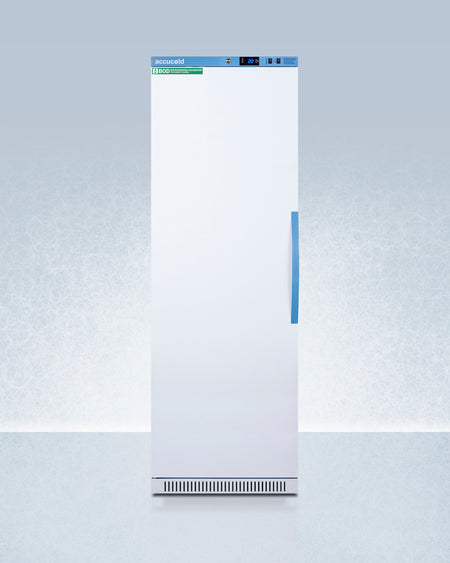

The Summit ABOD15 is a 15 cu.ft. BOD refrigerated/heated incubator designed for water treatment facilities, environmental laboratories, and research applications requiring precise temperature control. Measuring 23.38 inches wide, this freestanding unit features a temperature range of 4°C to 60°C, automatic defrost operation, digital microprocessor controls, remote alarm contacts, and multiple safety alarms to help ensure reliable storage and incubation conditions.
Features
- Adjustable temperature range from 4°C to 60°C (39.2°F to 140°F)
- Automatic defrost with adjustable cycle defrost
- Digital microprocessor controls with min/max temperature display
- Audible and visual temperature, power failure, door open, and sensor failure alarms
- Factory-installed lock and password-protected control panel
-
Seven adjustable wire shelves with interior LED lighting
Specifications
Overview
| Nominal Height | 72.0" (183 cm) |
| Height of Cabinet | 72.0" (183 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Width with Door Open | 23.88" (61 cm) |
| Nominal Depth | 25.0" (64 cm) |
| Depth | 24.38" (62 cm) |
| Depth with Handle | 26.13" (66 cm) |
| Depth with door at 90° | 46.5" (118 cm) |
| Capacity | 15.0 cu.ft. (425 L) |
| Defrost Type | Automatic |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 200.0 lbs. (91 kg) |
| Parts & Labor Warranty | 2 Years |
| Compressor Warranty | 5 Years |
| UPC | 761101150956 |
Refrigerator-Freezer
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wire |
| Shelf Qty | 7 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 2.65oz. |
| Interior Light | Yes |
| Temperature Range | 4 to 60ºC (39.2 to 140ºF) |
| Sound Level | 43 dB |
| Interior Height | 63.25" (161 cm) |
| Interior Width | 20.0" (51 cm) |
| Interior Depth | 17.0" (43 cm) |
| Compressor Step Height | 6.5" (17 cm) |
| Compressor Step Width | 20.0" (51 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
