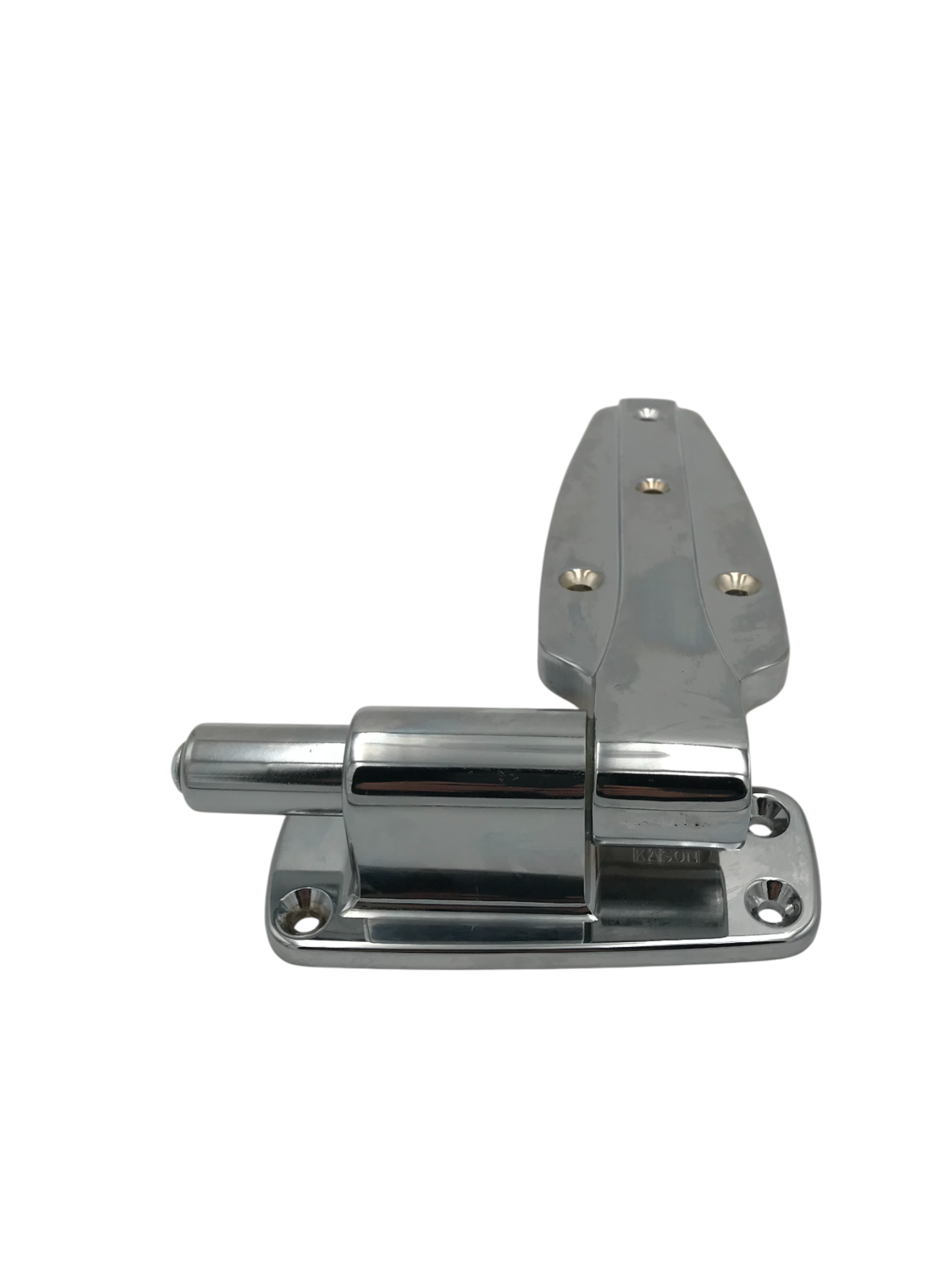

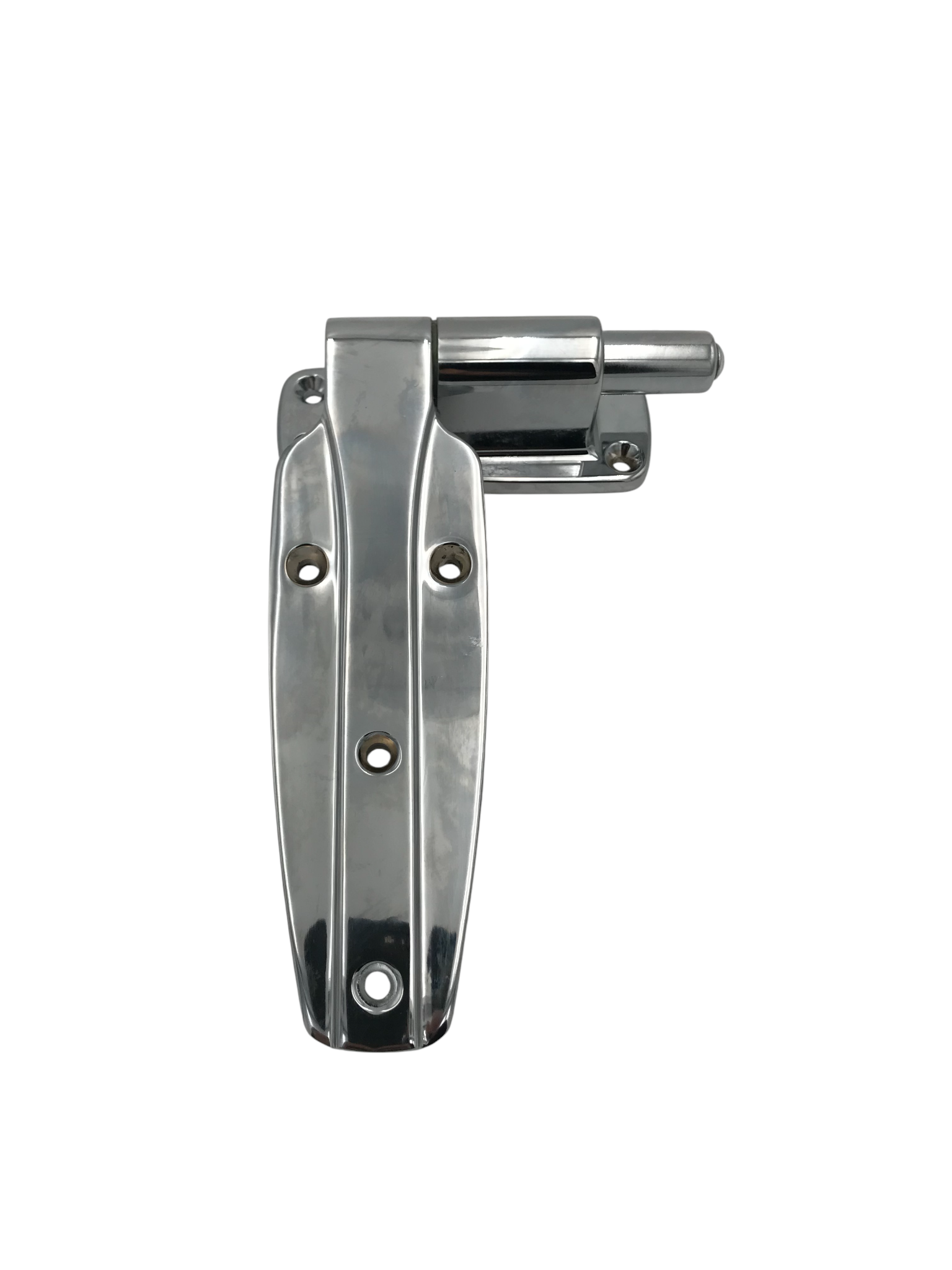

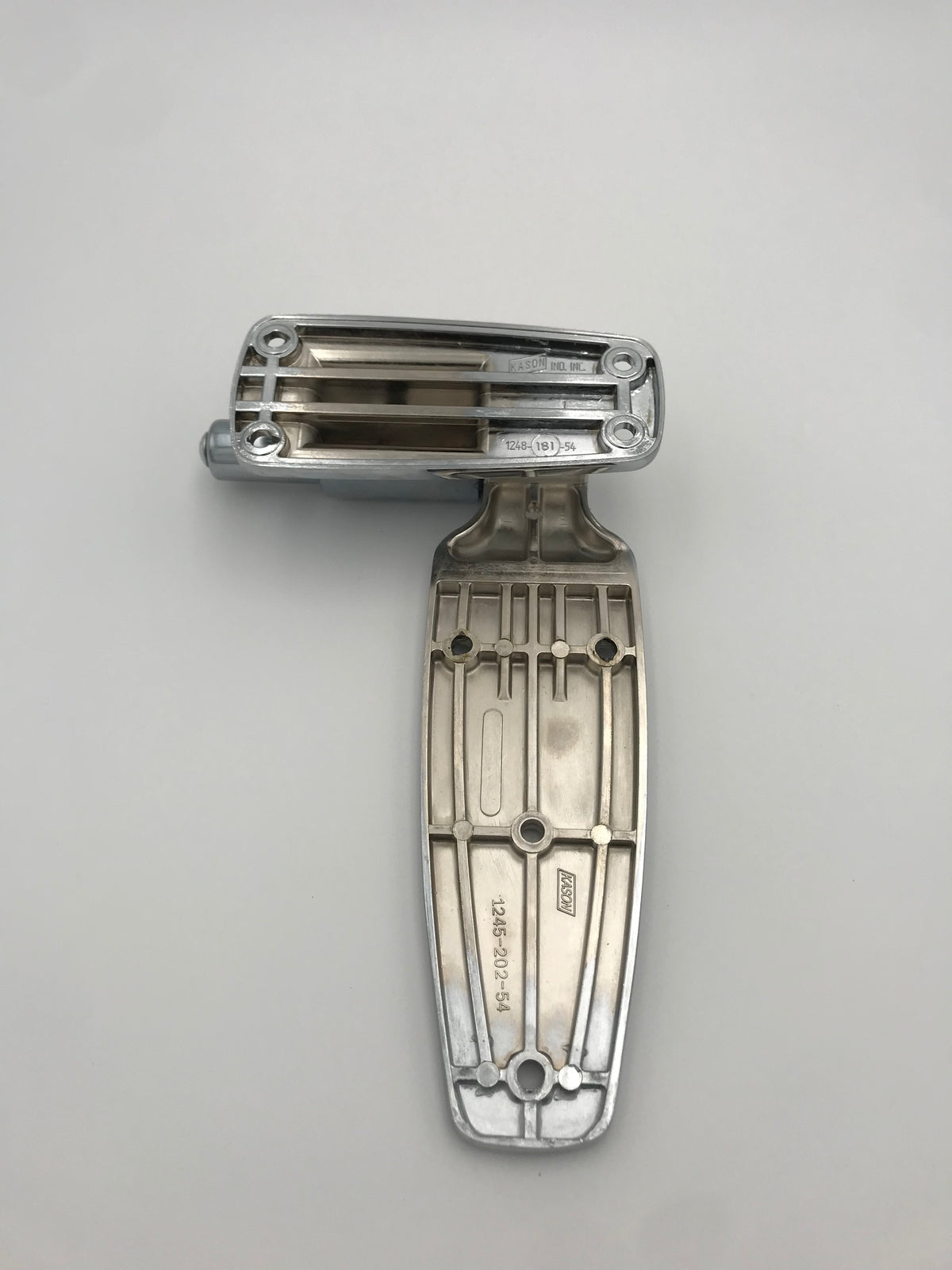

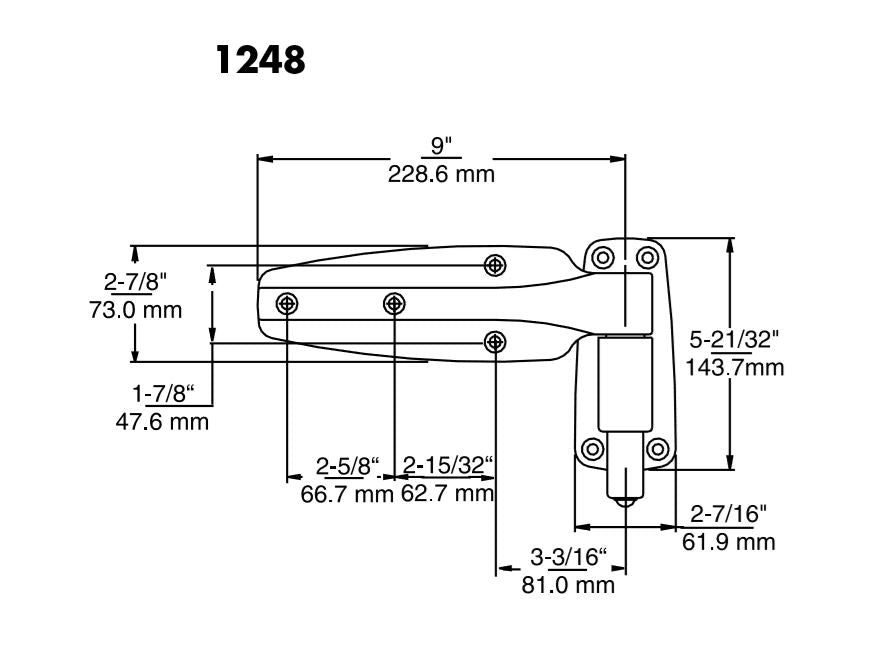

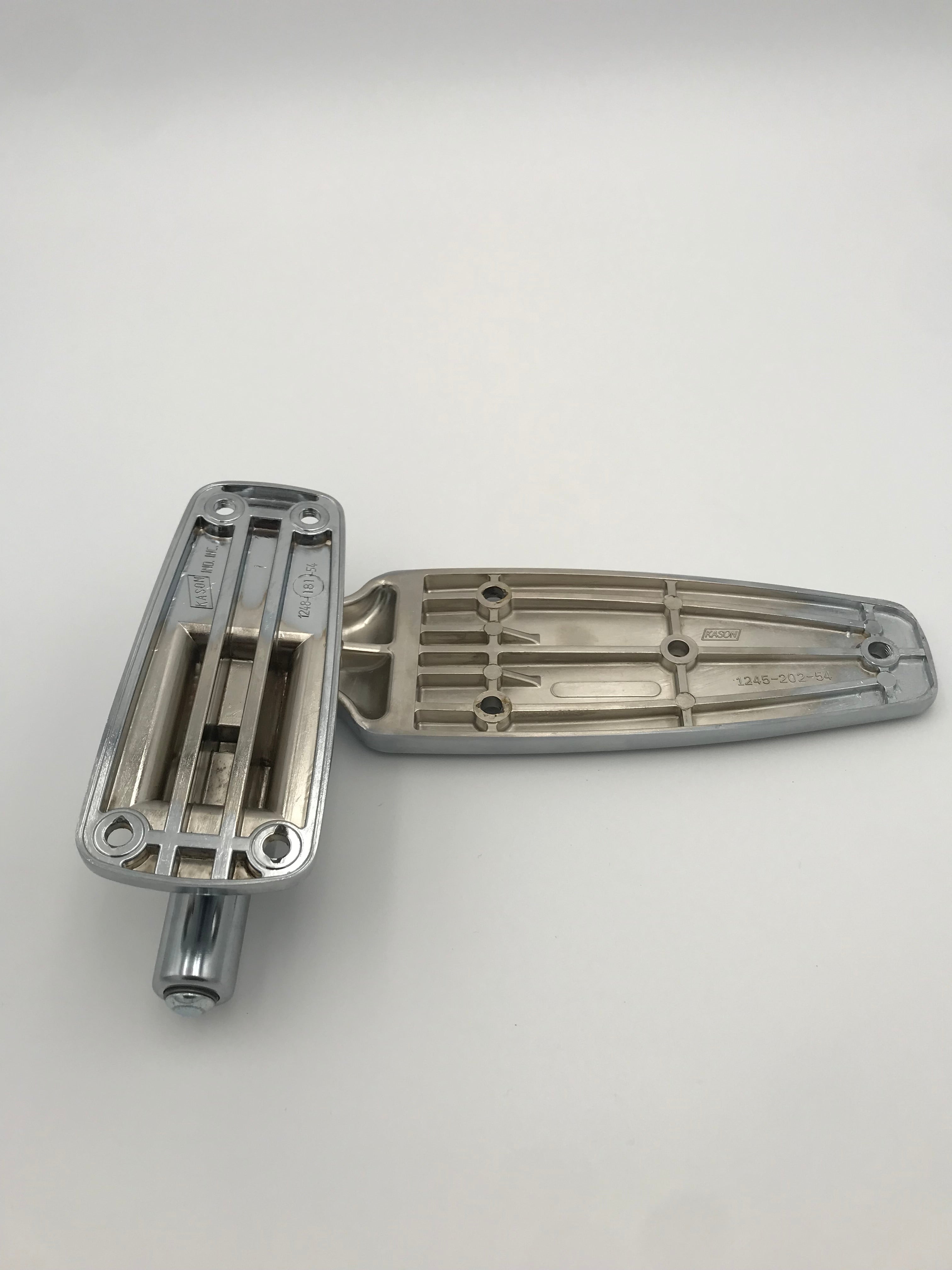

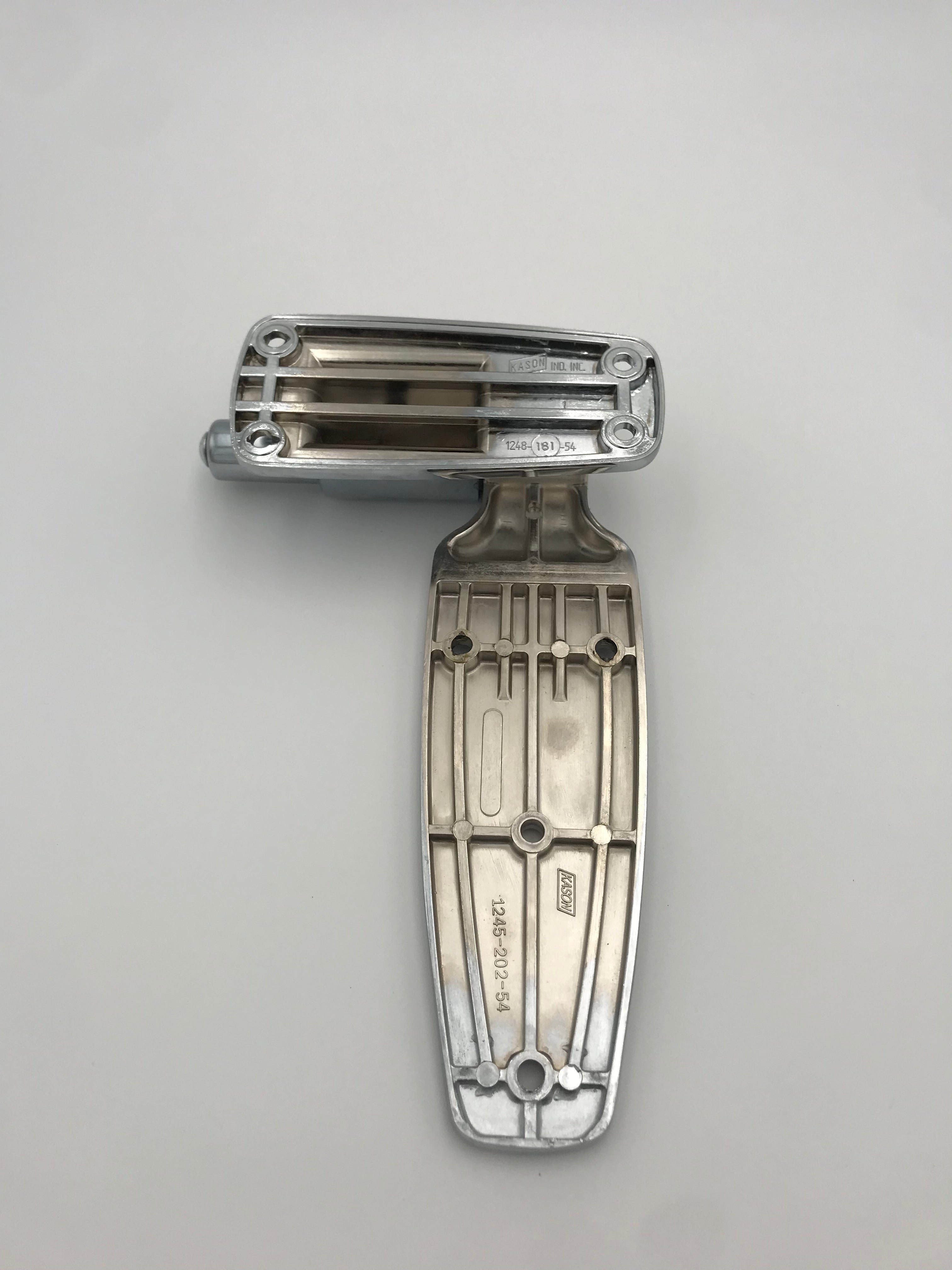

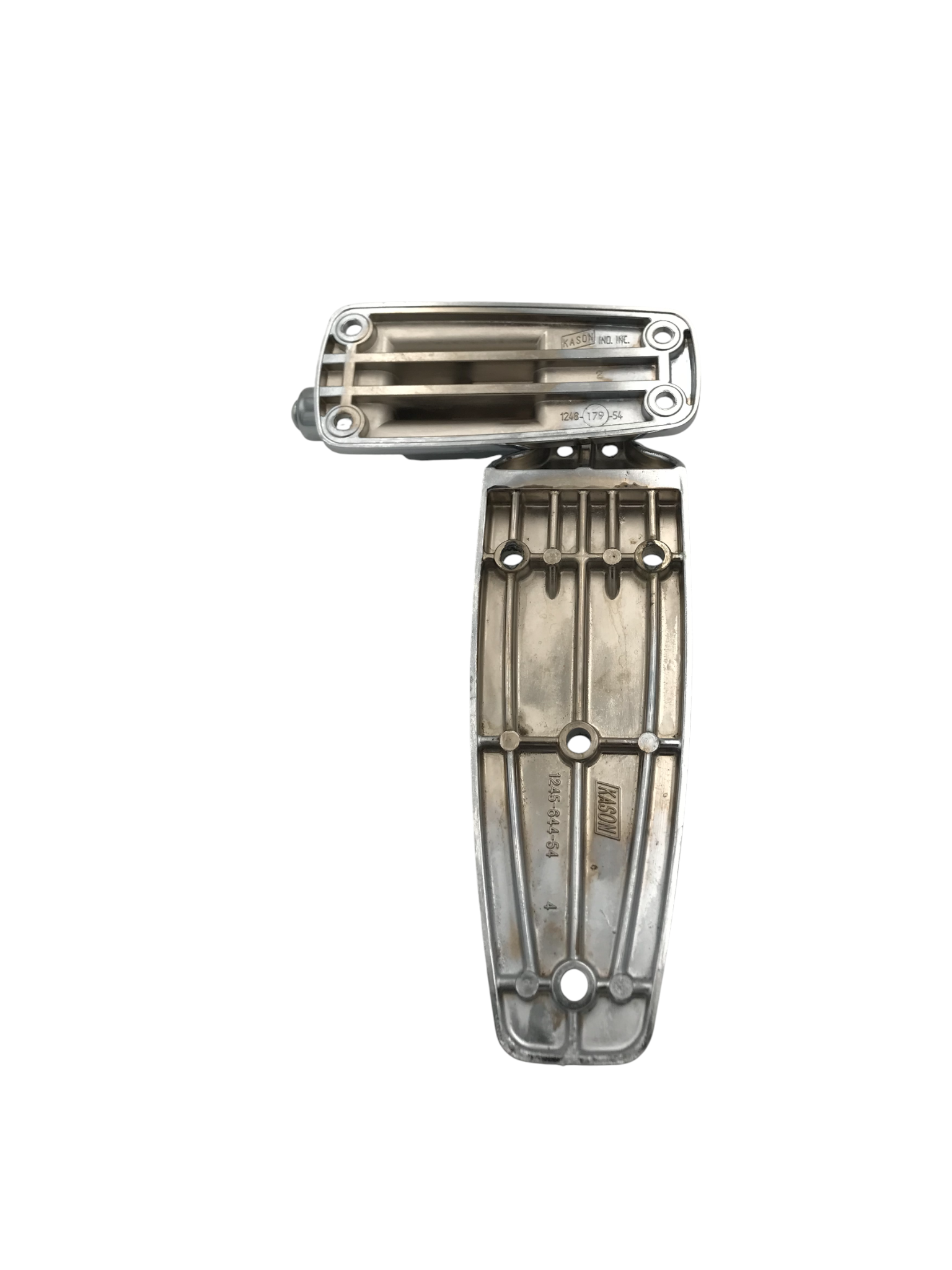

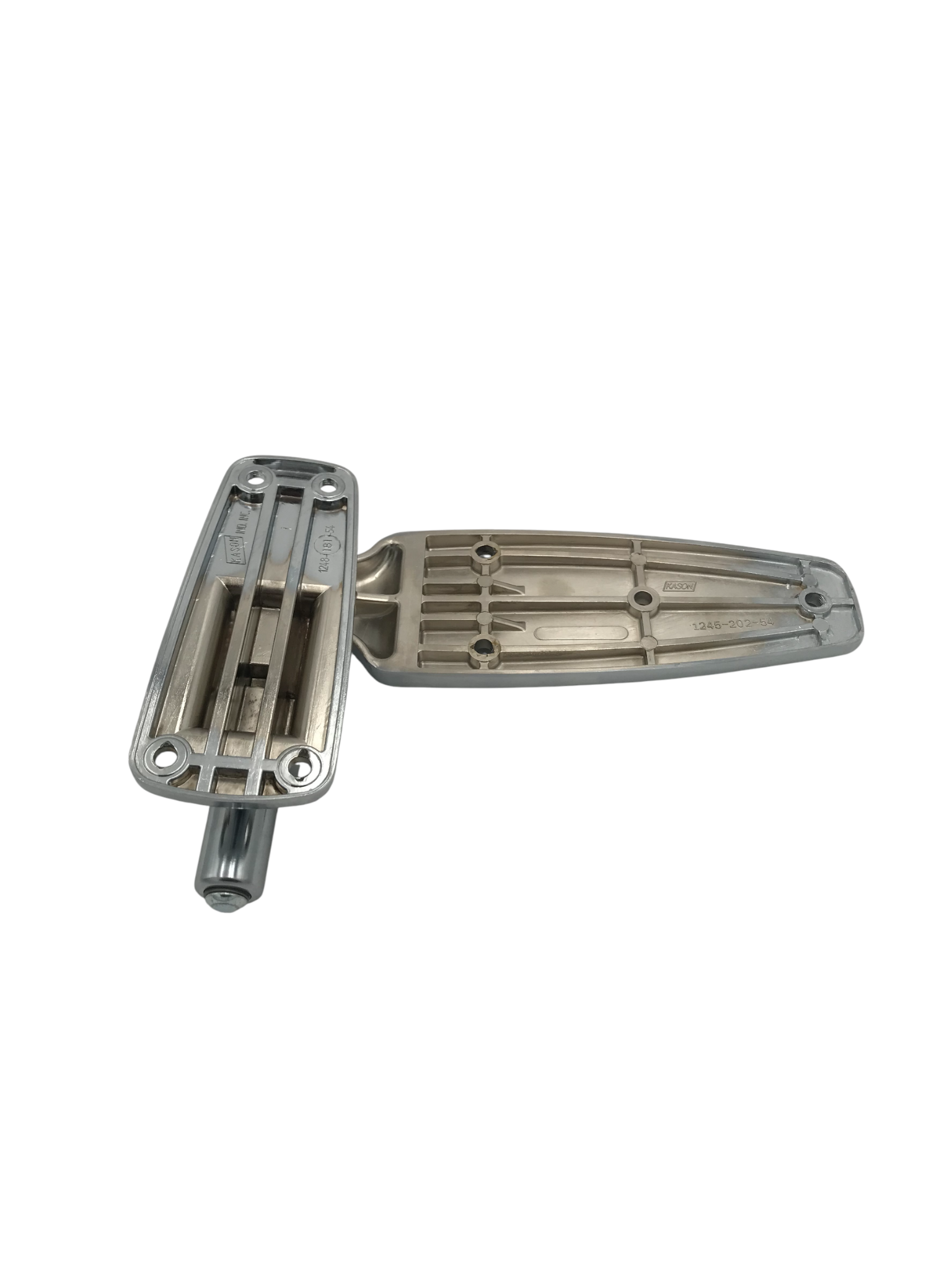

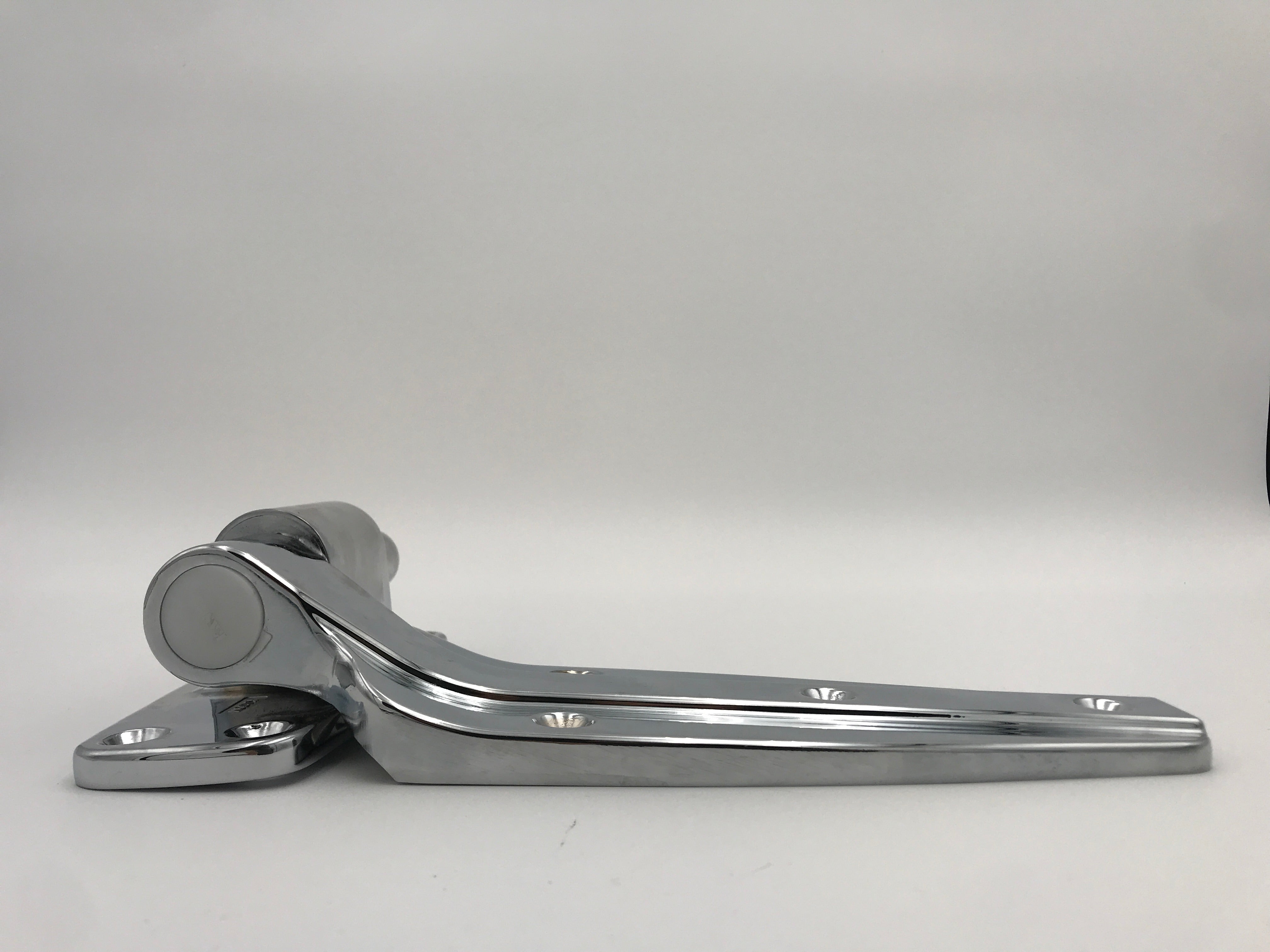

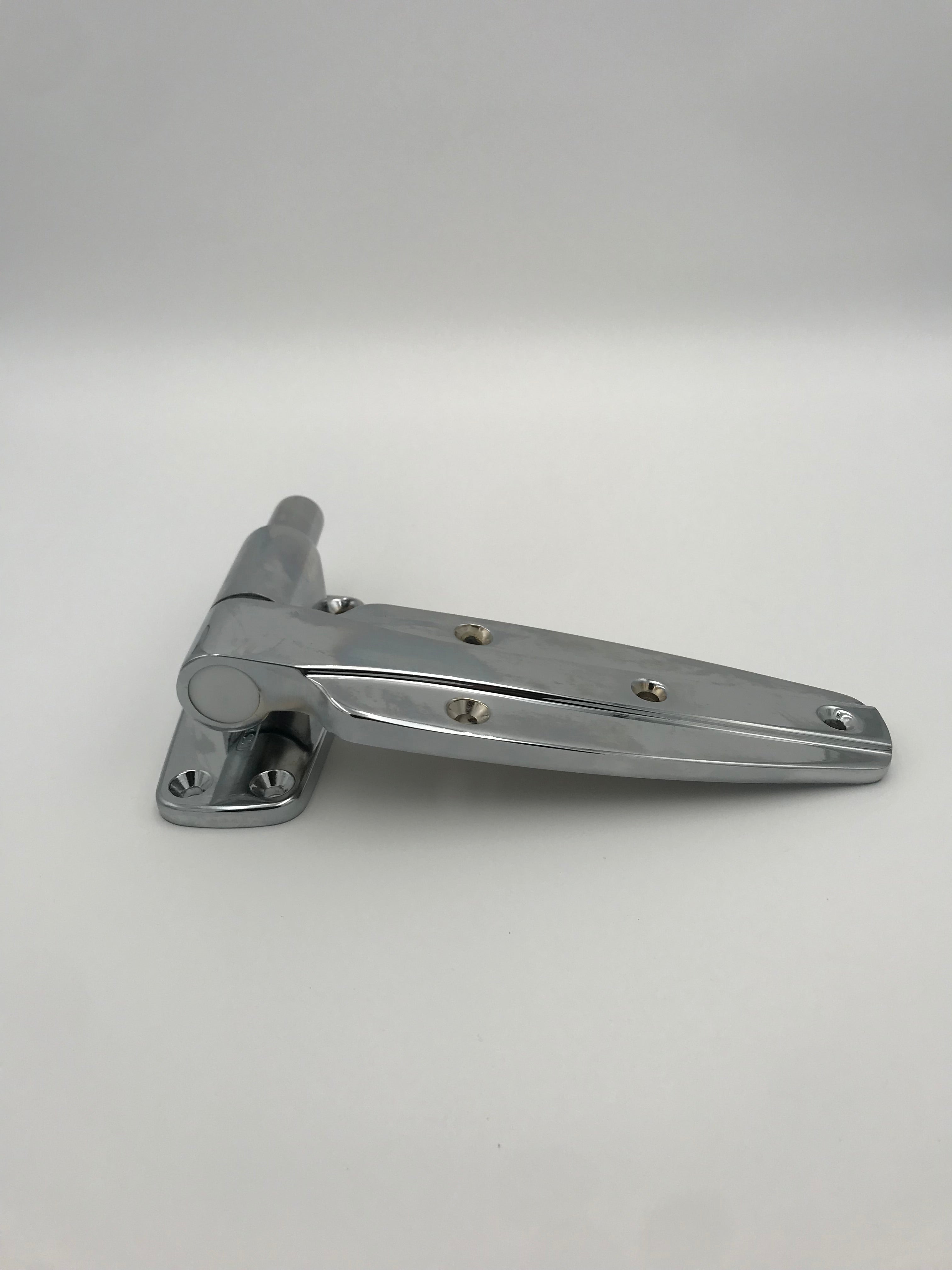

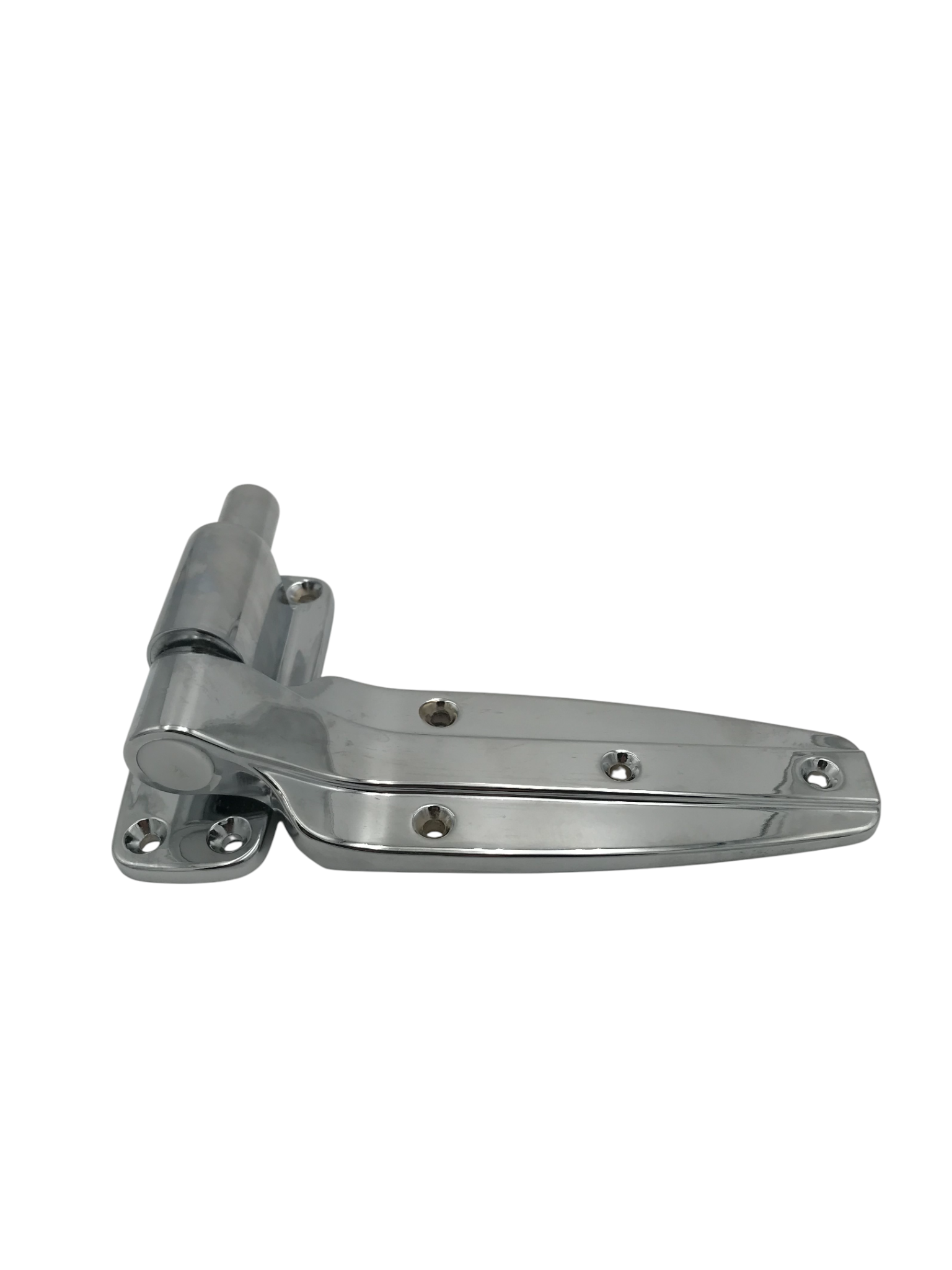

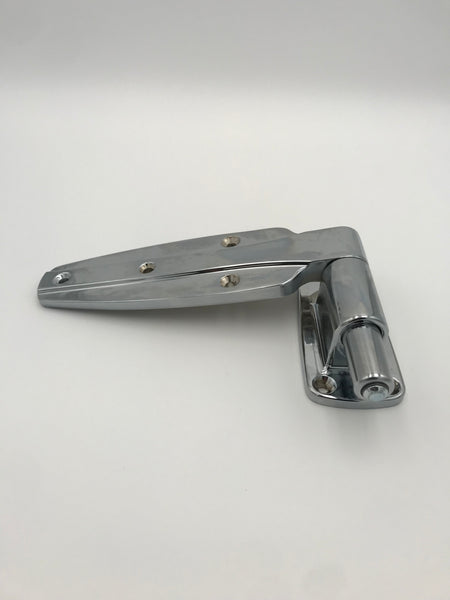

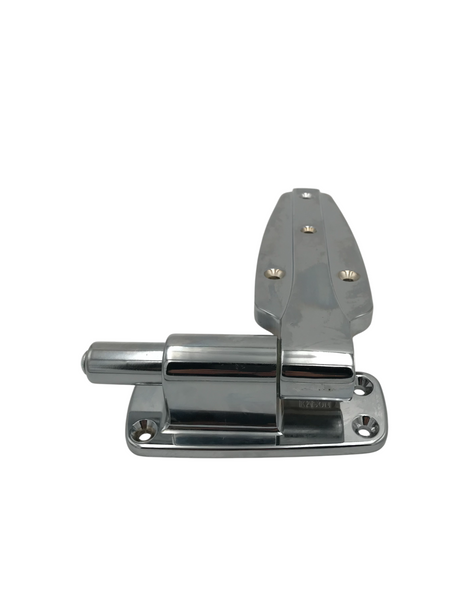

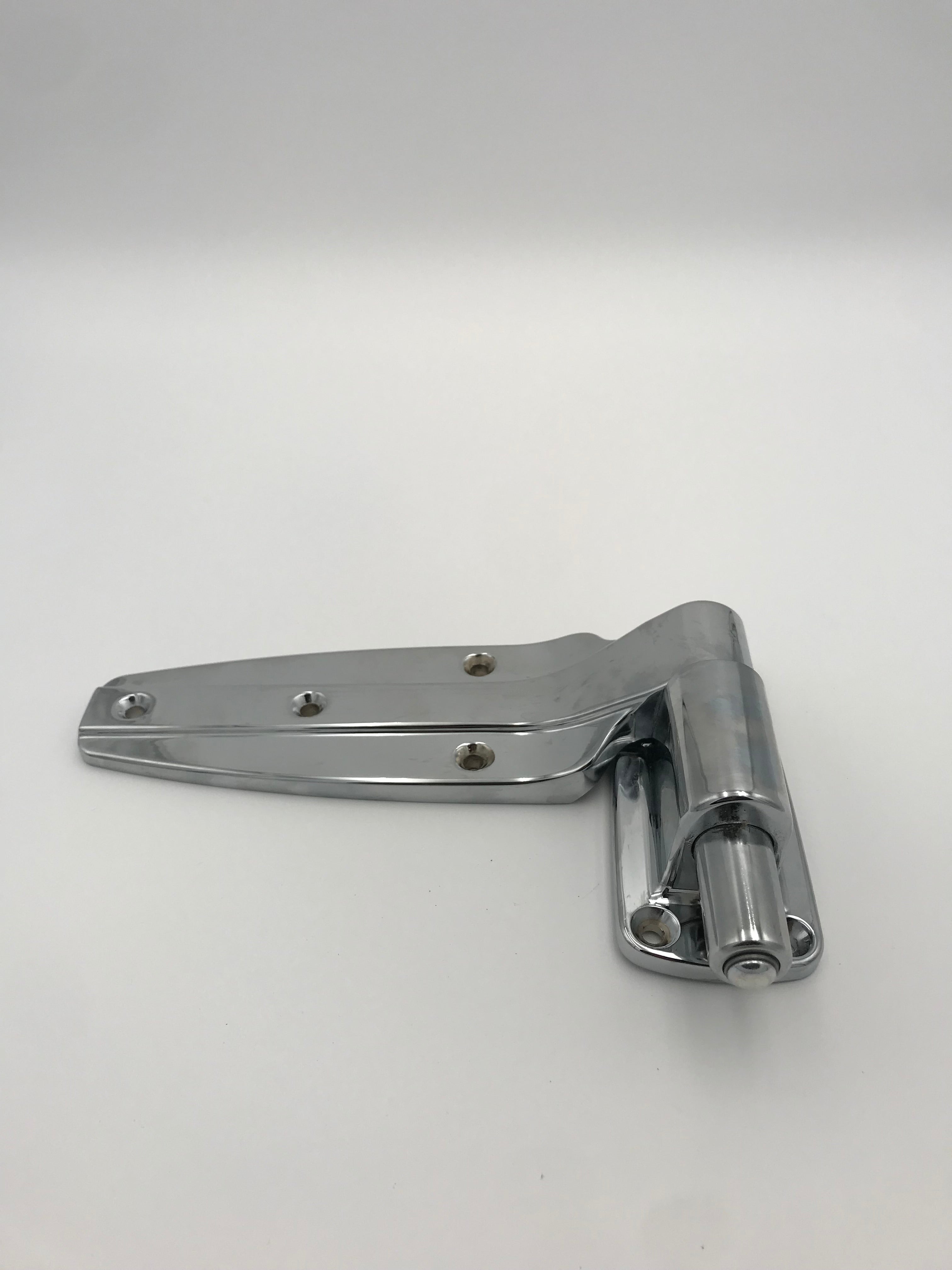

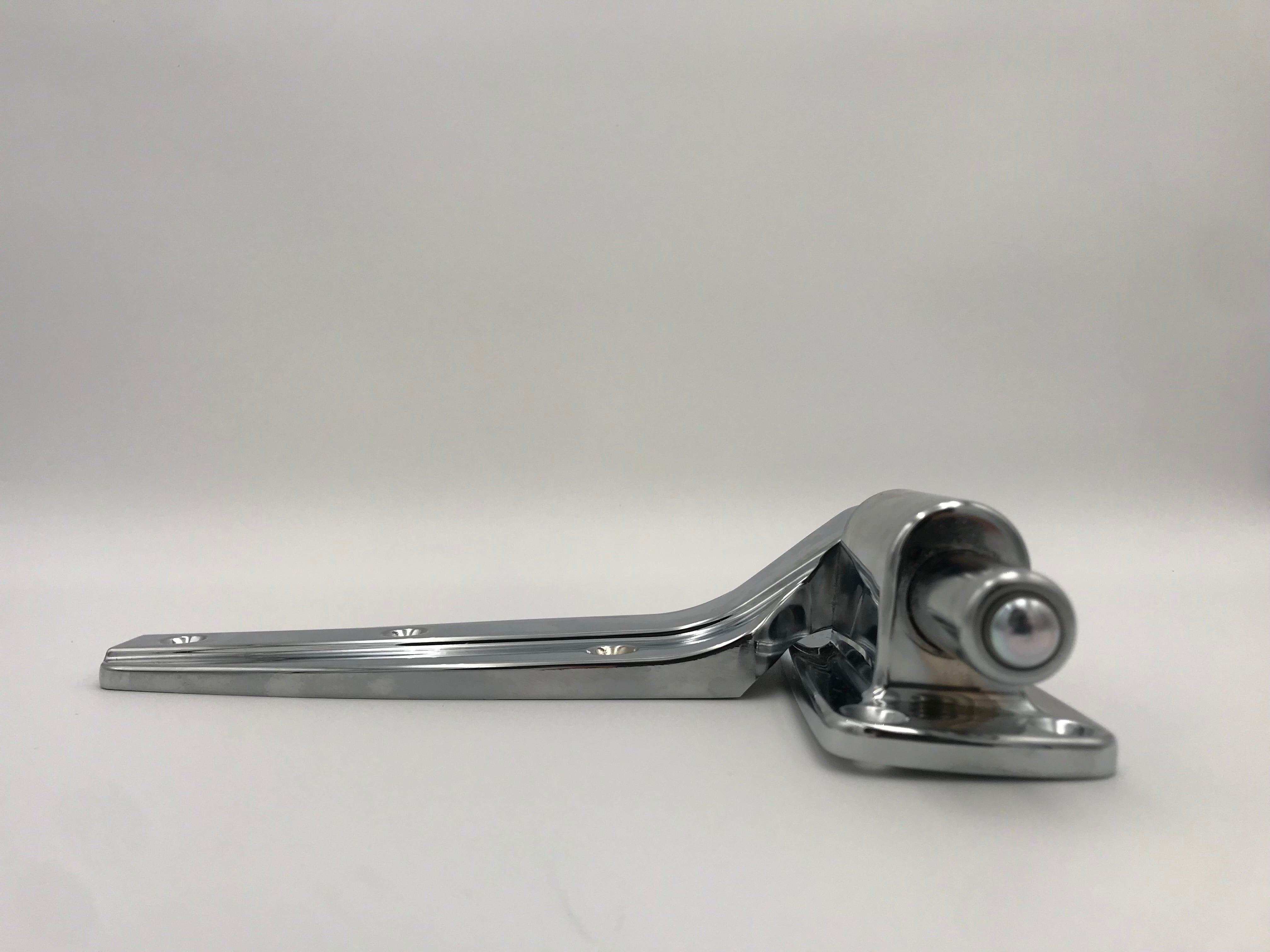

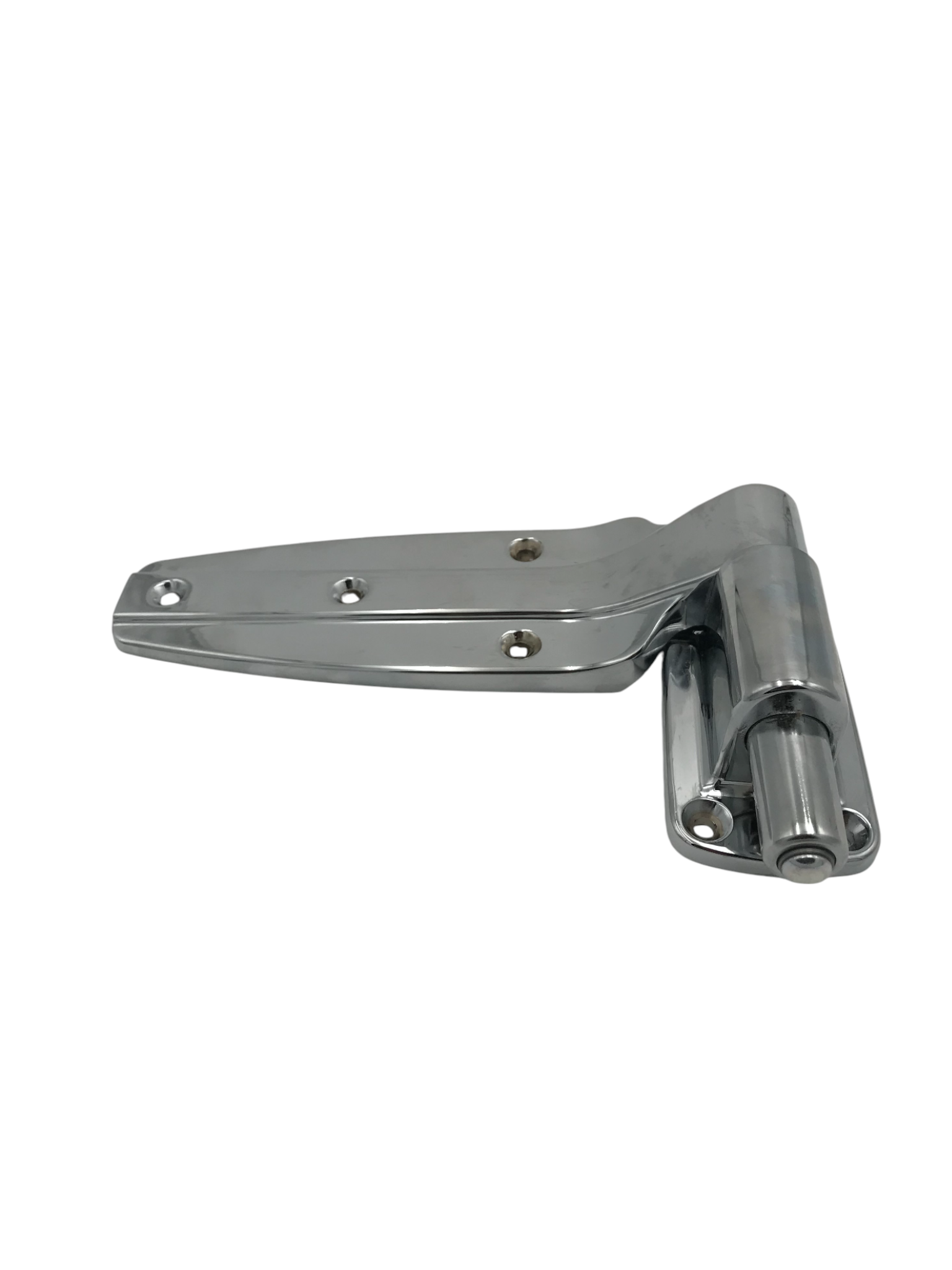

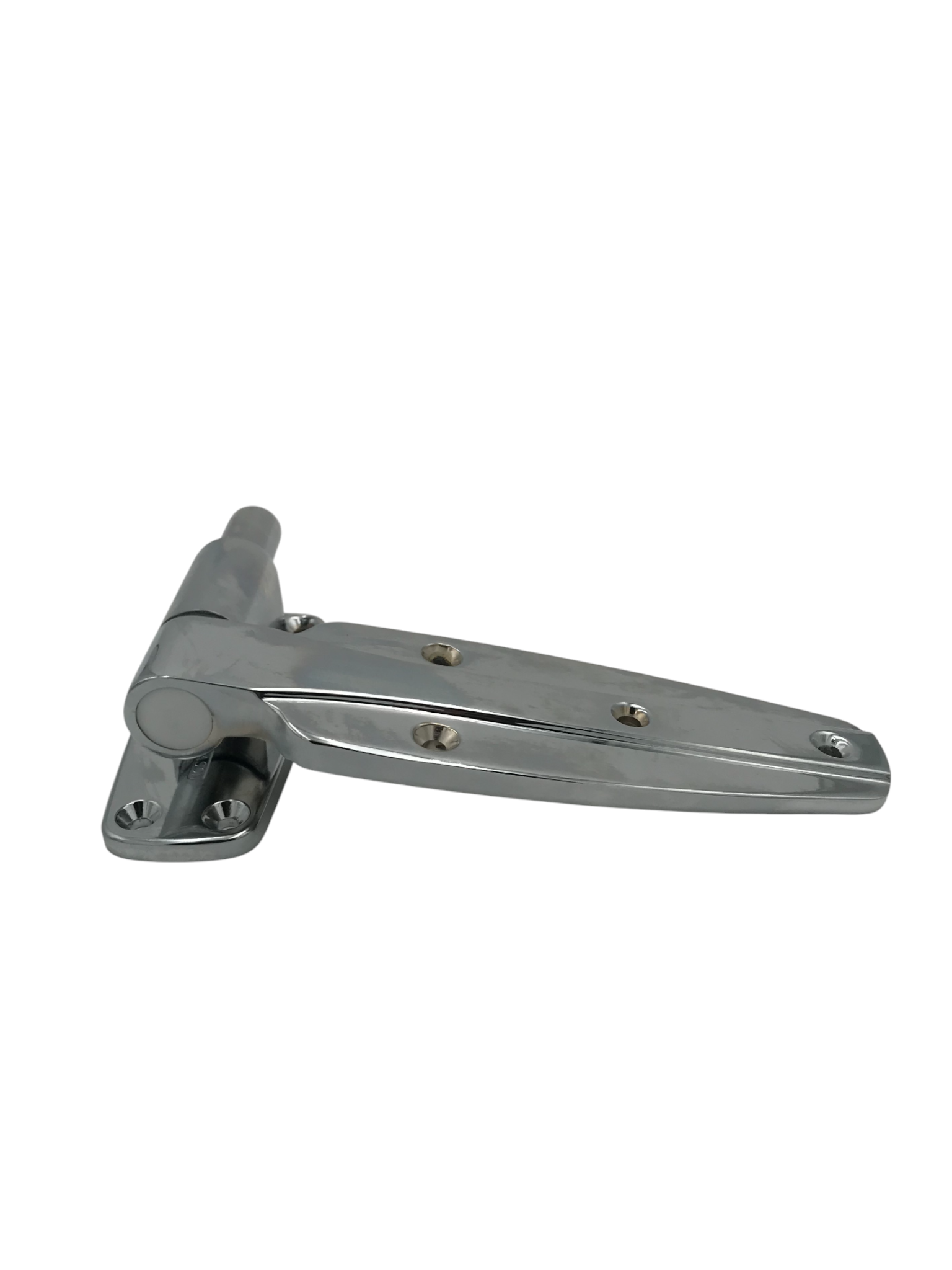

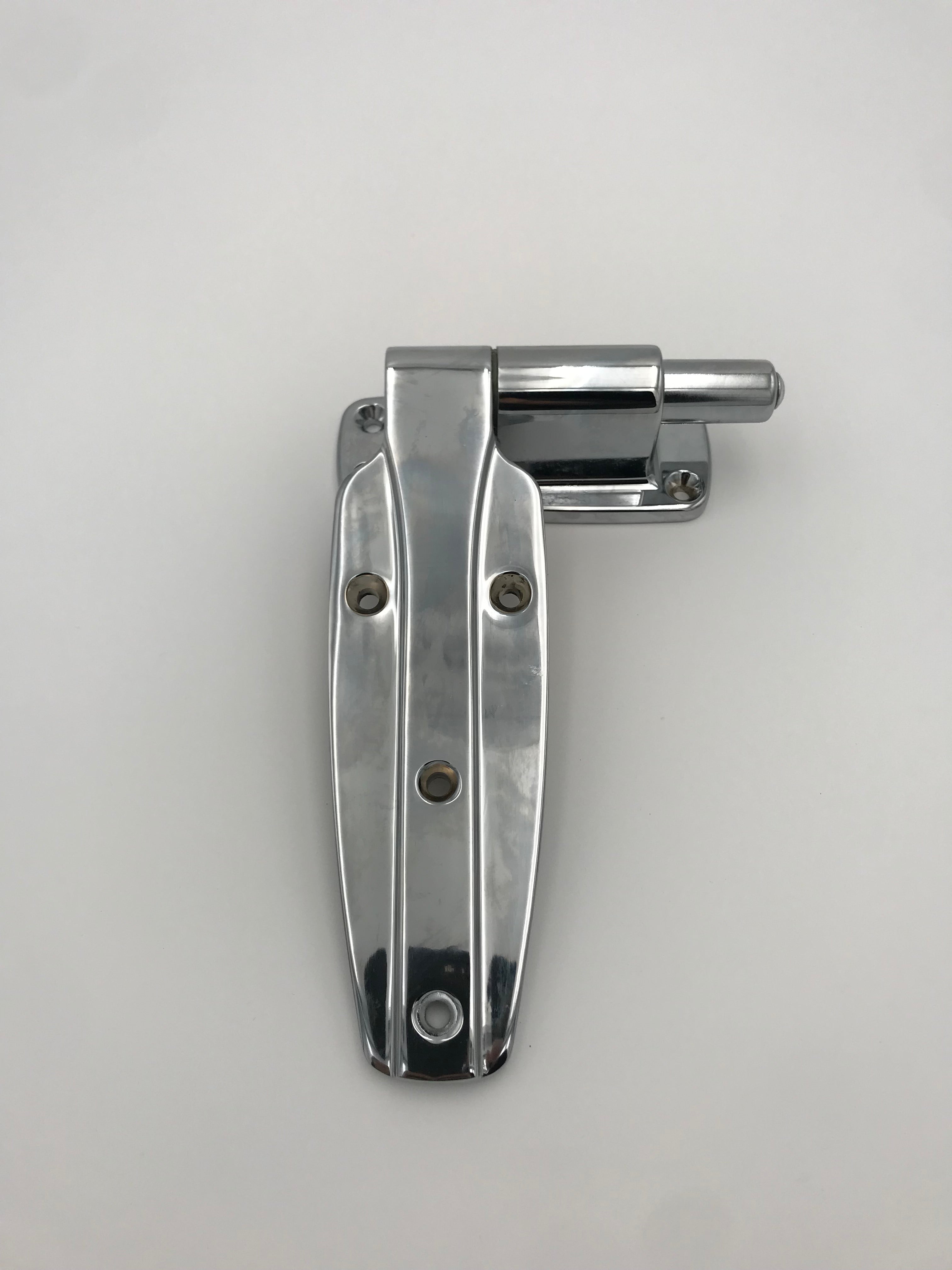

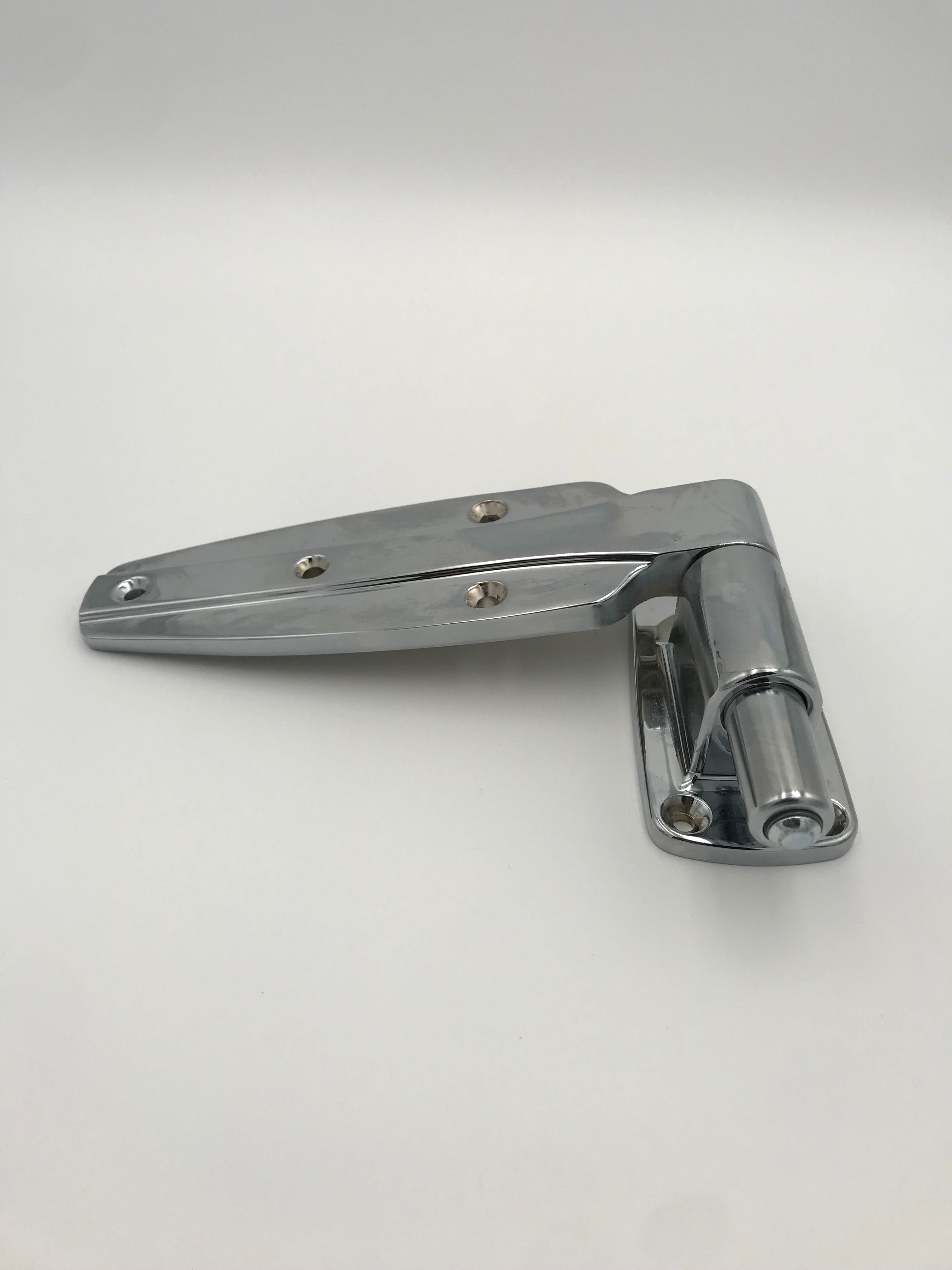

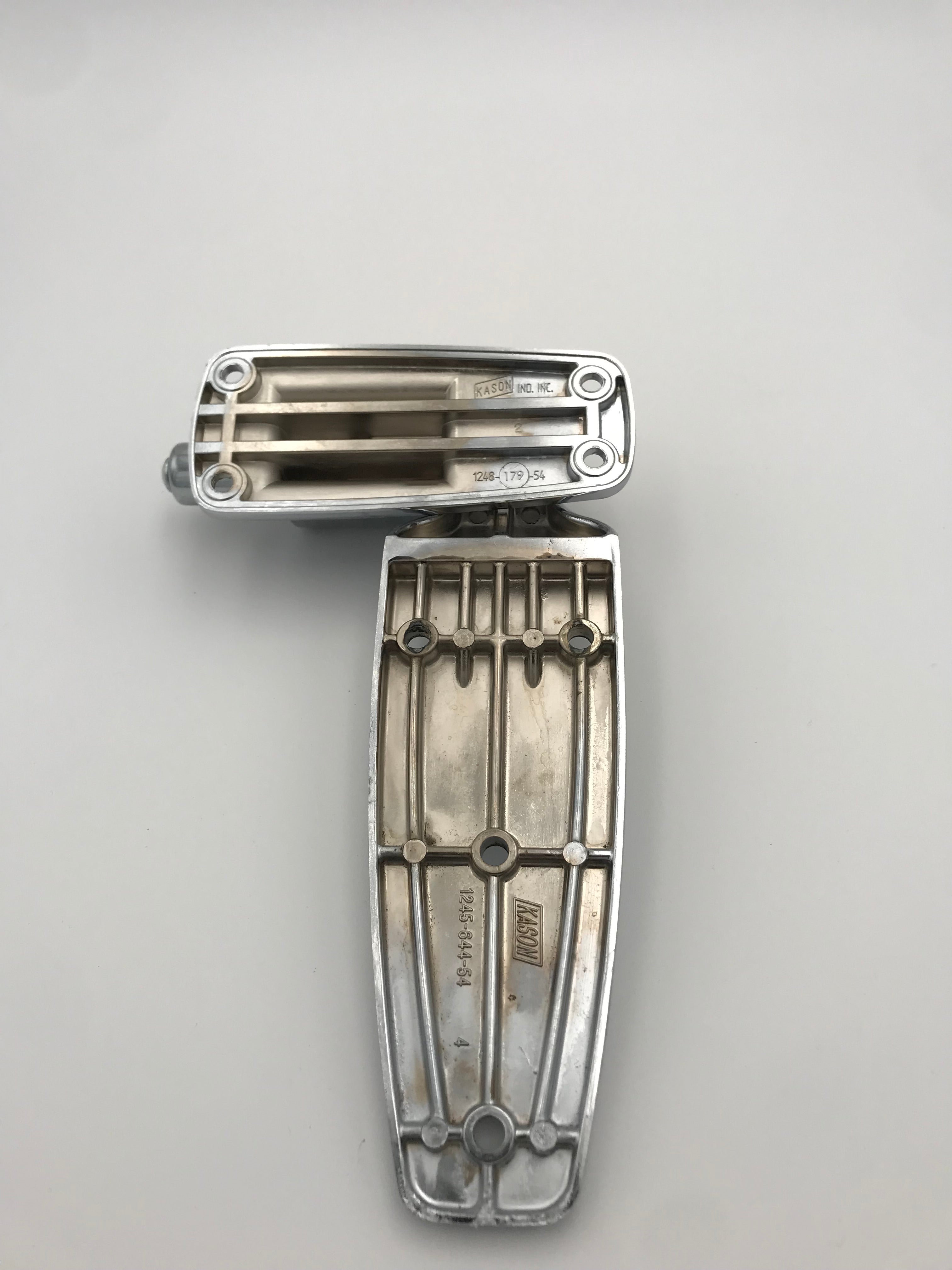

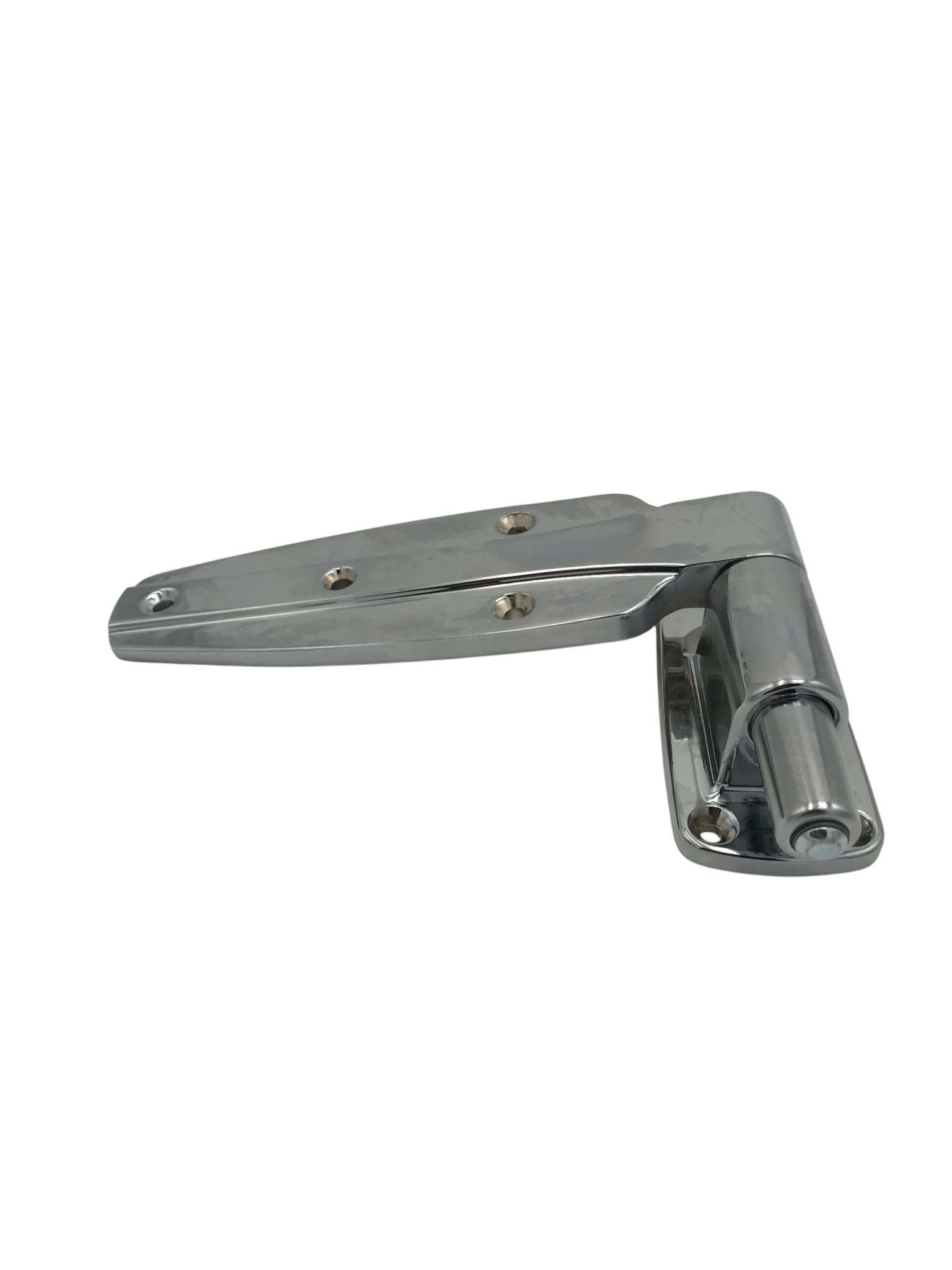

1248 Spring Assisted Hinge
- Spring mechanism adds extra closing force to overcome air resistance on heavy walk-in doors.
- Special high-lift cam system outperform similar spring hinges.
- Cam-rise action reduces gasket wear, even with irregular floors.
- Built-in dwell holds door open beyond 130°.
- Simple manual operation reverses hinges for use on right or left opening door.
| Part Number | Description | Offset |
| K1248-C000 | Reversible Spring-Assisted Cam-Lift Hinge | Flush |
| K1248-C118 | Reversible Spring-Assisted Cam-Lift Hinge | 1-1/8" |
| K1248-C114 | Reversible Spring-Assisted Cam-Lift Hinge | 1-1/4" |
| K1248-C138 | Reversible Spring-Assisted Cam-Lift Hinge | 1-3/8" |
| K1248-C112 | Reversible Spring-Assisted Cam-Lift Hinge | 1-1/2" |
| K1248-C158 | Reversible Spring-Assisted Cam-Lift Hinge | 1-5/8" |
| K1248-C134 | Reversible Spring-Assisted Cam-Lift Hinge | 1-3/4" |
| K1248-C200 | Reversible Spring-Assisted Cam-Lift Hinge | 2" |
Finish: Chrome Screws: (8) 1/4" Wood Screws
Note: Screws not included.
