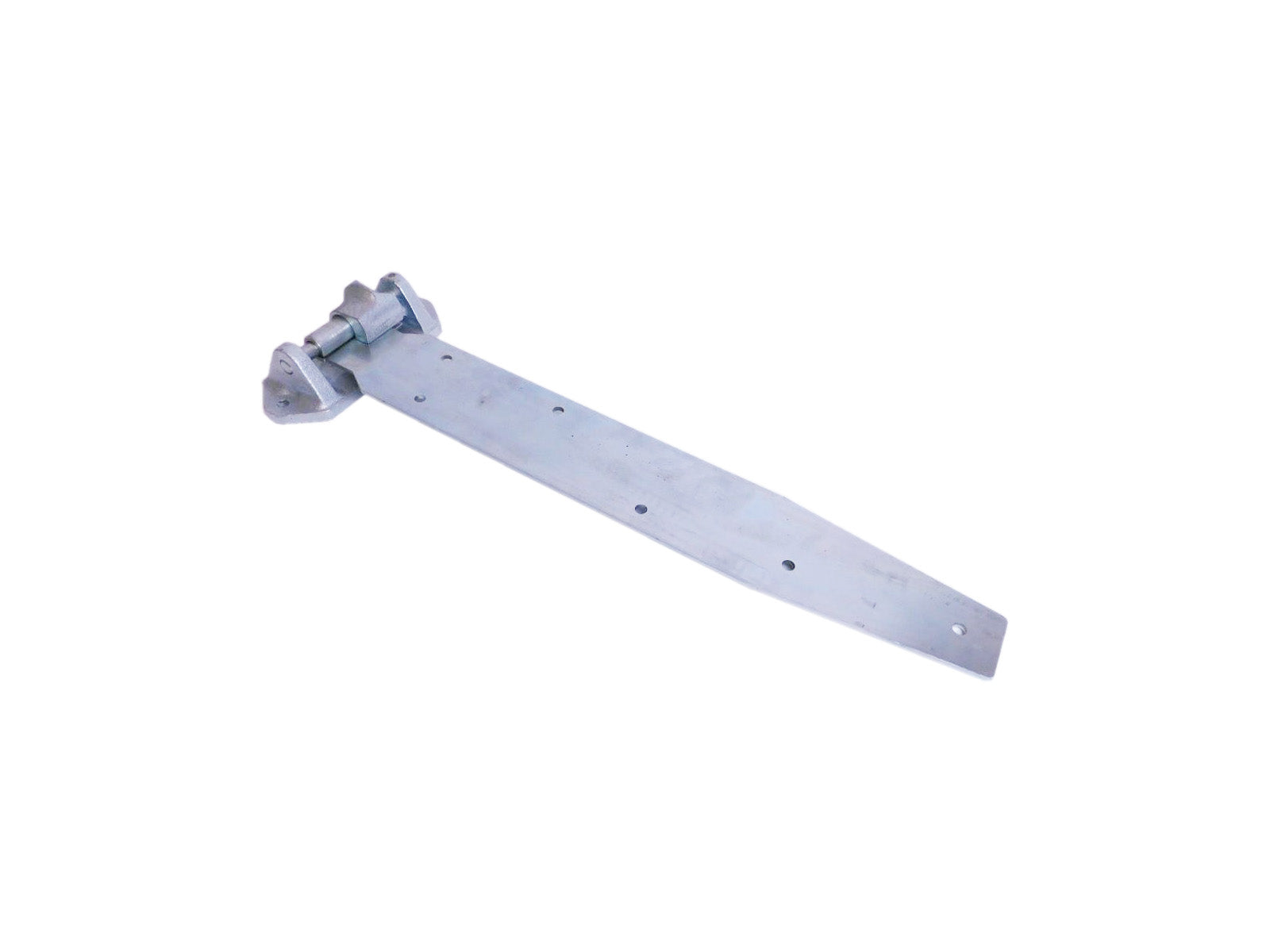

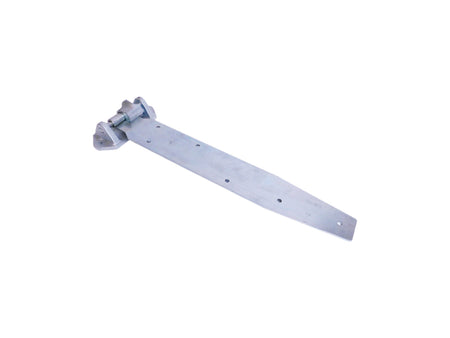

Kason 1276 Enlarged Heavy Duty Cam-Lift Hinge
- Designed for large, heavy offset doors
- Provides self-closing action
- Solid steel cam smoothly glides over hardened steel roller to easily lift heaviest doors
- Use where irregular floors interfere with free operation of doors
- Non-reversible; must be ordered right- or left-handed.
- Dwell pushes door further open past 90°
Part Number | Description | Offset |
K1276-01 | Cam-Lift Hinge - RH | 1-1/8" |
K1276-02 | Cam-Lift Hinge - LH | 1-1/8" |
K1276-03 | Cam-Lift Hinge - RH | 1-1/4" |
K1276-04 | Cam-Lift Hinge - LH | 1-1/4" |
Finish: Cadmium Screws: (9) 3/8" Lag
Note: Screws are not included
