Summit ACK60COILW 60″ Wide All-in-One Kitchenette – White Cabinet, 3.2 cu ft Refrigerator/Freezer, 4-Element Electric Coil Range, Sink & Storage
Authorized Dealer – Full Manufacturer Warranty | Ships from U.S. Warehouse | Free Freight Shipping (Lift Gate Included)
🔒 Secure Checkout
Features
- SKU SA-ACK60COILW
Summit's line of all-in-one combination kitchenettes brings complete kitchen convenience in a slim-fitting design. These units come fully featured with everything you need for the home foodservice experience, including a refrigerator with a freezer compartment, 4-element electric coil cooktop with oven, sink with faucet, cutlery bin with a removable cutting board cover, and storage cabinet for dry goods.

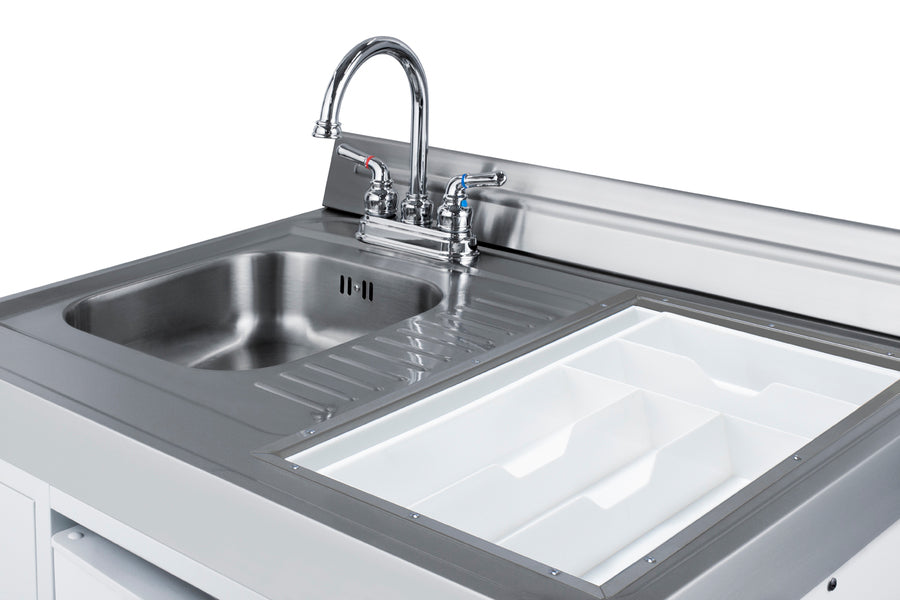

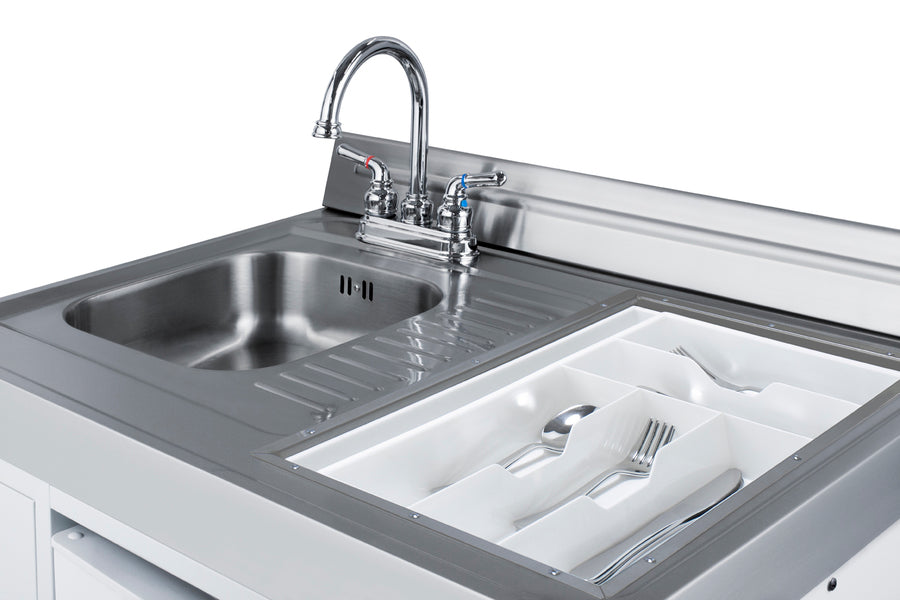

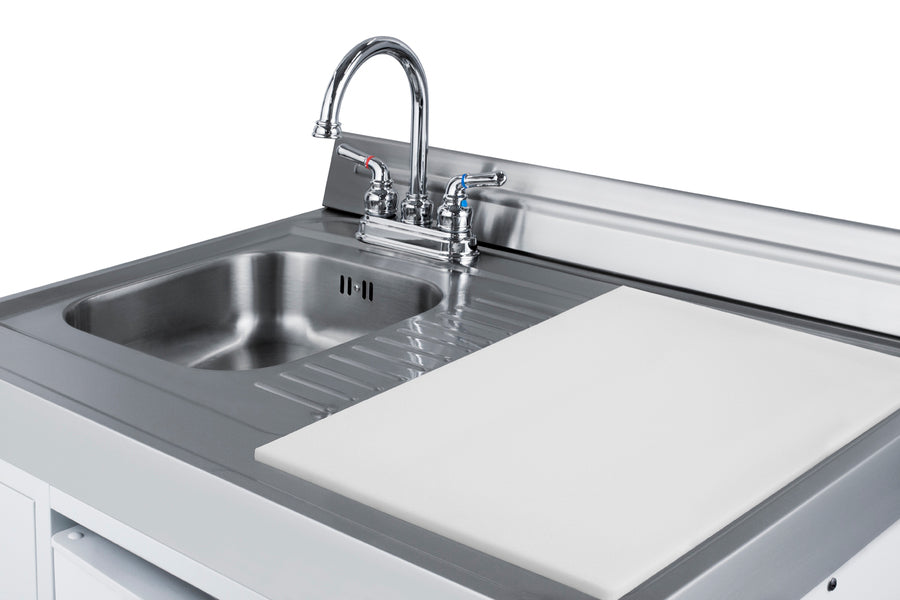

The ACK60COILW is a 60" wide kitchenette with an easy-fitting 24" depth. This unit comes with a stainless steel countertop offering durability in a professional look. The surface includes a small cutlery bin, with a removable cutting board cover to ensure easy food prep. The compact sink features a ready-to-use faucet. Underneath the sink is a large cabinet with a removable shelf for added storage convenience.
Unlike many other brands' kitchenettes, all Summit units include a refrigerator with a freezer compartment to cover all of your cold storage needs. The ACK60COILW includes the two-door, ENERGY STAR certified CP34W, with 3.2 cu.ft. of storage space. A dual evaporator system separately cools the auto defrost refrigerator section and manual defrost freezer compartment for improved overall performance. This model also includes an adjustable glass shelf, door storage, and a crisper. The ACK60COILW also ships with Summit RE203W, a 20" wide 220V electric range complete with a 4-element coil cooking surface, and a full oven compartment with a bake and broil function. This range includes sensors on each element that cycle off if the temperature nears flashpoint for safer cooking, adjustable slide-out oven racks, and indicator lights that illuminate when the elements and oven are in use. The range can be installed on the left or right side of the kitchenette.
The ACK60COILW is shipped on one pallet, with the kitchenette and refrigerator fully assembled and the range packaged separately. Perfect for studio apartments, hotel rooms, dormitories, assisted living facilities, temporary kitchen facilities, and any other location in need of a low maintenance, fully-featured compact kitchenette.
| Overview | Refrigerator/Freezer | ||
| Nominal Height | 42.0" (107 cm) | Refrigerator Included | CP34W |
| Height of Cabinet | 42.0" (107 cm) | Refrigerator Door Swing | RHD |
| Nominal Width | 59.0" (150 cm) | Reversible | Yes |
| Width | 58.63" (149 cm) | Adjustable Shelves | Yes |
| Nominal Depth | 24.0" (61 cm) | Shelf Type | Glass |
| Depth | 23.5" (60 cm) | Shelf Qty | 1 |
| Depth with door at 90° | 43.25" (110 cm) | Crisper Qty | 1 |
| Capacity | 3.2 cu.ft. (91 L) | Crisper Finish | Transparent |
| Defrost Type | Cycle | Crisper Cover | Glass |
| Door | White | Full Door Shelves | 2 |
| Cabinet | White | Can Storage | Yes |
| US Electrical Safety | ETL | Thermostat Type | Dial |
| Canadian Electrical Safety | ETL-C | Interior Light | Yes |
| Other Energy Info | 40 amp range/1.1 amp refrigerator | Refrigerant Type | R600a |
| Weight | 275.0 lbs. (125 kg) | Refrigerant Amount | 1.16 oz. |
| Parts & Labor Warranty | 1 Year | High Side PSI | 250.0 |
| Compressor Warranty | 5 Years | Low Side PSI | 88.0 |
| UPC | 761101075495 | Cooking Type | Coil Range |
| Number of Burners | 4 | ||
| Cooktop Controls | Dial | ||
| Range Included | RE203W | ||
| Oven Included | Yes |
|
ASSEMBLY DRAWING |
|
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
