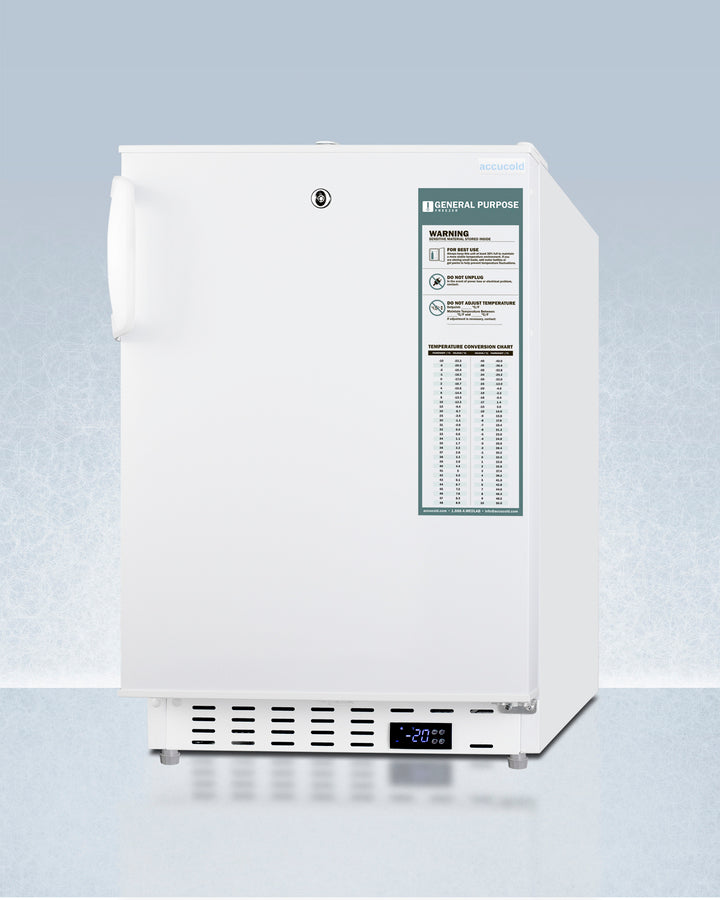

Summit ADA305AF 20″ Wide ADA-Height All-Freezer – Medical / Vaccine Grade, White Cabinet
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
Accucold offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for the safe storage of select vaccines, pharmaceuticals, and other materials with strict storage conditions.

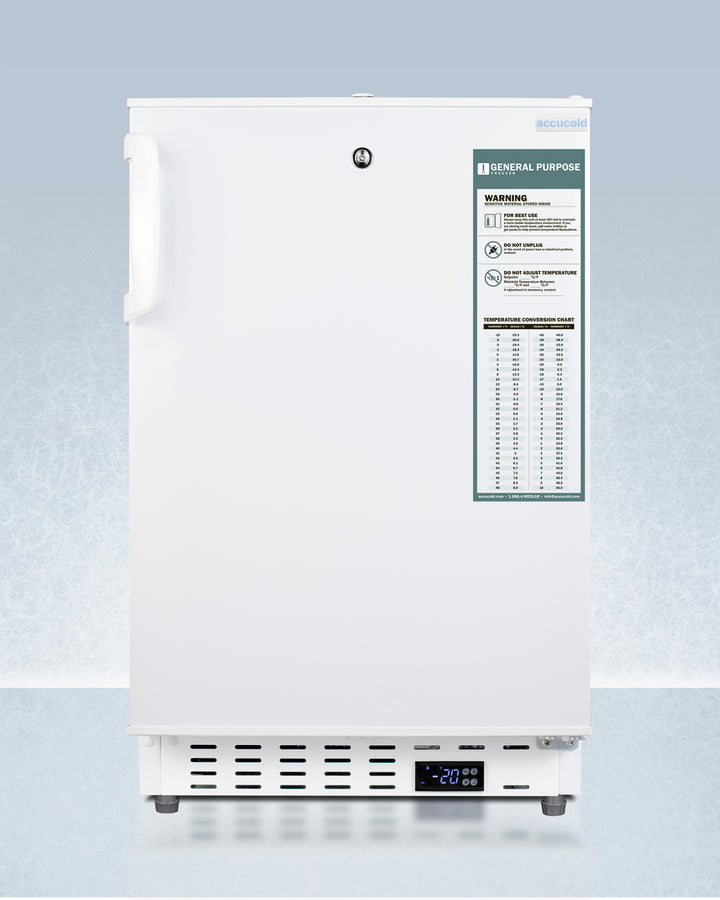

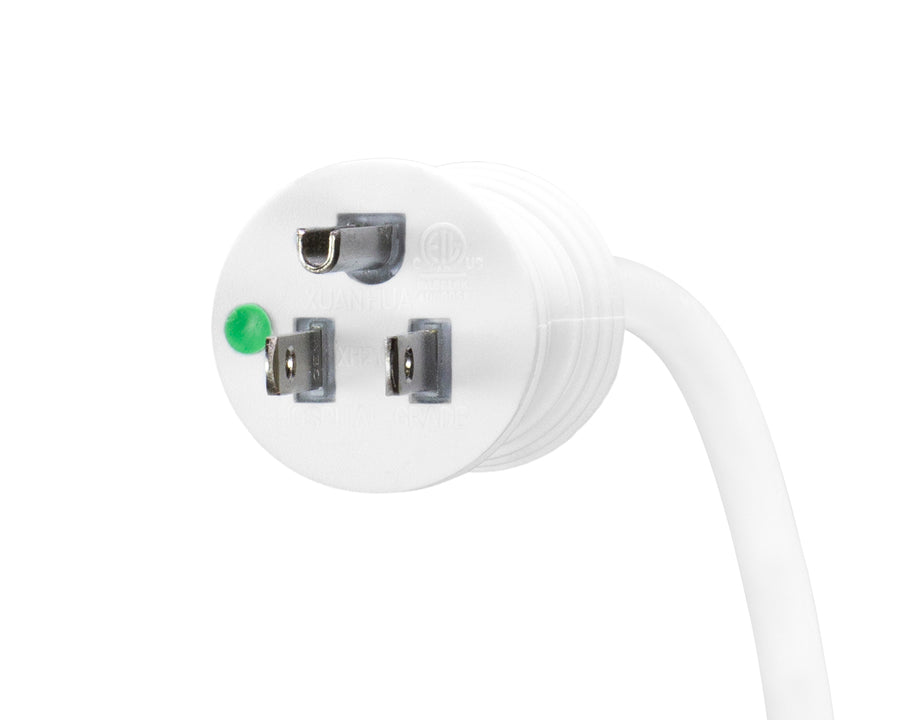

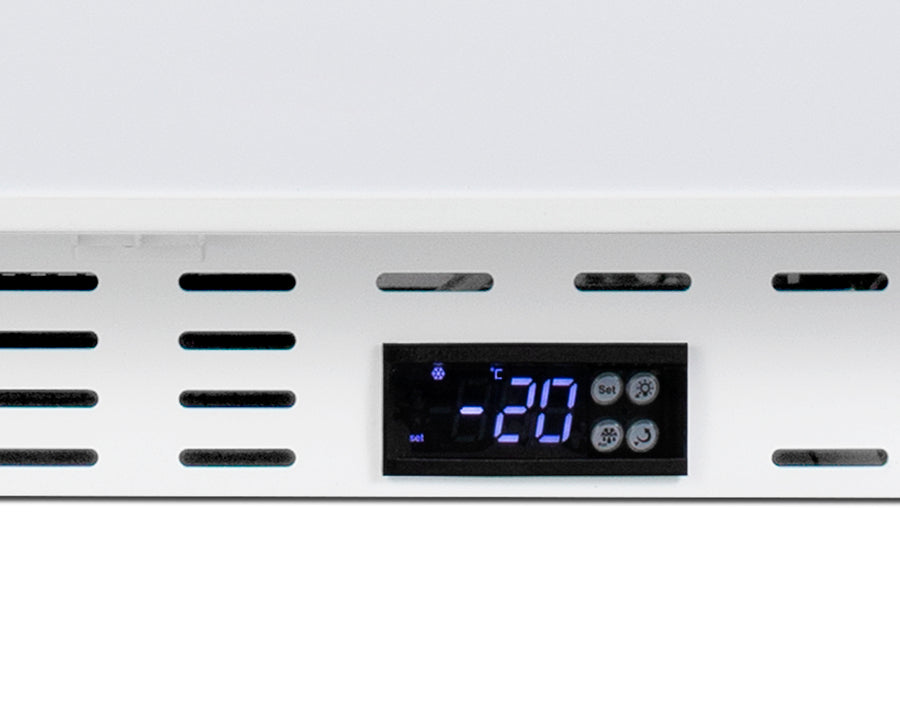

The ADA305AF is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a top-mounted lock for added security and convenient access. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas. Powerful magnetic gaskets ensure a tight seal.

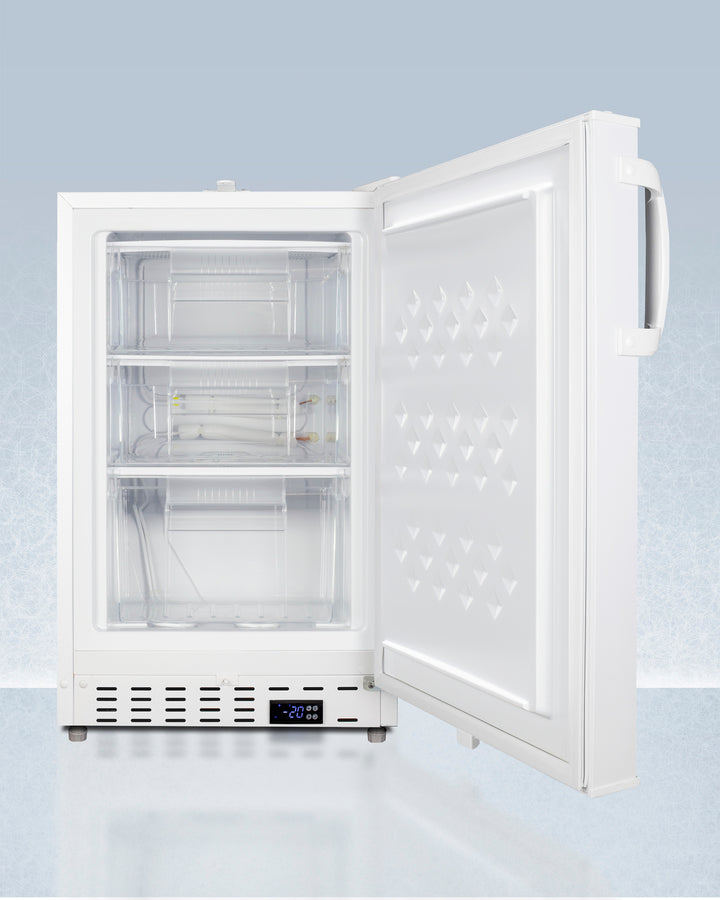

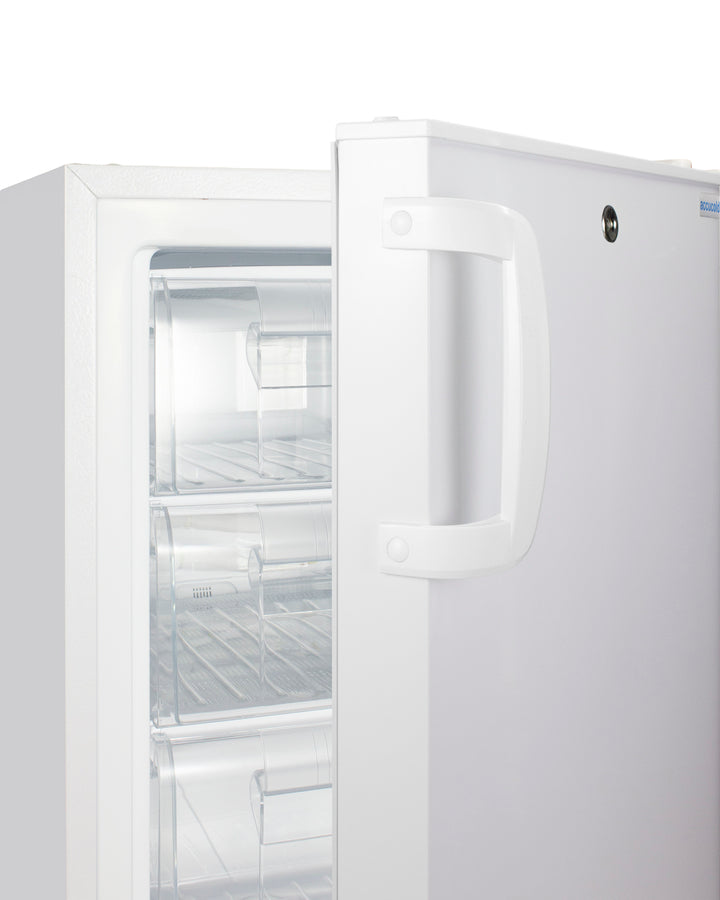

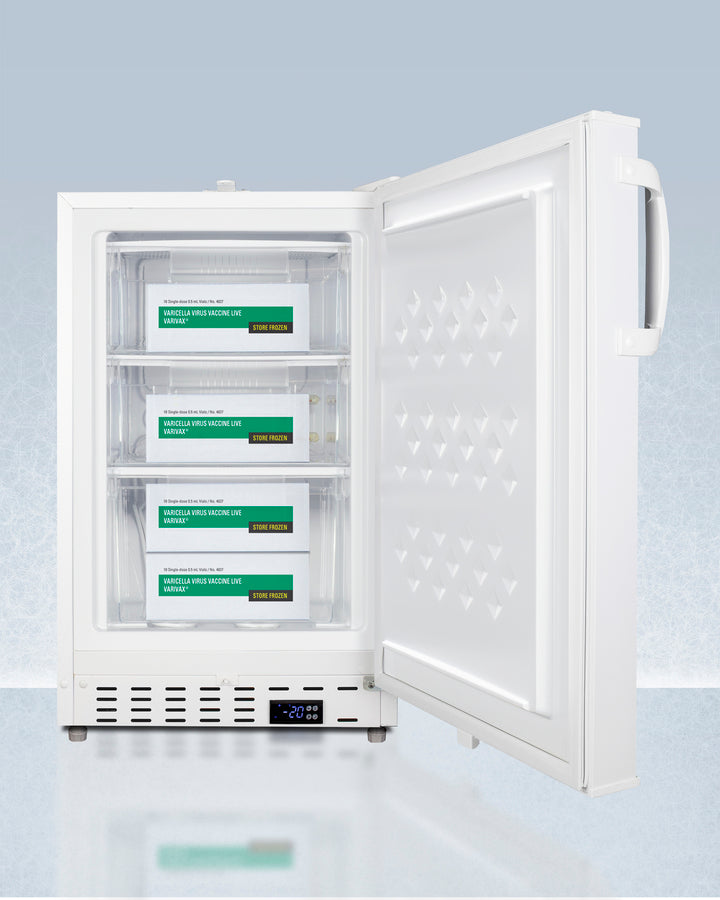

Inside, the ADA305AF can reach temperatures as low as -25°C. Static manual defrost operation provides efficient cooling inside the 2.47 cu.ft. interior. Three removable pull-out drawers on fixed wire shelving offer convenient storage, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar beyond one minute for added peace-of-mind. These alarms can be disabled depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment.
Sized at just under 20" wide, the ADA305AF makes an ideal choice for various facilities in need of a dependable freezer capable of -20ºC/-25ºC operation. For a complete set, pair this unit with the matching ADA404REF all-refrigerator.
NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD/LHD |
| Height of Cabinet | 31.75" (81 cm) | Reversible | Yes |
| Height to Hinge Cap | 32.0" (81 cm) | Interior Height | 23.75" (60 cm) |
| Nominal Width | 20.0" (51 cm) | Interior Width | 14.5" (37 cm) |
| Width | 19.75" (50 cm) | Interior Depth | 17.0" (43 cm) |
| Width with Door Open | 20.25" (51 cm) | Shelf Type | Drawers |
| Nominal Depth | 23.0" (58 cm) | Shelf Qty | 3 |
| Depth | 22.5" (57 cm) | Thermostat Type | Digital |
| Depth with Handle | 24.38" (62 cm) | Fan Type | Exterior |
| Depth with door at 90° | 40.25" (102 cm) | Refrigerant Type | R600a |
| Capacity | 2.47 cu.ft. (70 L) | Refrigerant Amount | 1.34 oz. |
| Defrost Type | Manual | High Side PSI | 180.0 |
| Door | White | Low Side PSI | 80.0 |
| Cabinet | White | Level Legs | 2 |
| US Electrical Safety | ETL | Interior Drawers | Yes |
| Canadian Electrical Safety | ETL-C | Drawers Qty | 3 |
| Amps | 1.1 | Compressor Step Height | 5.75" (15 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Width | 14.5" (37 cm) |
| Weight | 65.0 lbs. (29 kg) | Compressor Step Depth | 6.0" (15 cm) |
| Parts & Labor Warranty | 1 Year | Temperature Range | -25° to -15°C |
| Compressor Warranty | 5 Years | Sound Level | 33 dB |
| UPC | 761101063065 |
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
