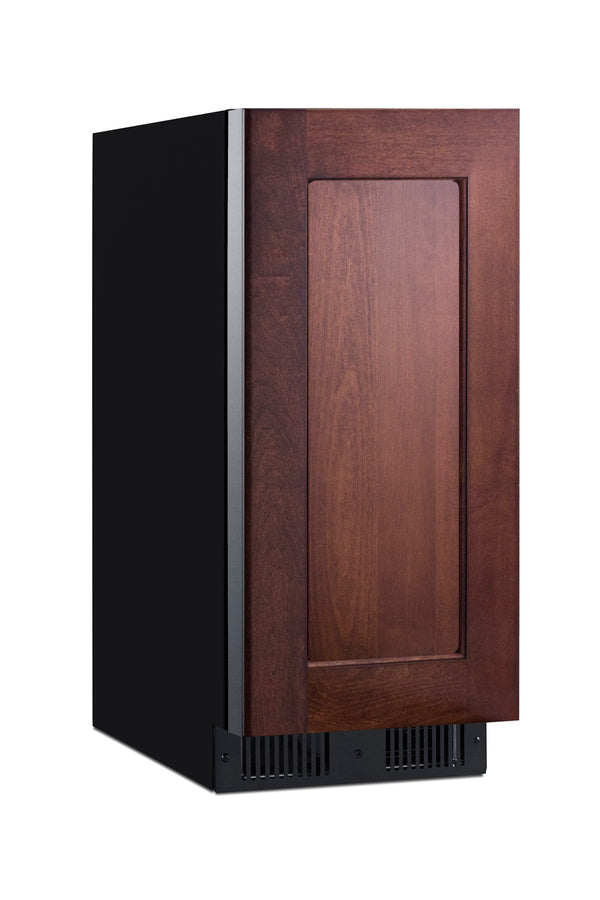

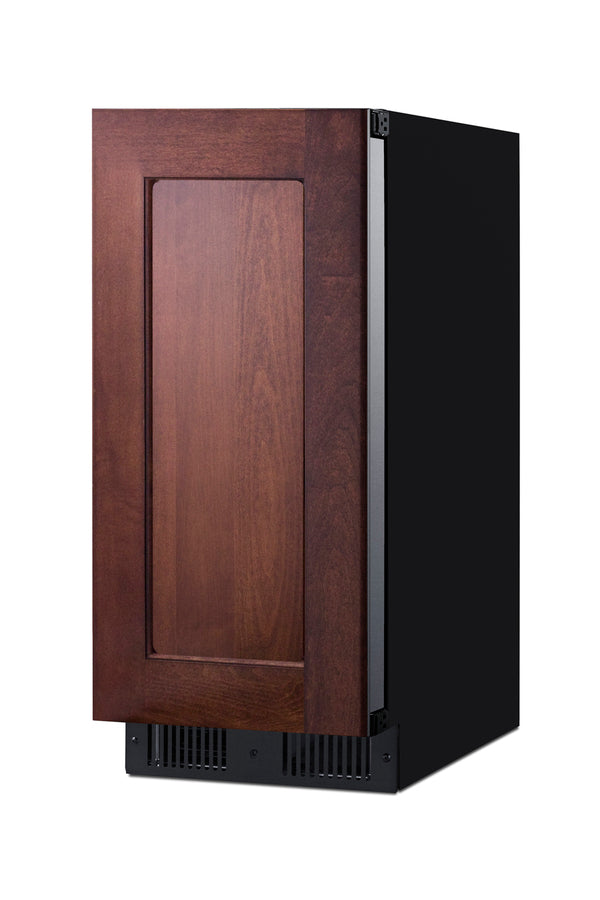

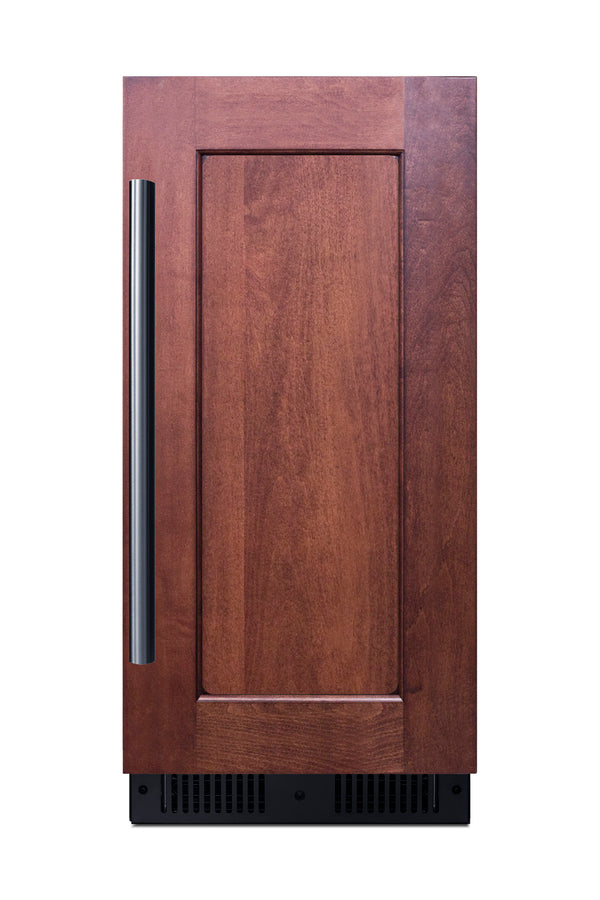

Summit ALR15BSSPNR 15" Wide 2.2 cu.ft. ADA Built-In All-Refrigerator – Panel Ready
Regular price
$1,690.00
Free Shipping Included
Freight, parcel & liftgate delivery available depending on product type
Key Features
📏15″Width
📦2.2cu. ft. Capacity
❄Frost-FreeDefrost
⚡115VElectrical
📐Counter DepthDesign
🧊No FreezerFreezer Location
🚪
Reversible
Door Style
🏠
Built-in
Installation
🔒 Secure Checkout
Commercial Equipment Support
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
✓ Product recommendations
✓ Freight & delivery coordination
✓ Installation questions
✓ Bulk & multi-unit quotes
✓ Replacement part matching
Summit Appliance Product Template
Description & Features

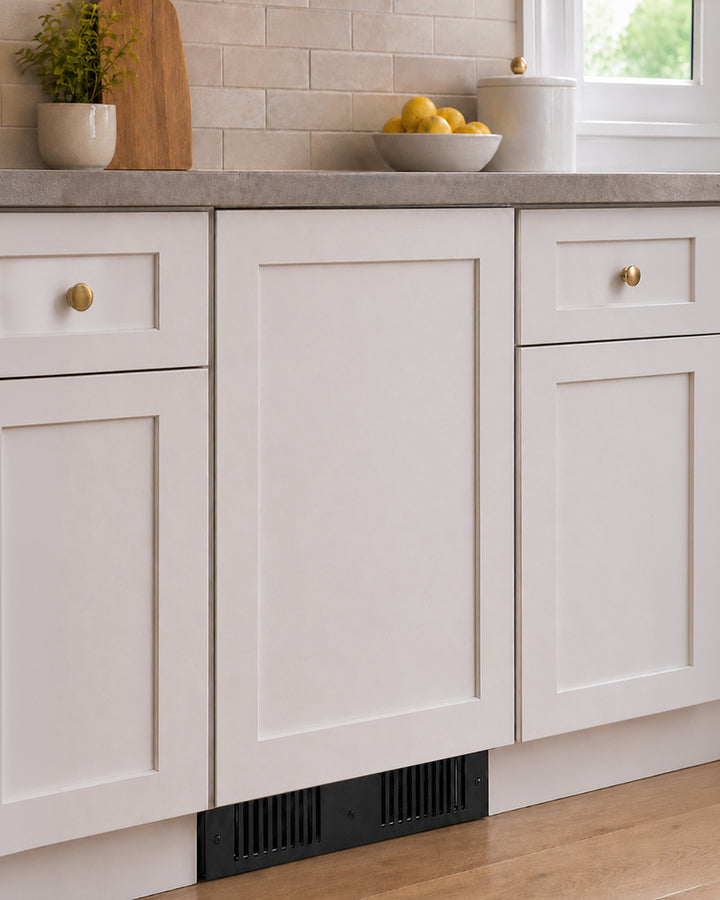

The Summit ALR15BSSPNR is a 2.2 cu.ft. ADA-compliant all-refrigerator designed for built-in or freestanding installation in compact residential spaces. At just 14.75 inches wide and 32 inches high, it fits under lower ADA-compliant counters while offering frost-free fan-forced cooling, digital temperature controls, adjustable glass shelves, temperature and door alarms, Sabbath mode, and a panel-ready reversible door for integration with surrounding cabinetry.
Features
- 32" ADA-compliant height fits under lower counters

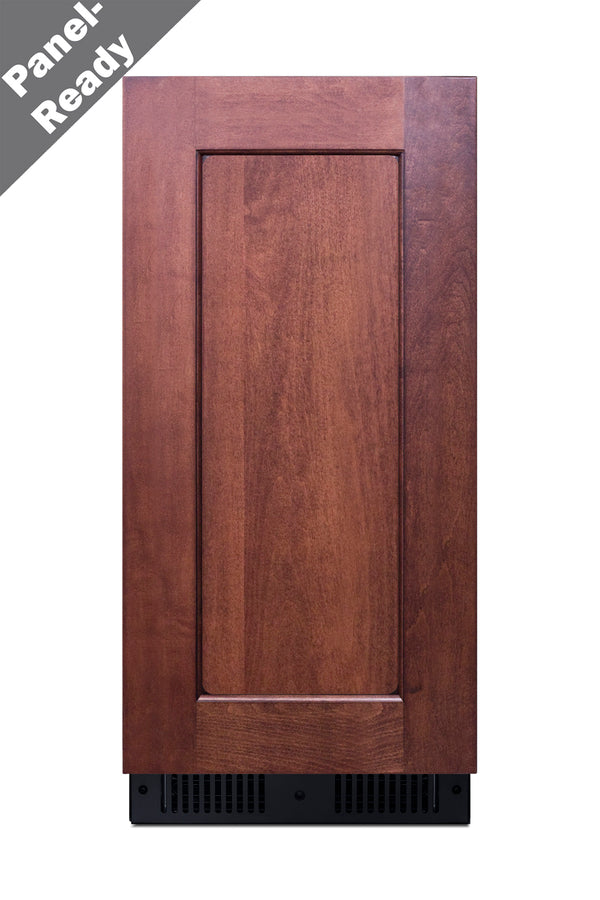

- Panel-ready door accepts a custom overlay panel for integrated installations
- Frost-free fan-forced cooling provides low-maintenance operation
- Digital thermostat with 36°F to 43°F temperature range
- Open-door and high-temperature alarms provide added protection
-

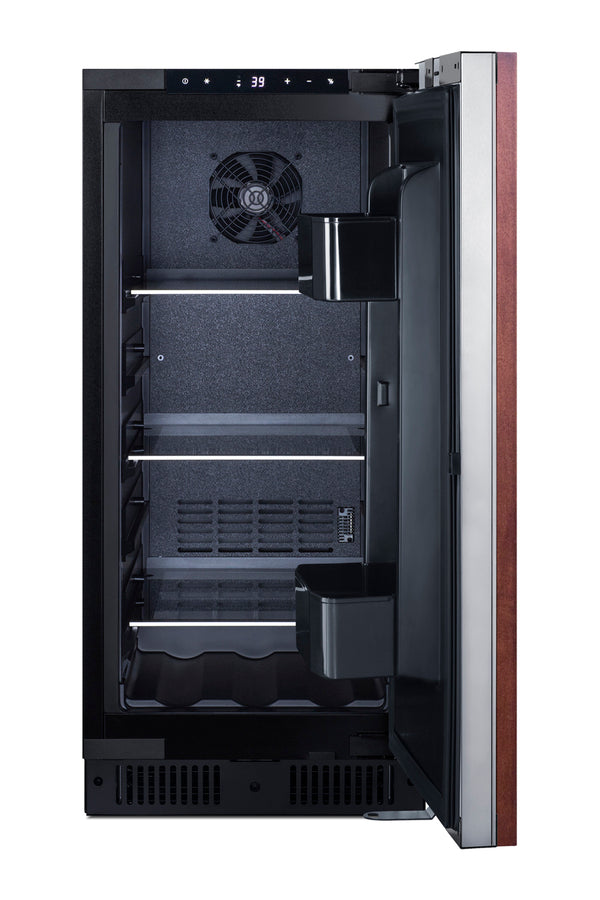

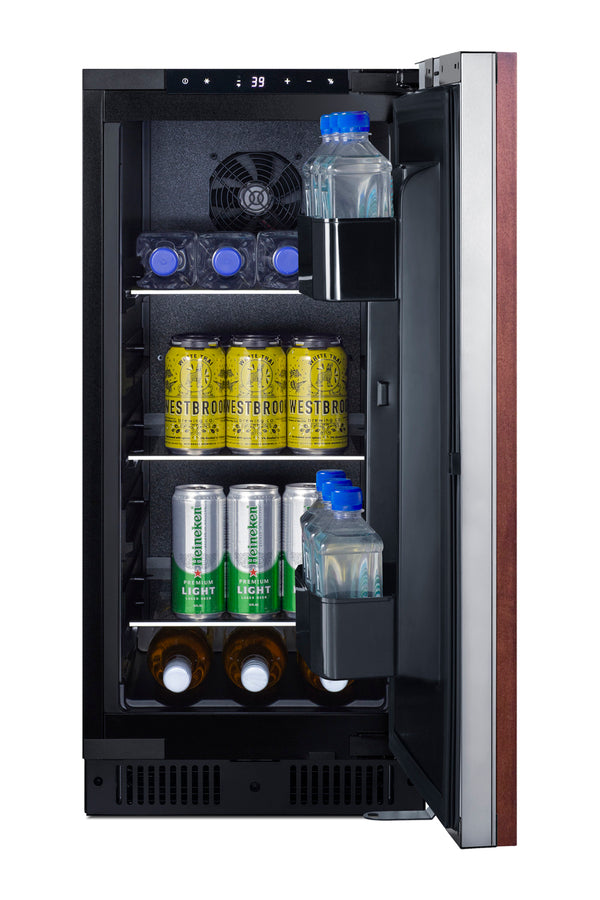

Adjustable glass shelves, LED lighting, Sabbath mode, and reversible door
Specifications
Overview
| Height of Cabinet | 32.0" (81 cm) |
| Width | 14.75" (37 cm) |
| Depth | 22.75" (58 cm) |
| Depth with Panel | 23.5" (60 cm) |
| Depth with door at 90° | 38.0" (97 cm) |
| Capacity | 2.2 cu.ft. (62 L) |
| Defrost Type | Frost-Free |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 240.0kWh/year |
| Amps | 1.0 |
| Plug Type | NEMA 5-15P (Right Angle) |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 60.0 lbs. (27 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101161464 |
Refrigerator Features
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 2 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.78oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36°F to 43°F |
| Sound Level | 32.6 dB |
|
Dimensions
|
|
|---|---|
| Interior Height | 25.0" (64 cm) |
| Interior Width | 10.5" (27 cm) |
| Interior Depth | 16.75" (43 cm) |
| Compressor Step Height | 3.5" (9 cm) |
| Compressor Step Width | 10.5" (27 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
