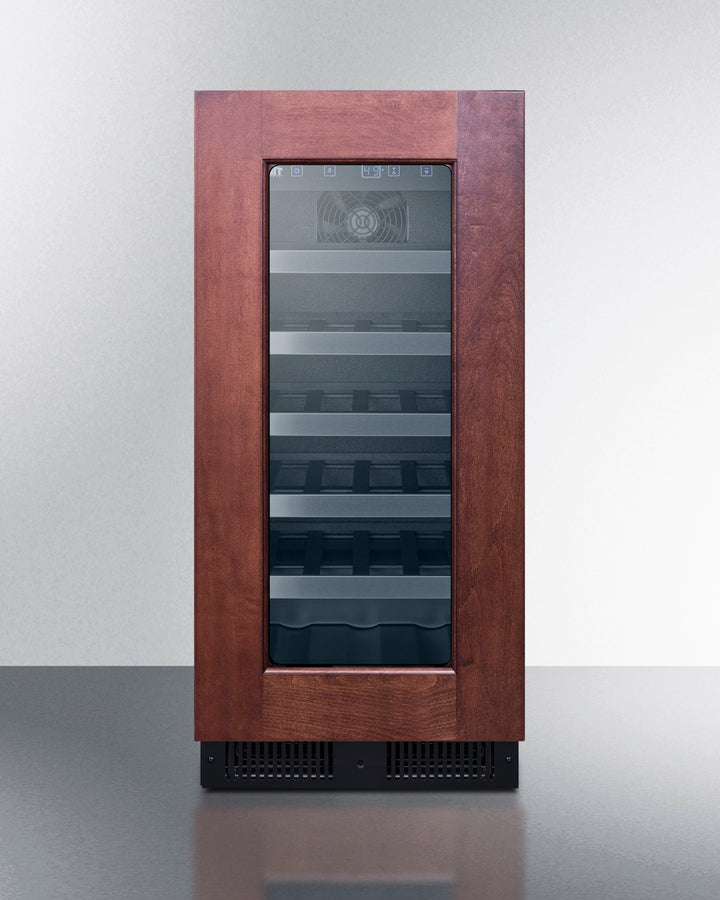

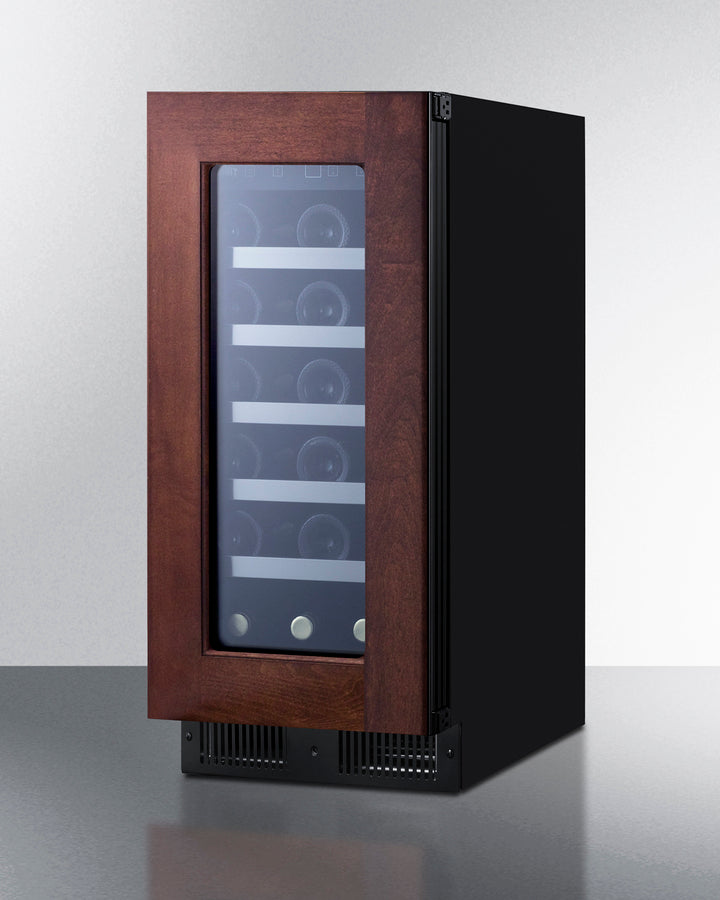

Summit ALWC15PNR 15" Wide 2.2 Cu.Ft. ADA Compliant Wine Cellar – Panel-Ready Built-In/Freestanding Design
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
Summit Appliance Product Template
Description & Features

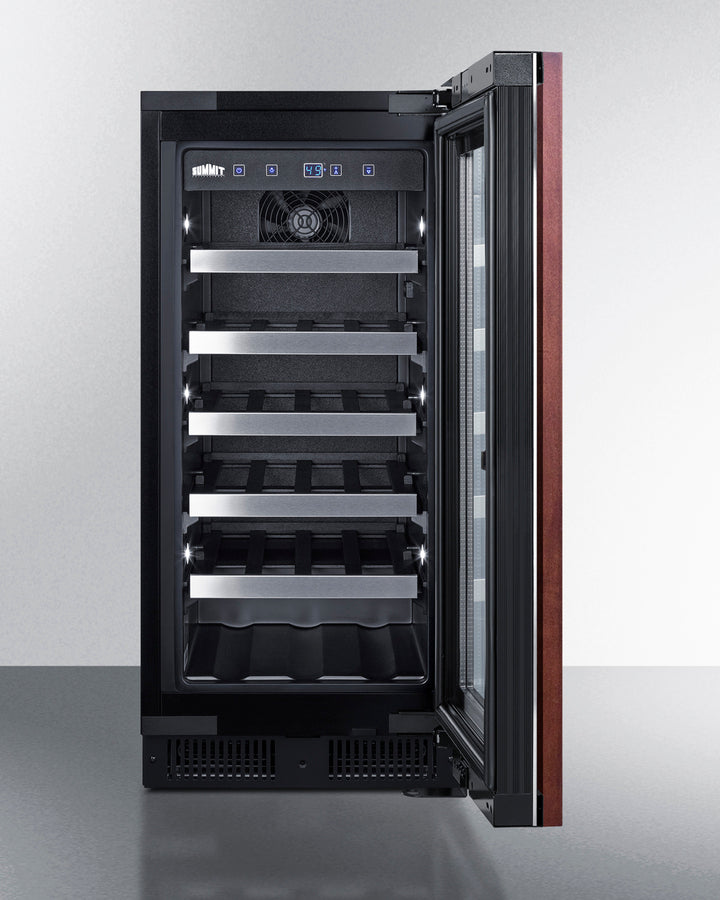

The Summit ALWC15PNR is a 15-inch ADA-compliant wine cellar designed for built-in or freestanding installation in residential kitchens, bars, and entertainment areas. With a 2.2 cu.ft. capacity and storage for up to 23 bottles, this single-zone unit features a panel-ready glass door, digital temperature controls, automatic defrost, wooden shelving, LED lighting, and a front-breathing system for seamless undercounter installation.
Features

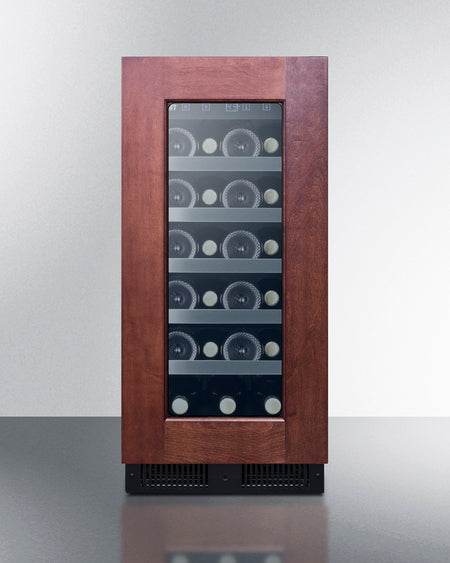

- Stores up to 23 Bordeaux or Burgundy-style wine bottles
- ADA compliant 32" height for lower counters

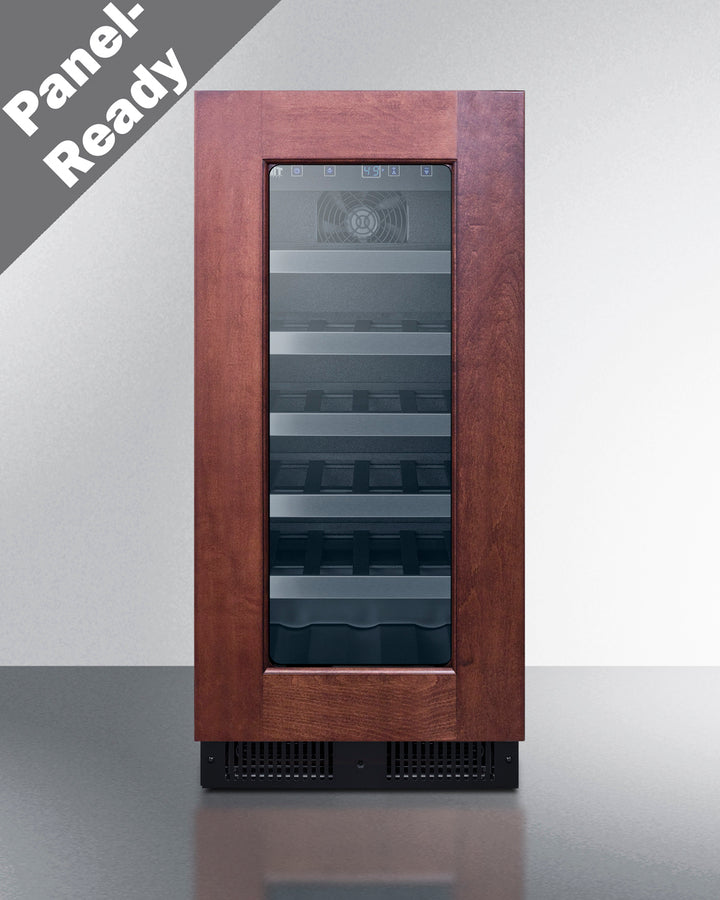

- Panel-ready glass door accepts custom overlay panels
- Automatic defrost for reduced maintenance
- Digital thermostat with 41°F–64°F temperature range
- Five adjustable wooden shelves
- Open door and high-temperature alarms

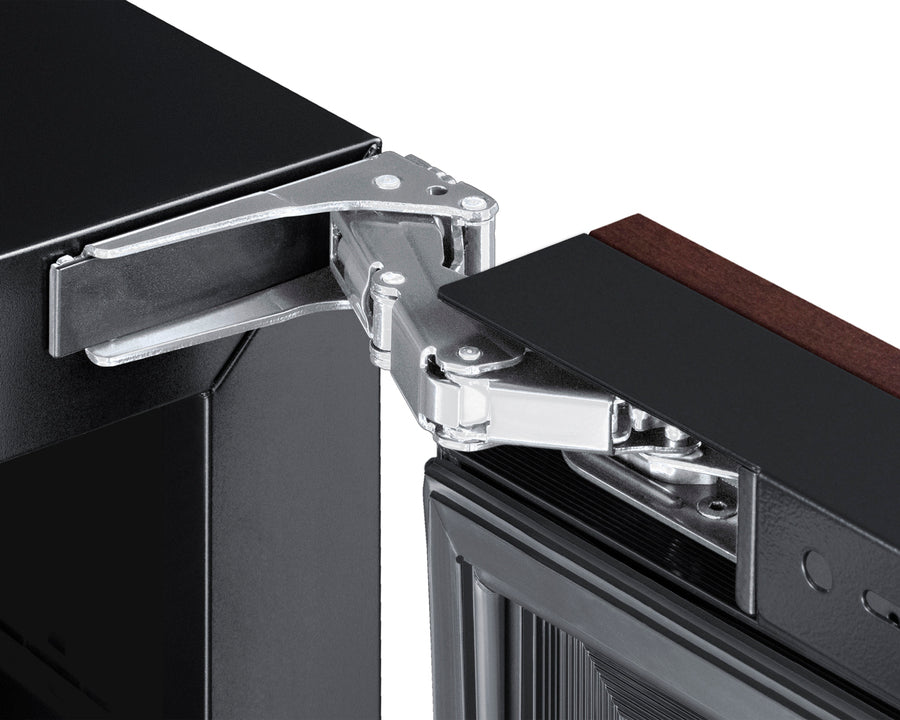

- Reversible door swing for installation flexibility
- Factory-installed lock for secure storage
- Built-in capable with fully finished cabinet for freestanding use
Specifications
Overview
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.63" (60 cm) |
| Depth with door at 90° | 38.25" (97 cm) |
| Capacity | 2.2 cu.ft. (62 L) |
| Bottles | 23 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 65.0 lbs. (29 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101082882 |
Refrigerator-Freezer
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Wood |
| Shelf Qty | 5 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.78 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 21.25" (54 cm) |
| Interior Width 1 | 10.5" (27 cm) |
| Interior Depth 1 | 17.25" (44 cm) |
| Compressor Step Height | 3.5" (9 cm) |
| Compressor Step Width | 10.5" (27 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
| Temperature Range | 41º to 64ºF |
| Sabbath Mode | Yes |
| Sound Level | 32.9 dB |
