Description & Features

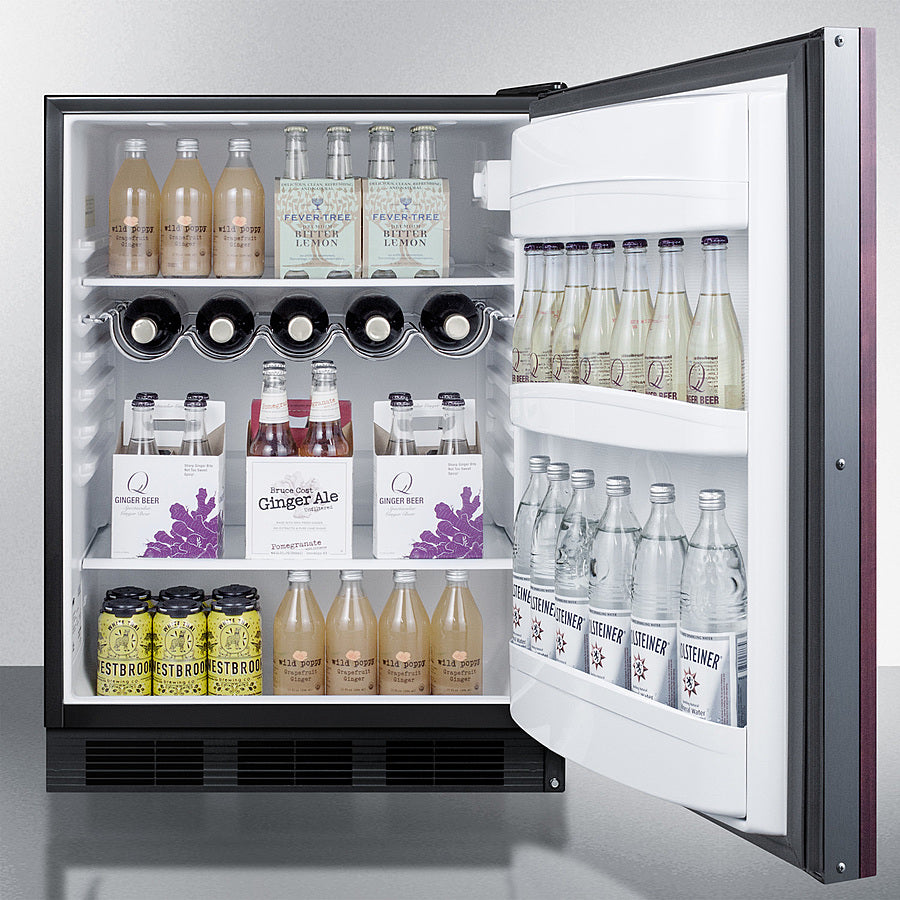

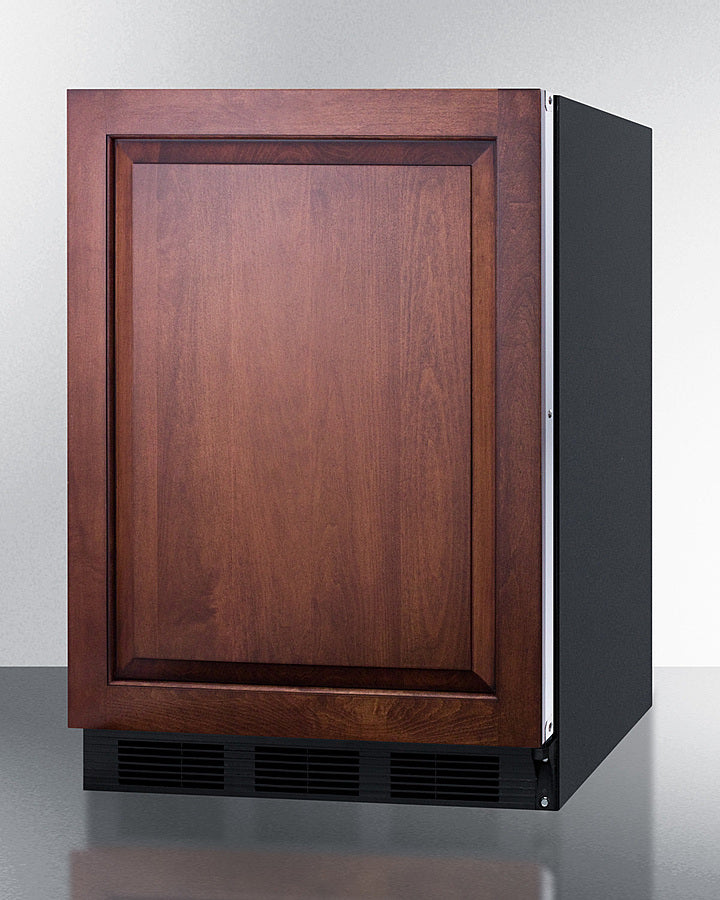

The Summit AR5BIF is a 24" wide ADA compliant built-in all-refrigerator designed for residential kitchens, apartments, offices, and hospitality applications requiring compact undercounter refrigeration with customizable styling. This 5.5 cu.ft. freezerless refrigerator features automatic defrost operation, adjustable glass shelves, door storage, a removable wine shelf, dial thermostat controls, and a panel-ready door designed to accept custom overlay panels for seamless integration with surrounding cabinetry. Its front-breathing design allows both built-in and freestanding installation in ADA compliant spaces.
Features
- ADA compliant 32" height for lower counter installations
- 5.5 cu.ft. all-refrigerator with freezerless design

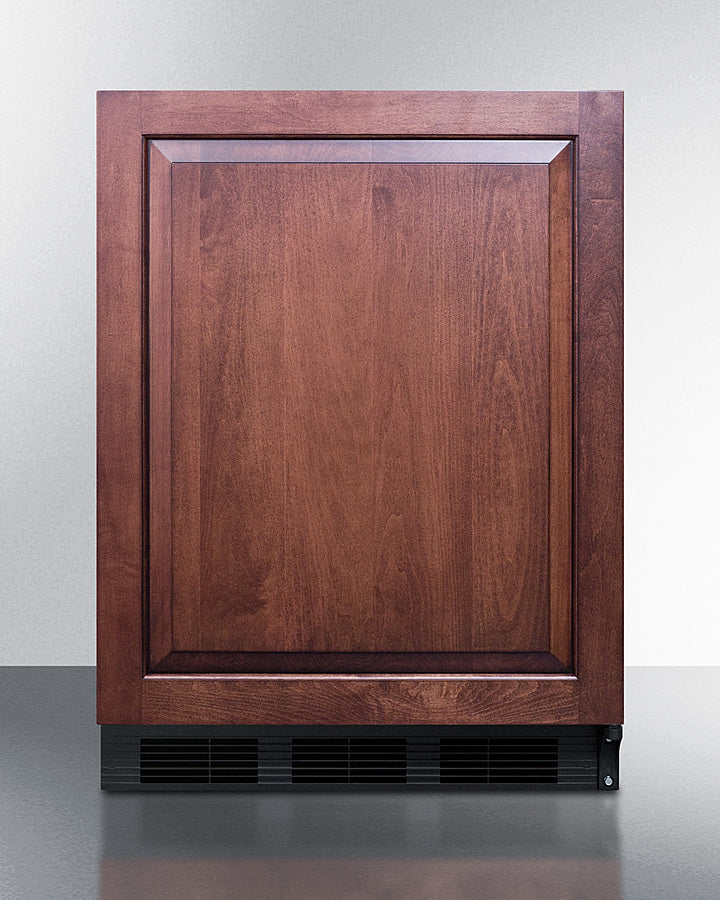

- Panel-ready door accepts custom overlay panels
- Automatic defrost system reduces maintenance
- Front-breathing design supports built-in installation

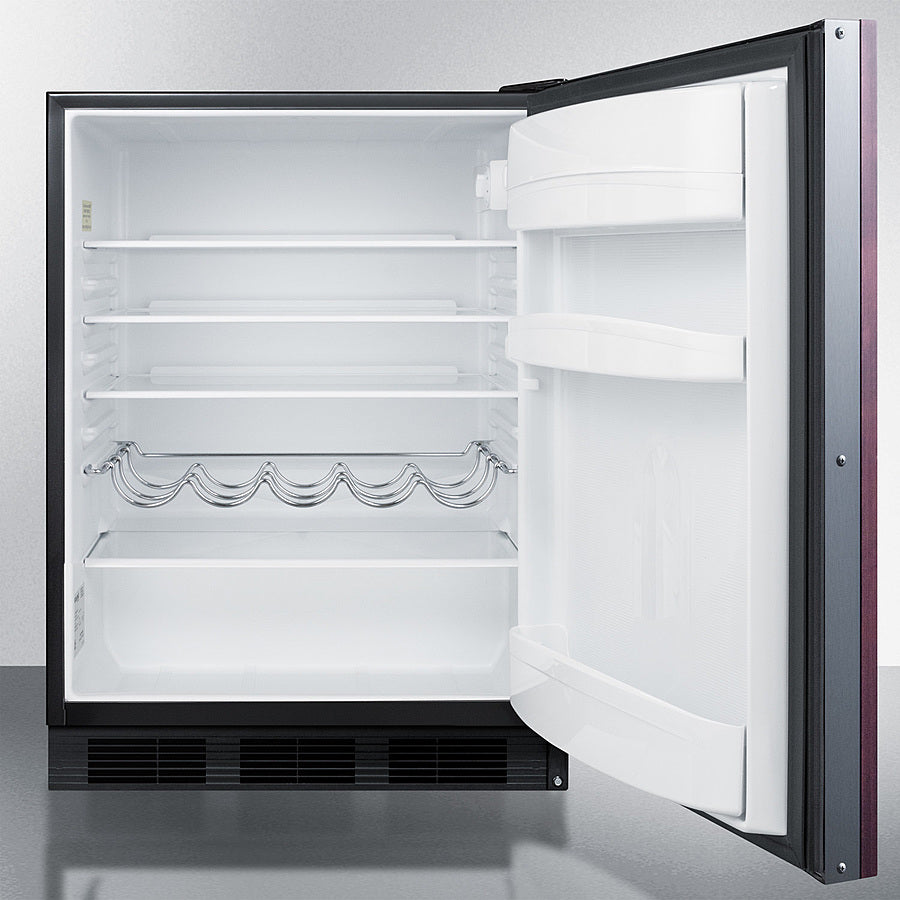

- Adjustable glass shelves with removable wine shelf
Specifications
Overview
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 23.0" (58 cm) |
| Depth with door at 90° | 45.38" (115 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 307.0kWh/year |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101068787 |
Refrigerator-Freezer
| Reversible | Factory Reversible |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Wine Bottle Shelves | Yes |

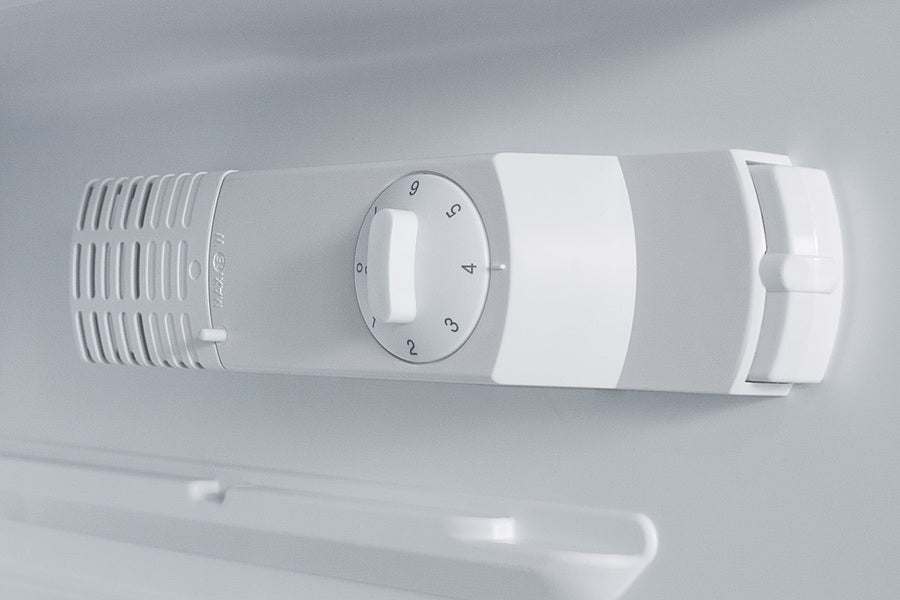

| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Interior Light | Yes |
| Interior Height | 26.25" (67 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
