Summit ASDG1521PNR 15" Wide 1.8 cu.ft. ADA Beverage Center – Panel-Ready Glass Door
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
Summit Appliance Product Template
Description & Features

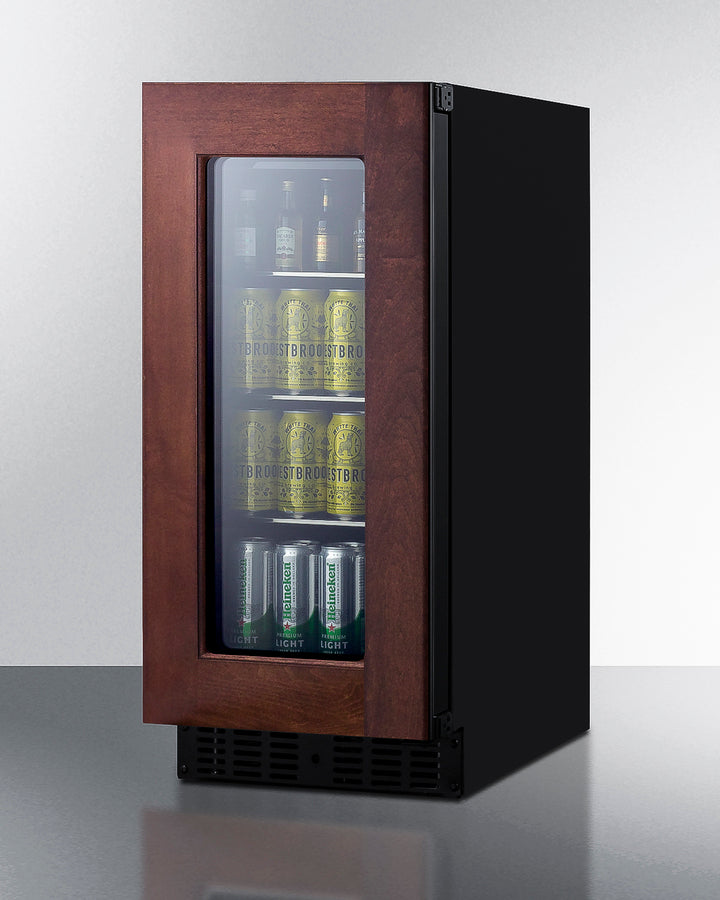

The Summit ASDG1521PNR is a 1.8 cu.ft. ADA compliant beverage center designed for residential and commercial undercounter applications requiring seamless custom cabinetry integration in shallow-depth spaces. This 15" wide unit features frost-free operation, fan-forced cooling, a panel-ready double-pane tempered glass door, digital temperature controls, stainless steel interior, adjustable glass shelving, LED lighting, and a factory-installed lock for secure beverage storage. Its front-breathing system supports built-in or freestanding installation in kitchens, wet bars, and entertainment areas.
Features
- ADA compliant 32" height for accessible installations

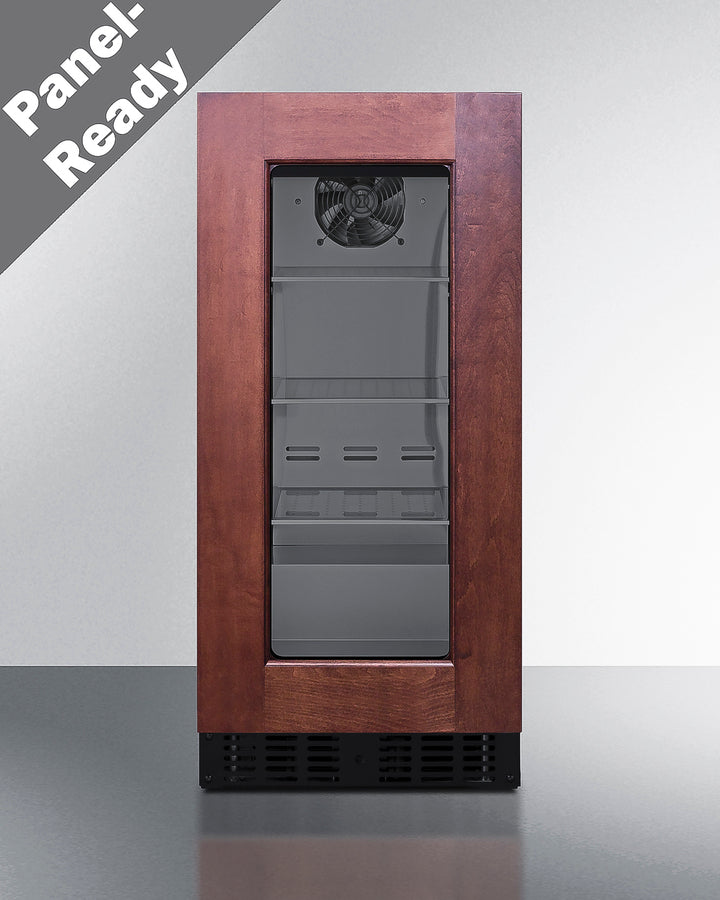

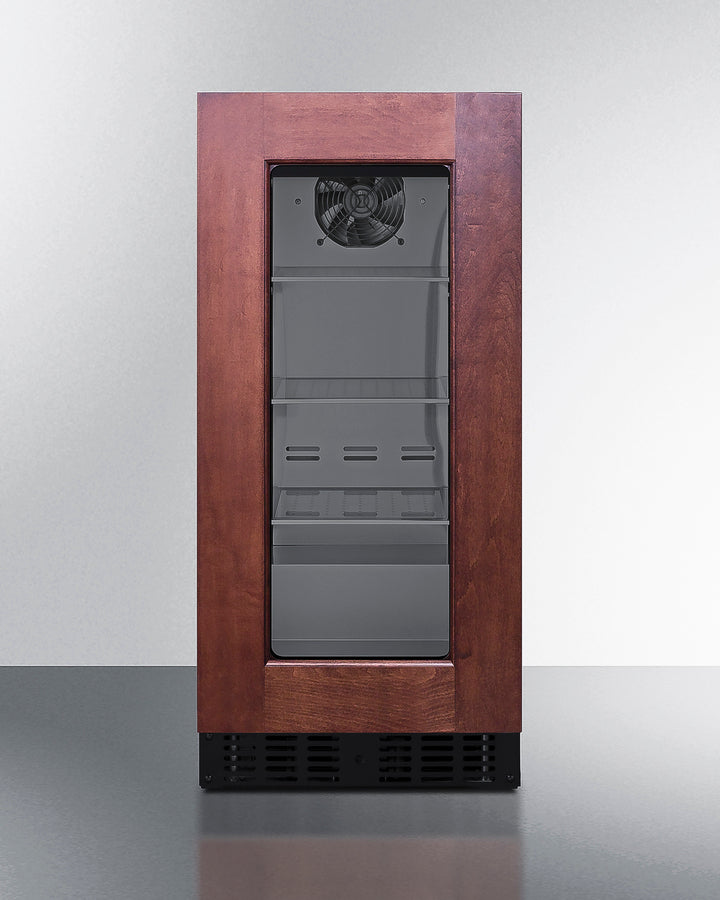

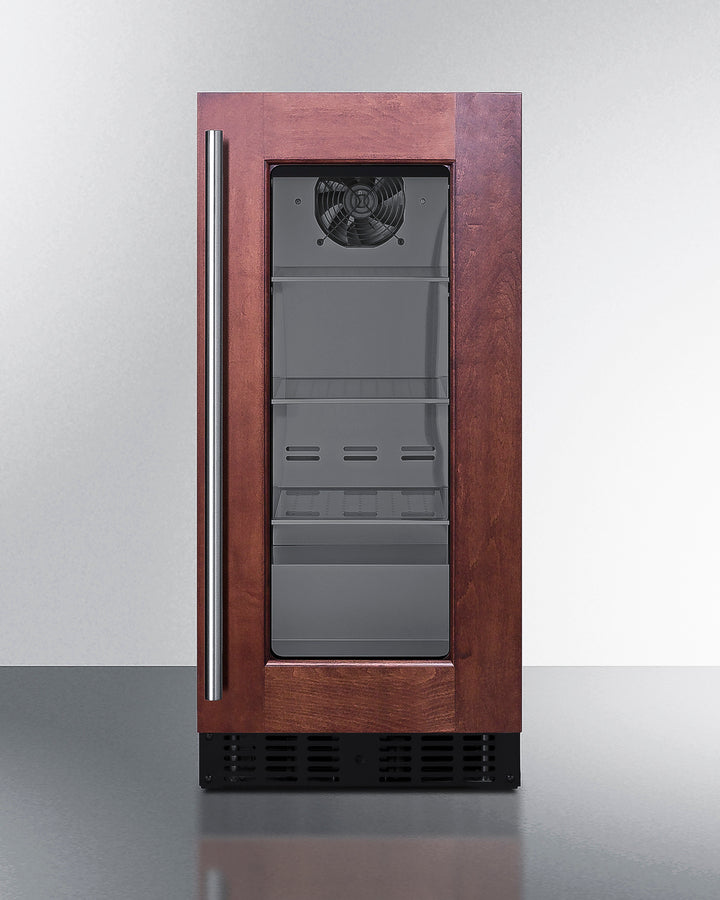

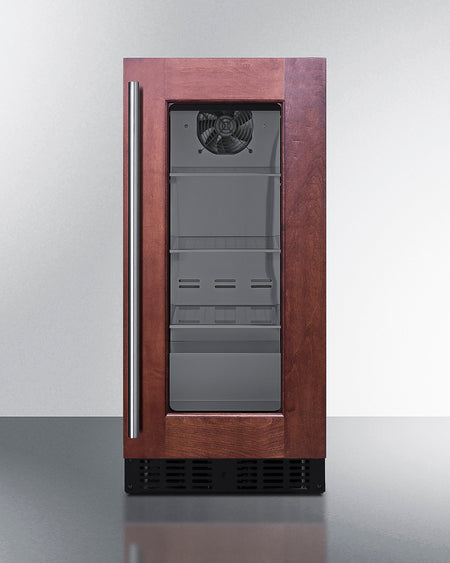

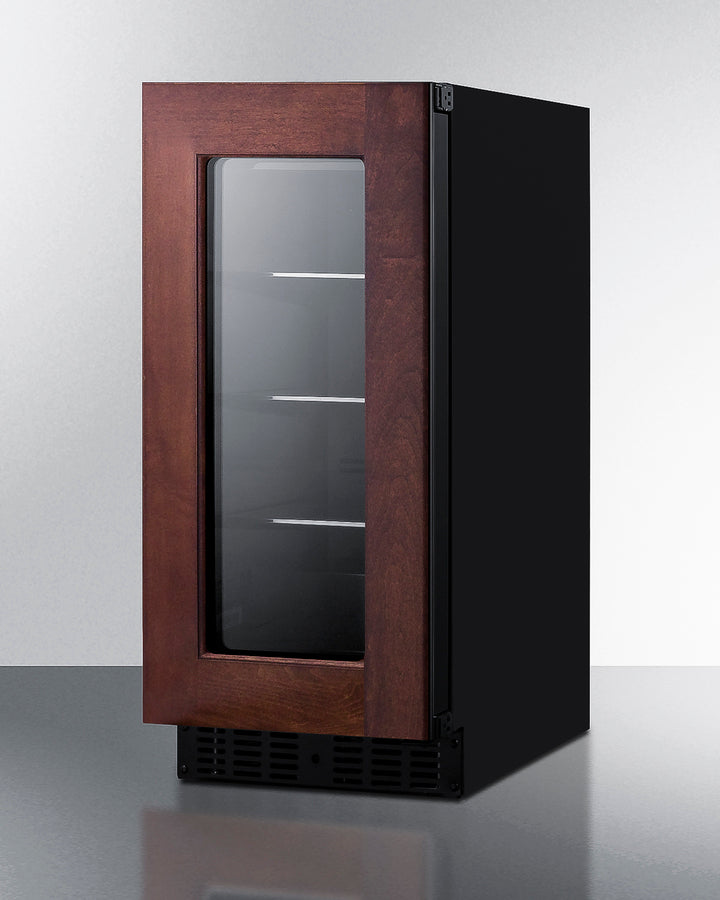

- Panel-ready glass door for custom cabinetry integration
- Frost-free operation with fan-forced cooling
- Shallow-depth cabinet design for space-limited applications

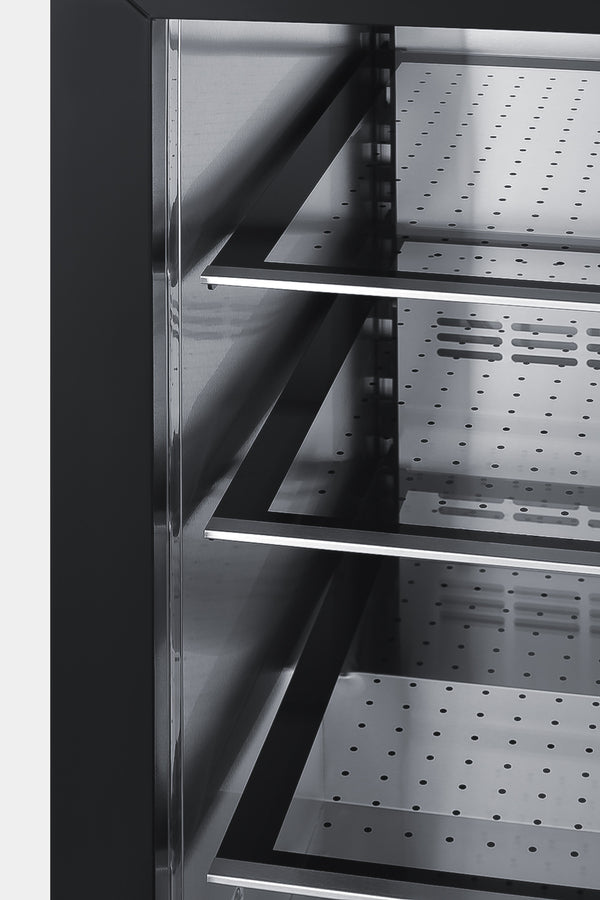

- Stainless steel interior with adjustable glass shelving

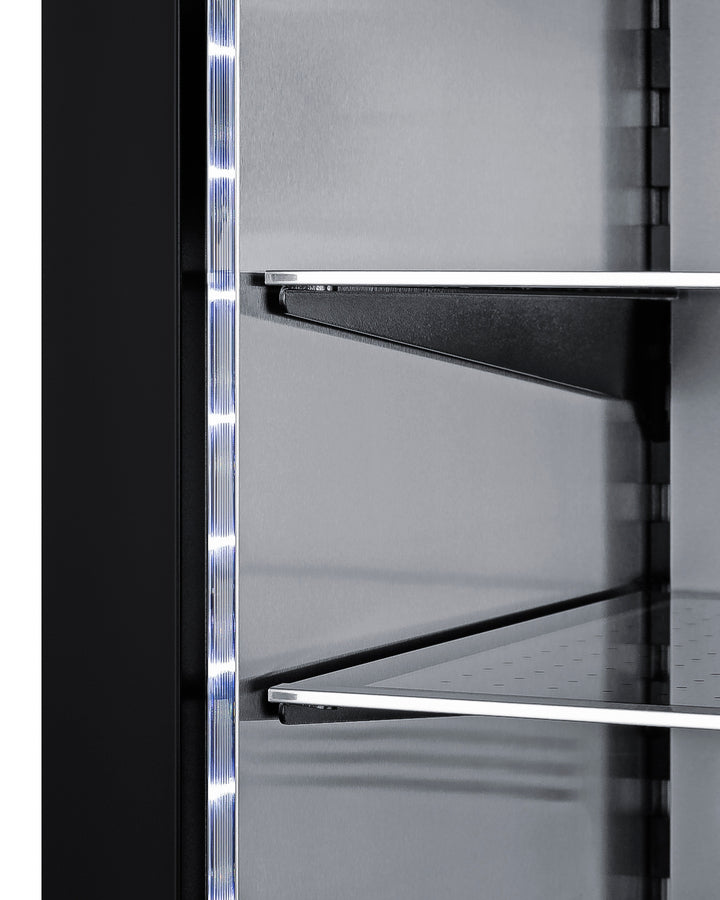

- Digital thermostat, alarms, LED lighting, and factory-installed lock
Specifications
Overview

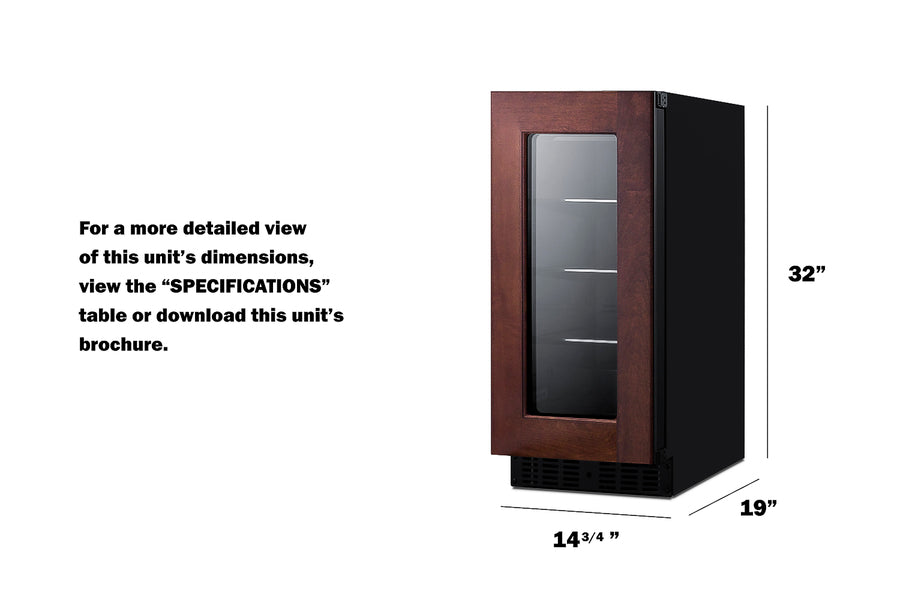

| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.75" (45 cm) |
| Depth with door at 90° | 31.0" (79 cm) |
| Capacity | 1.8 cu.ft. (51 L) |
| Defrost Type | Frost-Free |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 270.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 68.0 lbs. (31 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101077147 |
Refrigerator-Freezer
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.78oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 33.4 dB |
| Interior Height | 22.5" (57 cm) |
| Interior Width | 10.75" (27 cm) |
| Interior Depth | 12.38" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 10.75" (27 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
