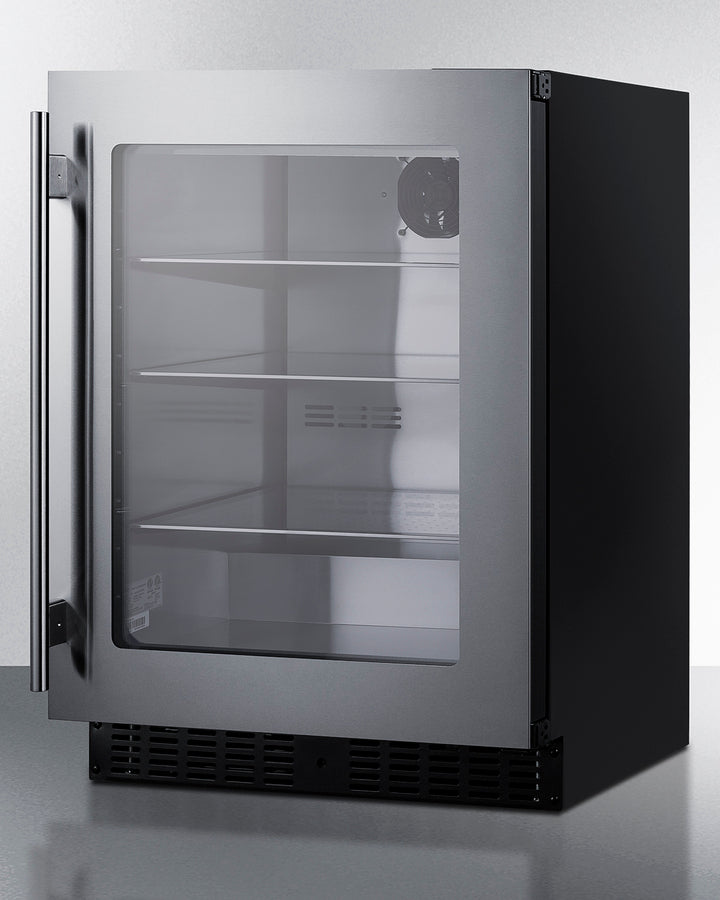

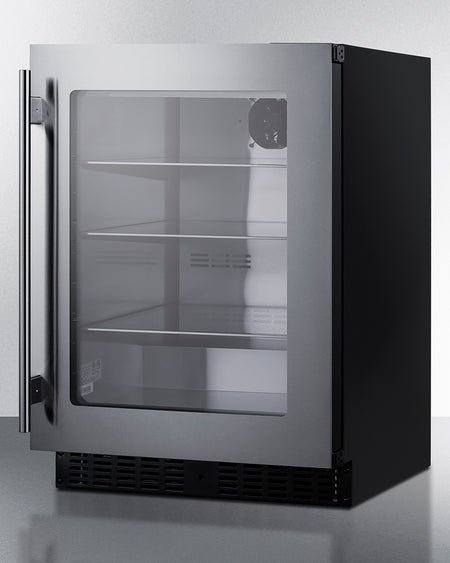

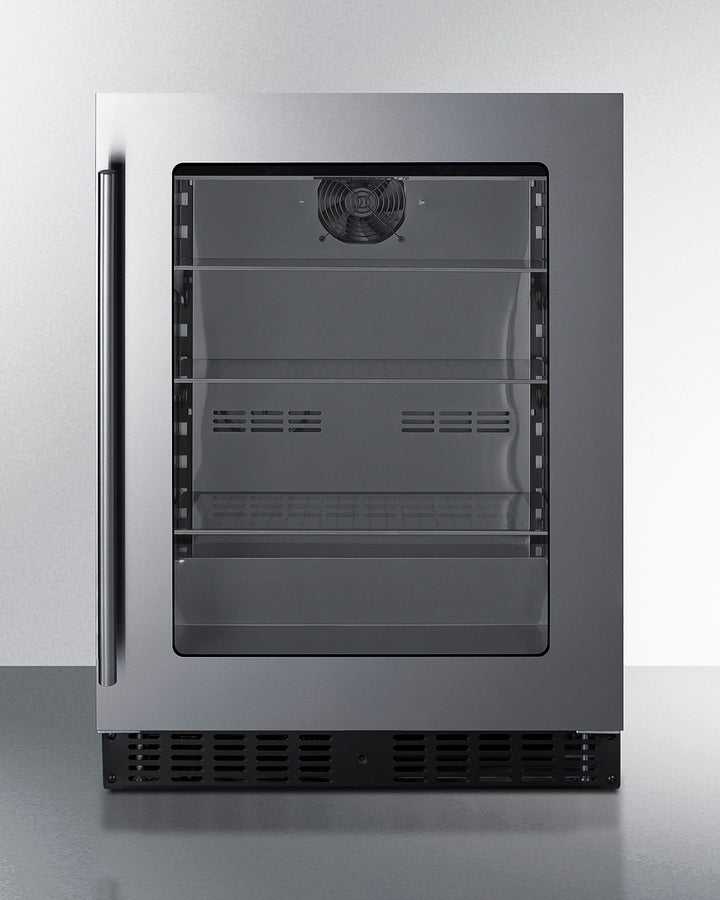

Summit ASDG2411 24" Wide 3.25 cu.ft. ADA Beverage Center – Frost-Free Glass Door, Stainless Steel
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
Summit Appliance Product Template
Description & Features

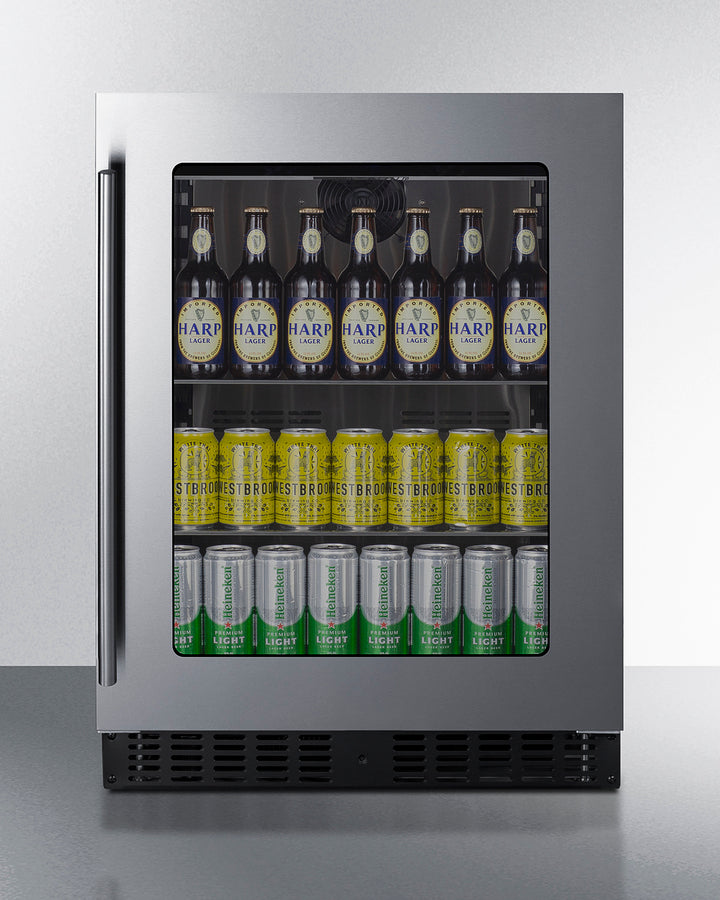

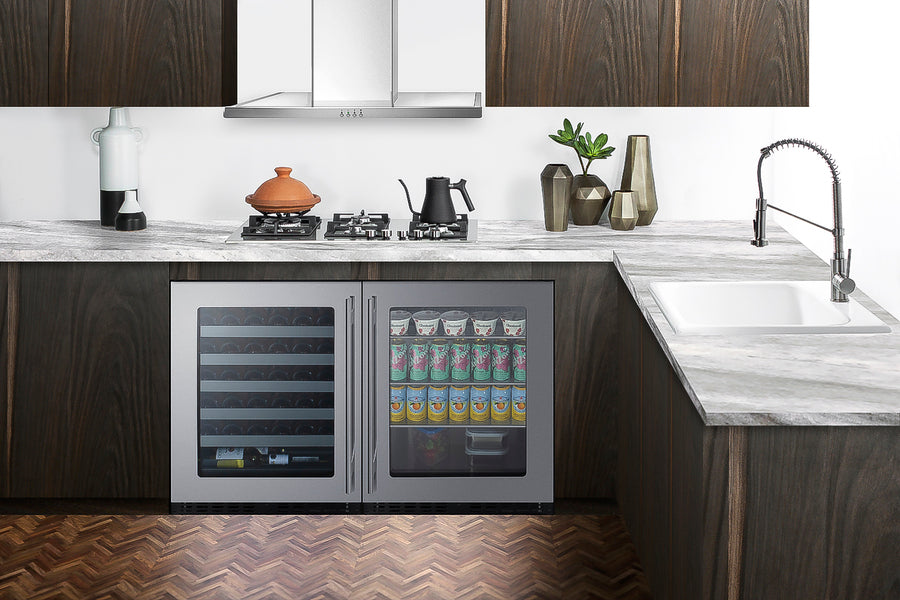

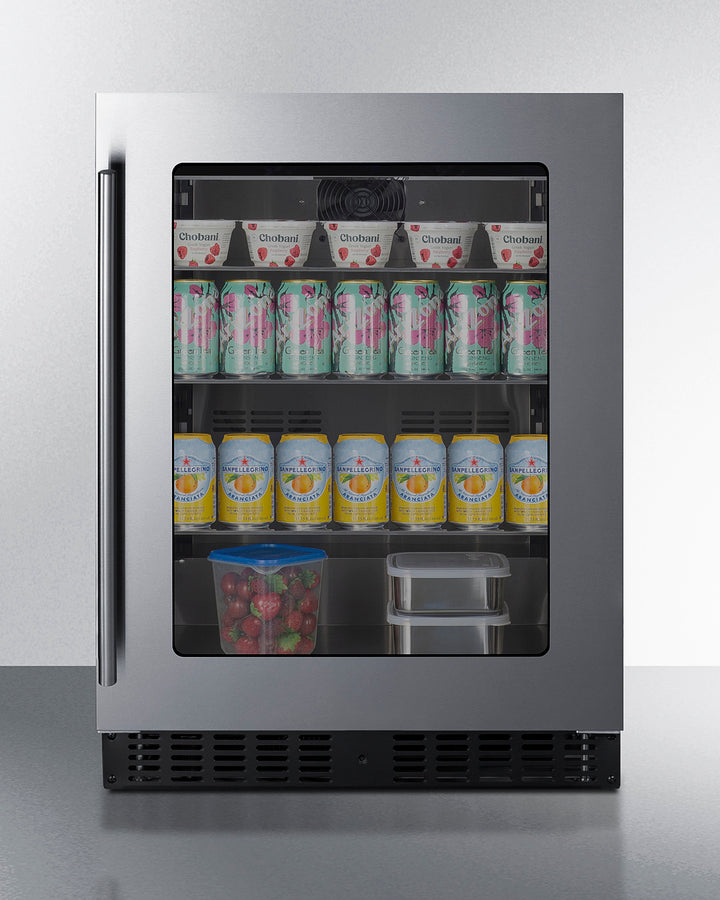

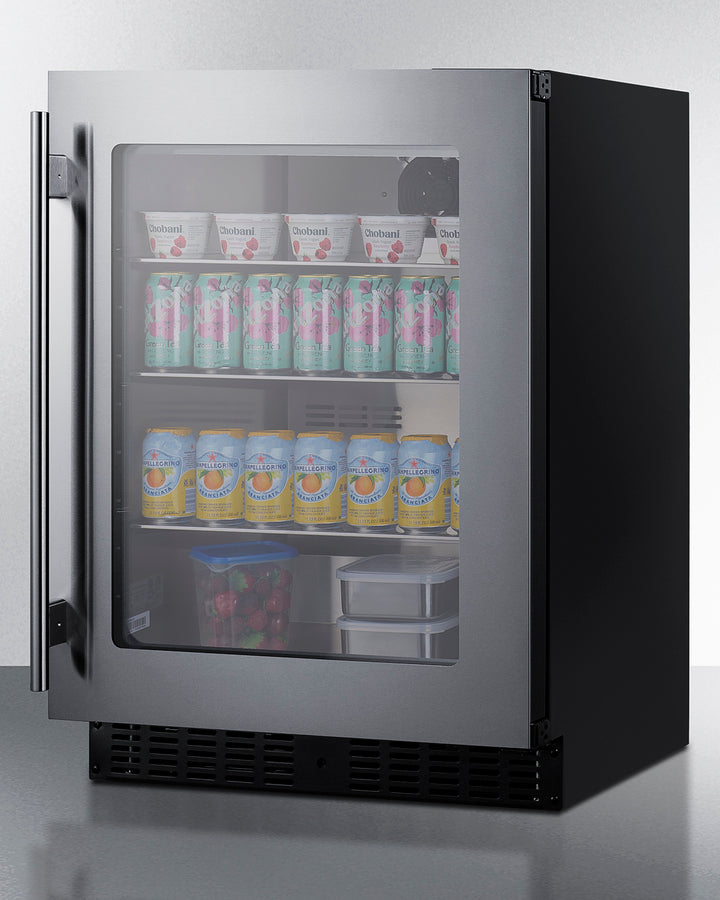

The Summit ASDG2411 is a 3.25 cu.ft. ADA compliant beverage center designed for residential or commercial undercounter applications requiring premium cold storage in shallow-depth installations. This 24" wide unit features frost-free operation, fan-forced cooling, a stainless steel interior, double-pane tempered glass door, digital temperature controls, dimmable LED lighting, and a factory-installed lock for secure beverage storage. Its 17.75" shallow cabinet depth and front-breathing system allow flexible built-in or freestanding installation in wet bars, island kitchens, and entertainment spaces.
Features
- ADA compliant 32" height for lower counter installations
- Shallow 17.75" cabinet depth for space-limited installations

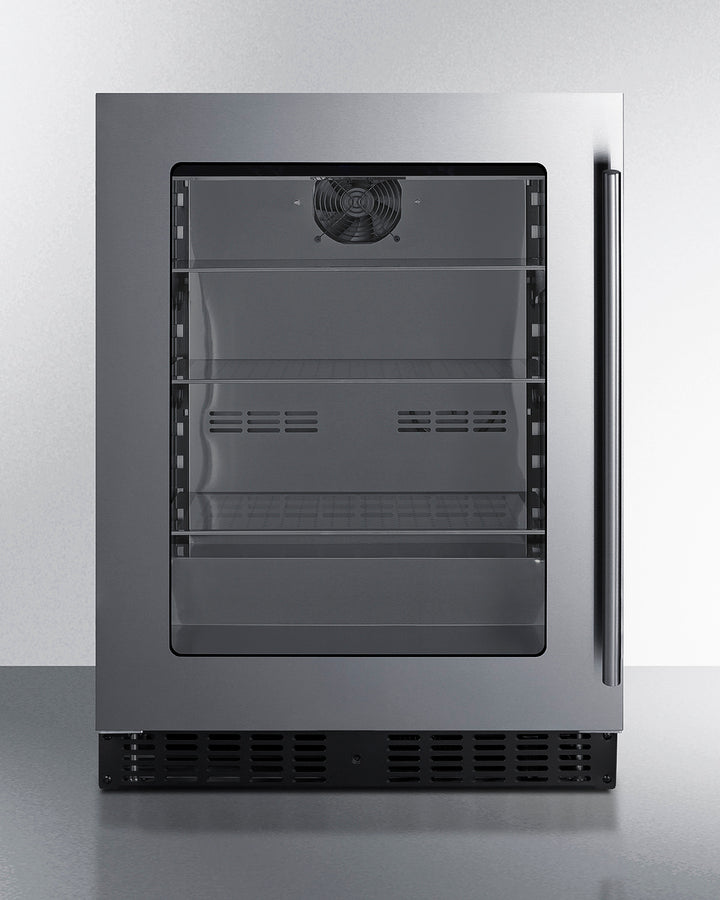

- Frost-free operation with internal fan-forced cooling

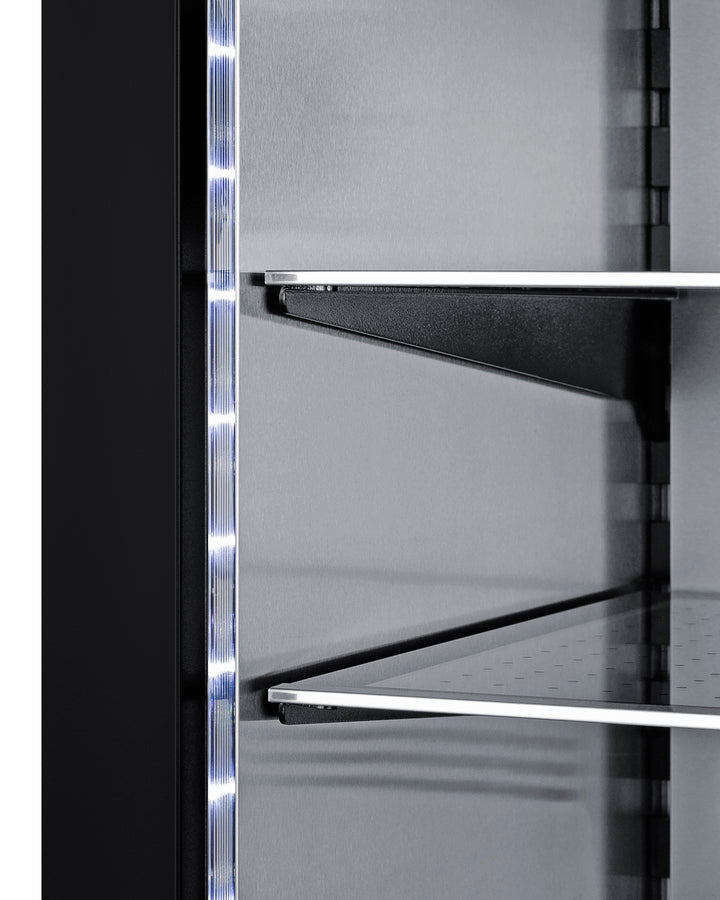

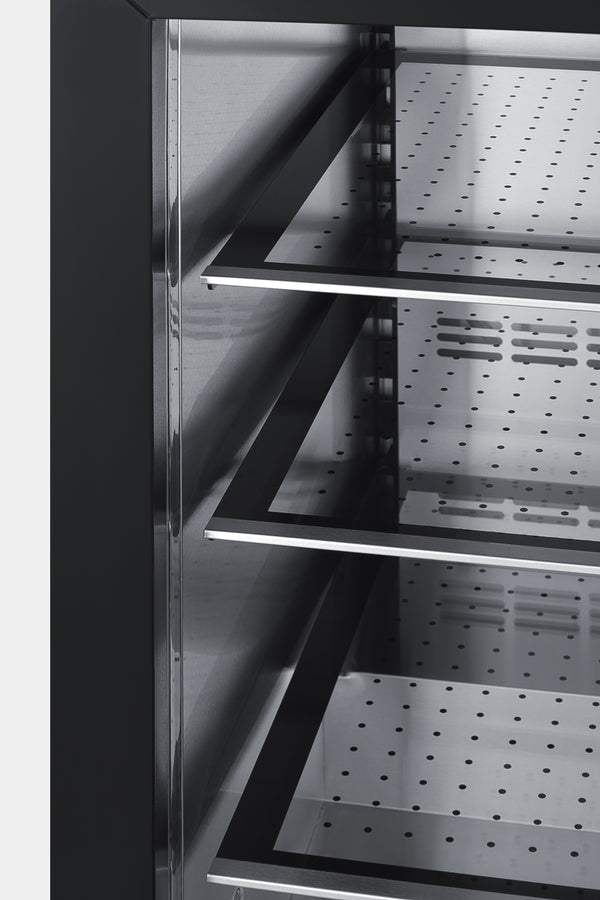

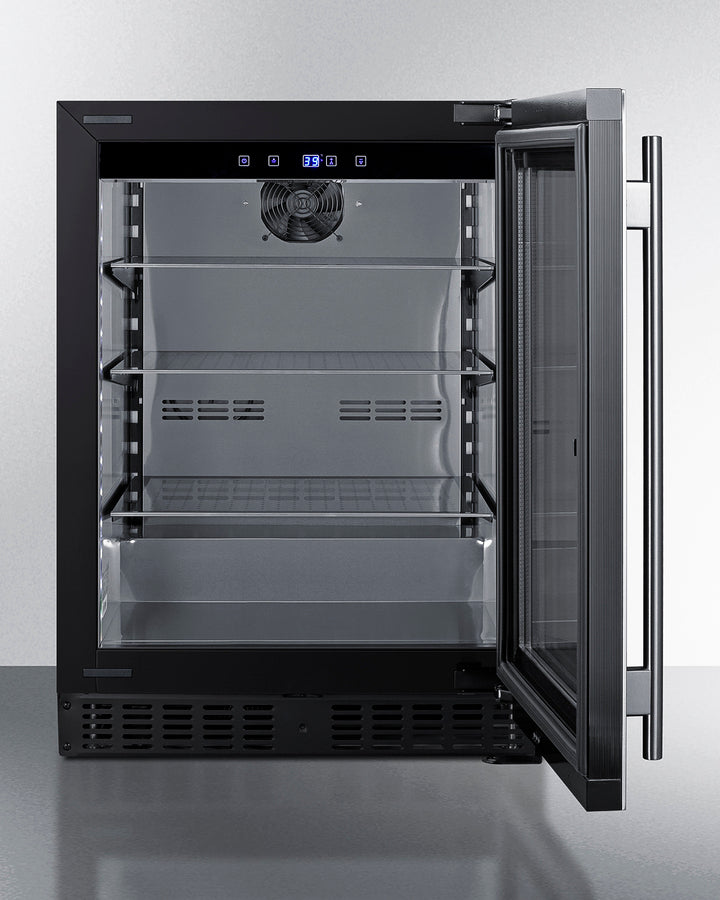

- Stainless steel interior with adjustable glass shelving

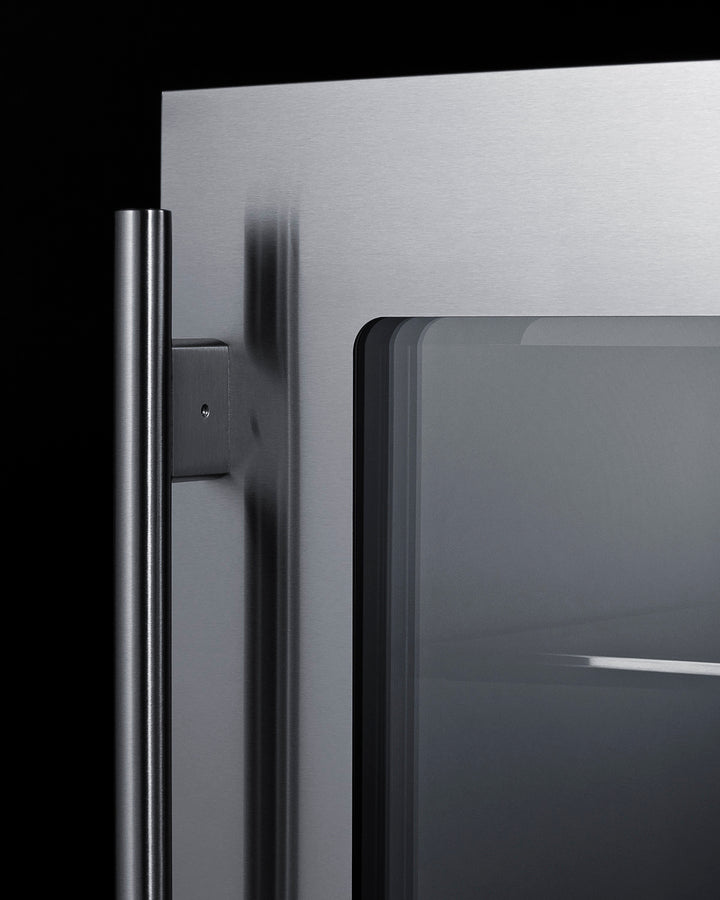

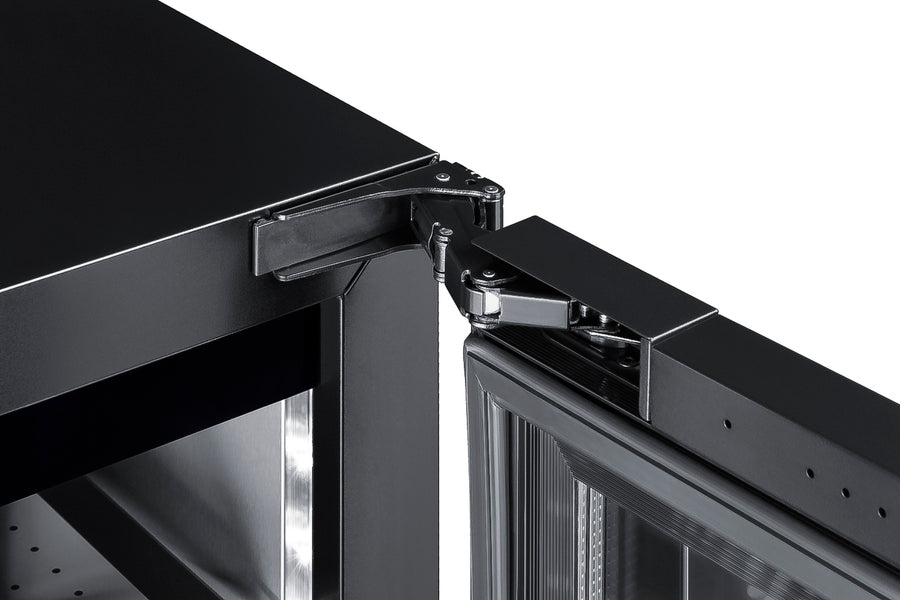

- Double-pane tempered glass door with seamless stainless steel trim
- Open door alarm, high temperature alarm, and factory-installed lock
Specifications
Overview

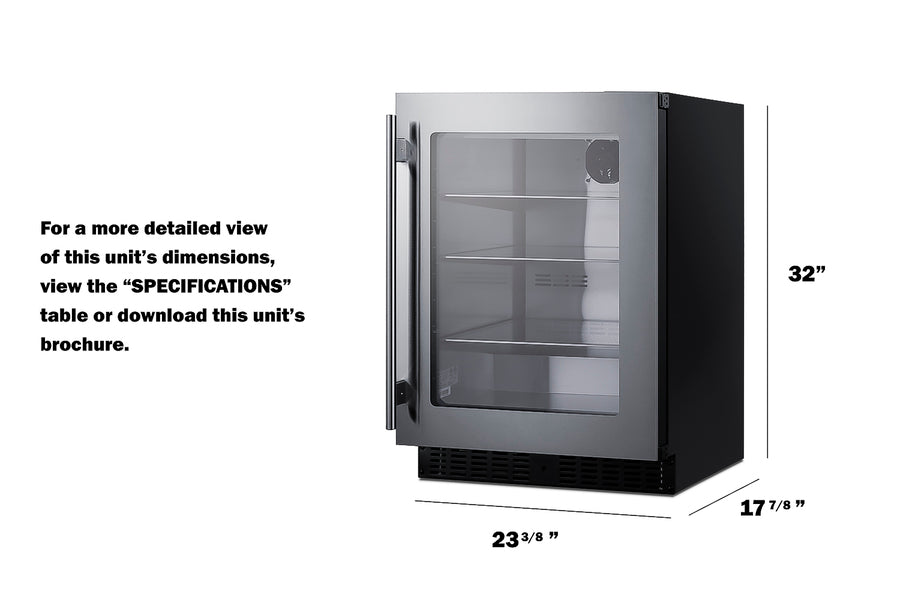

| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.75" (45 cm) |
| Depth with Handle | 19.63" (50 cm) |
| Depth with door at 90° | 39.88" (101 cm) |
| Capacity | 3.25 cu.ft. (92 L) |
| Defrost Type | Frost-Free |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 285.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 120.0 lbs. (54 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101079455 |
Refrigerator-Freezer
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 33.1 dB |
| Interior Height | 24.5" (62 cm) |
| Interior Width | 19.5" (50 cm) |
| Interior Depth | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.5" (50 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
