Summit ASDG2411PNR 24" Wide 5.0 cu.ft. Built-In Beverage Center – Panel Ready Glass Door
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
Summit Appliance Product Template
Description & Features

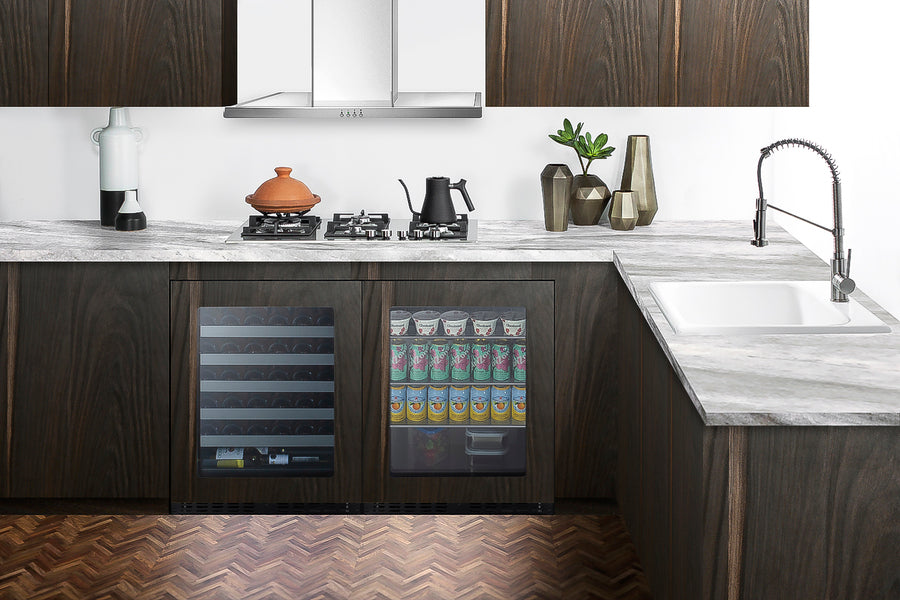

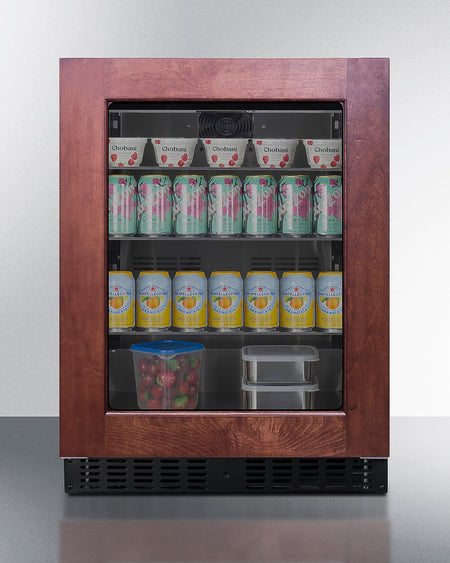

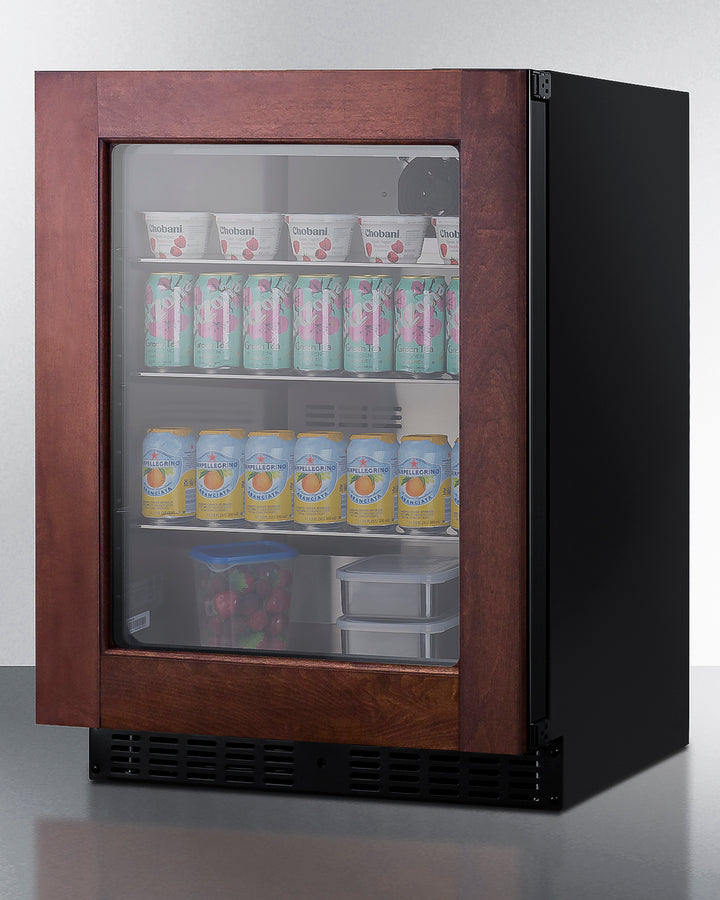

The Summit ASDG2411PNR is a 24" wide built-in beverage center designed for residential kitchens, home bars, hospitality suites, and entertainment areas requiring customizable undercounter beverage refrigeration. This 5.0 cu.ft. beverage refrigerator features automatic defrost operation, fan-forced cooling, digital temperature controls, LED lighting, adjustable shelving, and a panel-ready glass door designed to accept custom overlay panels for seamless cabinet integration. Its front-breathing system supports both built-in and freestanding installation.
Features

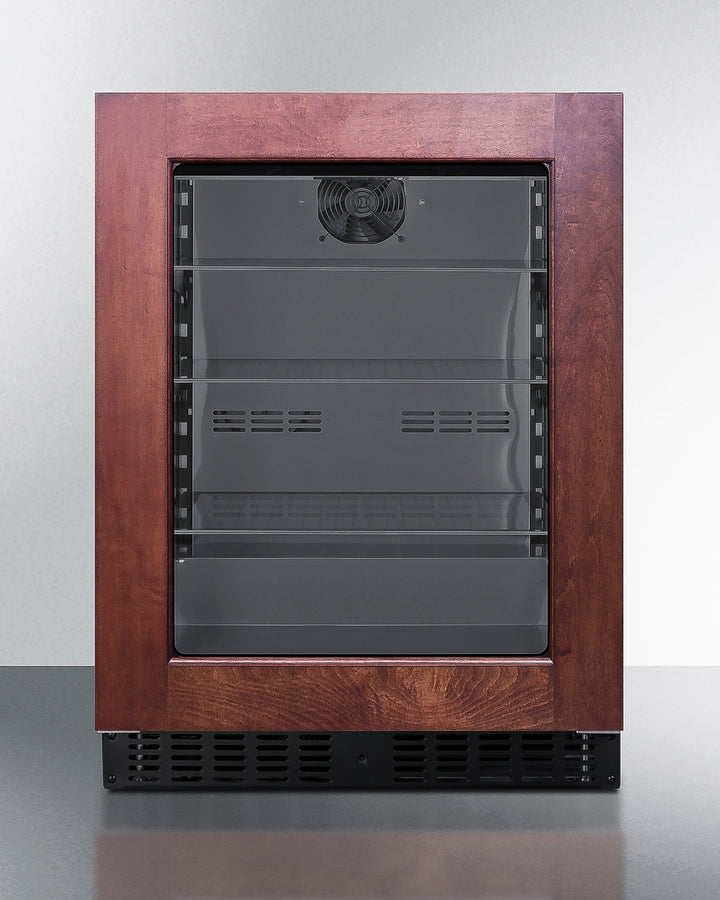

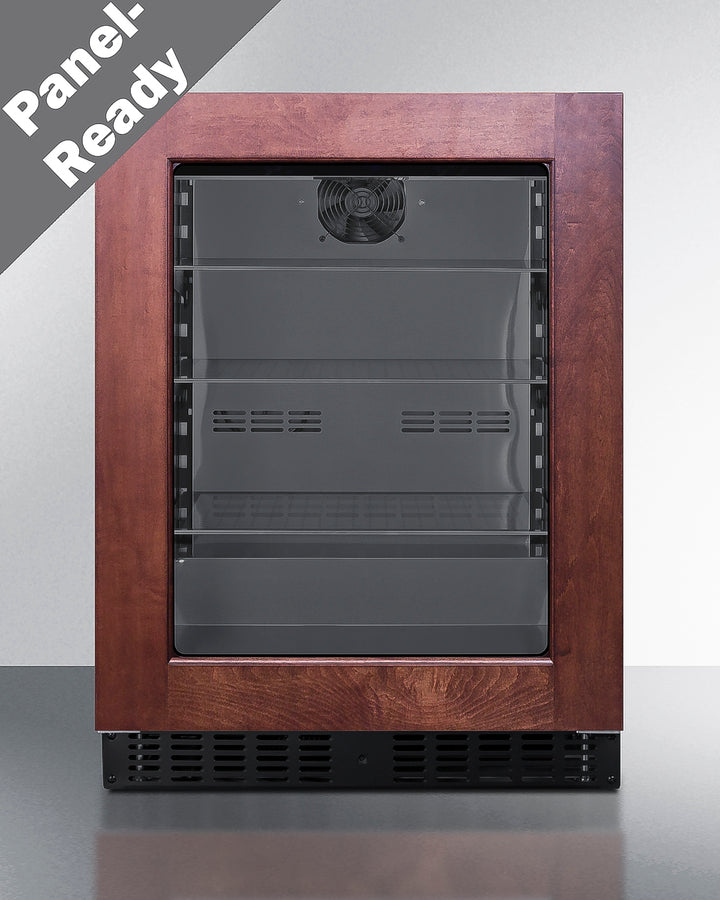

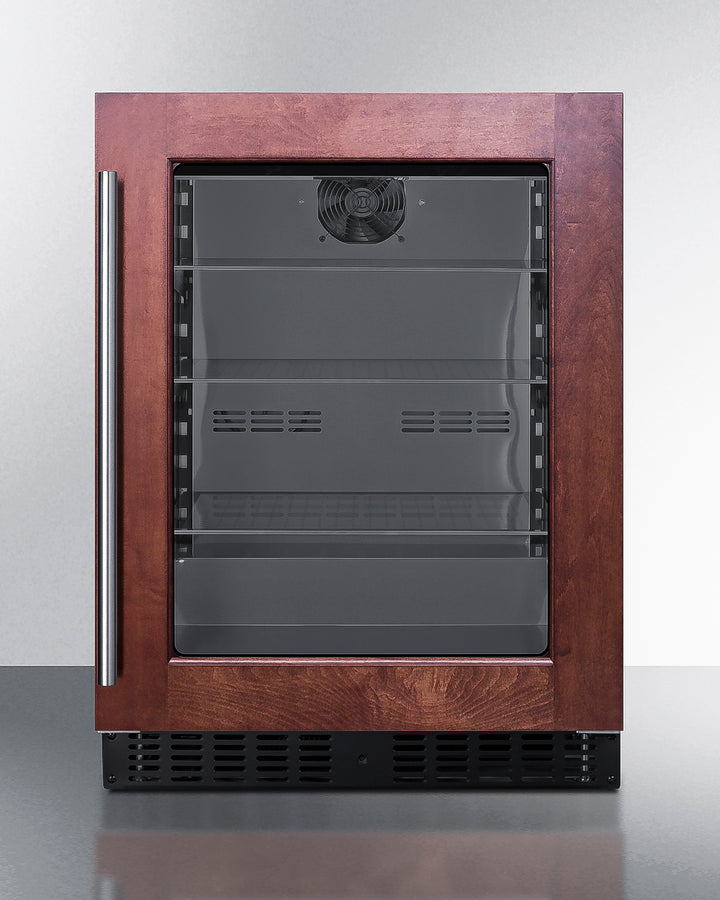

- Panel-ready glass door accepts custom overlay panels
- Built-in capable front-breathing design
- Automatic defrost system minimizes maintenance
- Fan-forced cooling for even temperature distribution
- Digital temperature controls with LED display

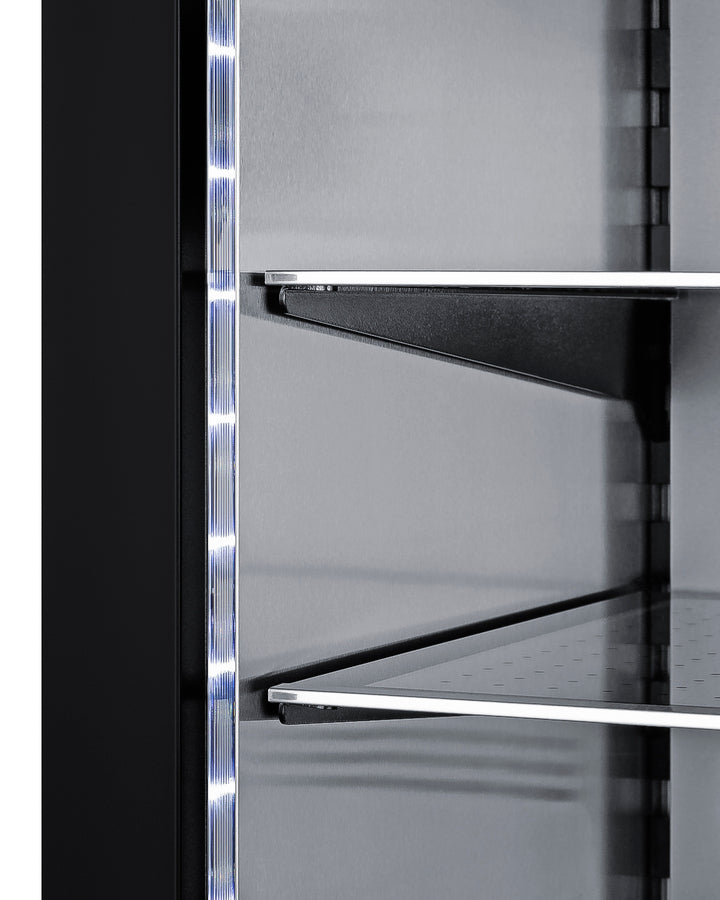

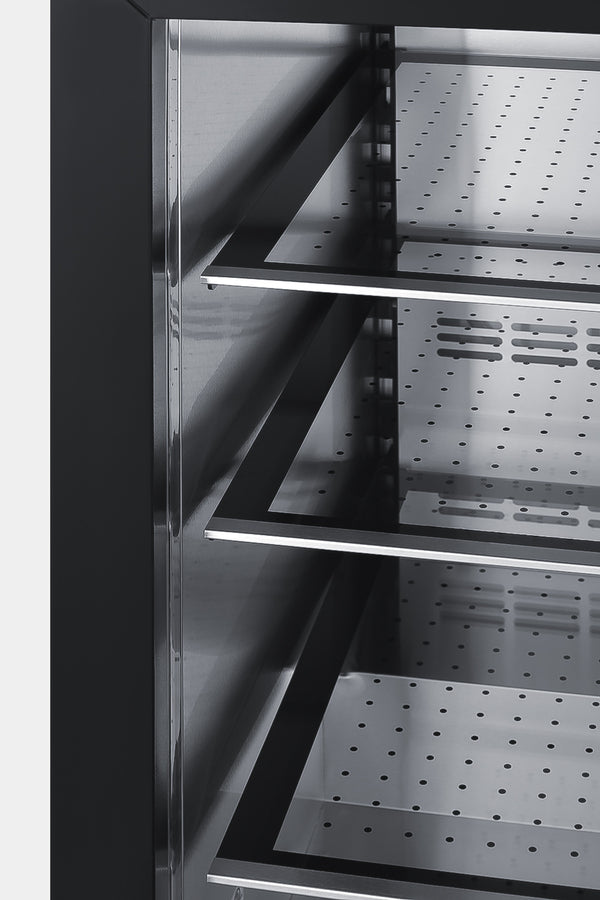

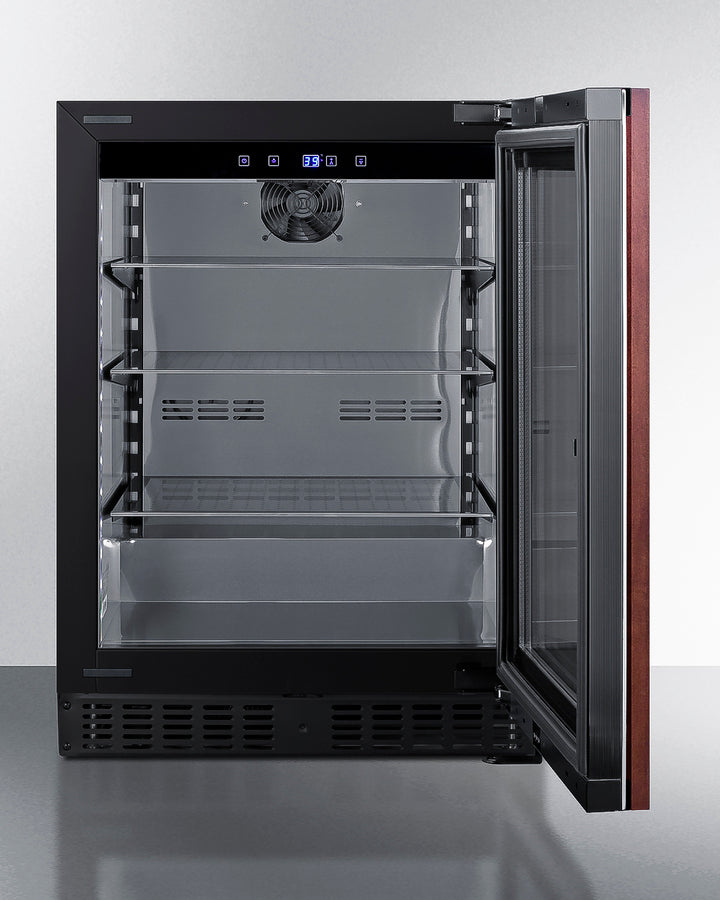

- Adjustable shelves with interior LED lighting
Specifications
Overview

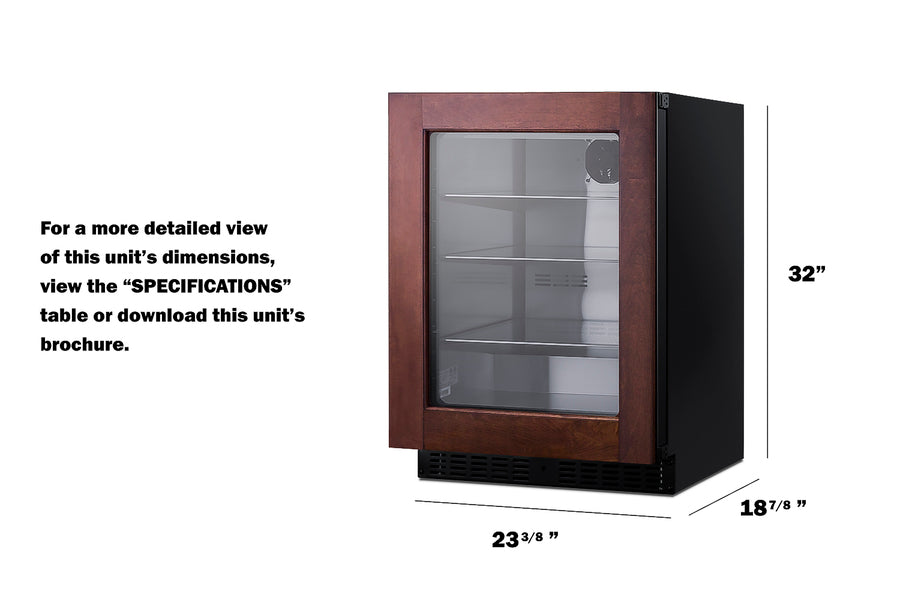

| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.75" (45 cm) |
| Depth with door at 90° | 39.88" (101 cm) |
| Capacity | 3.25 cu.ft. (92 L) |
| Defrost Type | Frost-Free |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 285.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 120.0 lbs. (54 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101104188 |
Refrigerator-Freezer
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 33.1 dB |
| Interior Height | 24.5" (62 cm) |
| Interior Width | 19.5" (50 cm) |
| Interior Depth | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.5" (50 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
