Summit ASDR1524 14.75" Wide 1.7 Cu.Ft. ADA-Compliant 2-Drawer All-Refrigerator – Built-In, Frost-Free, Stainless Steel/Panel-Ready
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
Summit Appliance Product Template
Description & Features

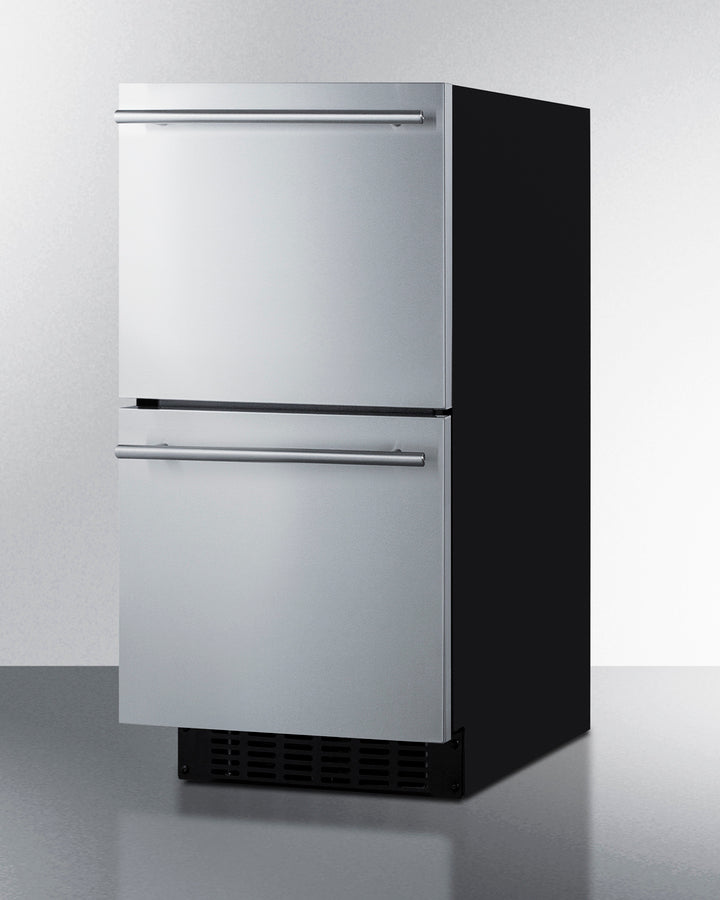

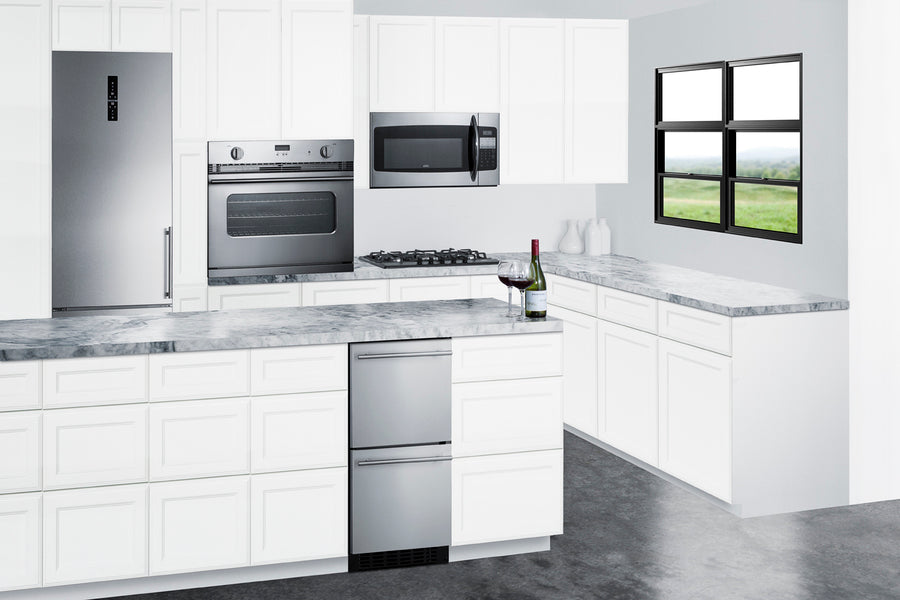

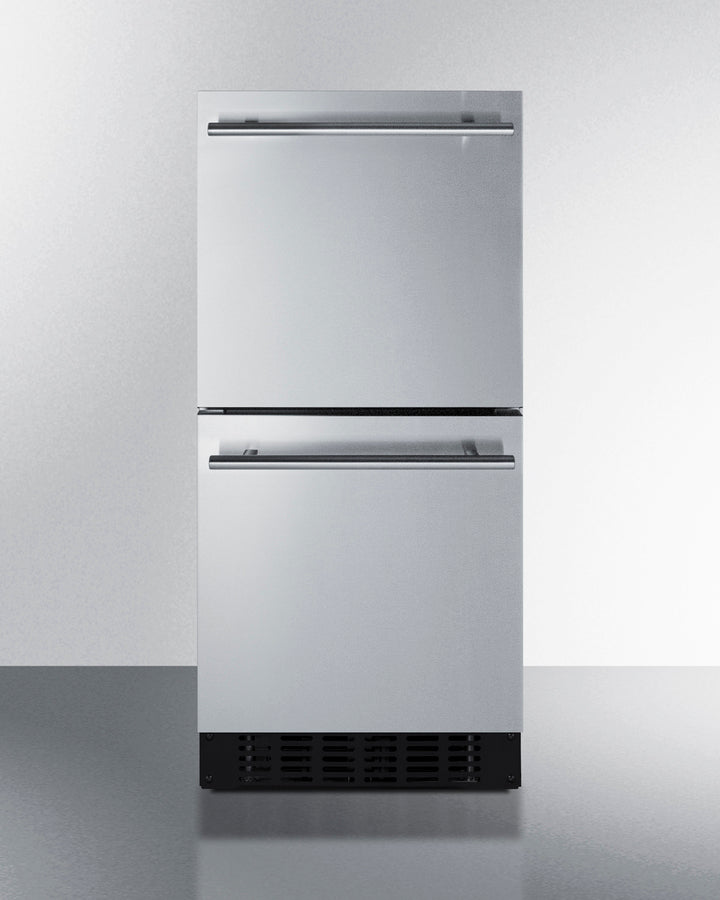

The Summit ASDR1524 is a 1.7 cu.ft. ADA-compliant two-drawer all-refrigerator designed for wet bars, kitchen islands, hospitality spaces, and commercial foodservice applications where depth is limited. Measuring just 14.75" wide and less than 18" deep, this frost-free refrigerator features fan-forced cooling, digital temperature controls, LED interior lighting, adjustable drawer dividers, temperature and open-drawer alarms, and durable stainless steel drawer construction with panel-ready fronts. Its front-breathing system allows built-in installation, while the fully finished cabinet also supports freestanding use.
Features

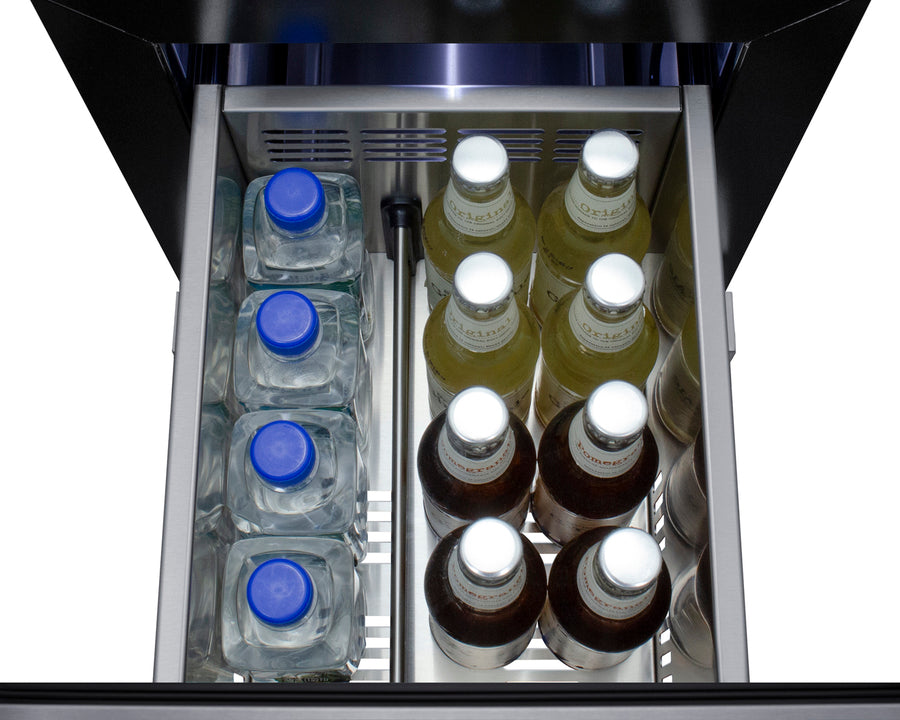

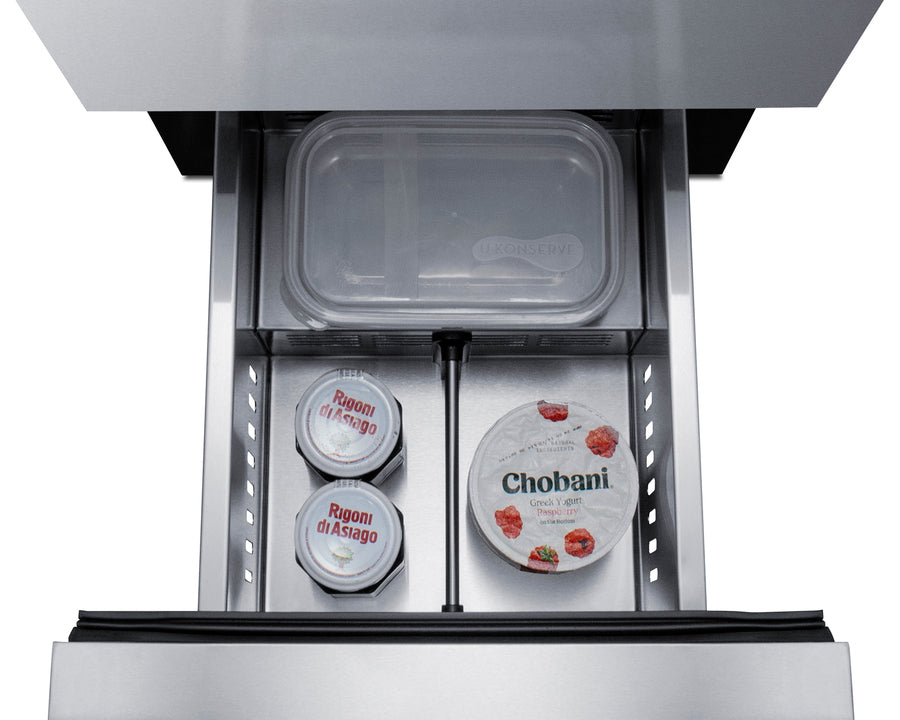

- 1.7 cu.ft. dual-drawer refrigerator with organized storage compartments
- ADA-compliant 32" height fits beneath accessible counters
- Frost-free operation eliminates manual defrost maintenance

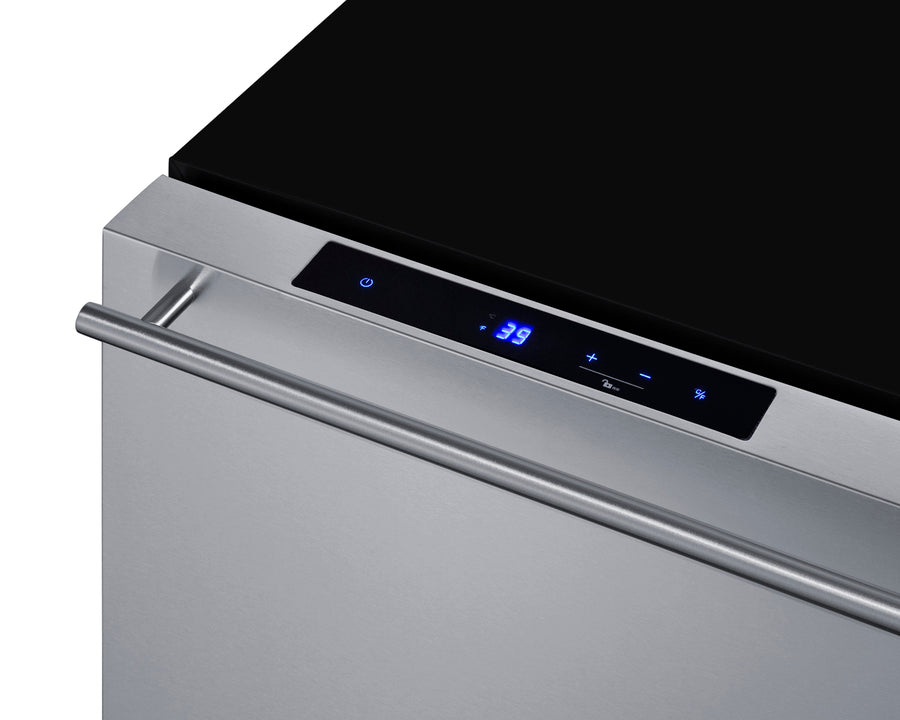

- Fan-forced cooling and digital thermostat maintain temperatures from 36°F to 43°F
- Open drawer alarm and temperature alarm help protect stored contents
-
ETL-S listed to NSF-7 standards for commercial applications
Specifications
Overview

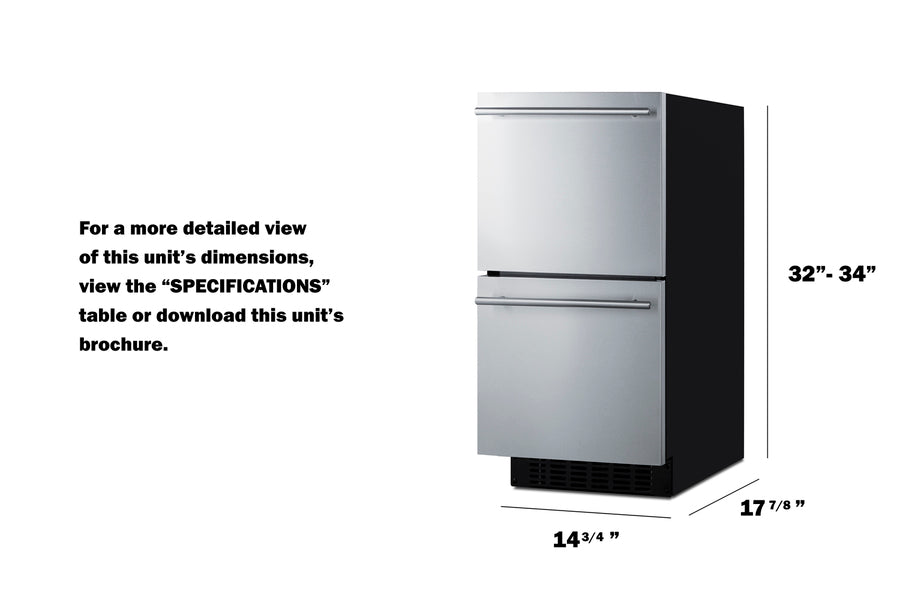

| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.88" (45 cm) |
| Depth with Handle | 19.0" (48 cm) |
| Depth with door at 90° | 29.63" (75 cm) |
| Capacity | 1.7 cu.ft. (48 L) |
| Defrost Type | Frost-Free |

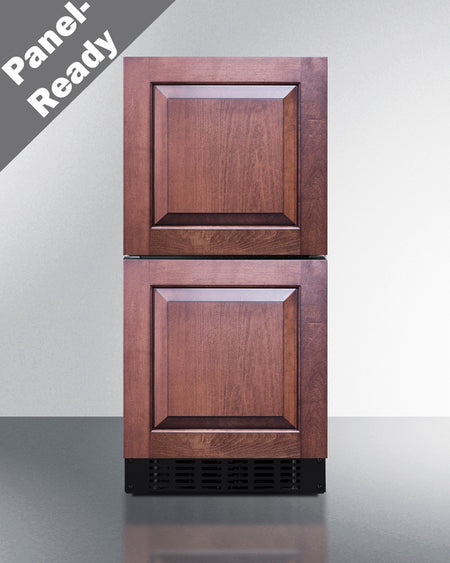

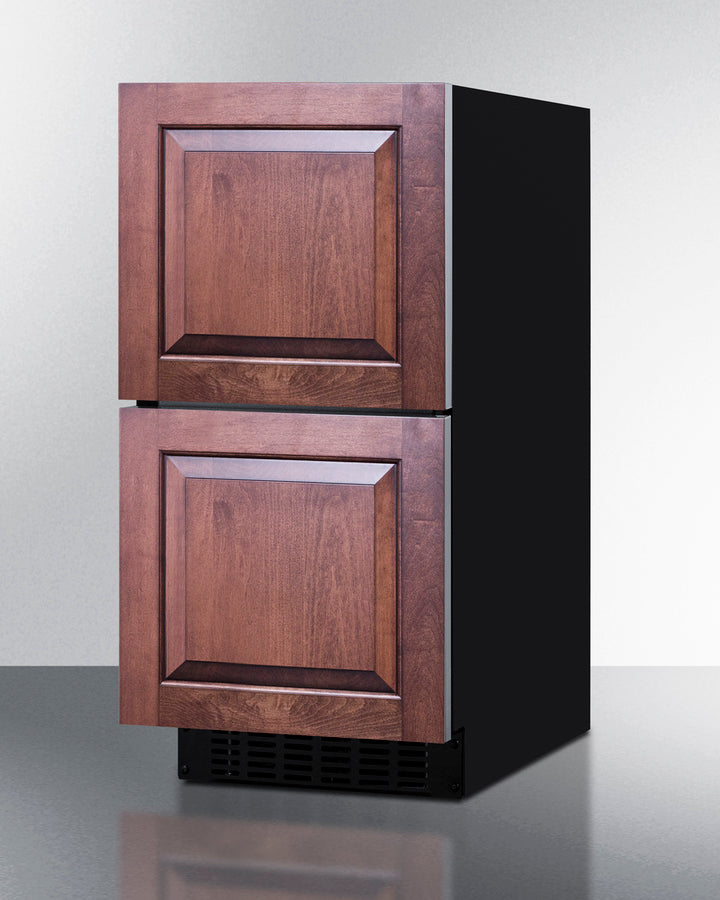

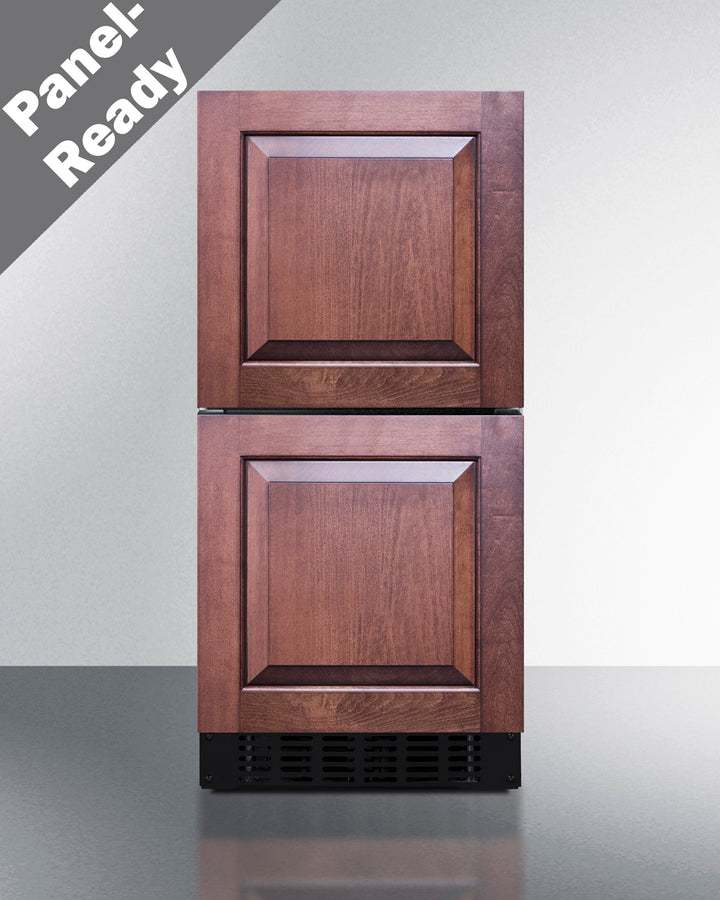

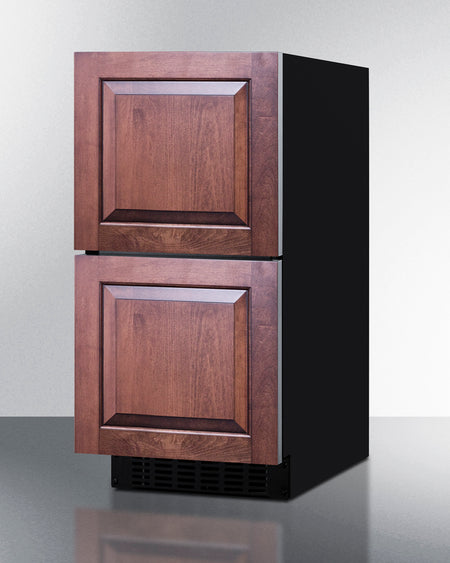

| Door | Stainless Steel/Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 235.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 65.0 lbs. (29 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101079530 |
Refrigerator-Freezer
| Sabbath Mode | Yes |
| Door Swing | Drawer |
| Height Adjustable | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |

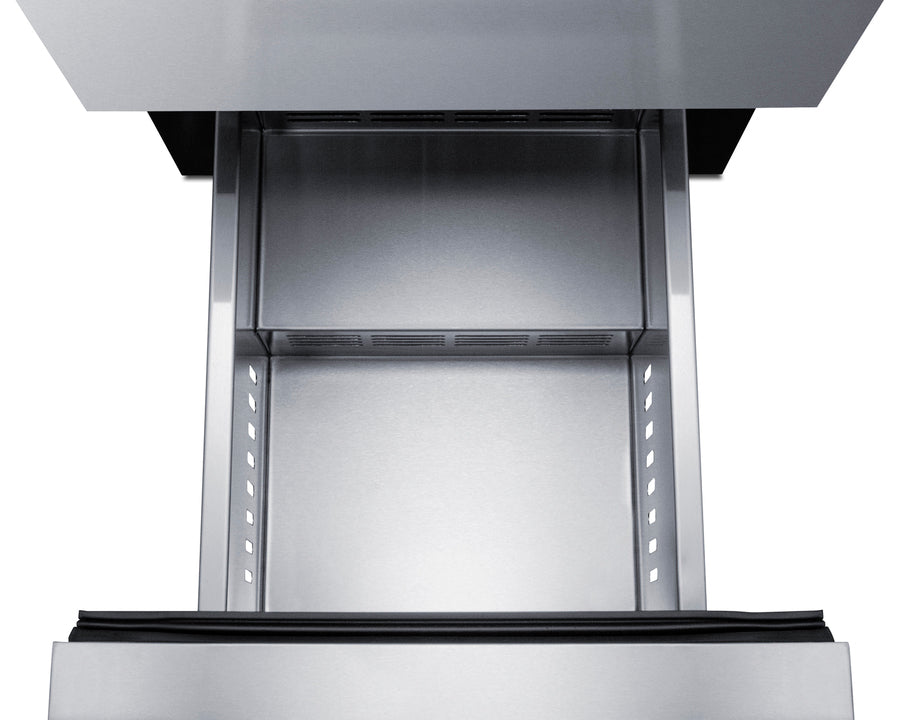

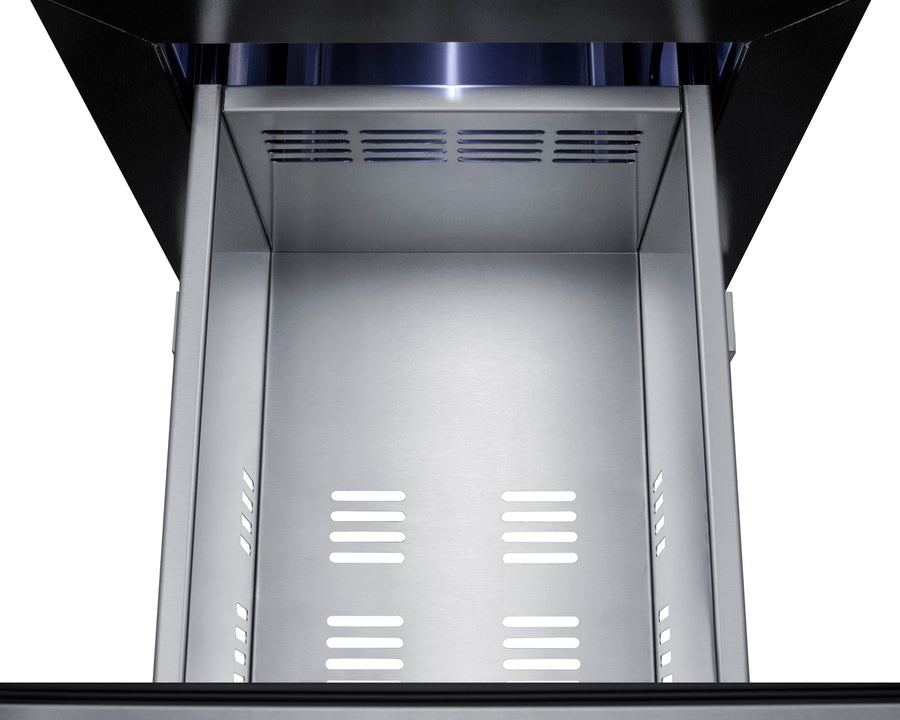

| Interior Drawers | Yes |
| Interior Drawers Qty | 2 |
| Temperature Range | 36 to 43ºF |
| Sound Level | 32.9 dB |
| Interior Height 1 | 8.0" (20 cm) |
| Interior Width 1 | 9.0" (23 cm) |
| Interior Depth 1 | 11.25" (29 cm) |
| Interior Height 2 | 8.0" (20 cm) |
| Interior Width 2 | 9.0" (23 cm) |
| Interior Depth 2 | 11.25" (29 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 9.0" (23 cm) |
| Compressor Step Depth | 4.75" (12 cm) |
