Summit ASDS1523IF 15" Wide 1.72 cu.ft. Built-In All-Refrigerator – ADA Compliant, Panel-Ready Stainless Steel
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
Summit Appliance Product Template
Description & Features

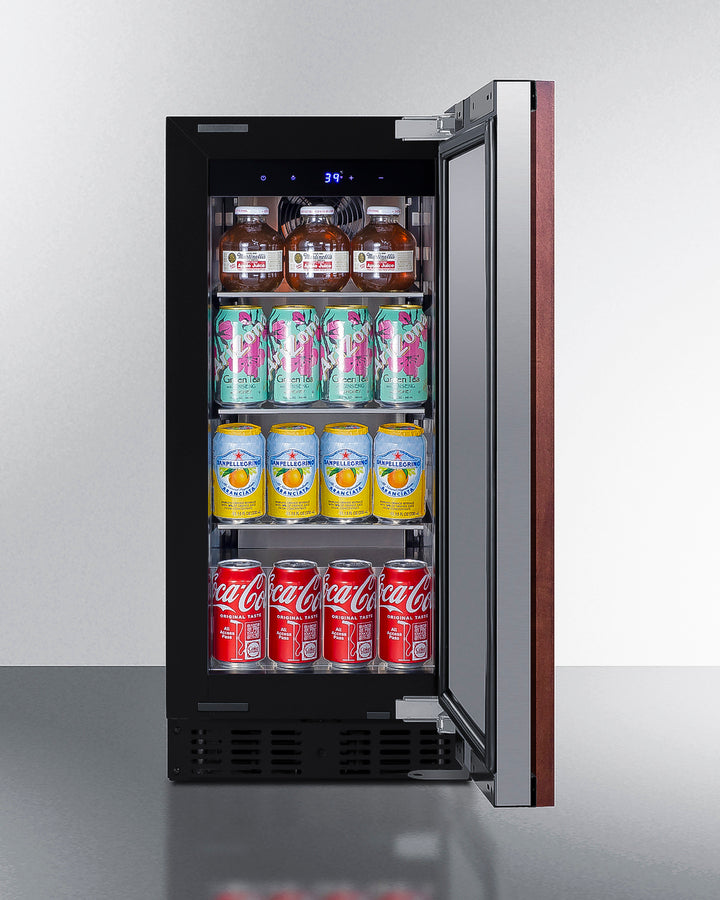

The Summit ASDS1523IF is a 1.72 cu.ft. shallow-depth all-refrigerator designed for residential or light commercial undercounter applications where space is limited. Measuring just 15" wide and under 18" deep, this ADA compliant refrigerator features frost-free operation, fan-forced cooling, digital temperature controls, adjustable glass shelving, and a panel-ready stainless steel door for seamless integration into cabinetry. Its built-in capable design, factory-installed lock, and alarm systems make it ideal for wet bars, island kitchens, and compact refrigeration installations.
Features
- 1.72 cu.ft. shallow-depth all-refrigerator with ADA compliant height
- Built-in capable front-breathing design for undercounter installation
- Frost-free defrost system eliminates manual defrosting

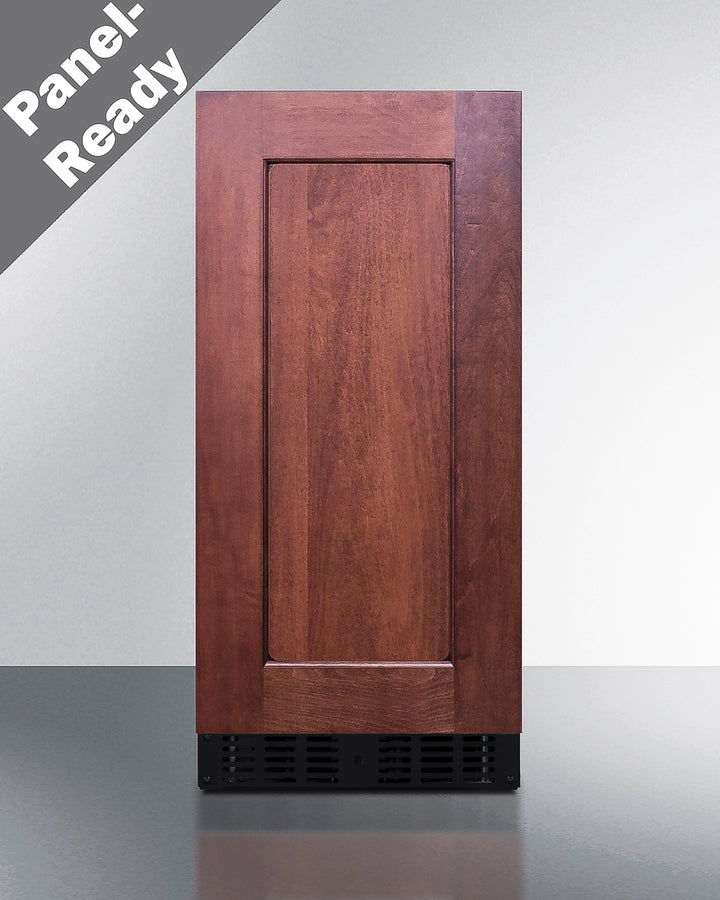

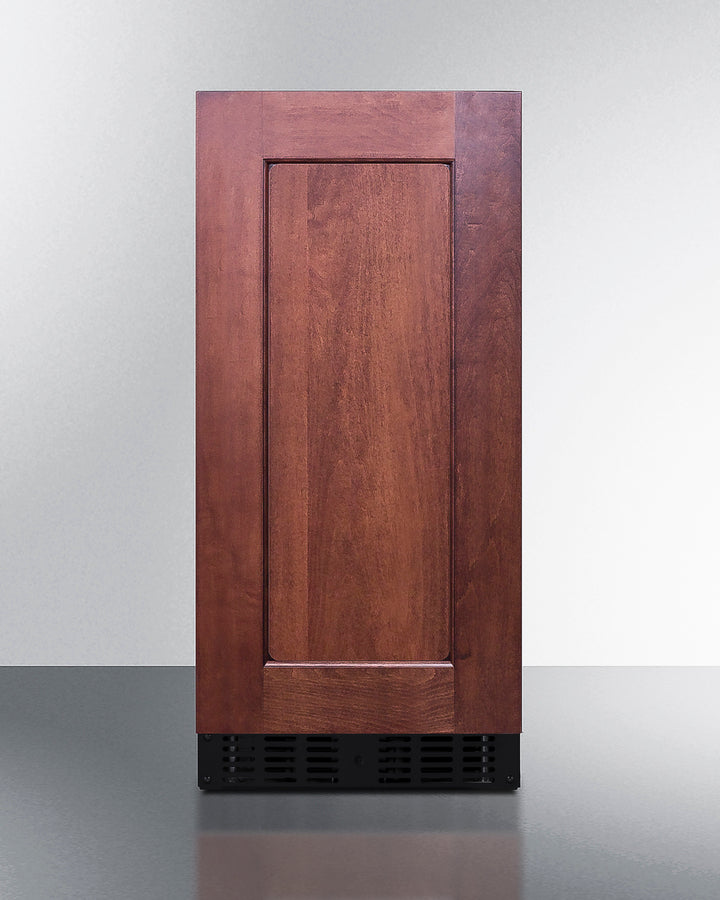

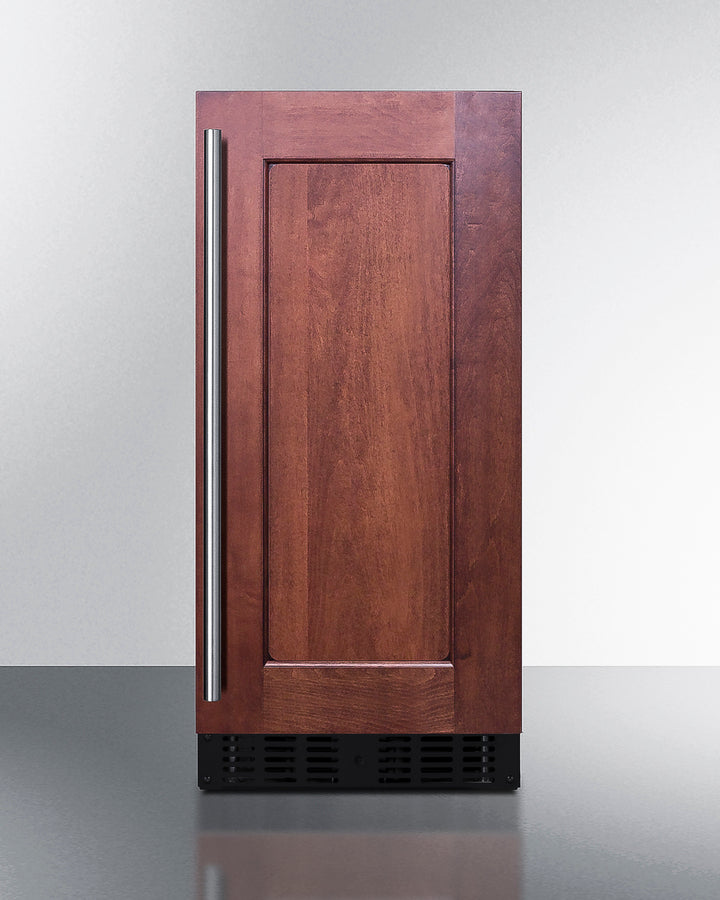

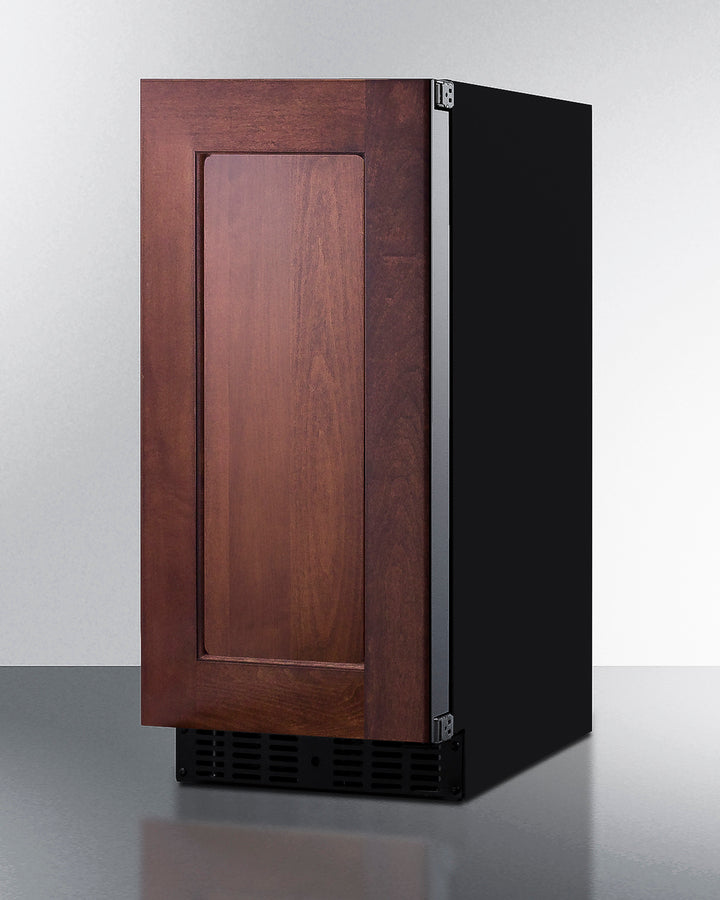

- Panel-ready stainless steel door with reversible swing
- Fan-forced cooling for even temperature performance
- Factory-installed lock, open door alarm, and high temperature alarm
Specifications
Overview

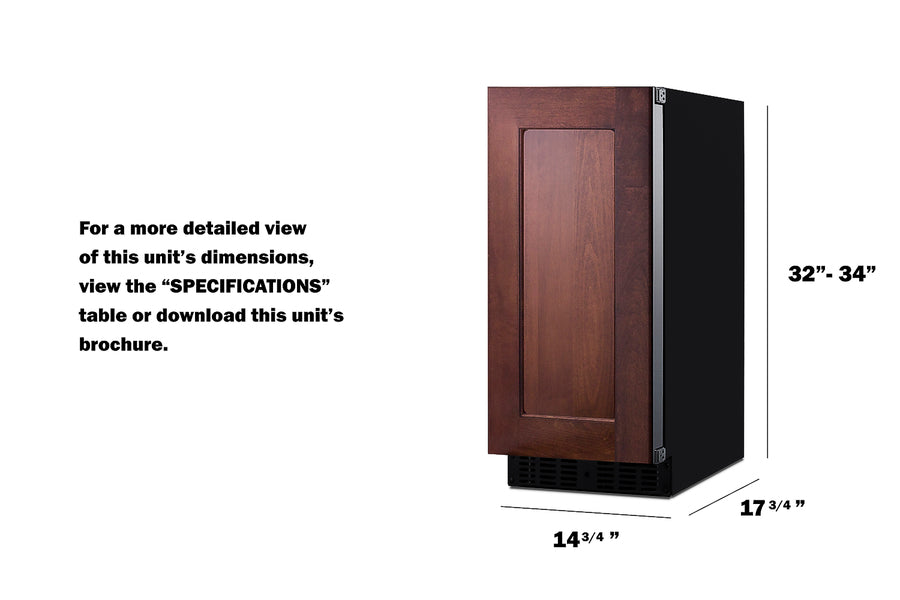

| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.75" (45 cm) |
| Depth with door at 90° | 31.25" (79 cm) |
| Capacity | 1.72 cu.ft. (49 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 235.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 59.0 lbs. (27 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101088815 |
Refrigerator-Freezer
| Sabbath Mode | Yes |
| Door Swing | Reversible |
| Reversible | Yes |
| Height Adjustable | Yes |

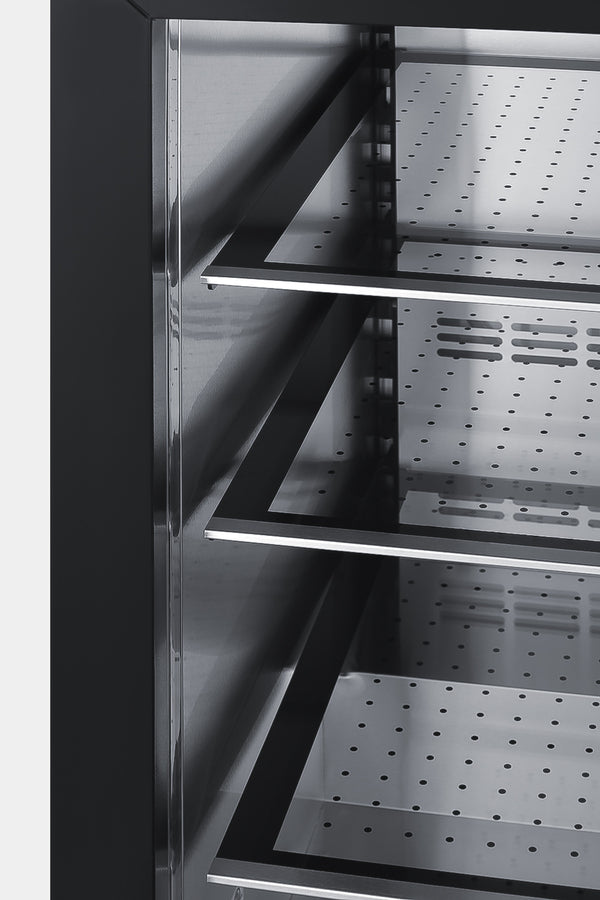

| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |

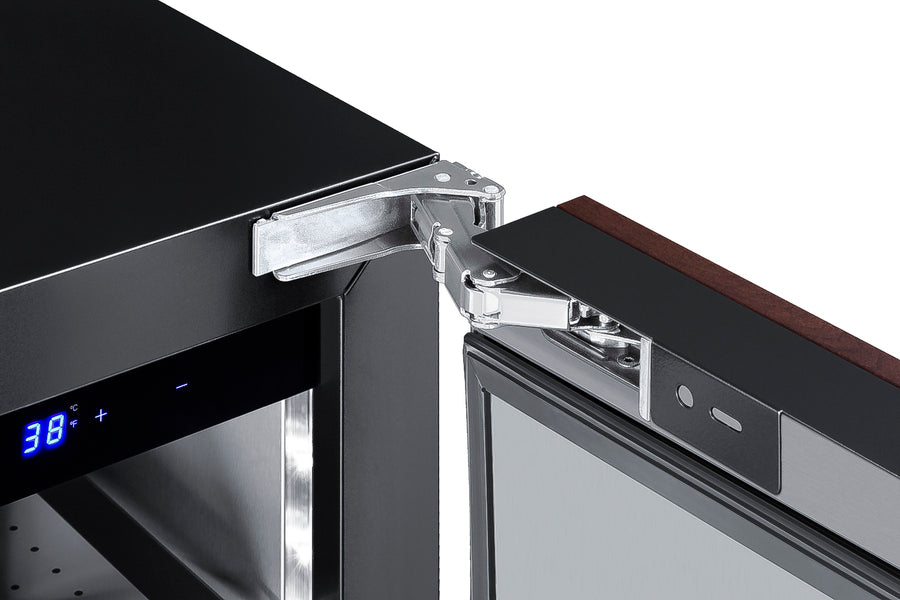

| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |

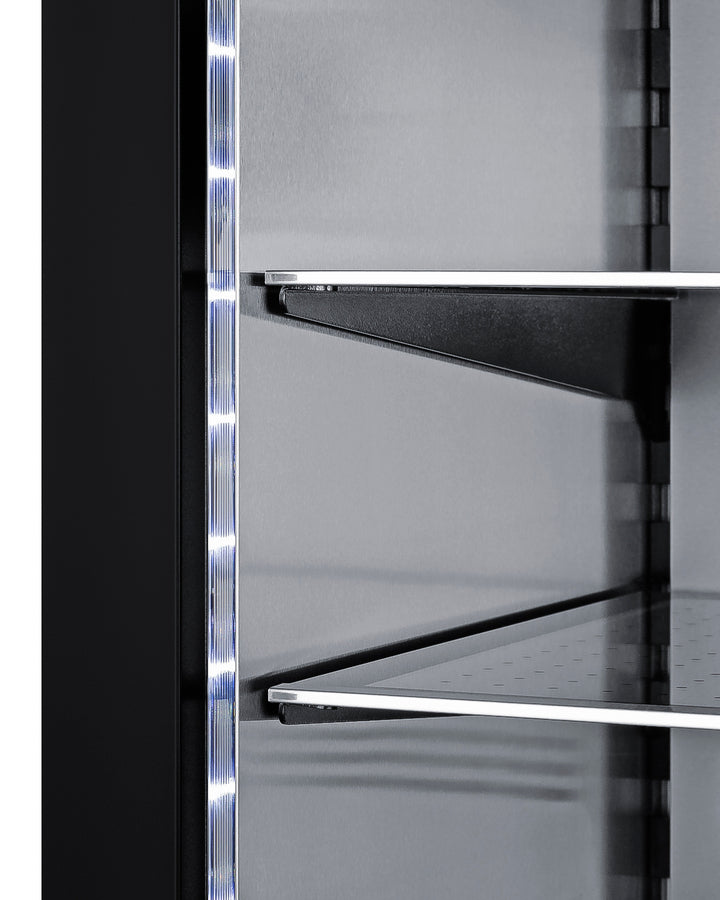

| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 33 dB |
| Interior Height | 24.25" (62 cm) |
| Interior Width | 10.75" (27 cm) |
| Interior Depth | 12.38" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 10.75" (27 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
