Summit ASDW1522PNR 15" Wide 1.8 Cu.Ft. ADA Compliant Built-In Wine Cellar – Panel-Ready, Shallow Depth, Black Cabinet
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
Summit Appliance Product Template
Description & Features

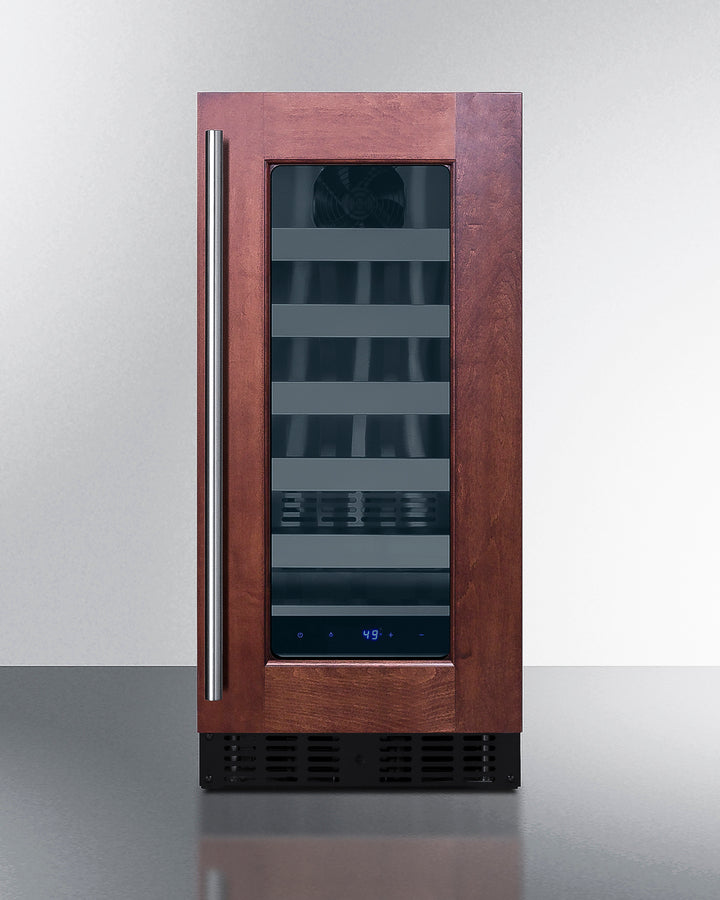

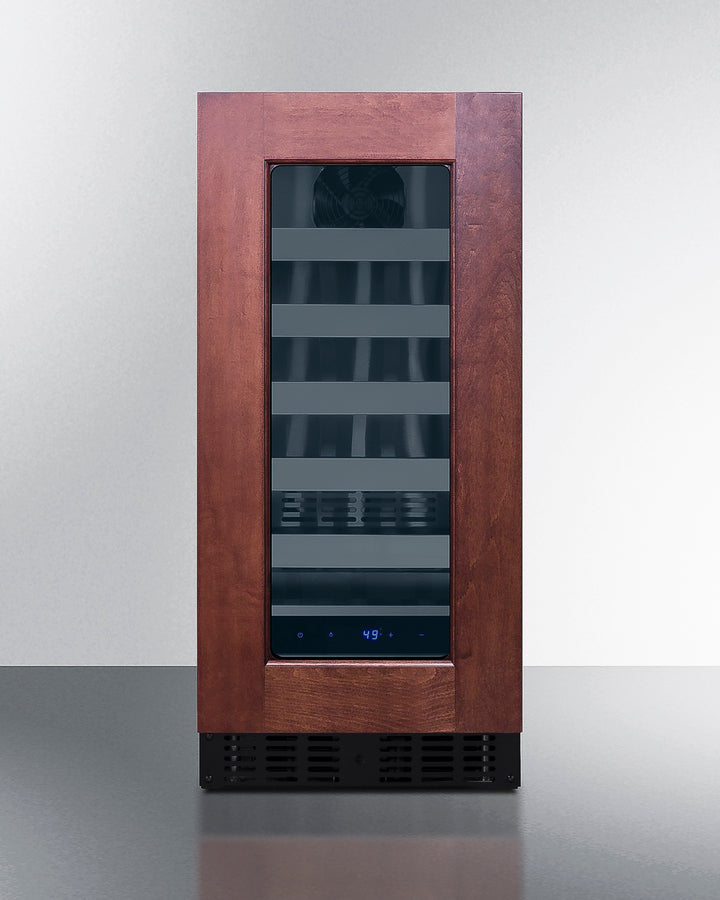

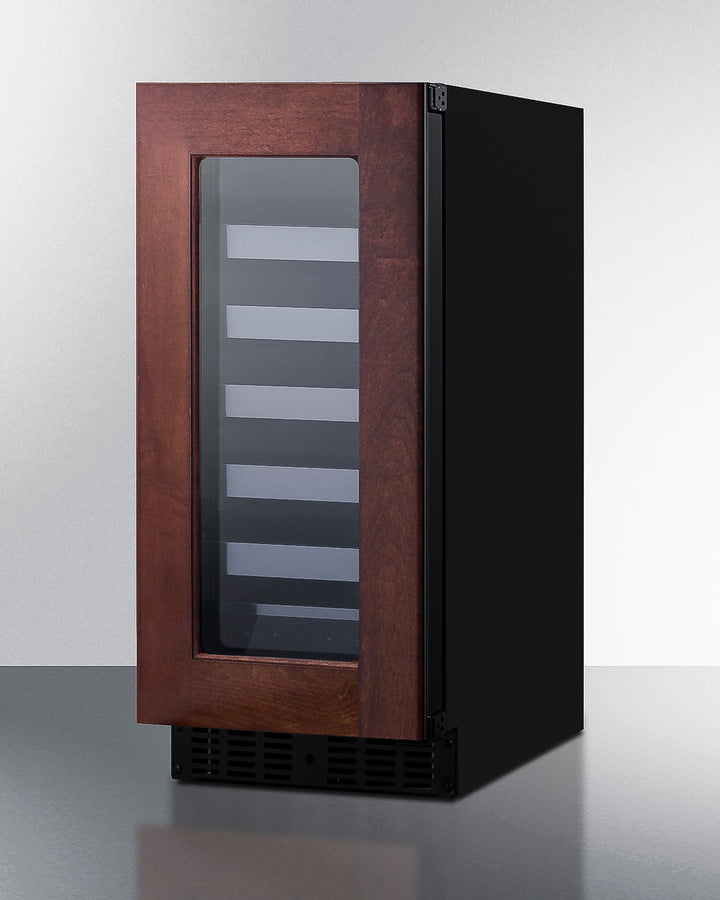

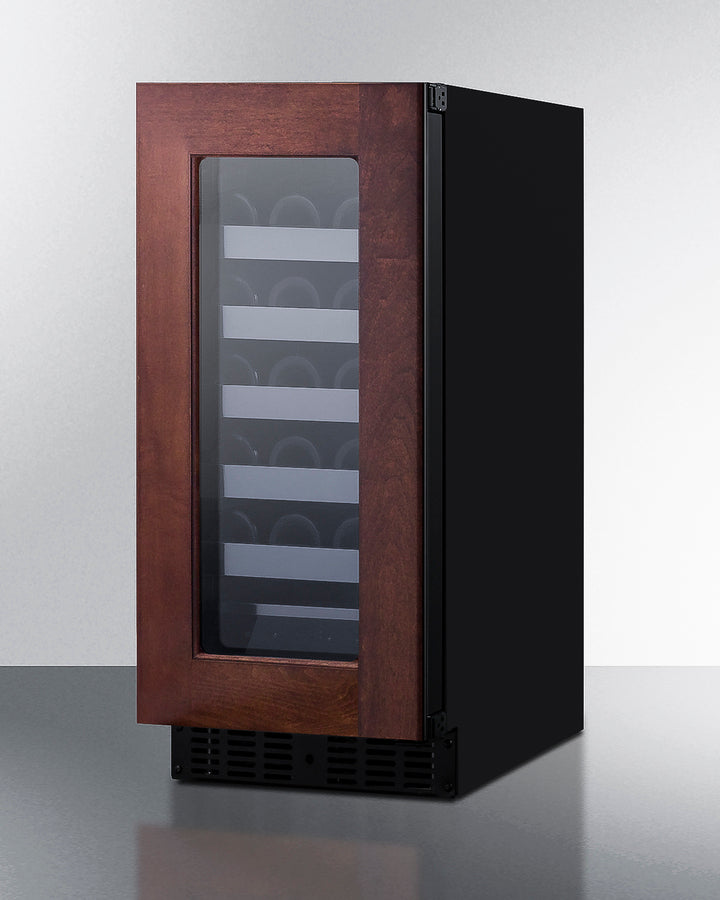

The Summit ASDW1522PNR is a 15-inch wide ADA-compliant built-in wine cellar designed for compact undercounter installations in kitchens, wet bars, and island cabinetry. It offers a 1.8 cu.ft. capacity holding up to 18 bottles and features a shallow 17.75-inch depth for tight spaces. The unit includes a single temperature zone with digital controls, automatic defrost, fan-forced cooling, LED lighting, and a panel-ready glass door framed in stainless steel for a seamless cabinetry match.
Features
- 18-bottle single-zone wine storage capacity
- ADA-compliant 32" height for low counter installations
- Shallow 17.75" depth for tight built-in spaces

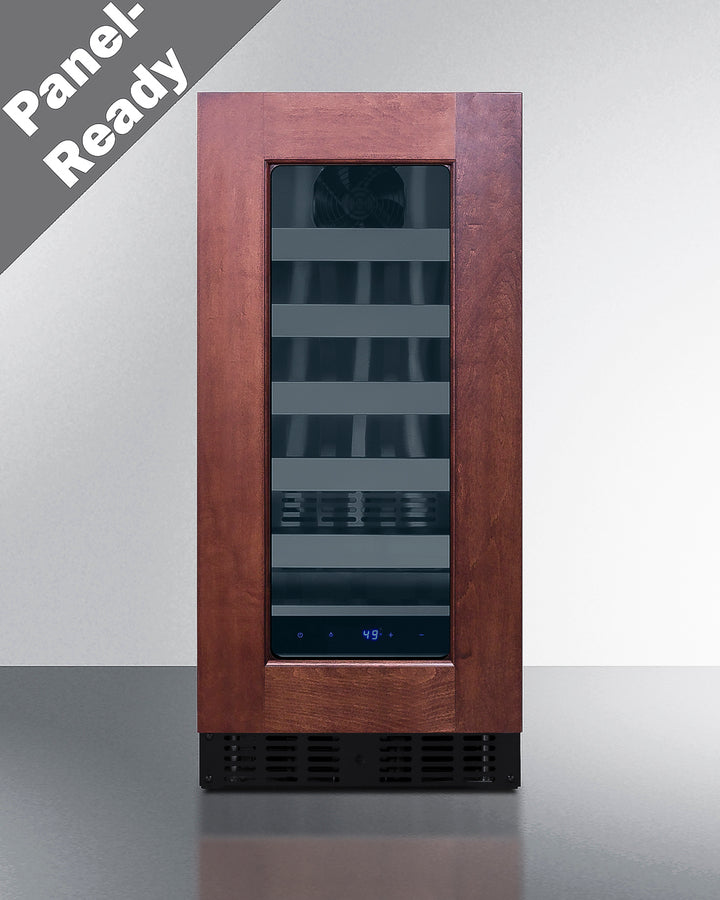

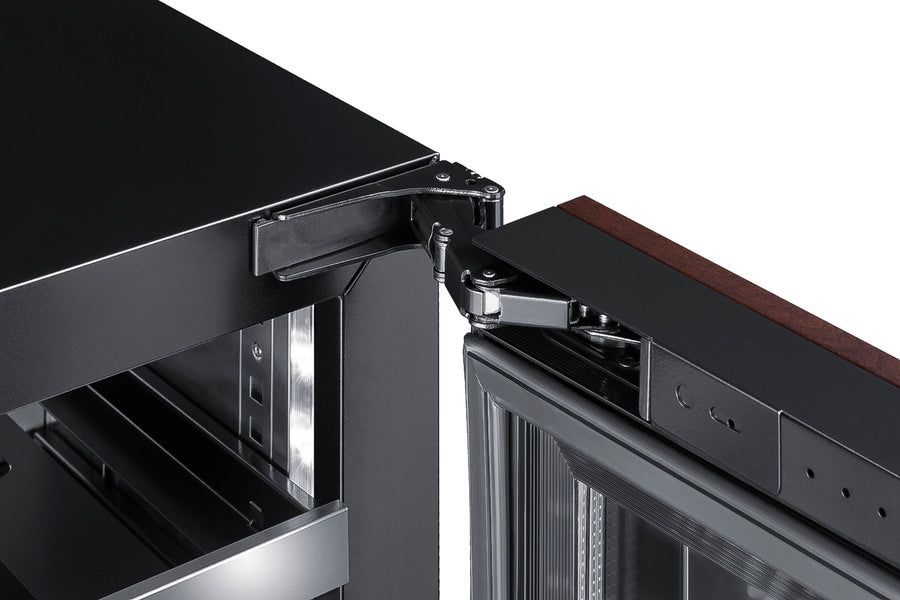

- Panel-ready glass door with stainless steel trim frame
- Automatic defrost operation for low maintenance
- Digital thermostat with 41°F–64°F temperature range
- Interior and exterior fan-forced cooling system

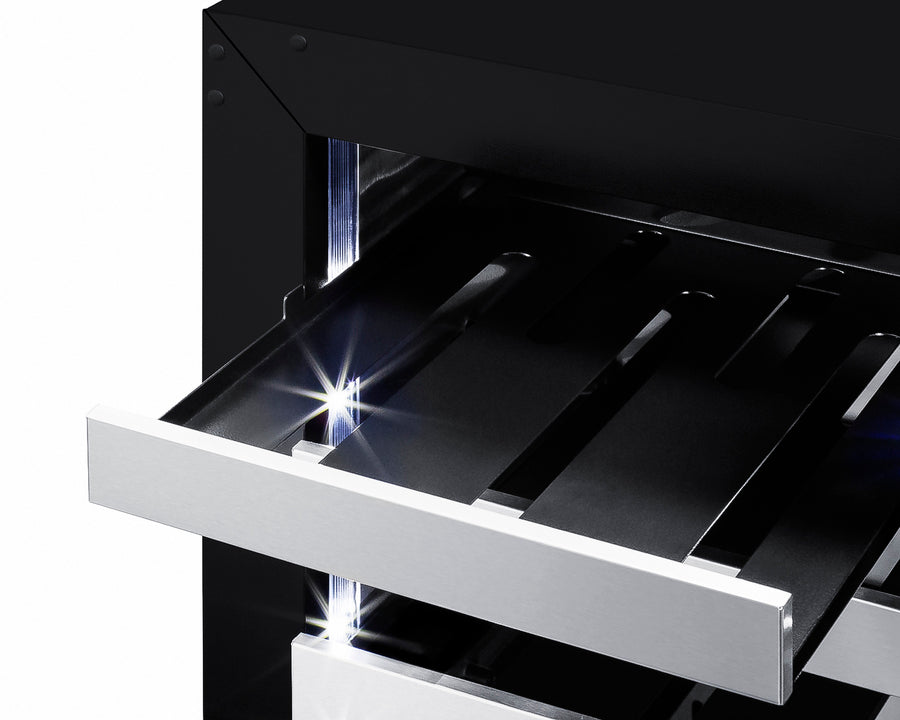

- LED interior lighting with dimmable settings
- Factory-installed lock for secure storage
- Reversible door swing for flexible installation
Specifications
Overview

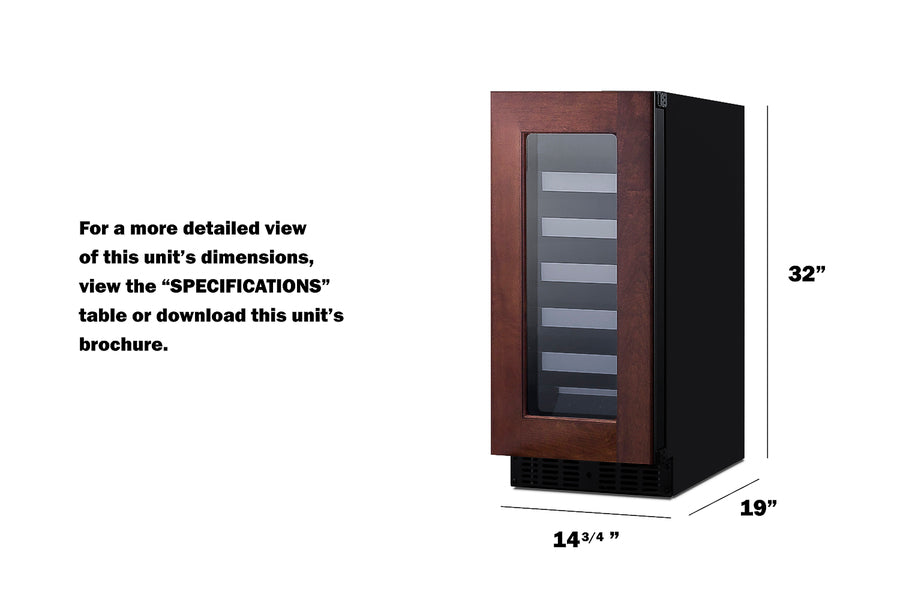

| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.75" (45 cm) |
| Depth with door at 90° | 31.0" (79 cm) |
| Capacity | 1.8 cu.ft. (51 L) |
| Bottles | 18 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 68.0 lbs. (31 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101077154 |
Refrigerator-Freezer
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Adjustable Shelves | Yes |

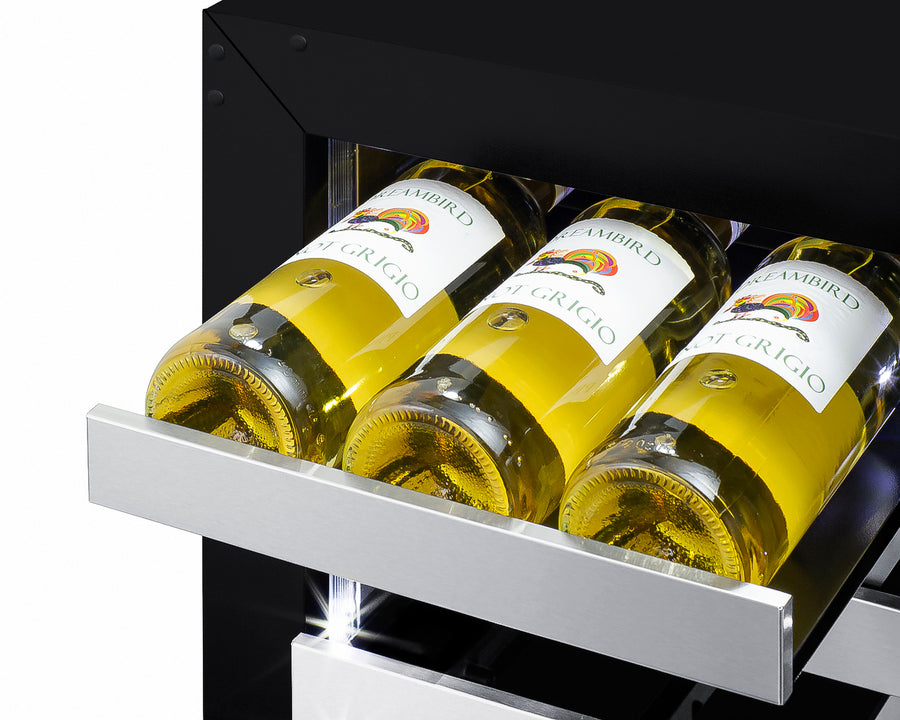

| Shelf Type | Steel |

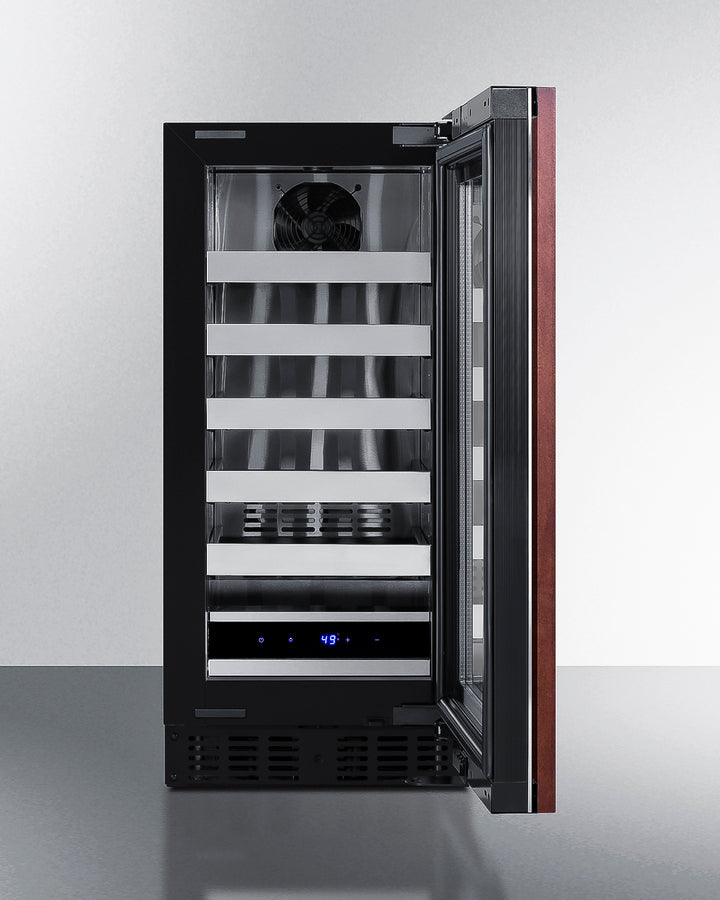

| Shelf Qty | 5 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 20.5" (52 cm) |
| Interior Width 1 | 10.75" (27 cm) |
| Interior Depth 1 | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 10.75" (27 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
| Temperature Range | 41º to 64ºF |
| Sabbath Mode | Yes |
| Sound Level | 33 dB |
