Description & Features
The Summit BAR631BKY is a 24" wide built-in beverage center designed for residential kitchens, home bars, and hospitality settings. Featuring a 5.5 cu.ft. capacity, automatic defrost operation, digital temperature controls, fan-forced cooling, and a panel-ready drawer-style front, this undercounter refrigerator offers flexible beverage storage with a seamless integrated appearance.
Features
- Built-in capable undercounter design with front-breathing system

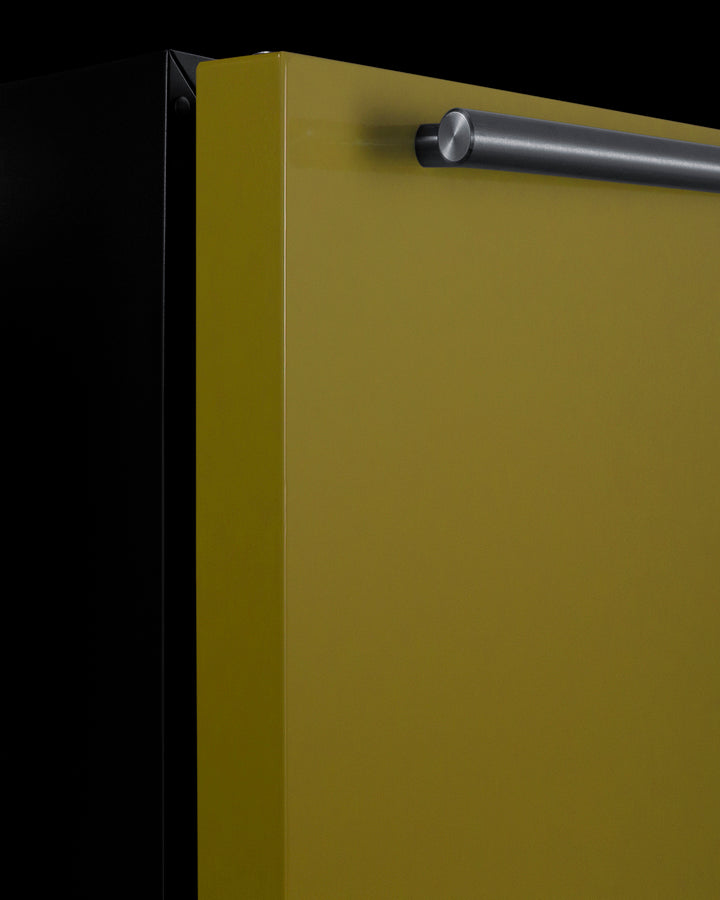

- Panel-ready drawer front allows custom overlay installation
- Automatic defrost operation minimizes maintenance
- Digital thermostat with LED temperature display
- Fan-forced cooling for even interior temperature distribution
- Stainless steel trim with professional drawer-style access
Specifications
Overview
| Nominal Height | 33.0" (84 cm) |
| Height of Cabinet | 32.63" (83 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 23.0" (58 cm) |
| Depth with Handle | 24.5" (62 cm) |
| Depth with door at 90° | 45.25" (115 cm) |
| Capacity | 5.8 cu.ft. (164 L) |
| Defrost Type | Automatic |
| Door | Yellow |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 280.0kWh/year |
| Amps | 0.9 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101087924 |
Refrigerator-Freezer
| Door Swing | RHD |
| Reversible | Yes |
| Crisper Qty | 1 |
| Crisper Finish | Opaque |
| Crisper Cover | Glass |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Wine Bottle Shelves | Yes |
| Thermostat Type | Dial |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Interior Light | Yes |
| Interior Height | 26.25" (67 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
