Summit BIM63OSADA 14.75" Wide 68 lb. Outdoor Clear Icemaker – ADA Compliant, Stainless Steel
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
Summit Appliance Product Template
Description & Features
The Summit BIM63OSADA is a 15-inch ADA-compliant outdoor clear icemaker designed for residential and commercial outdoor kitchens, bars, patios, and entertainment spaces. Producing up to 68 pounds of gourmet top-hat ice per day and storing up to 26 pounds, it features weatherproof stainless steel construction, automatic defrost operation, a factory-installed drain pump, adjustable ice cube sizing, and flexible built-in or freestanding installation.
Features
- Produces up to 68 lbs. of gourmet clear top-hat ice per day
- Stores up to 26 lbs. of ice in an insulated bin
- ADA-compliant 32" height for lower counter installations
- Built-in drain pump for flexible placement
- Automatic defrost system minimizes maintenance
- Weatherproof stainless steel construction for outdoor use
- Adjustable ice size selection with three cube size options
- ETL-S commercial sanitation listed and suitable for residential or commercial applications
Specifications
Overview

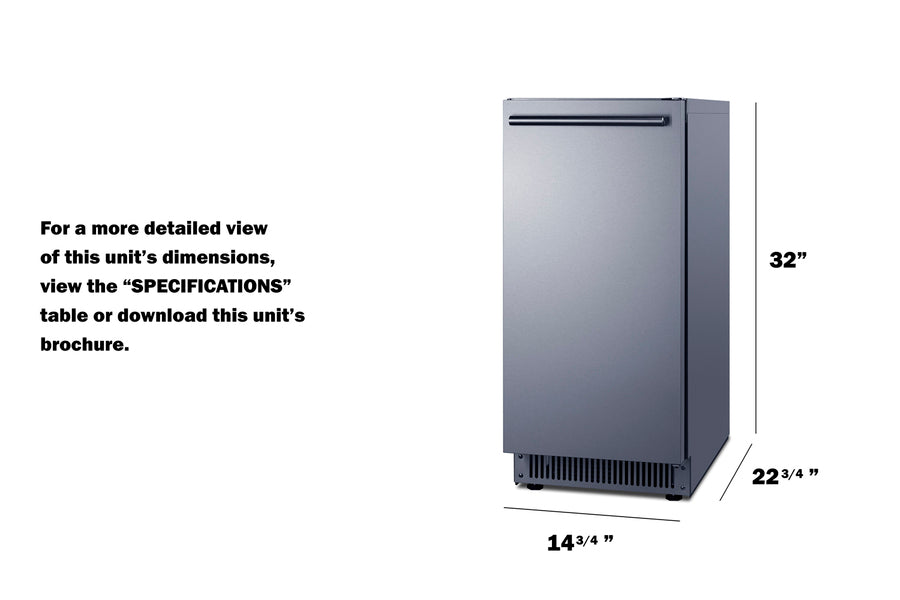

| Height of Cabinet | 32.0" (81 cm) |
| Width | 14.75" (37 cm) |
| Depth | 22.75" (58 cm) |
| Depth with Handle | 24.75" (63 cm) |
| Depth with door at 90° | 38.13" (97 cm) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 6.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101156224 |
Refrigerator-Freezer
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Drain Required | Yes |
| Daily Ice Production | 68.0 lbs. (31 kg) |
| Ice Storage Capacity | 26.0 lbs. (12 kg) |

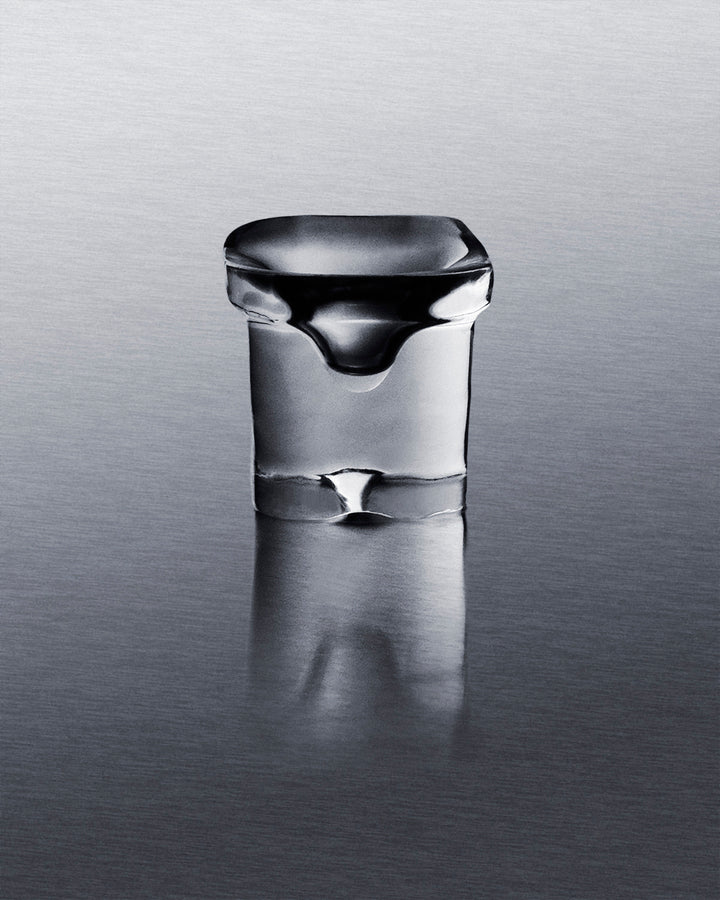

| Ice Shape | Top hat |
| Size of Cube | 1 1/4" H x 1 1/8" W x 1 1/8" D |
| Number of Ice Cube Sizes | 3 |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.58 oz. |
| Interior Height | 19.75" (50 cm) |
| Interior Width | 12.25" (31 cm) |
| Interior Depth | 15.5" (39 cm) |
| Level Legs | 4 |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
