Summit BIM68OSGDR 15″ Wide Undercounter Clear-Ice Maker – Stainless Steel Cabinet, 47 lb/Day Production
Customer service
Features
- SKU SA-BIM68OSGDR
Summit's commercially listed BIM68OS series icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any indoor or outdoor location.

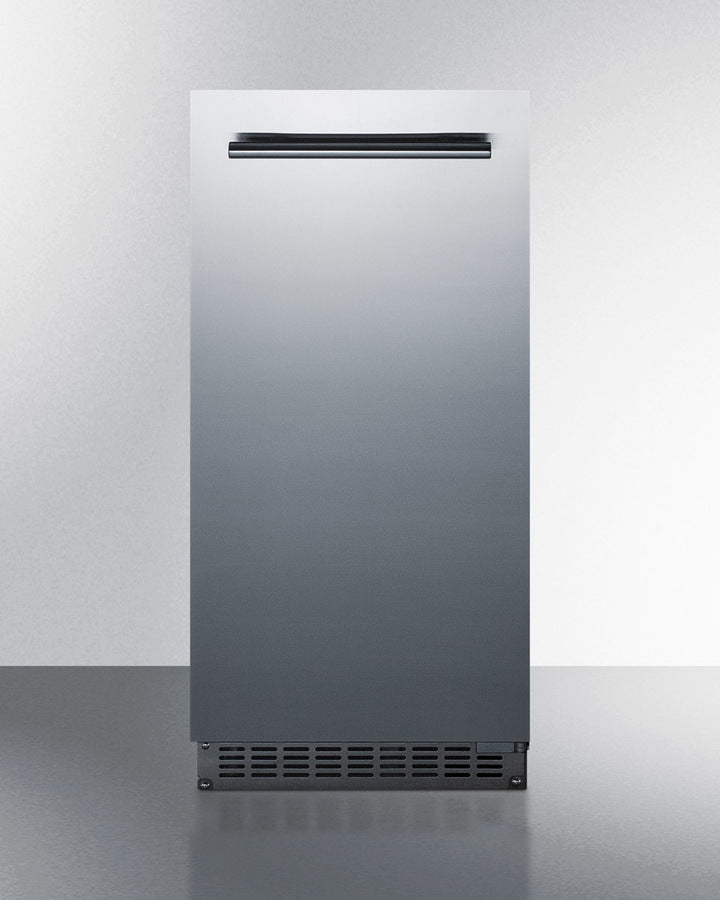

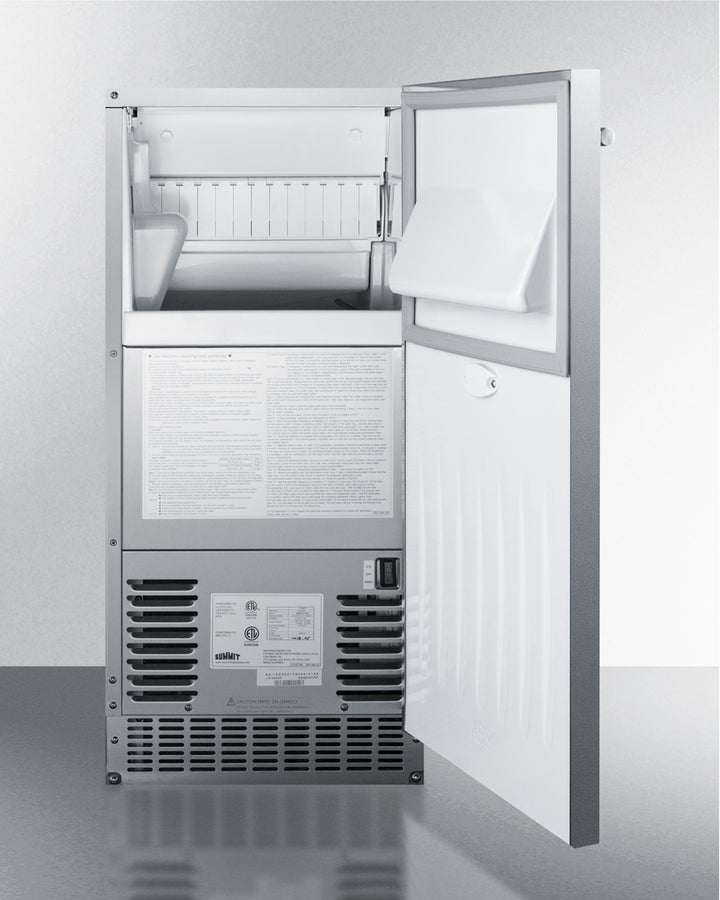

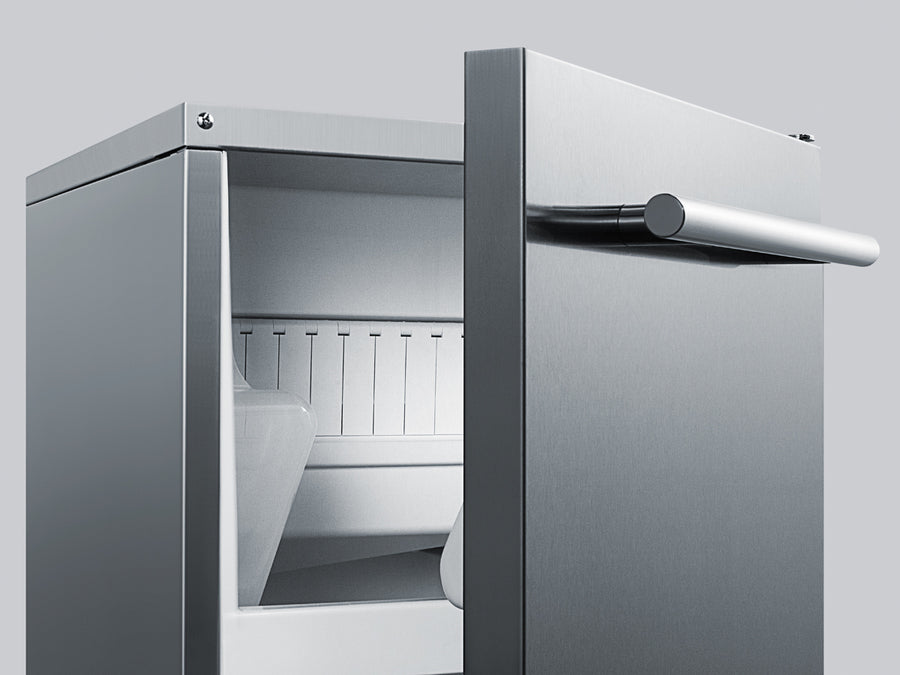

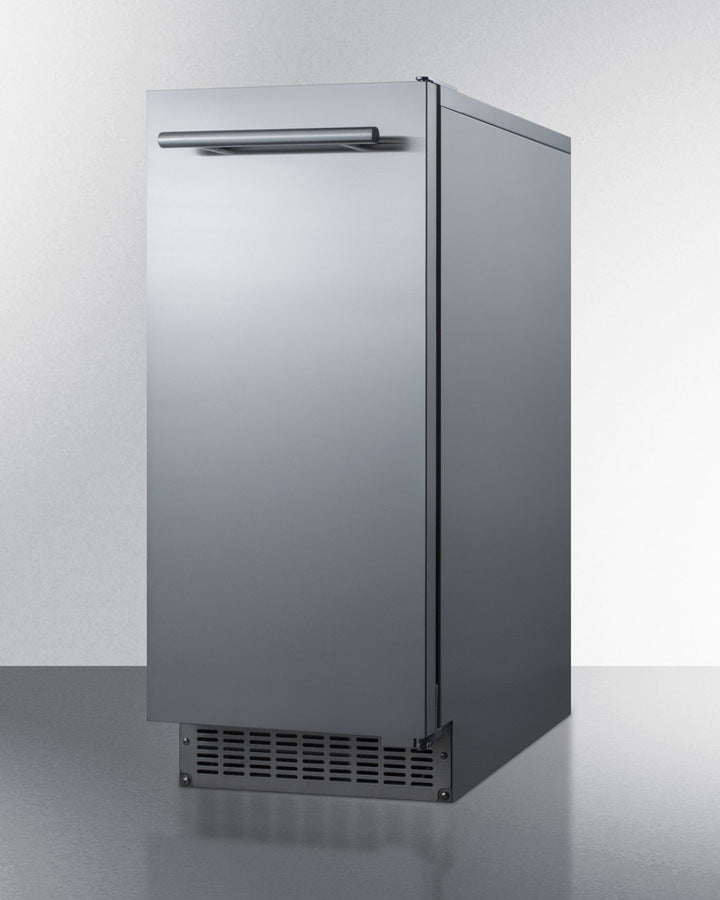

Sized at 15" wide, the BIM68OSGDR features a complete 304 grade stainless steel exterior specially built to hold up to the elements. The user-reversible door is designed with a powerful magnetic gasket to ensure proper insulation, with a stainless steel handle mounted horizontally for a modern look. The front-breathing design allows built-in installation under counters, while the fully finished stainless steel cabinet also allows freestanding use, with a sealed back for added outdoor protection and easier cleanup. This model utilizes a gravity drain system.

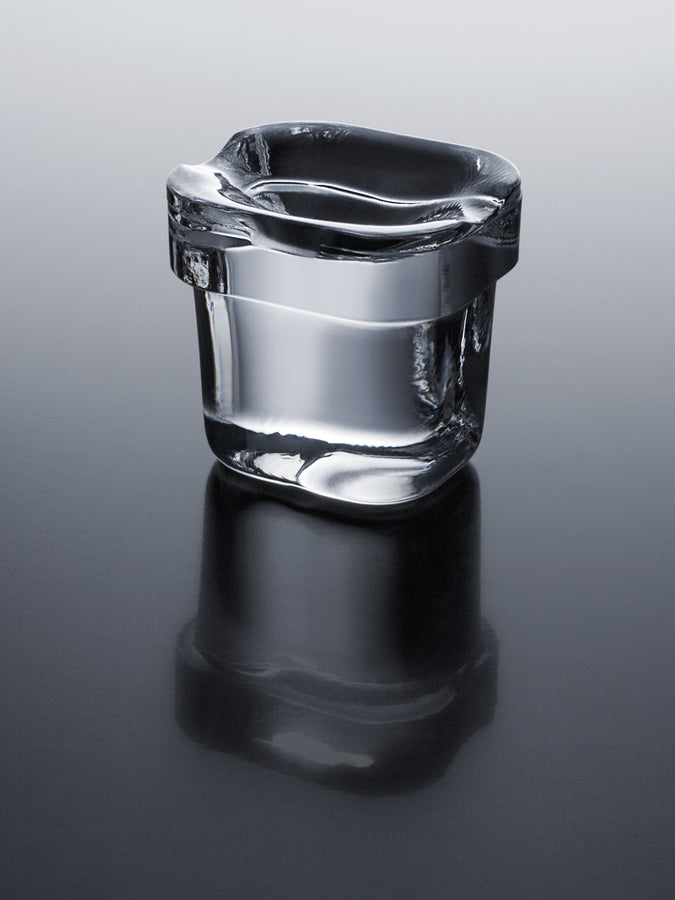

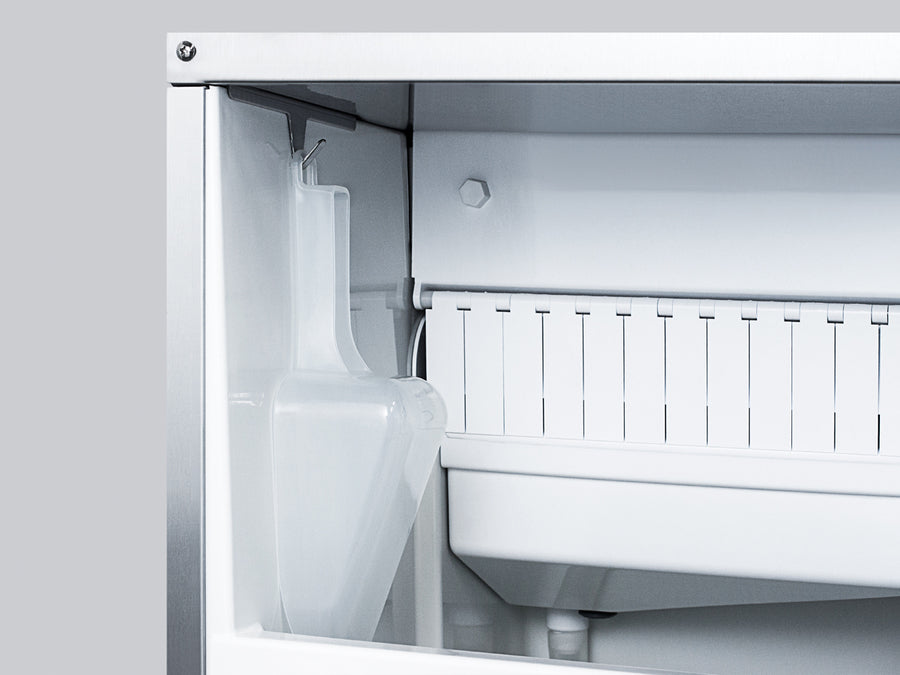

The BIM68OSGDR produces clear gourmet dice-style ice cubes, perfect for keeping any beverage cold without diluting the flavor. Under standard operating conditions, this unit can make up to 47 lbs. in a day cycle, while the storage bin can hold up to 26 lbs at a time. We include an ice scoop that can be hung inside for easy use. Frost-free operation eliminates the need to defrost the interior.
Designed and manufactured for us in South Korea, the BIM68OSGDR is UL-S listed to NSF-12 commercial standards for use in foodservice settings. The weatherproof constructed allows outdoor use, but this model can also be installed indoors in any kitchen or wet bar. A panel-ready version (BIM68OSGDRIF) will be available later this year.
NOTE: This unit requires professional installation. Drain hose and other connection equipment is not included.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 34.0" (86 cm) | Door Swing | RHD |
| Height of Cabinet | 33.5" (85 cm) | Reversible | Yes |
| Height to Hinge Cap | 33.63" (85 cm) | Daily Ice Production | 47.0 lbs. (21 kg) |
| Nominal Width | 15.0" (38 cm) | Ice Storage Capacity | 26.0 lbs. (12 kg) |
| Width | 14.88" (38 cm) | Ice Shape | Top hat |
| Nominal Depth | 23.0" (58 cm) | Size of Cube | 1 1/4" H x 1 1/8" W x 1 1/8" D |
| Depth | 22.63" (57 cm) | Number of Ice Cube Sizes | 1 |
| Depth with Handle | 24.5" (62 cm) | Fan Type | Exterior |
| Depth with door at 90° | 37.25" (95 cm) | Refrigerant Type | R600a |
| Capacity | 0.98 cu.ft. (28 L) | Refrigerant Amount | 3.5 oz. |
| Defrost Type | Frost-Free | High Side PSI | 127.0 |
| Door | Stainless Steel | Low Side PSI | 40.0 |
| Cabinet | Stainless Steel | Interior Height | 12.75" (32 cm) |
| US Electrical Safety | UL | Interior Width | 12.75" (32 cm) |
| Canadian Electrical Safety | ULC | Interior Depth | 9.25" (23 cm) |
| Sanitation | UL-S | Level Legs | 4 |
| Amps | 1.7 | ||
| Voltage/Frequency | 115 V AC/60 Hz | ||
| Weight | 105.0 lbs. (48 kg) | ||
| Parts & Labor Warranty | 1 Year | ||
| Compressor Warranty | 5 Years | ||
| UPC | 761101057088 |
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
