Description & Features

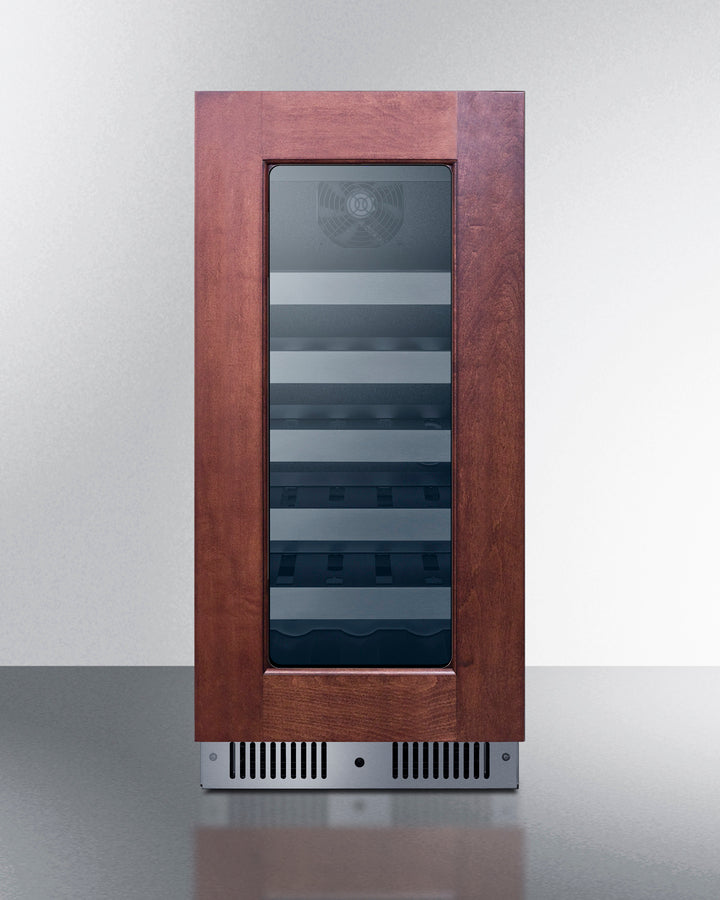

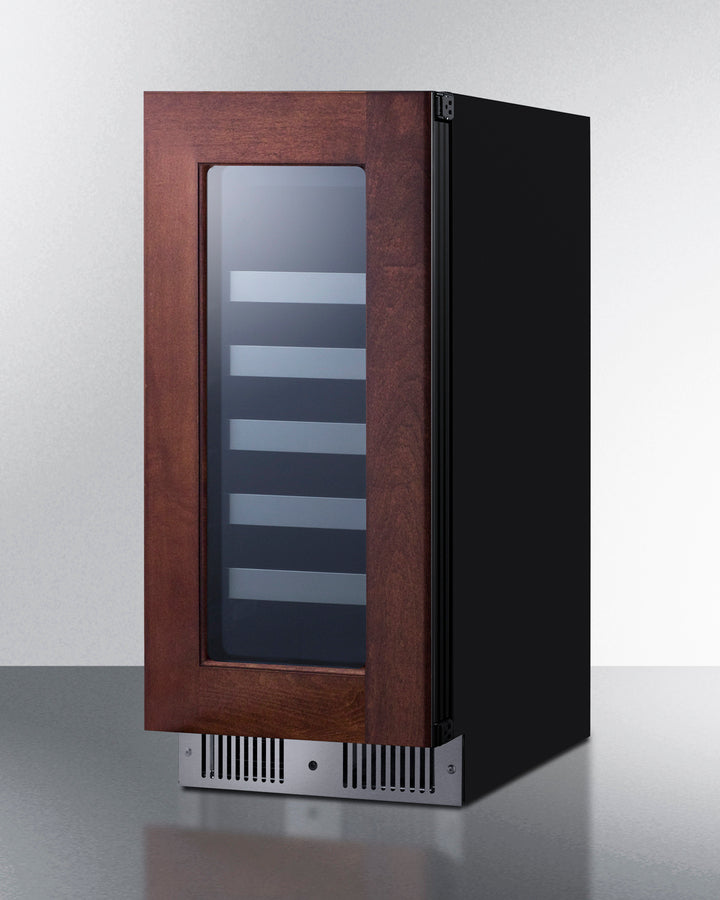

The Summit CL155WC1PNR is a 15-inch single-zone wine cellar designed for built-in or freestanding installation in kitchens, home bars, and entertainment areas. With storage for up to 20 bottles, this panel-ready model features automatic defrost operation, digital temperature controls, fan-forced cooling, LED lighting, steel shelving with stainless steel trim, a factory-installed lock, and a customizable door frame that blends seamlessly with surrounding cabinetry.
Features
- Stores up to 20 wine bottles

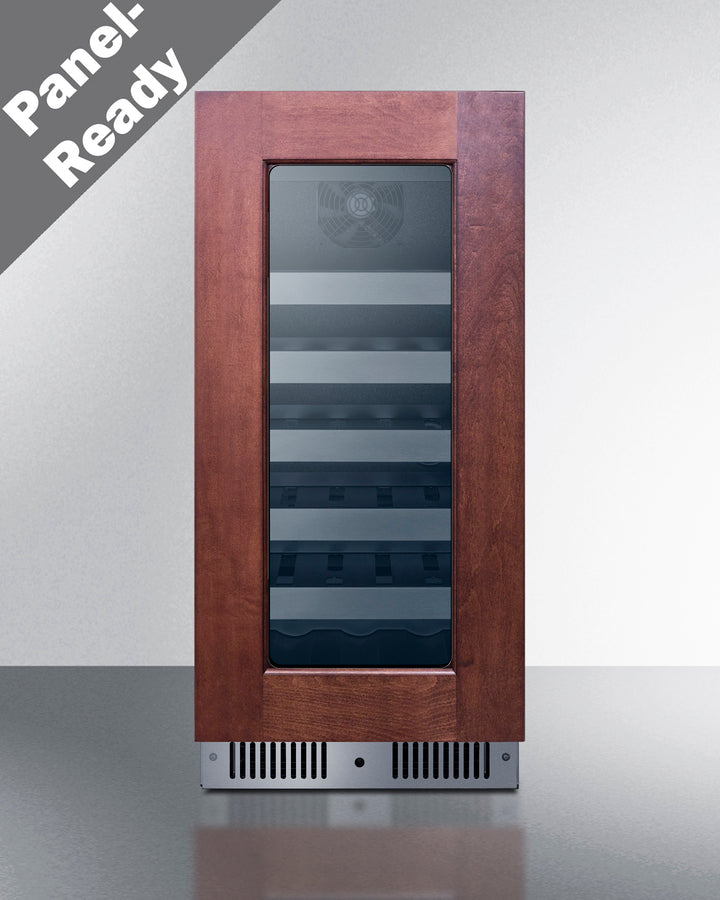

- Panel-ready glass door accepts custom overlay panels

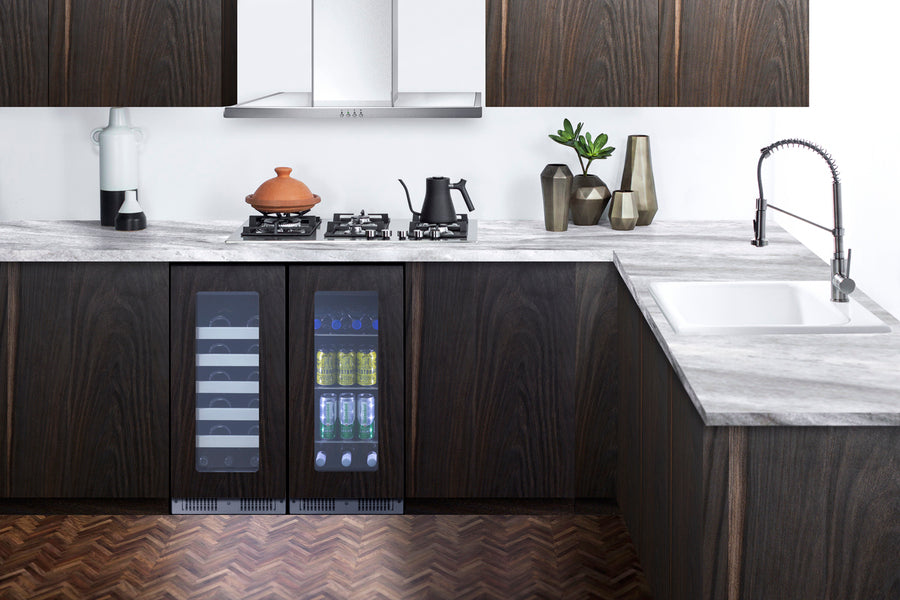

- Built-in capable with front-breathing ventilation
- Automatic defrost operation
- Digital thermostat with 41°F–68°F temperature range

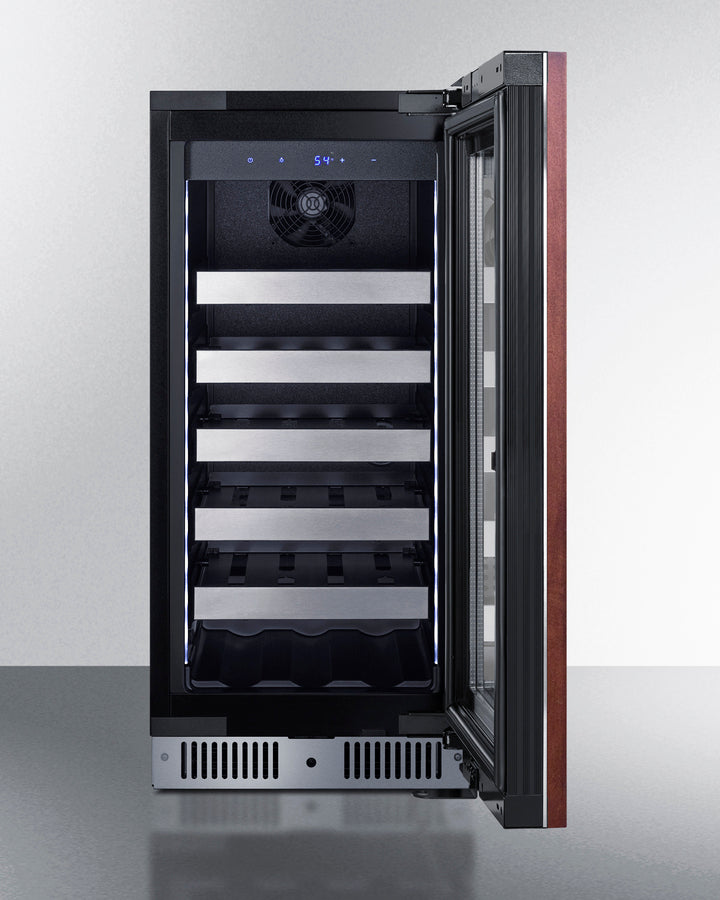

- Five adjustable steel shelves with stainless steel trim
- Interior and exterior fan-forced cooling
- Open door alarm and high-temperature alarm
- Factory-installed keyed lock

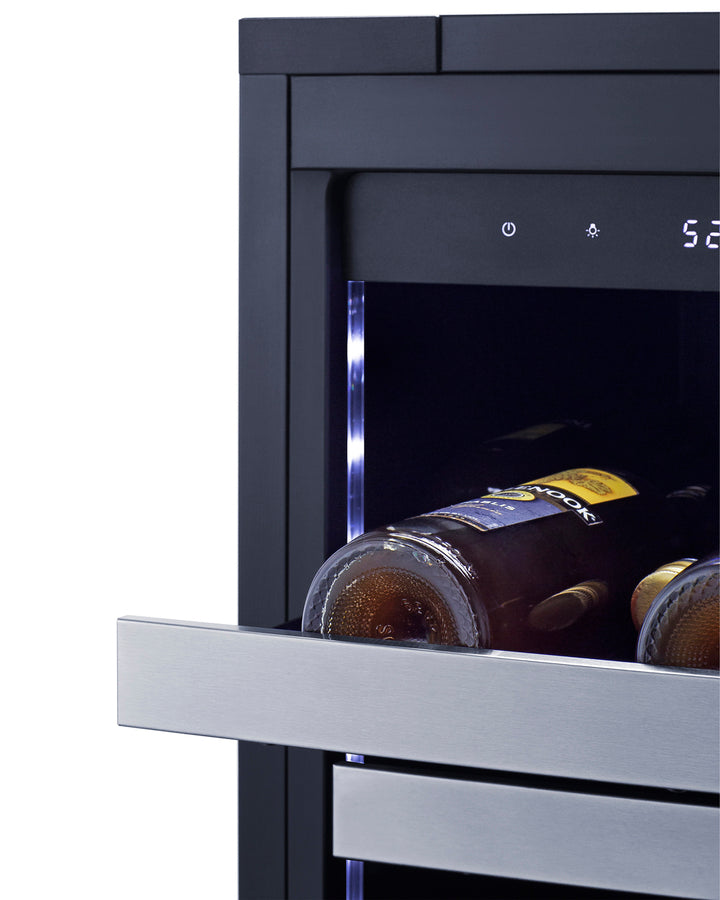

- LED interior lighting with dimmable settings
- Sabbath Mode setting
- Reversible door swing for installation flexibility
Specifications
Overview
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.75" (86 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 22.88" (58 cm) |
| Depth with Panel | 23.63" (60 cm) |
| Depth with door at 90° | 37.5" (95 cm) |
| Bottles | 20 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101156149 |
Refrigerator-Freezer
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Steel |
| Shelf Qty | 5 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 25.0" (64 cm) |
| Interior Width 1 | 11.5" (29 cm) |
| Interior Depth 1 | 16.75" (43 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 11.5" (29 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Temperature Range | 41°F to 68°F |
| Sabbath Mode | Yes |
| Sound Level | 32.1 dB |
