Summit CK72ADASINKL 72″ Wide All-In-One Kitchenette – ADA-Height, 2-Burner Smooth-Top Cooktop, Sink & Faucet, Refrigerator-Freezer, Storage Cabinets
Customer service
Features
- SKU SA-CK72ADASINKL
Summit brings true convenience to smaller spaces with all-in-one combination kitchenettes. Available in a variety of sizes and finishes, these units come fully featured with everything you need for the home foodservice experience, including a 2-burner smooth-top cooktop, sink, storage cabinets, and refrigerator with a freezer compartment.

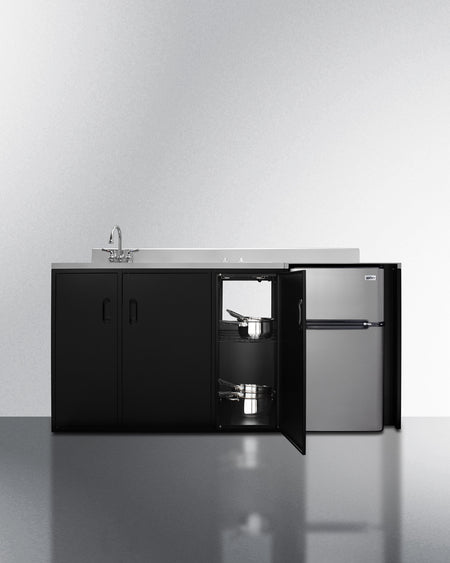

The CK72ADASINKL is 72" wide with a 34" ADA counter height for added accessibility. Its black exterior brings a modern look to efficiency spaces, with added touches of stainless steel on the kitchenette work surface and refrigerator doors. This unit includes a built-in 115V smooth-top cooktop with a rear 7" 900W and a front 5½" 500W heating element. The power cord comes pre-installed for easy setup. The left side of the kitchenette features a compact sink with ready-to-use faucet, while the right side has a stainless steel counter area for food prep. Two single-door cabinets include a removable wire shelf, perfect for storing cleaning supplies, while a French-door style cabinet has a sold removable shelf, ideal for dry storage. Two grooved handles on each side allow for easy movement of the unit.
Unlike many other brands' kitchenettes, all Summit units include a refrigerator with a freezer compartment to cover all of your cold storage needs. The CK72ADASINKL includes the two-door, ENERGY STAR certified CP34BSS, with 3.2 cu.ft. of storage space. A dual evaporator system separately cools the auto defrost refrigerator section and manual defrost freezer compartment for improved overall performance. This model also includes an adjustable glass shelf, door storage, and a crisper.
The CK72ADASINKL is packaged and shipped in one box. Perfect for studio apartments, hotel rooms, dormitories, assisted living facilities, temporary kitchen facilities, and any other location in need of a low maintenance, fully-featured compact kitchenette. For this unit with a sink located on the right of the kitchenette, see the CK72ADASINKR.
Note: For users who prefer a gas connection, Summit model GC22SS can fit inside the existing 11" W x 19 1/4" D cooktop cutout. Additionally, users can remove the center storage cabinet and install an 18" wide ADA compliant dishwasher, such as Summit model DW18SS4ADA.
| Overview | Refrigerator-Freezer | ||
| Nominal Height | 34.0" (86 cm) | Refrigerator Included | CP34BSS |
| Height of Cabinet | 34.0" (86 cm) | Refrigerator Door Swing | RHD |
| Nominal Width | 72.0" (183 cm) | Reversible | Yes |
| Width | 71.75" (182 cm) | Adjustable Shelves | Yes |
| Nominal Depth | 24.0" (61 cm) | Shelf Type | Glass |
| Depth | 23.75" (60 cm) | Shelf Qty | 1 |
| Depth with door at 90° | 42.0" (107 cm) | Crisper Qty | 1 |
| Capacity | 3.2 cu.ft. (91 L) | Crisper Finish | Transparent |
| Defrost Type | Cycle | Crisper Cover | Glass |
| Door | Black/SS | Full Door Shelves | 2 |
| Cabinet | Black | Can Storage | Yes |
| US Electrical Safety | ETL | Thermostat Type | Dial |
| Canadian Electrical Safety | ETL-C | Refrigerant Type | R600a |
| Energy Usage/Year | 322.0kWh/year | Refrigerant Amount | 1.16 oz. |
| Other Energy Info | Cooktop is 20 Amps; Refrigerator-Freezer is 1.1 Amps | High Side PSI | 250.0 |
| Amps | 21.1 | Low Side PSI | 88.0 |
| Voltage/Frequency | 115 V AC/60 Hz | Cooking Type | Smooth-Top Cooktop |
| Weight | 174.0 lbs. (79 kg) | Number of Burners | 2 |
| Parts & Labor Warranty | 1 Year | Cooktop Controls | Dial |
| Compressor Warranty | 5 Years | Interior Height 1 | 18.5" (47 cm) |
| UPC | 761101066875 | Interior Width 1 | 15.75" (40 cm) |
| Interior Depth 1 | 15.0" (38 cm) | ||
| Interior Height 2 | 7.5" (19 cm) | ||
| Interior Width 2 | 14.0" (36 cm) | ||
| Interior Depth 2 | 14.0" (36 cm) | ||
| Sink Height | 7.0" (18 cm) | ||
| Sink Width | 12.25" (31 cm) | ||
| Sink Depth | 13.75" (35 cm) |
| BROCHURE | ASSEMBLY DRAWING | SUPPORT | SUPPORT |
