Summit FF61WSSHVADA 24" Wide 5.8 cu.ft. ADA Compliant All-Refrigerator – Stainless Steel
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
Summit Appliance Product Template
Description & Features

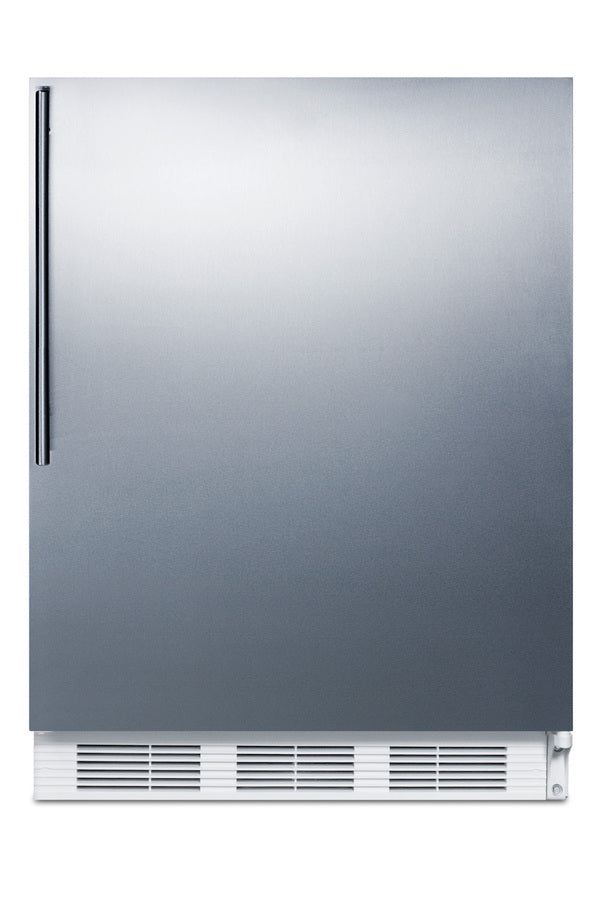

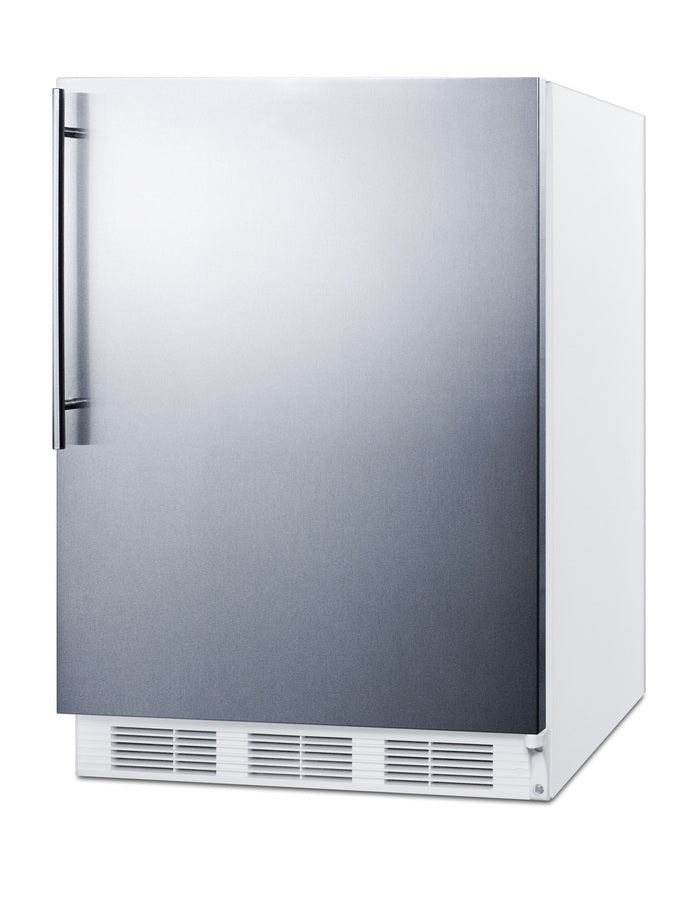

The Summit FF61WSSHVADA is a 5.8 cu.ft. ADA compliant all-refrigerator designed for residential undercounter applications requiring accessible height compliance. Sized at 24" wide with a reduced 32" cabinet height, this ENERGY STAR certified refrigerator features automatic defrost operation, adjustable glass shelving, a large crisper drawer, removable wine shelf, and a stainless steel wrapped door with a modern curved handle. Its compact footprint and reversible door design make it ideal for ADA compliant kitchens, apartments, offices, and wet bar installations.
Features
- 5.8 cu.ft. all-refrigerator with ADA compliant height
- ENERGY STAR certified for energy-efficient operation
- Automatic defrost system minimizes maintenance
- Stainless steel wrapped door with curved handle

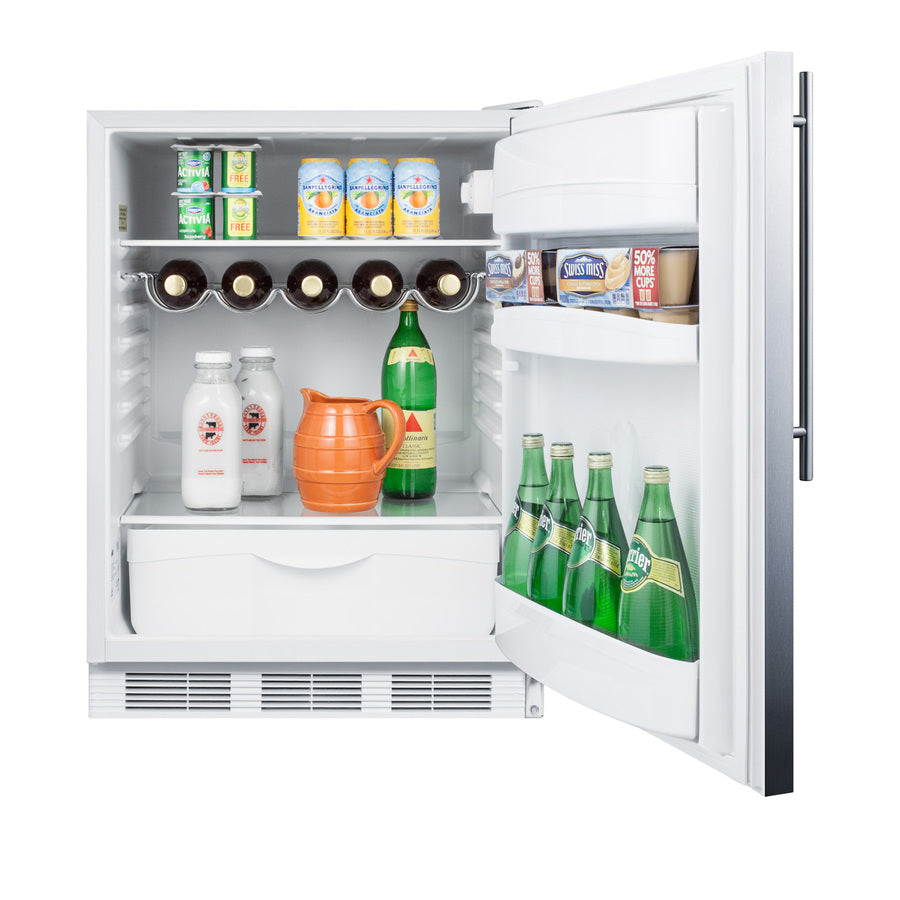

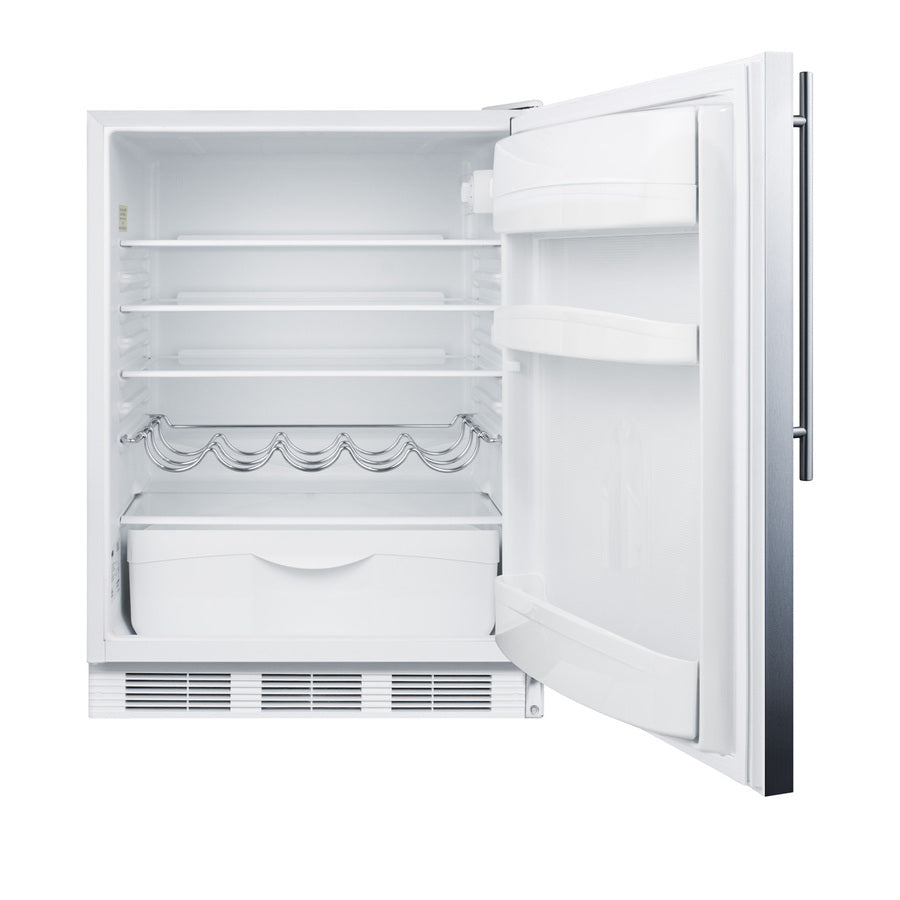

- Adjustable glass shelves, wine shelf, and crisper drawer for flexible storage
- Reversible door swing for installation flexibility
Specifications
Overview
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 23.0" (58 cm) |
| Depth with door at 90° | 45.38" (115 cm) |
| Capacity | 5.8 cu.ft. (164 L) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 280.0kWh/year |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101069869 |
Refrigerator-Freezer
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Crisper Qty | 1 |
| Crisper Finish | Opaque |
| Crisper Cover | Glass |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Wine Bottle Shelves | Yes |
| Thermostat Type | Dial |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Interior Light | Yes |
| Interior Height | 26.25" (67 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
