SUMMIT brings quality and value under the counter with the industry’s largest collection of built-in refrigeration.

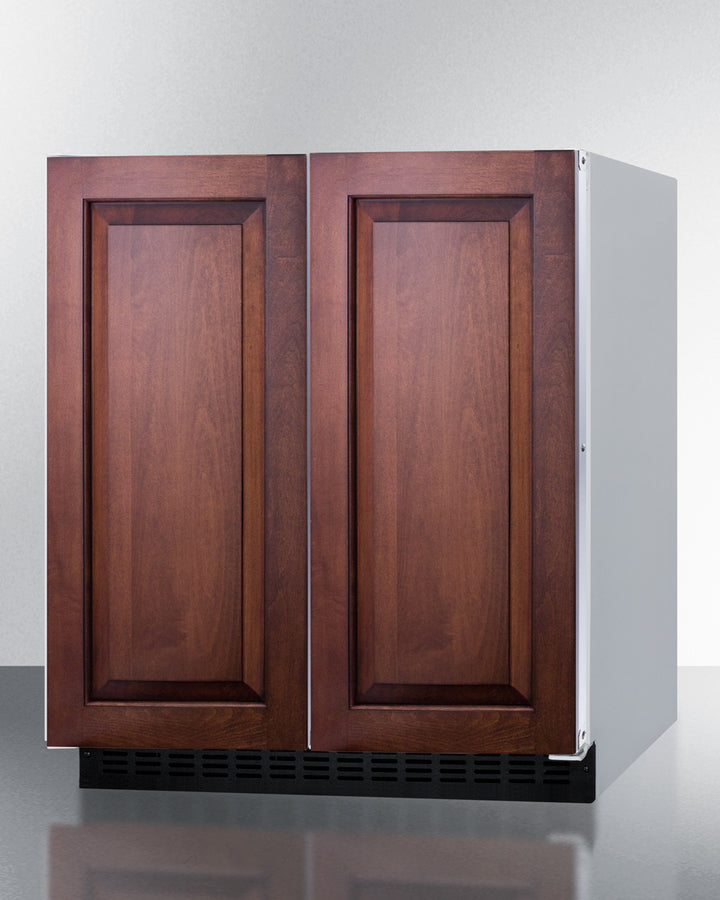

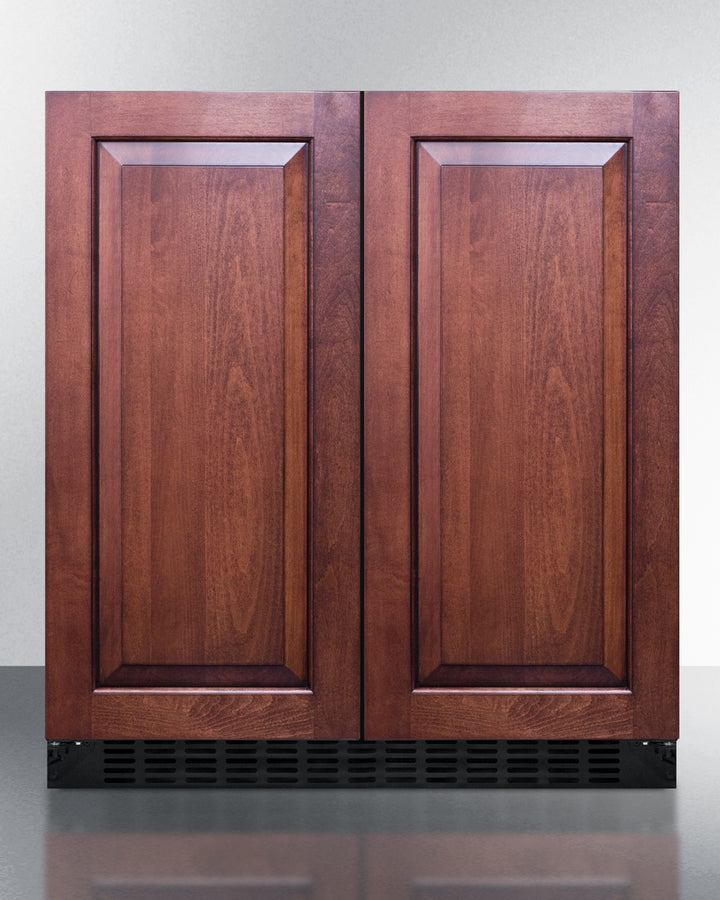

Sized at 30" wide, the FFRF3075WIF is an all-in-one side-by-side refrigerator-freezer. The front breathing design allows built-in installation under counters, while the fully finished white cabinet also enables freestanding use. The French swing doors feature an integrated stainless steel frame that lets users install their own overlay panels for a custom look (panel size: 30" H x 14 5/8" W). Users install their own handles. The sealed back ensures easier cleanup with added space savings.

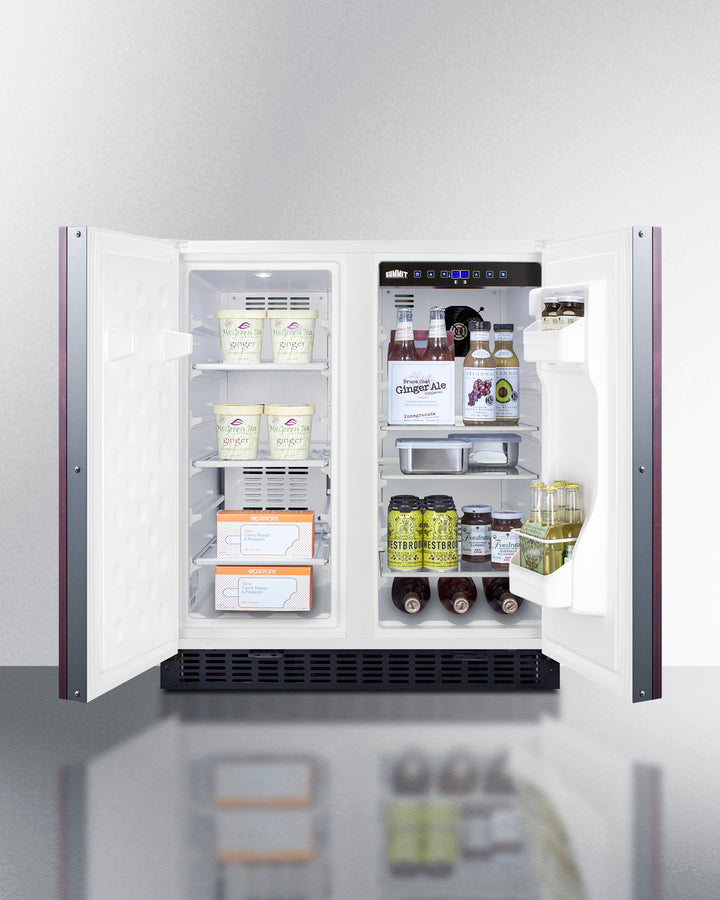

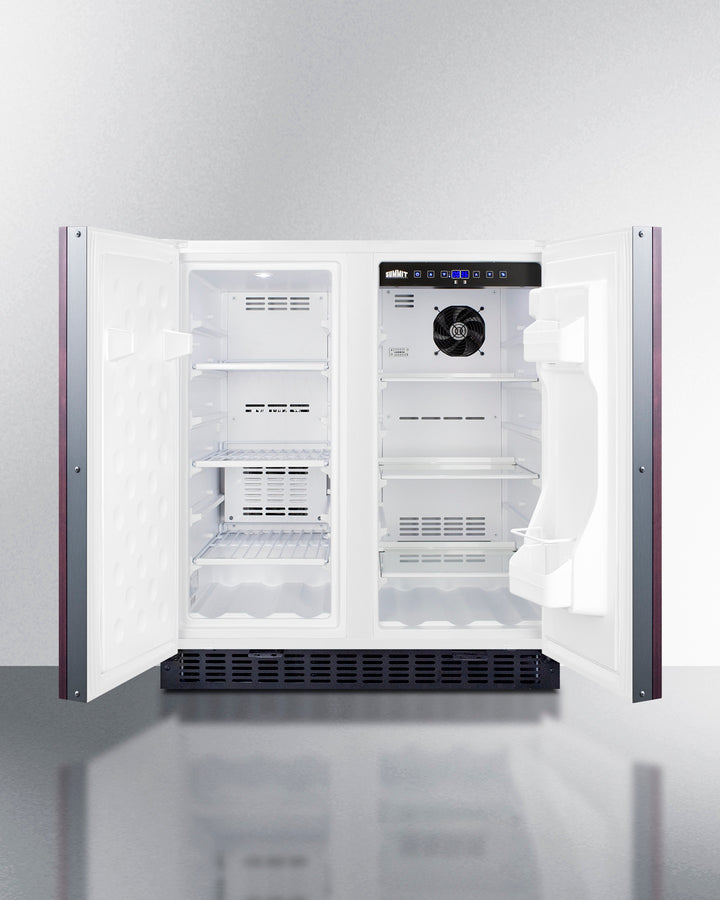

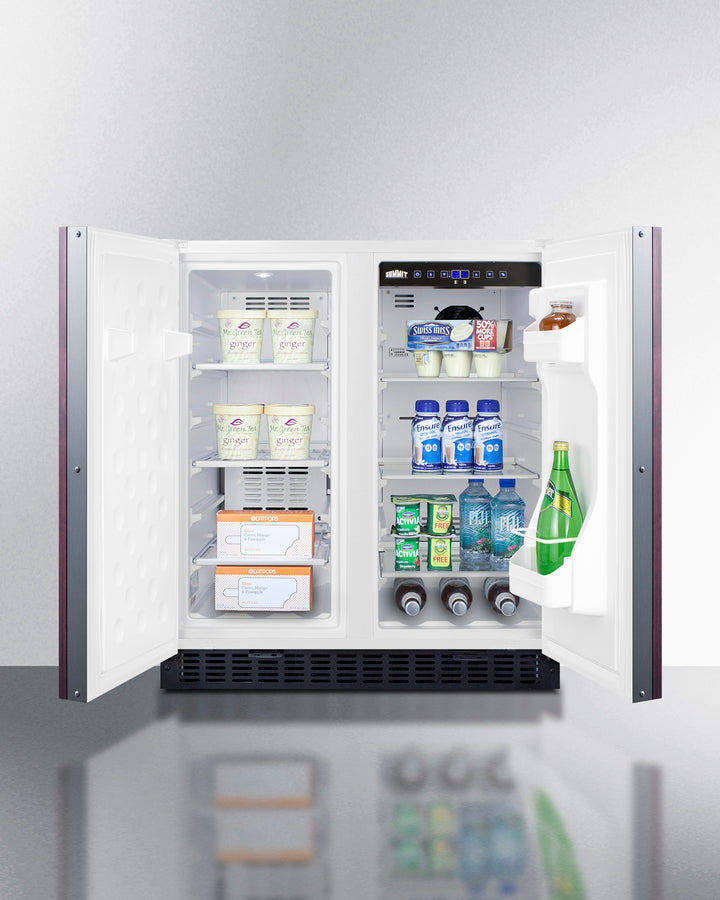

Inside, the FFRF3075WIF features a 2.4 cu.ft. frost-free freezer compartment on the left and a 3 cu.ft. frost-free refrigerator compartment on the right. The refrigerator includes a digital thermostat allowing users to manage the temperature in each compartment, with a readout in Celsius or Fahrenheit for added convenience. Adjustable glass shelves offer cleaner spill-proof storage for fresh food items, while two removable door shelves provide additional storage space as needed. An internal fan assures the compartment is cooled evenly from top to bottom. The freezer compartment includes adjustable wire shelves to ensure proper cold air circulation. Both sides feature LED lighting to provide an attractive, energy efficient presentation. The slotted floor design is ideal for keeping bottles safely in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that allows you to disable certain functions during religious observance.
With its innovative all-in-one design, user-friendly features, and full frost-free operation, the FFRF3075WIF is a great choice for smaller kitchens looking to maximize storage space under the counter.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 34.0" (86 cm) | Door Swing | French |
| Height of Cabinet | 34.0" (86 cm) | Adjustable Shelves | Yes |
| Nominal Width | 30.0" (76 cm) | Interior Light | Yes |
| Width | 29.5" (75 cm) | Refrigerator - Interior Height | 26.63" (68 cm) |
| Nominal Depth | 25.0" (64 cm) | Refrigerator - Interior Width | 12.0" (30 cm) |
| Depth | 24.13" (61 cm) | Refrigerator - Interior Depth | 17.63" (45 cm) |
| Capacity | 5.4 cu.ft. (153 L) | Refrigerator - Capacity | 3.0 cu.ft |
| Defrost Type | Frost-Free | Refrigerator - Shelf Type | Glass |
| Door | Panel-Ready | Refrigerator - Shelf Qty | 3 |
| Cabinet | White | Refrigerator - Full Door Shelves | 2 |
| US Electrical Safety | ETL | Refrigerator - Temperature Range | 36°F to 43°F |
| Canadian Electrical Safety | ETL-C | Freezer - Interior Height | 25.38" (64 cm) |
| Energy Usage/Year | 440.0kWh/year | Freezer - Interior Width | 10.38" (26 cm) |
| Amps | 1.5 | Freezer - Interior Depth | 16.5" (42 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Freezer - Capacity | 2.4 cu.ft |
| Weight | 125.0 lbs. (57 kg) | Freezer - Shelf Type | Wire |
| Parts & Labor Warranty | 1 Year | Freezer - Shelf Qty | 3 |
| Compressor Warranty | 5 Years | Thermostat Type | Digital |
| UPC | 761101054193 | Fan Type | Interior and Exterior |
| Refrigerant Type | R600a | ||
| Refrigerant Amount | 1.45 oz. | ||
| High Side PSI | 270.0 | ||
| Low Side PSI | 105.0 | ||
| Level Legs | 2 | ||
| Freezer - Temperature Range | -4º to 4ºF | ||
| Compressor Step Height | 5.5" (14 cm) | ||
| Compressor Step Width | 21.0" (53 cm) | ||
| Compressor Step Depth | 6.0" (15 cm) |
|
ASSEMBLY DRAWING |
