Summit H30RSS 30″ Wide Under-Cabinet Convertible Range Hood – Stainless Steel Finish

SKU: SA-H30RSS
Regular price $237.70
2-Speed Fan with Stainless Steel Construction — Durable stainless steel cabinet, with high/low fan settings to match ventilation needs and a smooth horizontal finish.
Versatile Exhaust Options — Ships ready for 3¼″ × 10″ rectangular duct, convertible to 6″ or 7″ round duct (transition not included), suitable for rear or top venting.
Low-Profile & Spacious Fit — Measures 5.13″ H × 29.88″ W × 18.63″ D (13 cm × 76 cm × 47 cm) for a neat under-cabinet installation over standard 30″ cooking surfaces.
5.13" H x 29.88" W x 18.63" D
(13cm H x 76cm W x 47cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-H30RSS

Under cabinet range hood:
Low profile design offers a classic way to finish your kitchen

30 inch width:
Sized for use over 30 inch cooking surfaces (additional sizes available)

Convertible design:
Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible

Easy 1-step conversion:
Ships pre-set for recirculating mode but can be converted for ducted use in less than a minute

Versatile top or rear exhaust:
Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)

Stainless steel finish:
Durable construction in an attractive style with a horizontal grain

Two-speed fan:
High and low setting to allow proper ventilation of your kitchen as needed

Light & bulb included:
Includes an incandescent bulb to help illuminate your cooking surface

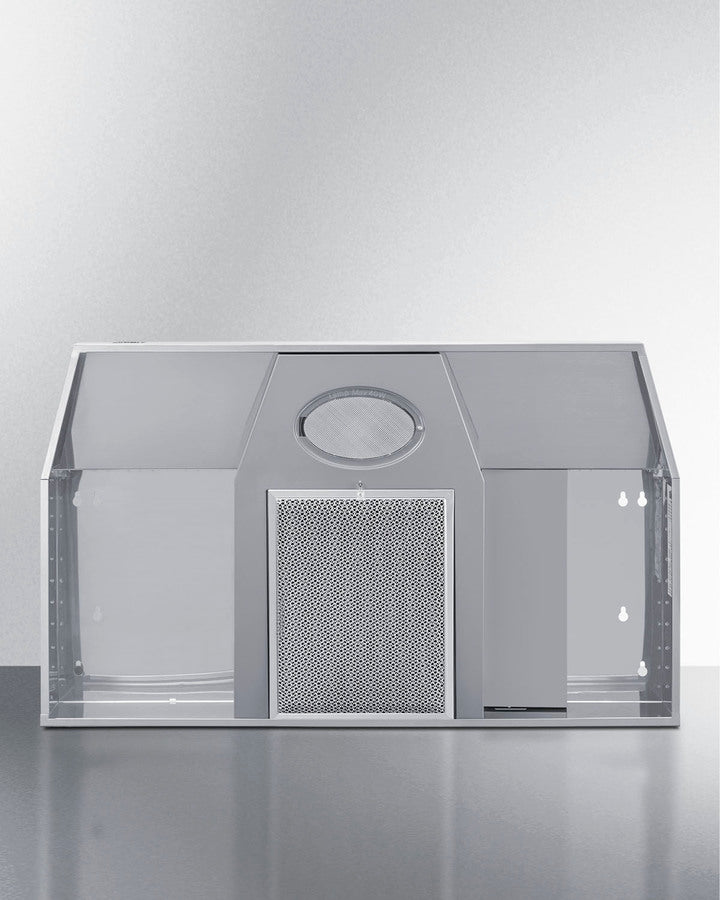

Removable metal grease filter:
Easy installation and detaching allows you to properly clean the filter for optimum efficiency

Charcoal filter included:
Helps absorb grease and odors when using the hood in recirculating mode

Rocker switch controls:
Front-located on/off and high/low switches make it easy to manage the light and fan

Professional installation:
Designed to be hard-wired by a licensed professional

Summit's under cabinet convertible range hoods offer versatile ventilation solutions for every kitchen space.

Model H30RSS is a 30" wide range hood ideal for apartments and other smaller kitchens. It features an attractive stainless steel finish with a horizontal grain. We include a pre-installed light bulb to illuminate your cooking surface. The 2-speed fan is easily managed by a rocker switch with a high and low ventilation setting.

This hood is convertible for horizontal or vertical ducted ventilation or ductless/recirculating ventilation where no exhaust connection to the outside is available. It ships ready for standard 3 1/4" x 10" rectangular ducting, but it can be used with a round 6" or 7" duct with the addition of a transition (not included). We include a metal mesh filter to catch grease and a charcoal filter to absorb smoke and odors when using in recirculating applications. This unit does not include a power cord and is designed to be hard-wired by a licensed professional.

Additional convertible range hoods are available in 18", 20", 24", and 36" sizes, with more styles and choices coming soon. We also manufacture an extensive selection of 30" wide ranges and cooktops, providing complete kitchen solutions at incredible value. Browse the full Summit product line to explore your options.

 Overview

Refrigerator-Freezer

Nominal Height 6.0" (15 cm) Venting Convertible
Height of Cabinet 5.13" (13 cm) Controls Dial
Nominal Width 30.0" (76 cm) Light Yes
Width 29.88" (76 cm) Number of Lights 1
Nominal Depth 19.0" (48 cm) Light Type Incandescent
Depth 18.63" (47 cm) Number of Fan Speeds 2
Cabinet Stainless Steel Duct Shape 3"1/4" x 10" rectangular or 6/7" round with transition
US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Voltage/Frequency 115 V AC/60 Hz

Weight 12.0 lbs. (5 kg)

Parts & Labor Warranty 1 Year

UPC 761101085081

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
