Summit H30RSSADA 30″ Wide Under-Cabinet Convertible Range Hood – Stainless Steel (ADA Compliant)

SKU: SA-H30RSSADA
Regular price $304.00

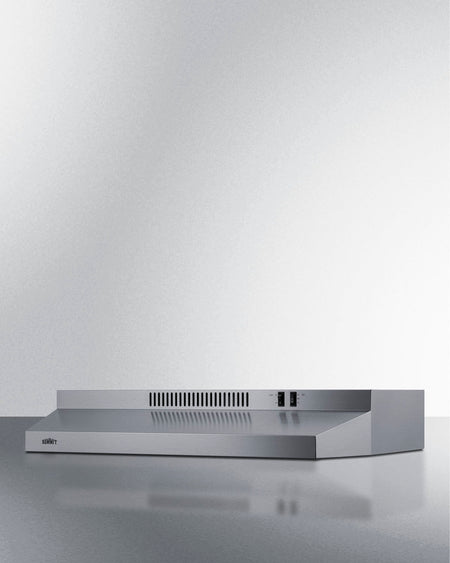

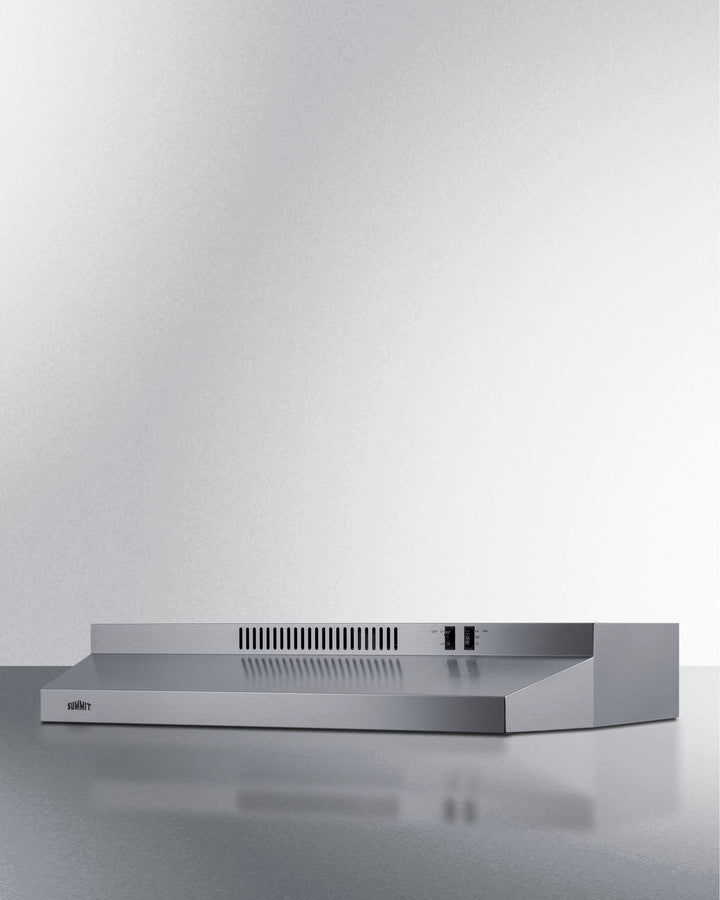

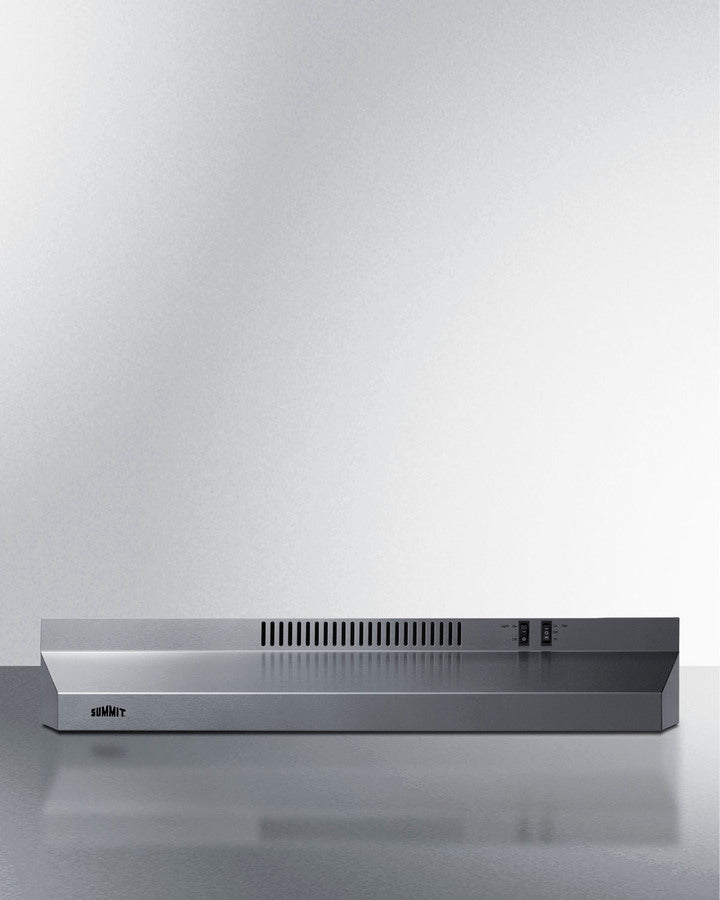

Slim Under-Cabinet Profile & Premium Finish — At just 5.13″ high (13 cm) and made of stainless steel with horizontal grain, the hood offers a sleek, modern look that fits neatly in tight spaces.
2-Speed Fan and Lighting for Effective Ventilation — Includes a high/low rocker switch fan to manage airflow, plus an included incandescent light and metal grease filter for practical cooking-area illumination and maintenance.
Universal Fit for 30″ Cook Surfaces — At 29.88″ W × 18.63″ D (76 cm × 47 cm), this model is sized to go above standard 30-inch ranges or cooktops, making it ideal for apartments, senior-living spaces, and hotel suites.
5.13" H x 29.88" W x 18.63" D
(13cm H x 76cm W x 47cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-H30RSSADA

30" Wide ADA Compliant Range Hood:
Convertible hood designed for ducted or ductless installation in compliant with ADA guidelines

ADA compliant design:

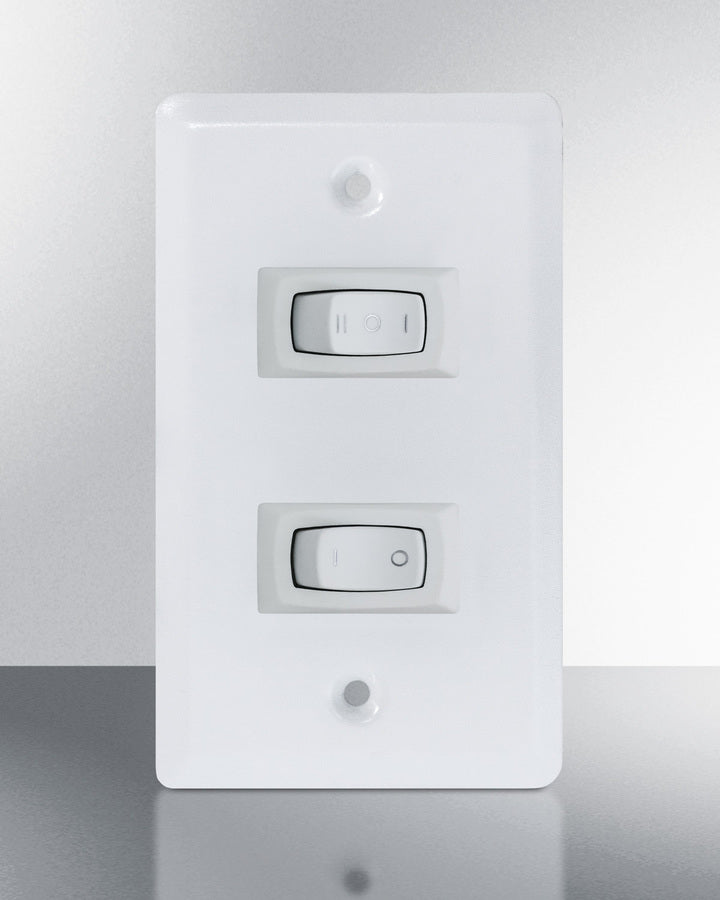

Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included

Under cabinet range hood:
Low profile design offers a classic way to finish your kitchen

30 inch width:
Sized for use over 30 inch cooking surfaces (additional sizes available)

Convertible design:
Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible

Easy 1-step conversion:
Ships pre-set for recirculating mode but can be converted for ducted use in less than a minute

Versatile top or rear exhaust:
Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)

Stainless steel finish:
Durable construction in an attractive style with a horizontal grain

Two-speed fan:
High and low setting to allow proper ventilation of your kitchen as needed

Light & bulb included:
Includes an incandescent bulb to help illuminate your cooking surface

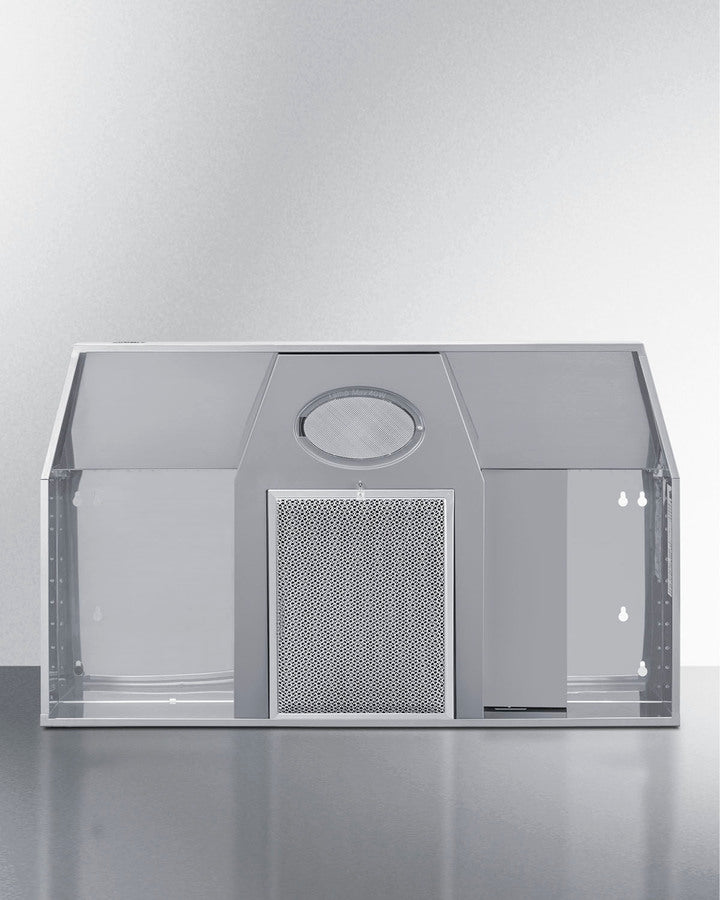

Removable metal grease filter:
Easy installation and detaching allows you to properly clean the filter for optimum efficiency

Charcoal filter included:
Helps absorb grease and odors when using the hood in recirculating mode

Rocker switch controls:
Front-located on/off and high/low switches make it easy to manage the light and fan

Professional installation:
Designed to be hard-wired by a licensed professional

Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines.

Model H30RSSADA is a 30" wide range hood ideal for apartments, senior living kitchens, hotel suites, and other smaller spaces. It features an attractive stainless steel finish with a horizontal grain. We include a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The 2-speed fan is easily managed by a rocker switch with a high and low ventilation setting.

This hood is convertible for horizontal or vertical ducted ventilation or ductless/recirculating ventilation where no exhaust connection to the outside is available. It ships ready for standard 3 1/4" x 10" rectangular ducting, but it can be used with a round 6" or 7" duct with the addition of a transition (not included). We include a metal mesh filter to catch grease and a charcoal filter to absorb smoke and odors when using in recirculating applications. This unit does not include a power cord and is designed to be hard-wired by a licensed professional.

Additional convertible range hoods are available in 18", 20", 24", and 36" sizes, with more styles and choices coming soon. We also manufacture an extensive selection of 30" wide ranges and cooktops, providing complete kitchen solutions at incredible value. Browse the full Summit product line to explore your options.

 Overview

Refrigerator-Freezer

Nominal Height 6.0" (15 cm) Venting Convertible
Height of Cabinet 5.13" (13 cm) Controls Dial
Nominal Width 30.0" (76 cm) Light Yes
Width 29.88" (76 cm) Number of Lights 1
Nominal Depth 19.0" (48 cm) Light Type Incandescent
Depth 18.63" (47 cm) Number of Fan Speeds 2
Cabinet Stainless Steel Duct Shape 3"1/4" x 10" rectangular or 6/7" round with transition
US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Voltage/Frequency 115 V AC/60 Hz

Weight 12.0 lbs. (5 kg)

Parts & Labor Warranty 1 Year

UPC 761101087399

BROCHURE

ASSEMBLY DRAWING

SUPPORT
